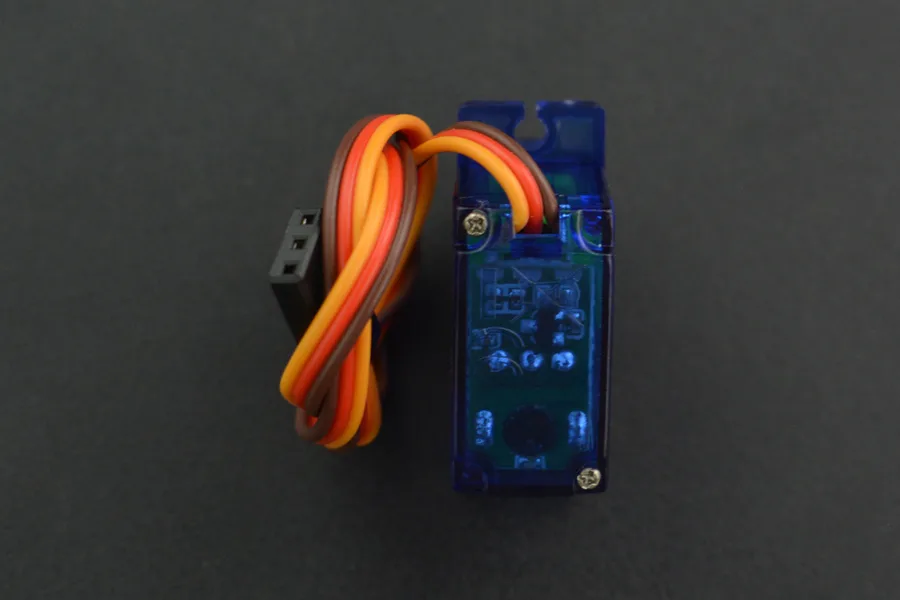

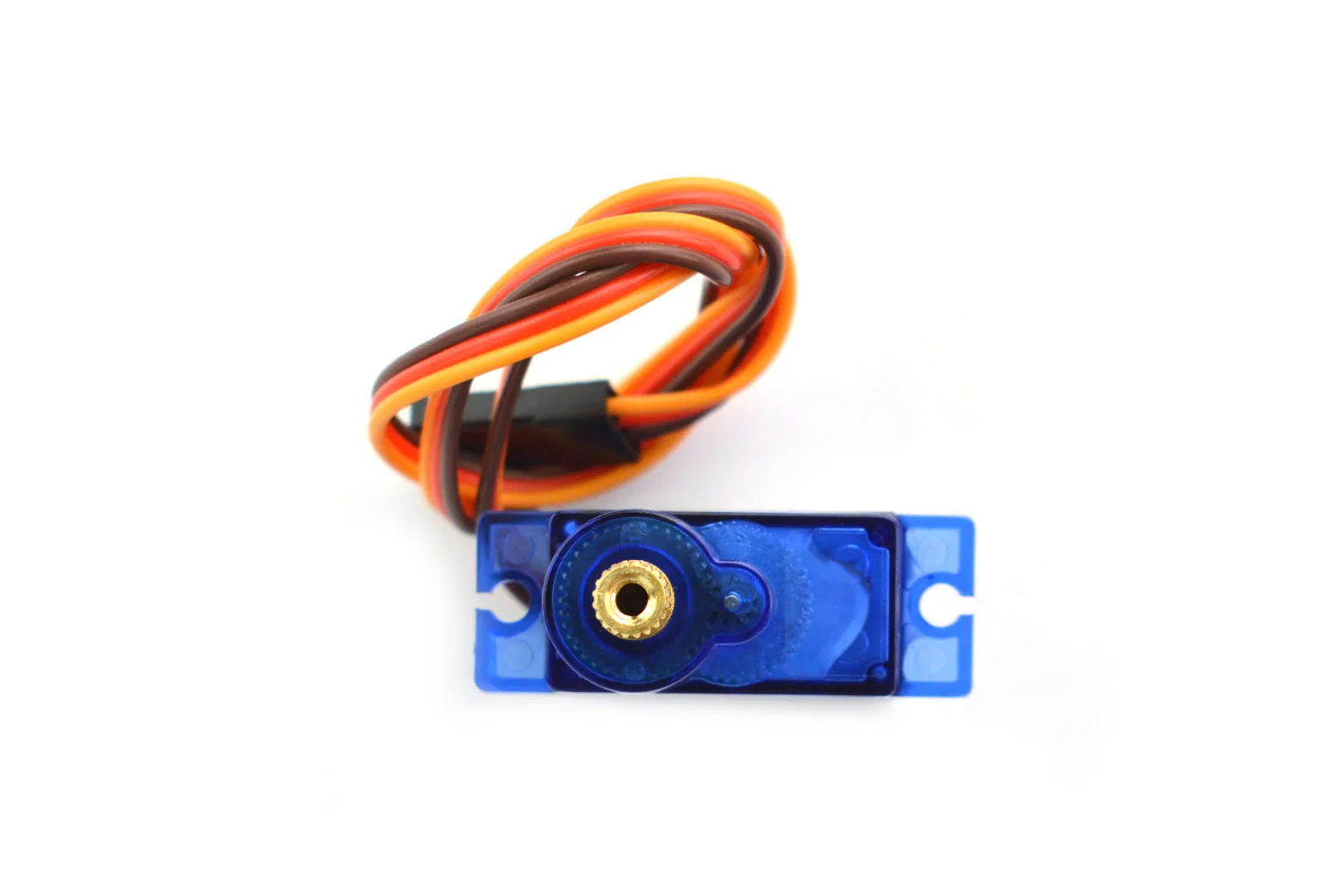

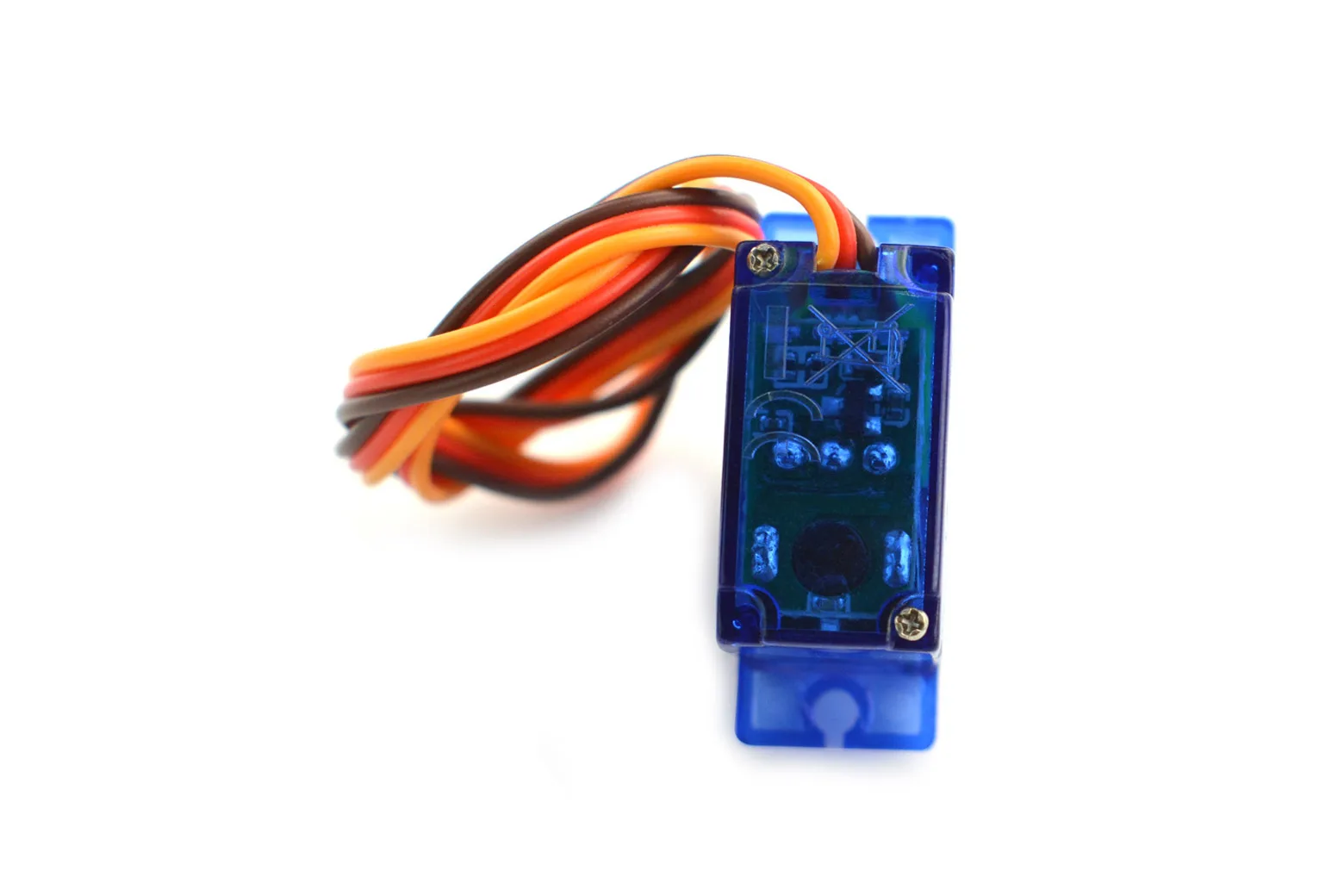

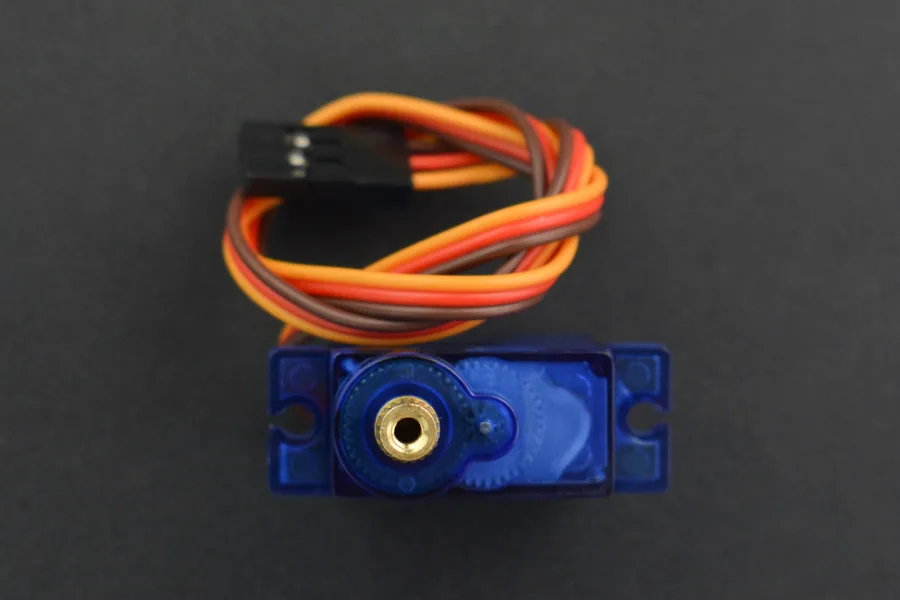

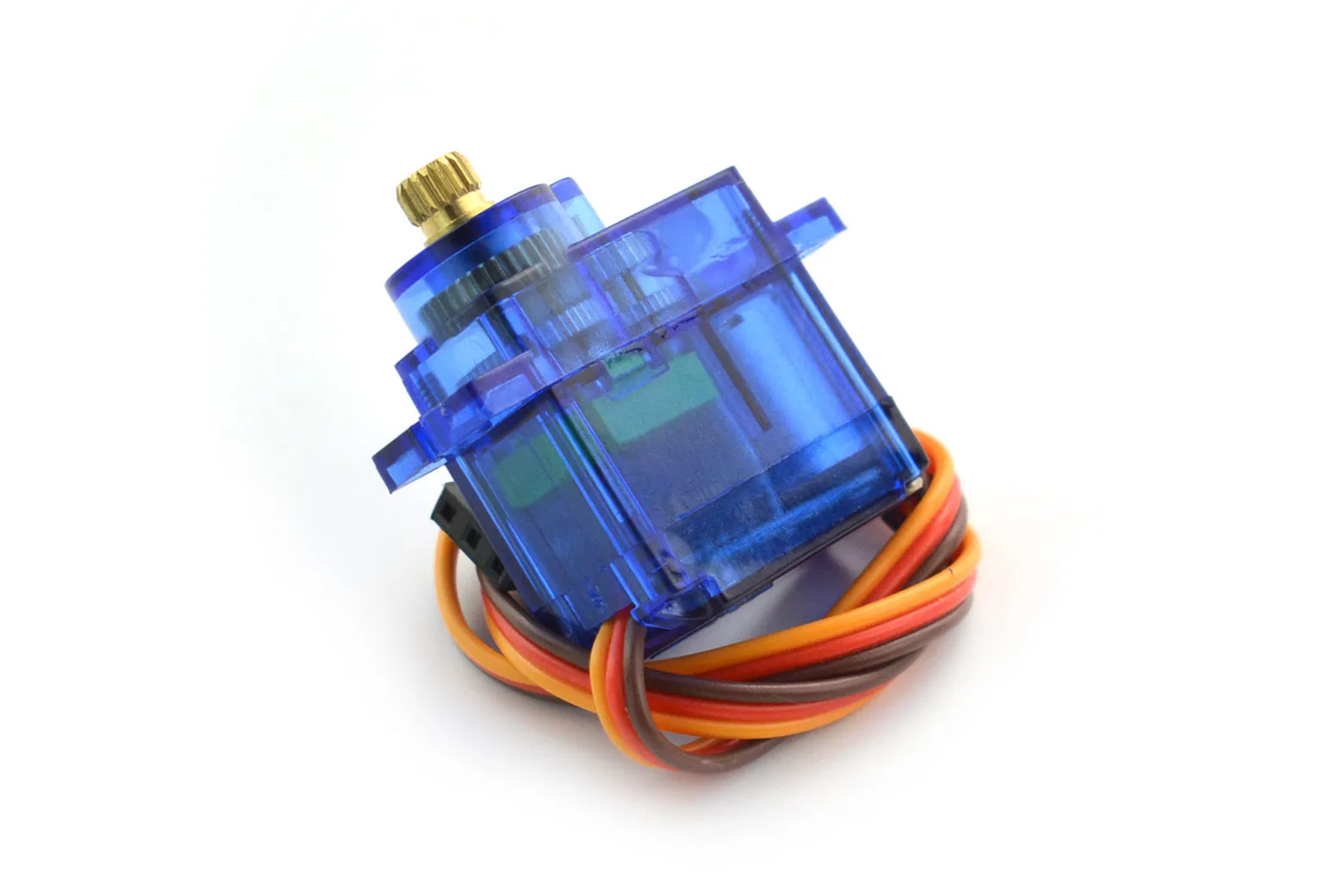

9g Servo for Maqueen Mechanic

The 9g Servo for Maqueen Mechanic is a durable, metal-geared actuator engineered specifically for Maqueen Plus mechanical extensions. It is ideal for students, educators, and hobbyists building reliable motion-based robotics projects.

Durable metal gear construction

Equipped with high-quality metal gearing, this servo provides dependable operation under load. It ensures your Maqueen Plus moves smoothly and avoids jamming during mechanical tasks.

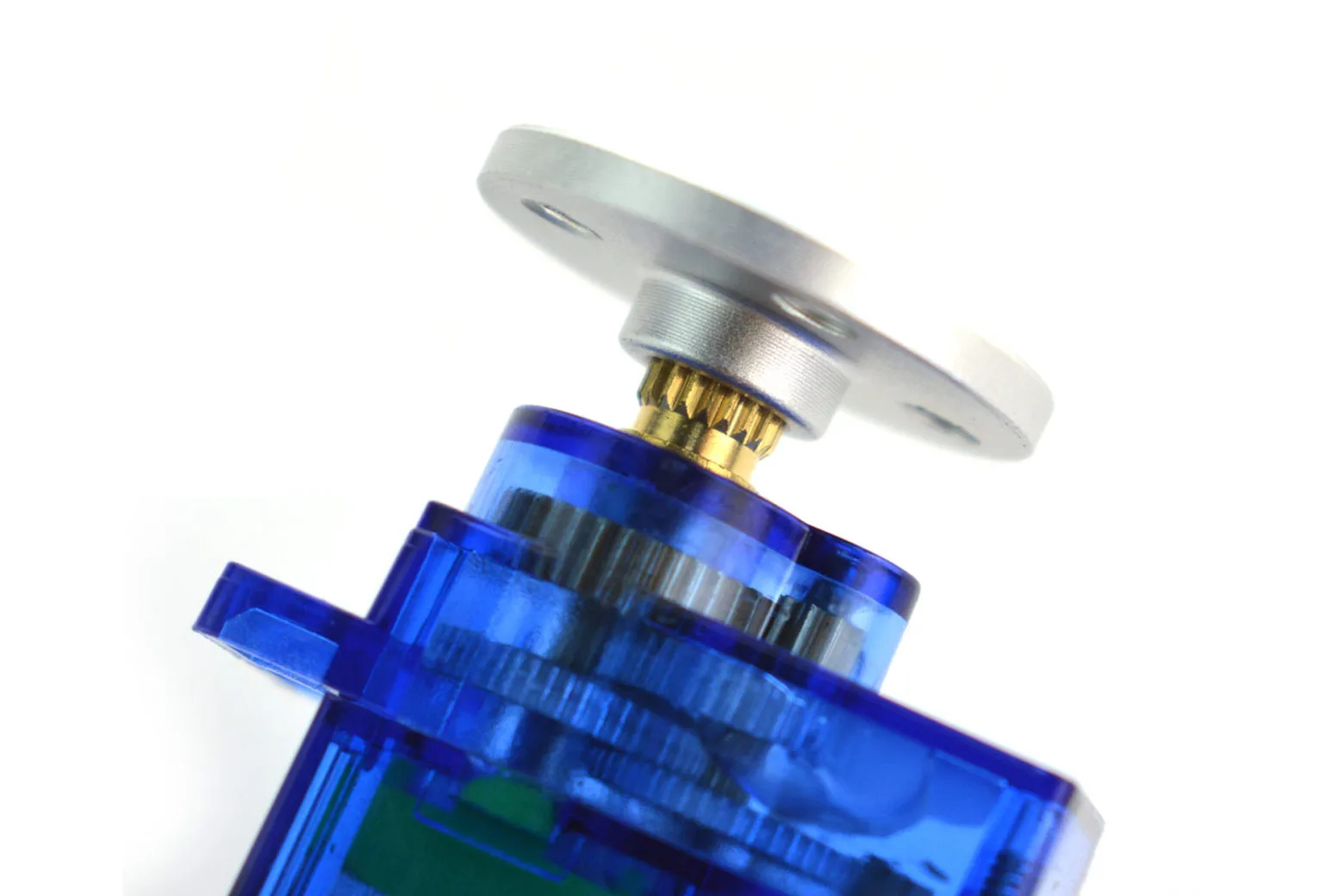

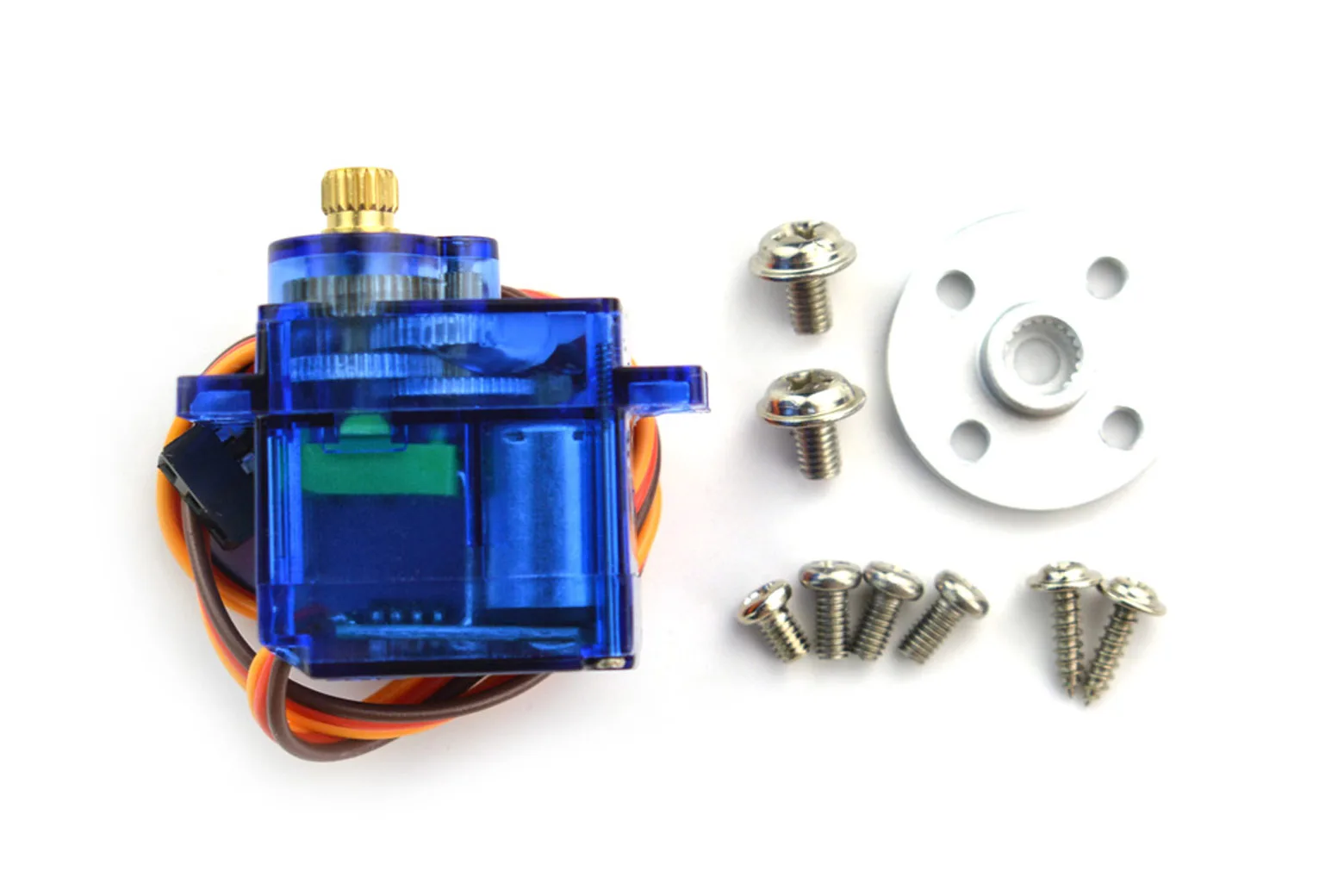

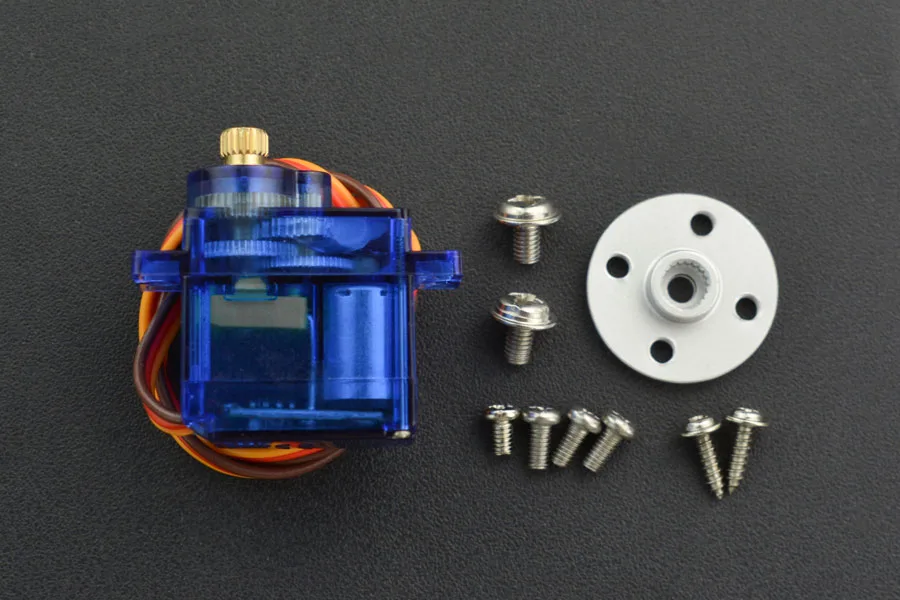

Metal plate with threaded mounting

The servo features a metal connecting plate with four M3 threaded holes. This robust interface makes installation quick, secure, and straightforward on compatible chassis.

Wide rotation with no limit switch

The unit supports a controlled operating angle of 0 to 180 degrees in a clockwise direction. Because it has no internal limit switch, users can also rotate it manually through a full 360 degrees without damage.

Key technical specifications

The servo operates within a 3.6V to 6V supply range with an idle current of 220mA. It weighs 12g (plus or minus 1g) and measures 22.9 x 12.2 x 28.5 mm.

Box contents

The package includes one 9g Servo for Maqueen Mechanic ready for integration into your robotic builds.
