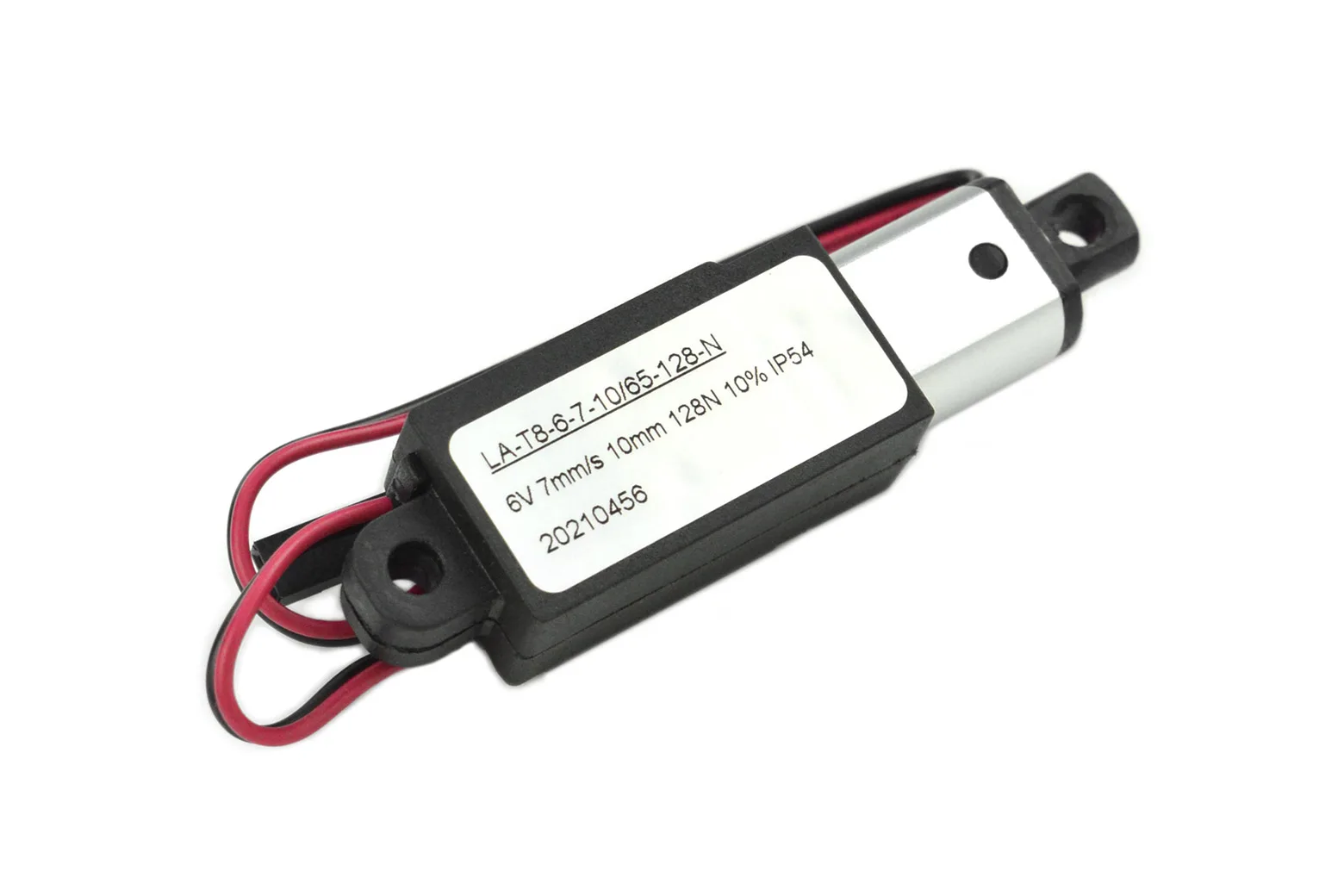

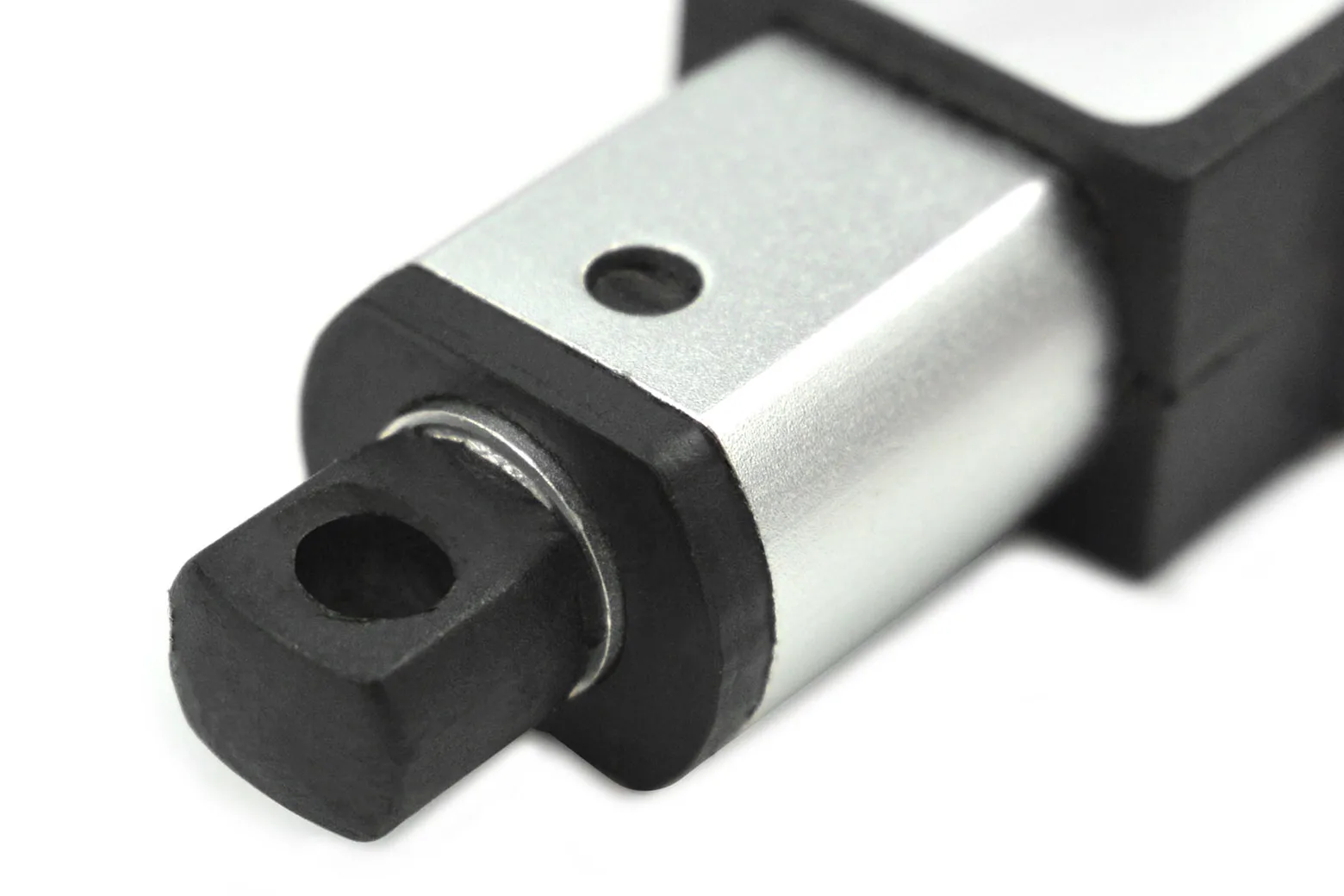

6V Electric Push Rod 10mm-128N
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The 6V Electric Push Rod 10mm-128N is a compact linear actuator designed to deliver substantial force over a short travel distance. Operating at 6V, it provides up to 128N of thrust across a 10mm stroke, making it an ideal choice for makers, students, and hobbyists building automated mechanisms in tight enclosures.

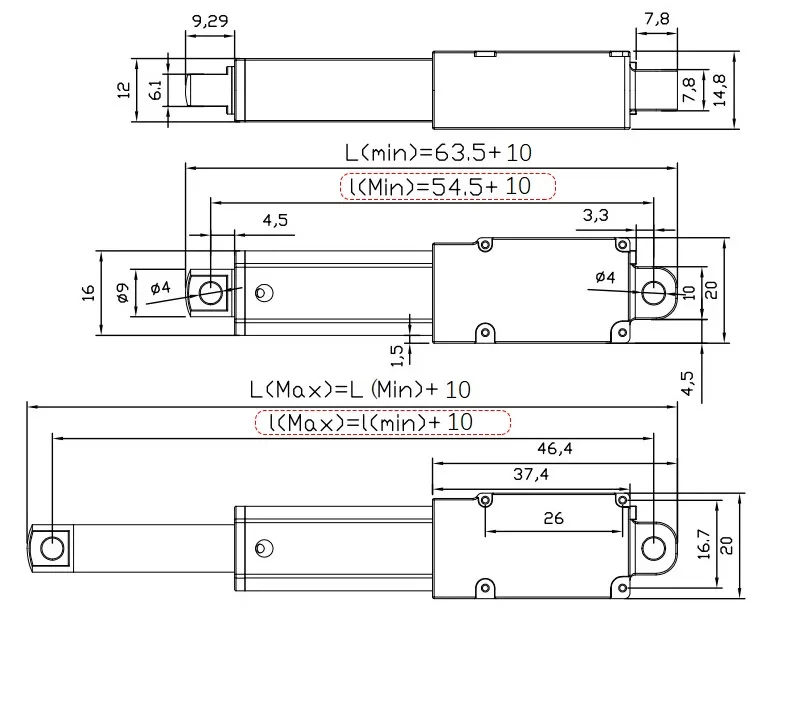

High thrust in compact size
Despite its miniature form factor, this electric push rod delivers up to 128N of thrust when powered by a 6V supply. It provides dependable pushing power for space-constrained builds without adding unnecessary bulk.
Ultra-short precision stroke
The actuator features a 10mm travel stroke and a launch speed of 7mm/s for rapid, controlled linear motion. This short travel makes it well suited for quick latching, triggering, and positioning tasks.
Simple wiring for varied projects
Straightforward wiring allows for fast integration into custom electronics and microcontrollers. It serves a wide range of applications, including access control systems, DIY lifting projects, and electric telescopic poles.
Durable IP54 rated housing
Built with an IP54 waterproof rating, the push rod offers protection against dust and water splashing. It is rated for a 10% operating frequency to ensure reliable performance during intermittent duty cycles.
Specifications
| Rated voltage | 6V |
| Stroke | 10mm |
| Thrust | 128N |
| Launch Speed | 7mm/s |
| Waterproof Rating | IP54 |
| Frequency | 10% |
In the box
| 6V Electric Push Rod 10mm-128N | 1 |
