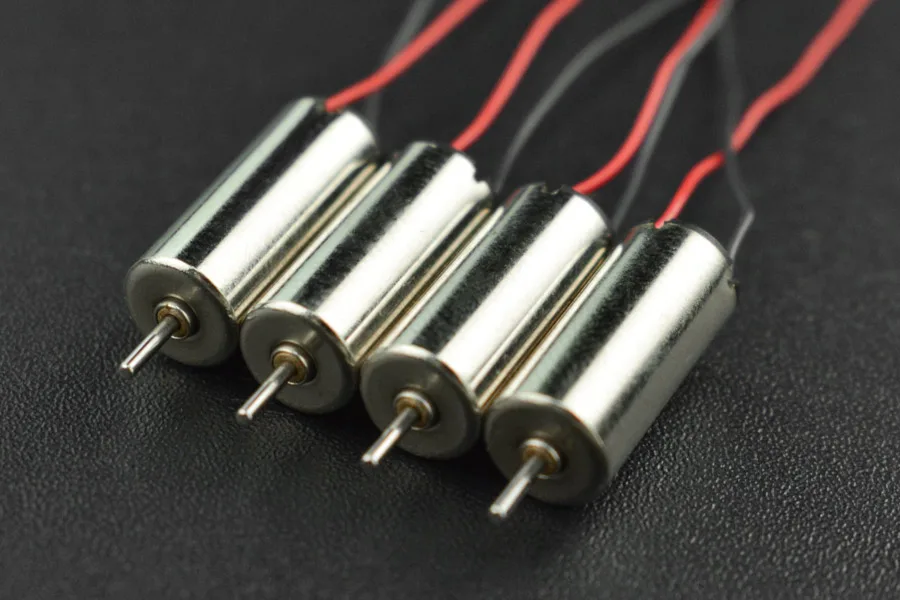

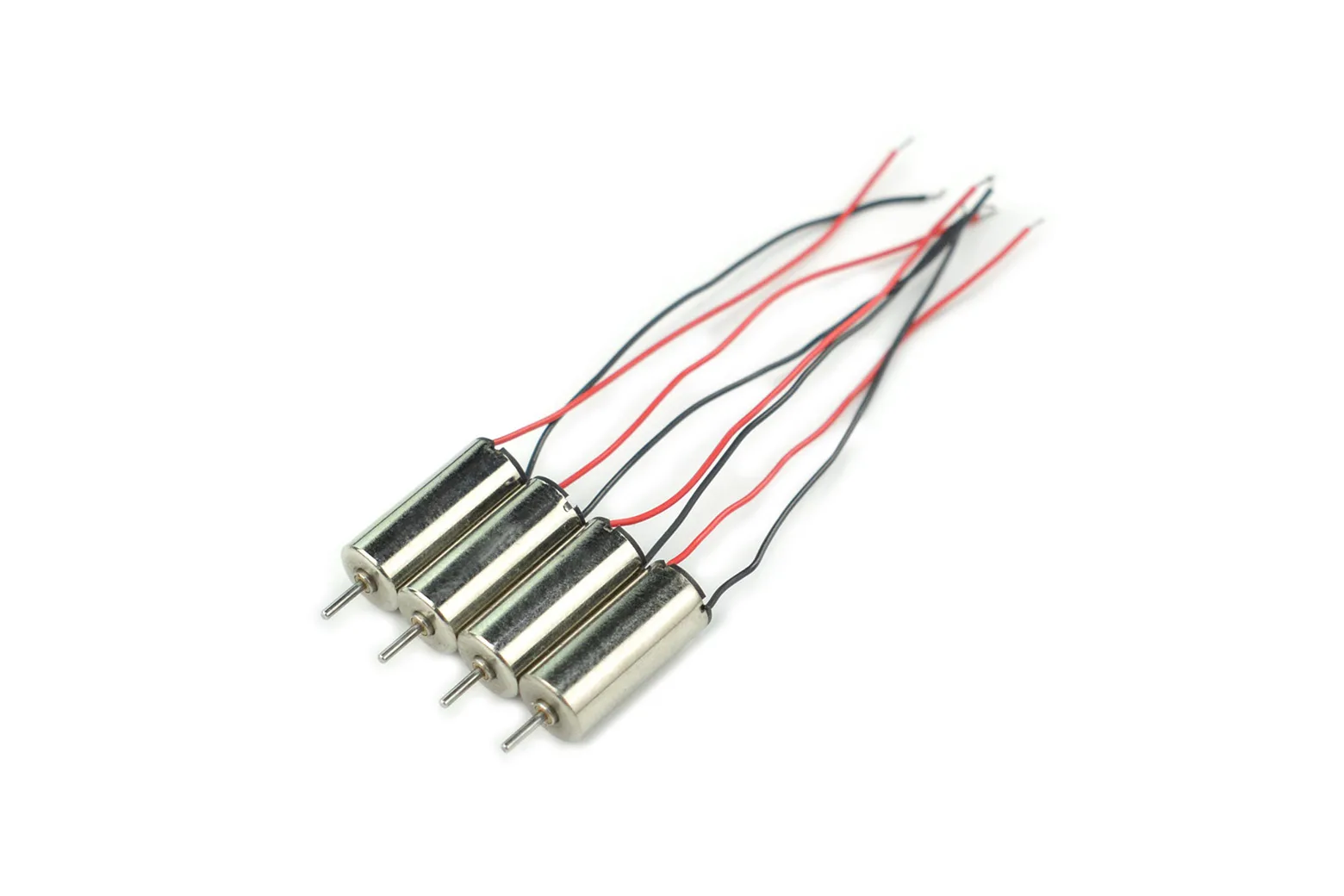

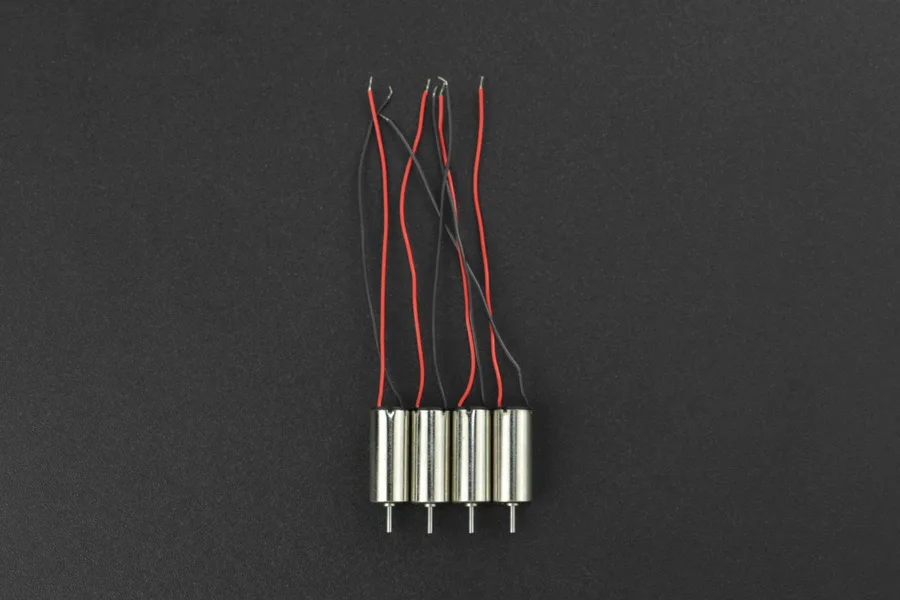

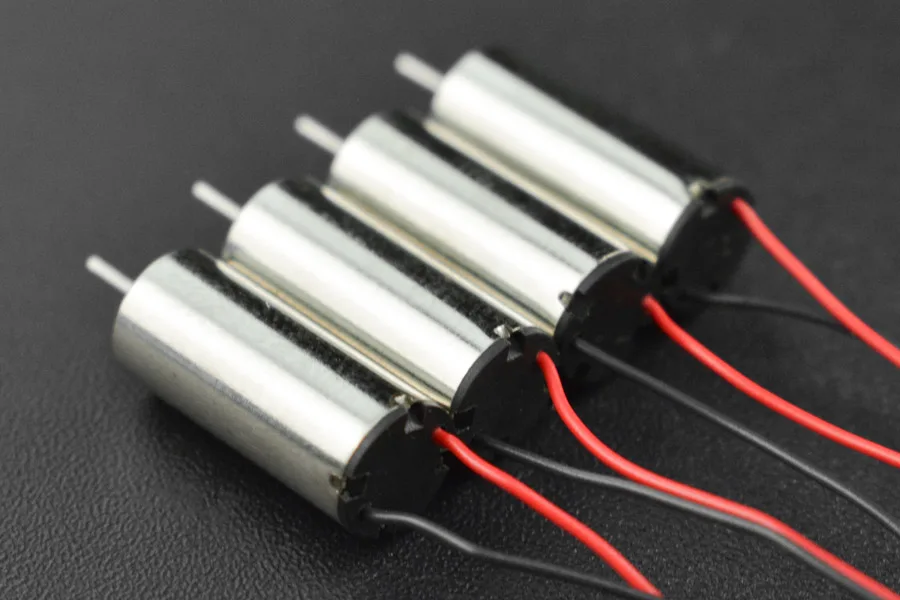

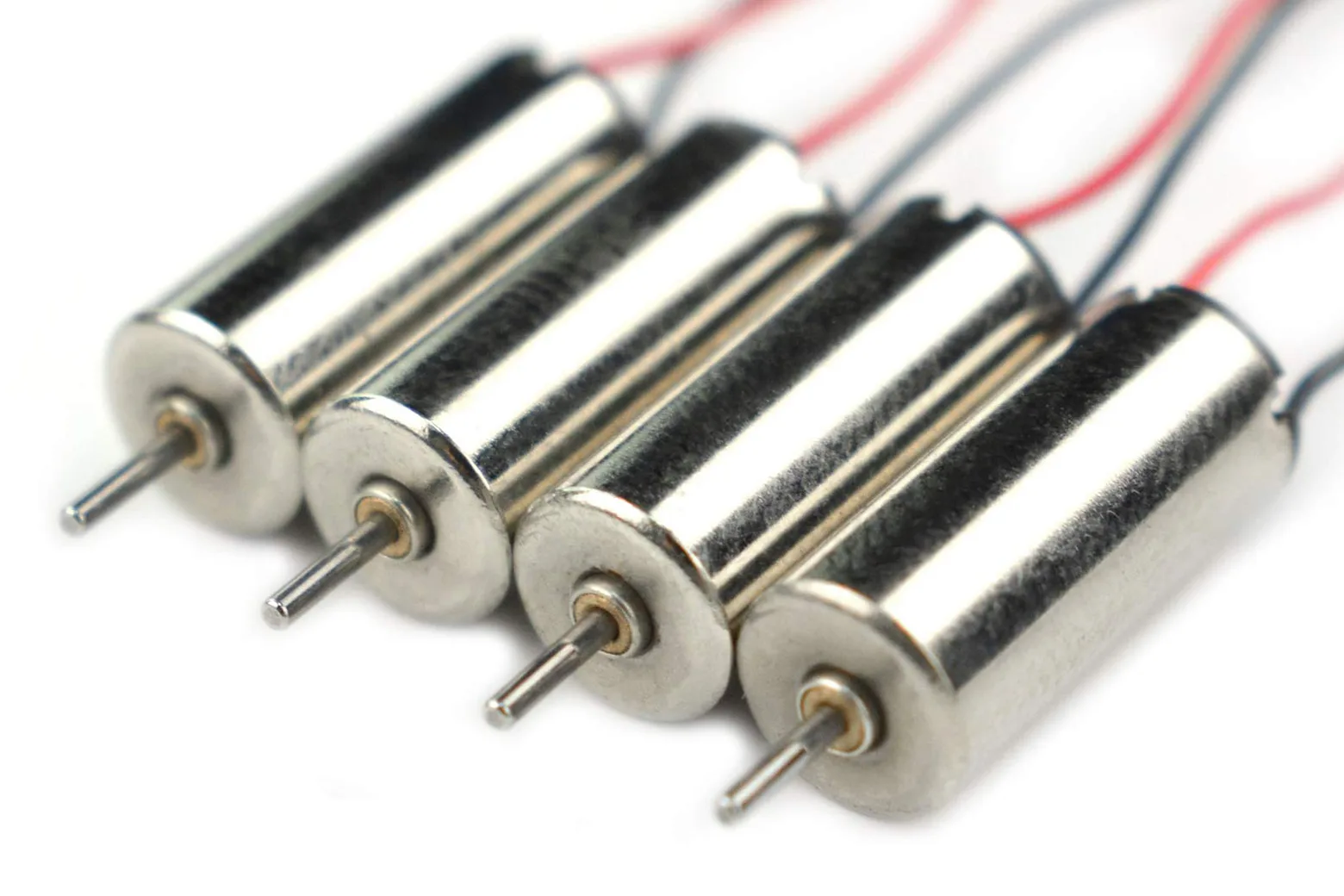

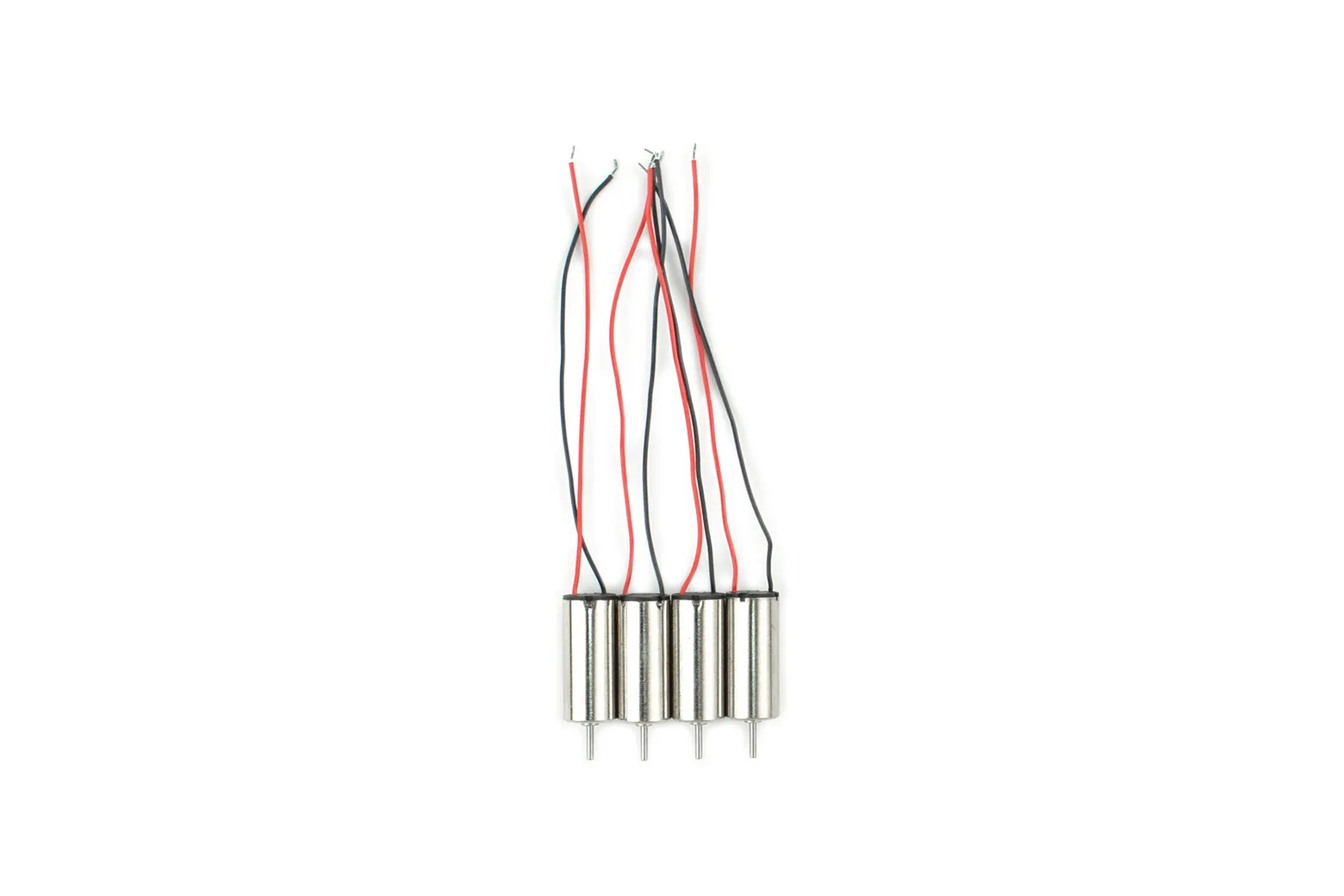

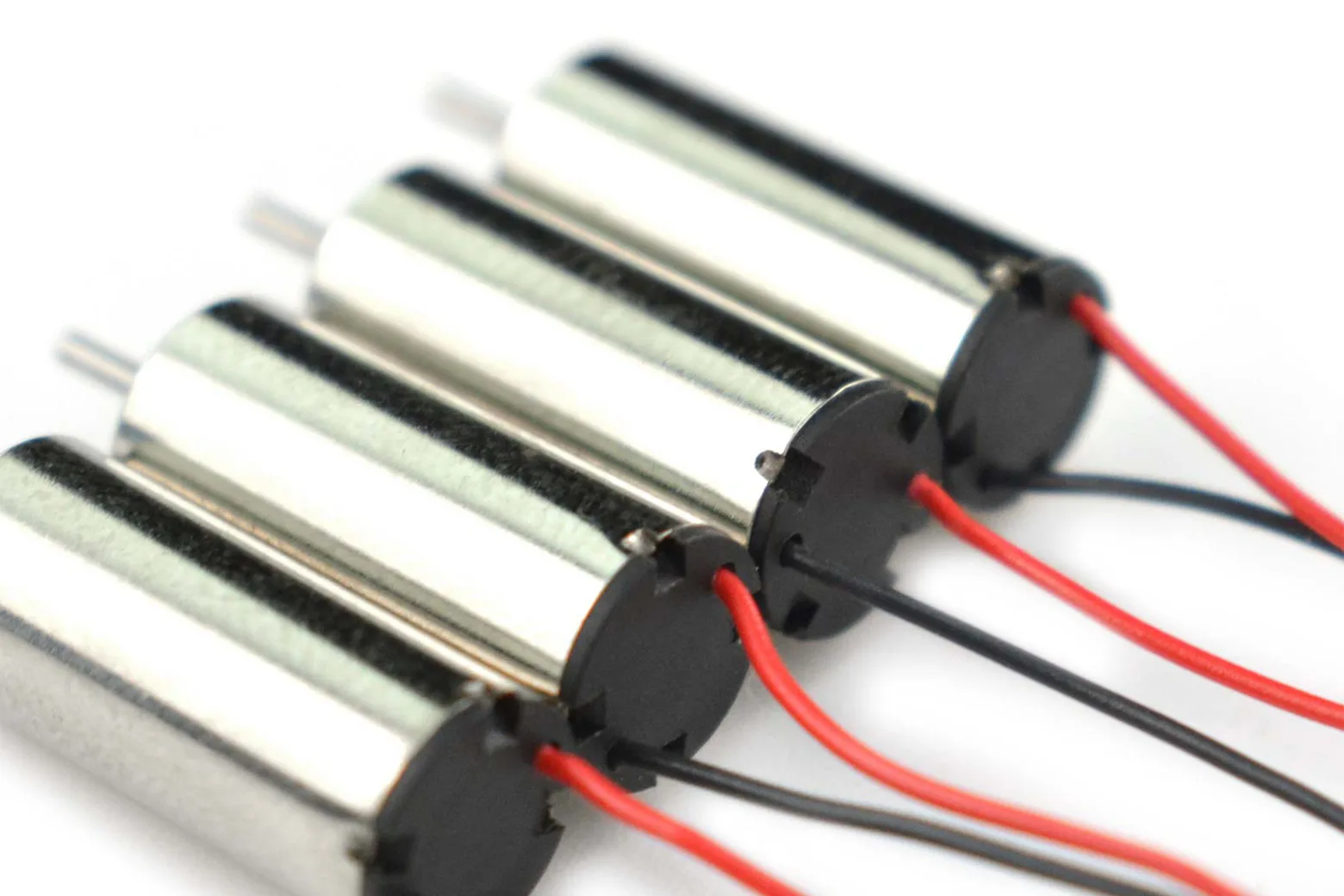

4PCS Coreless Micro Motor (6*14mm)

This pack of four 6x14mm coreless micro motors is engineered to deliver high-speed performance for lightweight DIY drone models and remote control builds. Operating at 3.7V, these compact motors are ideal for students, hobbyists, and makers building custom micro aircraft. Simply pair them with matching propellers to generate the thrust needed for airborne robotics projects.

High-speed coreless performance

These micro motors output up to 55,000 rpm, providing strong rotational power for lightweight drone propulsion. They are designed for high performance while remaining straightforward to wire into your circuit.

Low-voltage power requirements

The motors run at a rated voltage of 3.7V with a rated current draw of 40mA. This makes them well suited for compact, single-cell battery-powered flight systems.

Compact frame and shaft dimensions

Each unit features a 6mm motor diameter and 14mm motor length to fit inside minimal airframes. The motor shaft has a 0.8mm diameter and a length of 4.2mm for mounting micro propellers.

Complete four-piece motor pack

The pack includes four 6x14mm coreless micro motors, supplying a complete set of drives for quadcopter designs or project spares.
