3702 Series Quad Block Motor Mount (43-3)
SKU: ZY-3702-0043-0003
R 206,68Ex Tax: R 179,72
On backorder — Ships in ~21 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

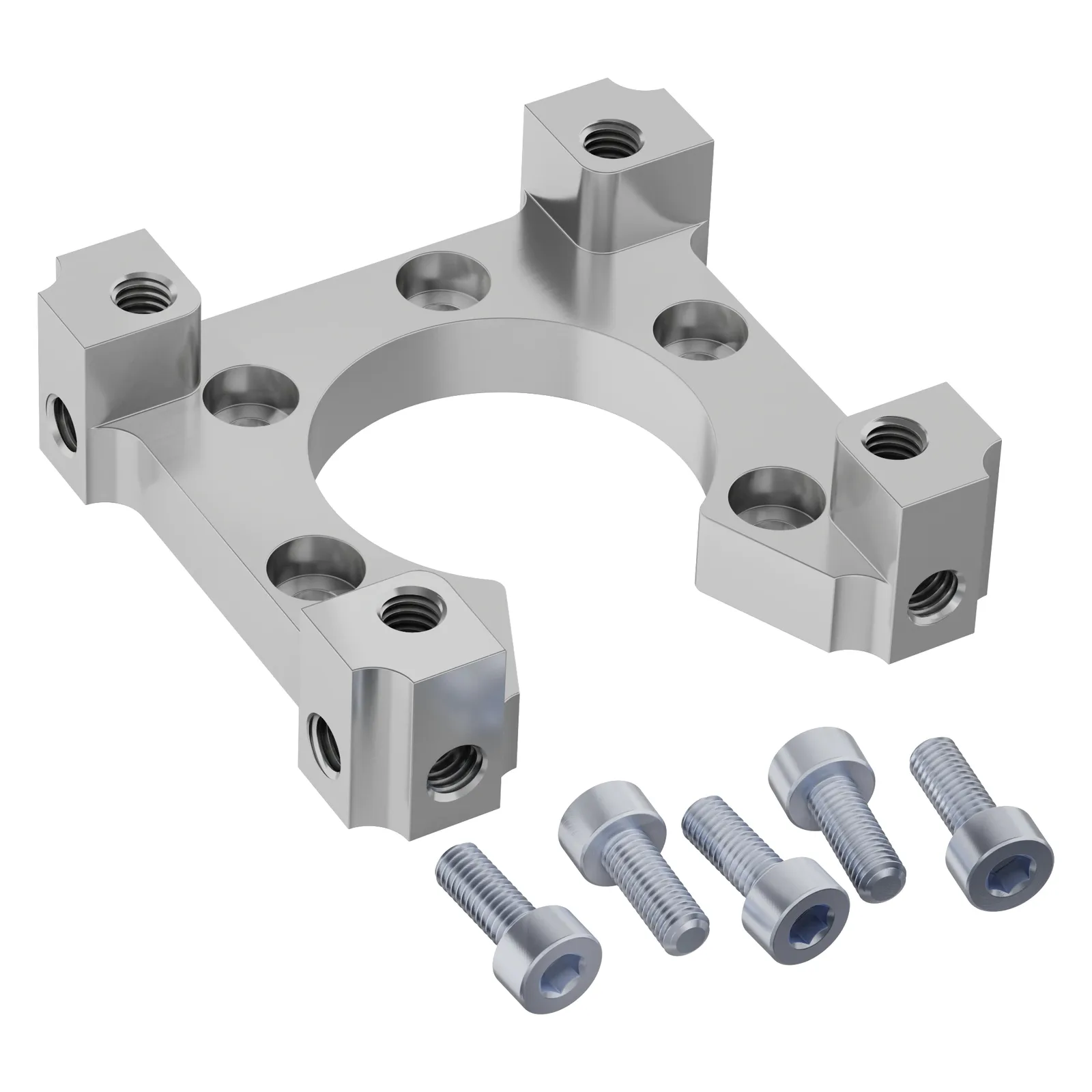

This motor mount aligns with the REV UltraPlanetary Gearbox and provides a plethora of mounting options with your thefirsttool chassis. The C-shaped design provides a thru-way to access the set-screw on the UltraPlanetary’s output hub. If 5mm hex isn’t your thing, beef up the output with our 8mm REX shaft which is able to bolt directly onto the UltraPlanetary using the REV orbital pattern found on the face of their output hub.
thread:M4 x 0.7mm

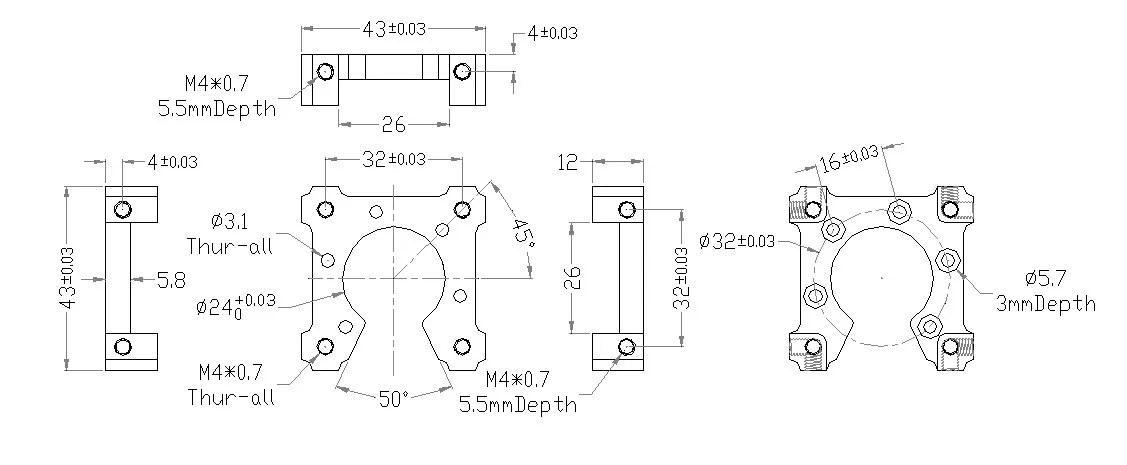

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3702-0043-0003 |
| Weight | 63g |
| Material | zinc alloy |
Reviews
No reviews yet — be the first to review this product.
