3702 Series Quad Block Motor Mount (32-2)

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

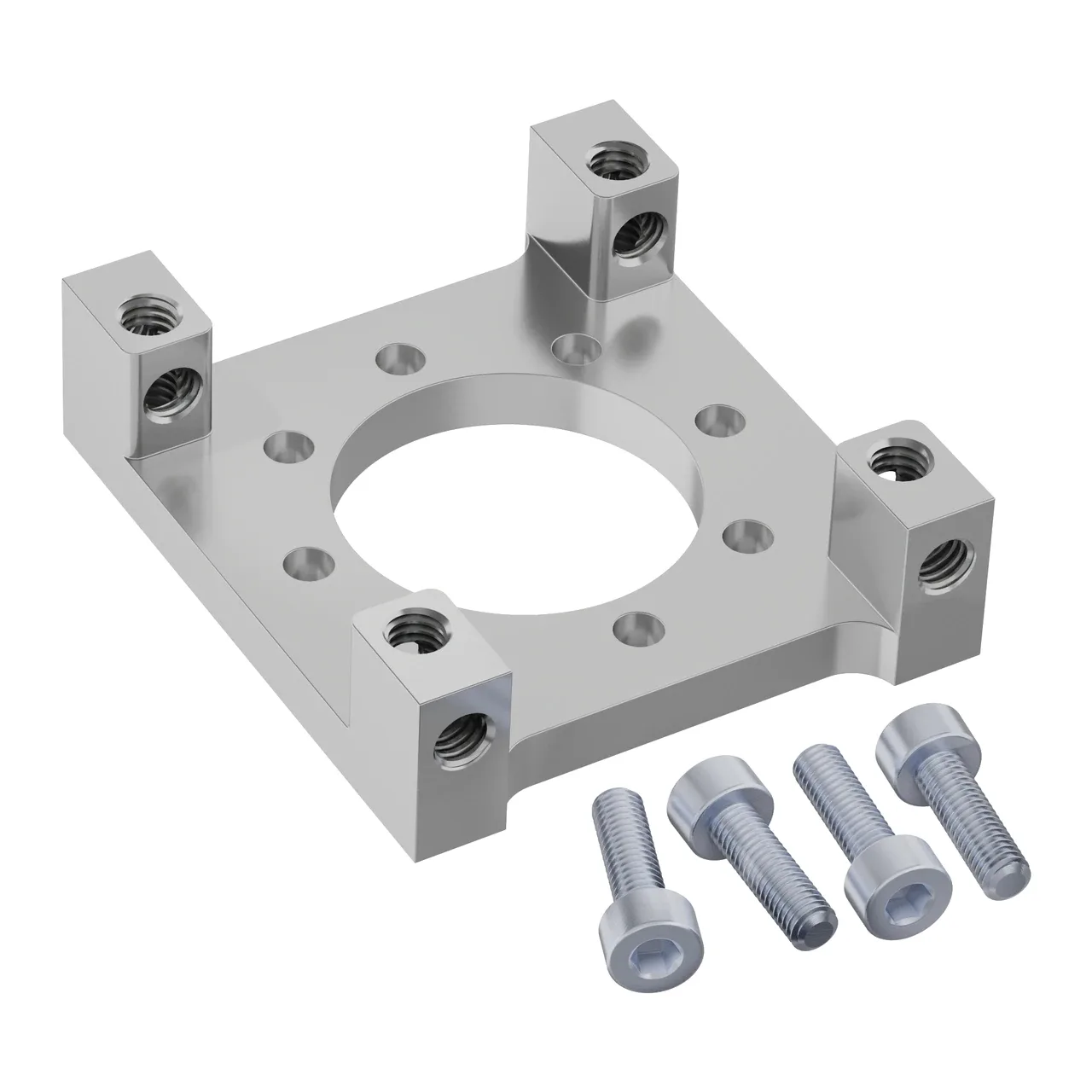

This motor mount is a solid way to fasten a Neverest Orbital 20 or a REV HD Hex Planetary Gear Motor to thefirsttool. The included M3 x 10mm length screws maximize the thread depth found on either motor so that you don’t have to worry about your motors coming loose during the heat of competition. The ‘Quad Block’ style mount provides threaded holes from the sides, commonly used when mounting inside of 3120 Series U-Channel, as well as threaded holes on the face. The threaded posts of this mount have been clearanced so that you can install the motor from either side which allows for additional adjustability when your project calls for a finite change to how far the motor shaft protrudes from the face of the mount.

thread:M4 x 0.7mm

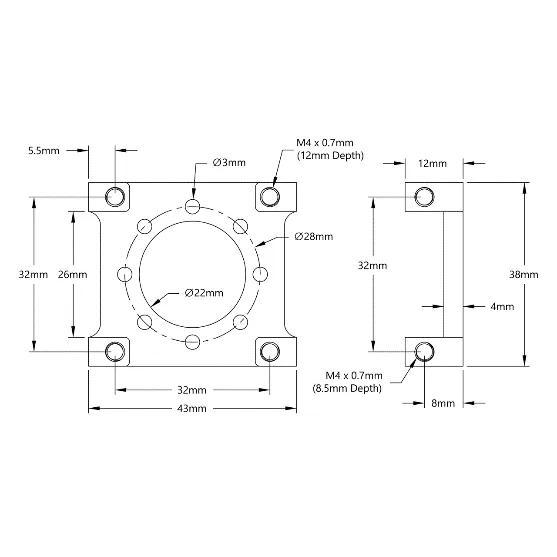

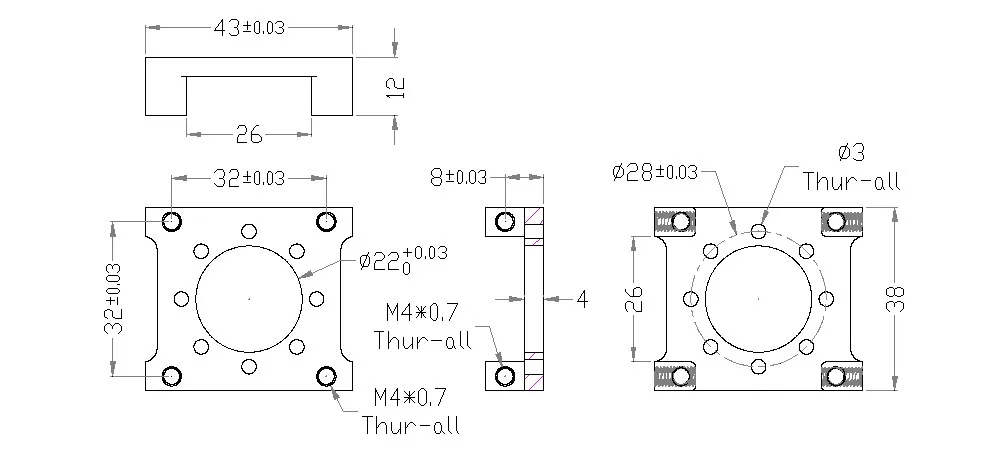

Technical drawing
