3701 Series Face Tapped Motor Mount (16-3)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

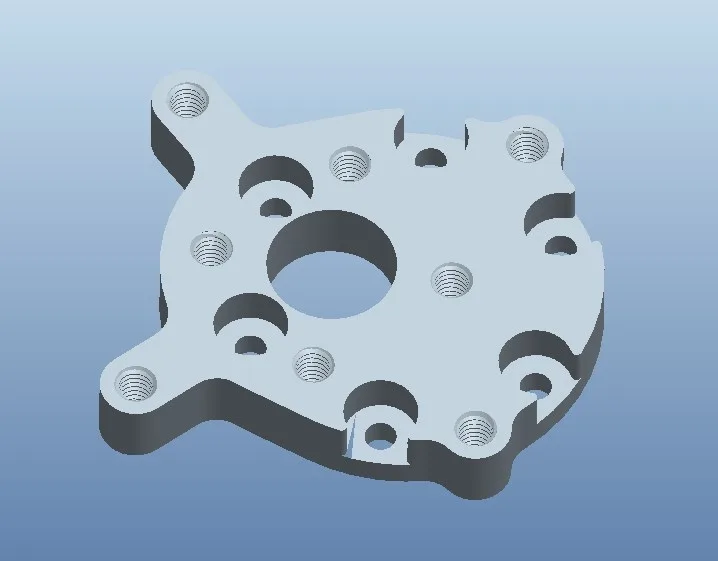

This motor mount is able to fasten to the face of a 5201 Series Gear Motor (as well as other spur motors that contain a 31mm bolt-circle) while centering the output shaft with the thefirsttool pattern. We’ve included (6) M3 x 6mm screws to hold the motor mount to the face of the gearbox. There are threaded holes on both the 16mm pattern as well as the 32mm so that you have options where and how it fastens to your chassis. The 7mm overall width sets the motor back so that the motor shaft bushing remains just below the face of the motor mount.
Motor Compatibility 37mm Spur

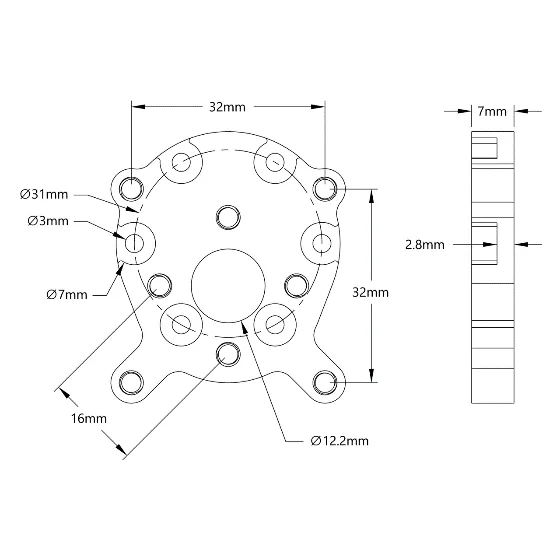

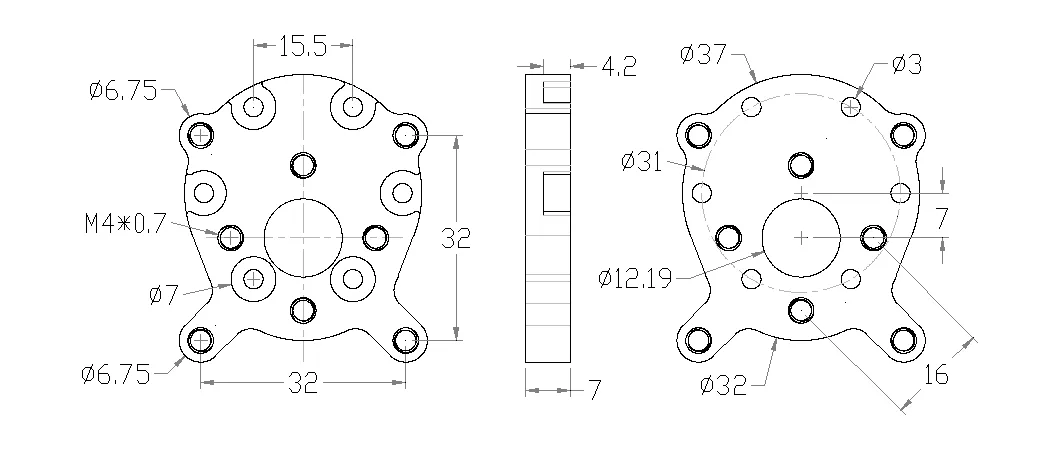

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3701-0016-0003 |
| Weight | 24g |
| Material | Aluminum |
| Finish | Clear Anodized |
Reviews
No reviews yet — be the first to review this product.
