3206 Series Pattern Adaptor (16-5)

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

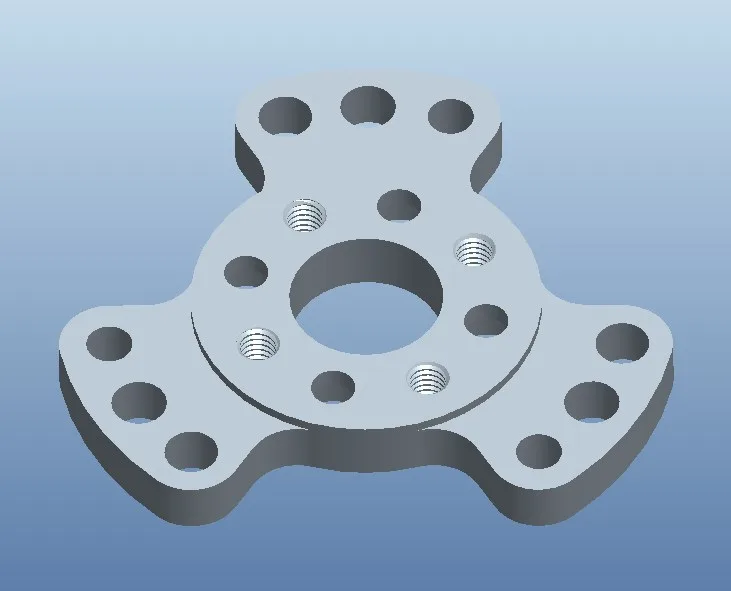

This pattern adaptor is compatible with many of the major players when it comes to wheels for competition robots. The adaptor has the 16mm thefirsttool pattern in the center so that you can fasten a hub or component to the center to drive the wheel of your choice. The thefirsttool pattern has been counterbored to maintain a flat face for the wheel to rest against. Each tab on the adaptor possesses three different holes, each of a slightly different diameter and pattern diameter in order to accommodate the known compatible wheels listed below:

Compatible Andymark Wheels:

4" Stealth Wheels

HiGrip Wheels

SmoothGrip Wheels

6 in. Rubber Treaded Wheel

8 in. Rubber Treaded Wheel

4 in. HD Mecanum Wheel

6 in. SR Mecanum Wheel

Performance Wheels

Pneumatic Wheels

Plaction Wheels

Compatible Nexus Wheels:

4" Aluminum Mecanum Wheels

5" Aluminum Mecanum Wheels

6" Aluminum Mecanum Wheels

8" Aluminum Mecanum Wheels

10" Aluminum Mecanum Wheels

4" Double Plastic Omni Wheel

4" Double Aluminum Omni Wheel

Compatible VEX Wheels:

Mecanum Wheels

Versa Wheels

Traction Wheels

Omni Wheels

Compatible Tetrix Wheels:

Tetrix Max Mecanum Wheels

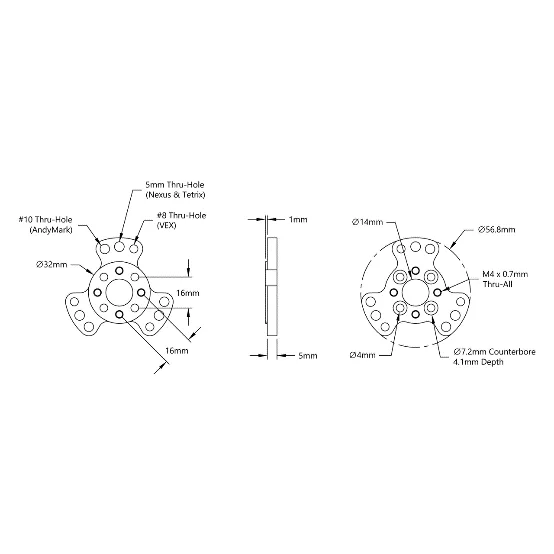

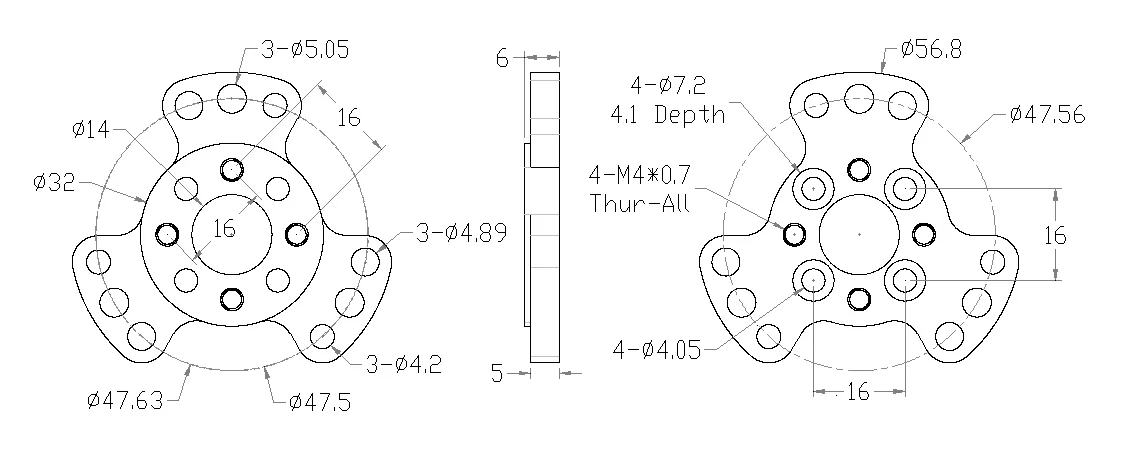

Technical drawing
