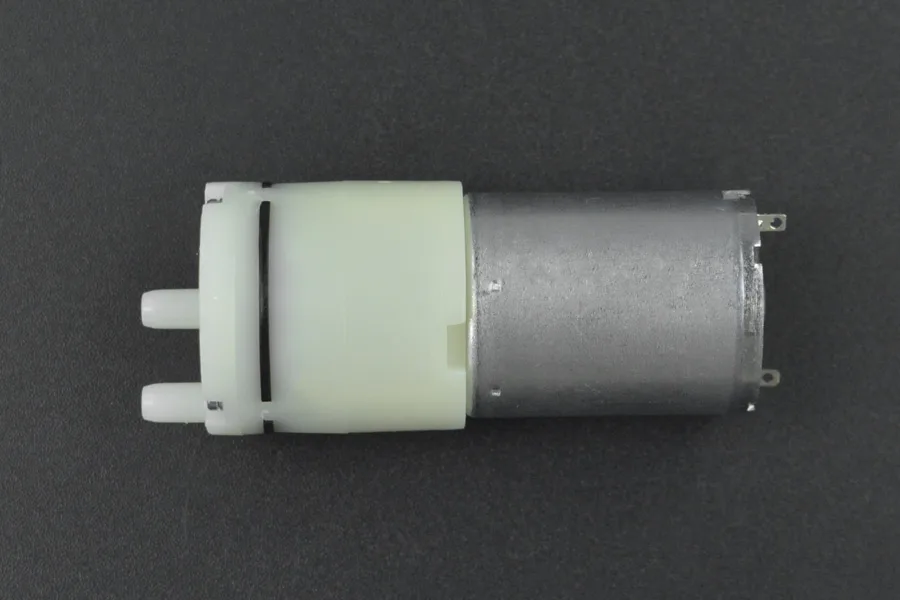

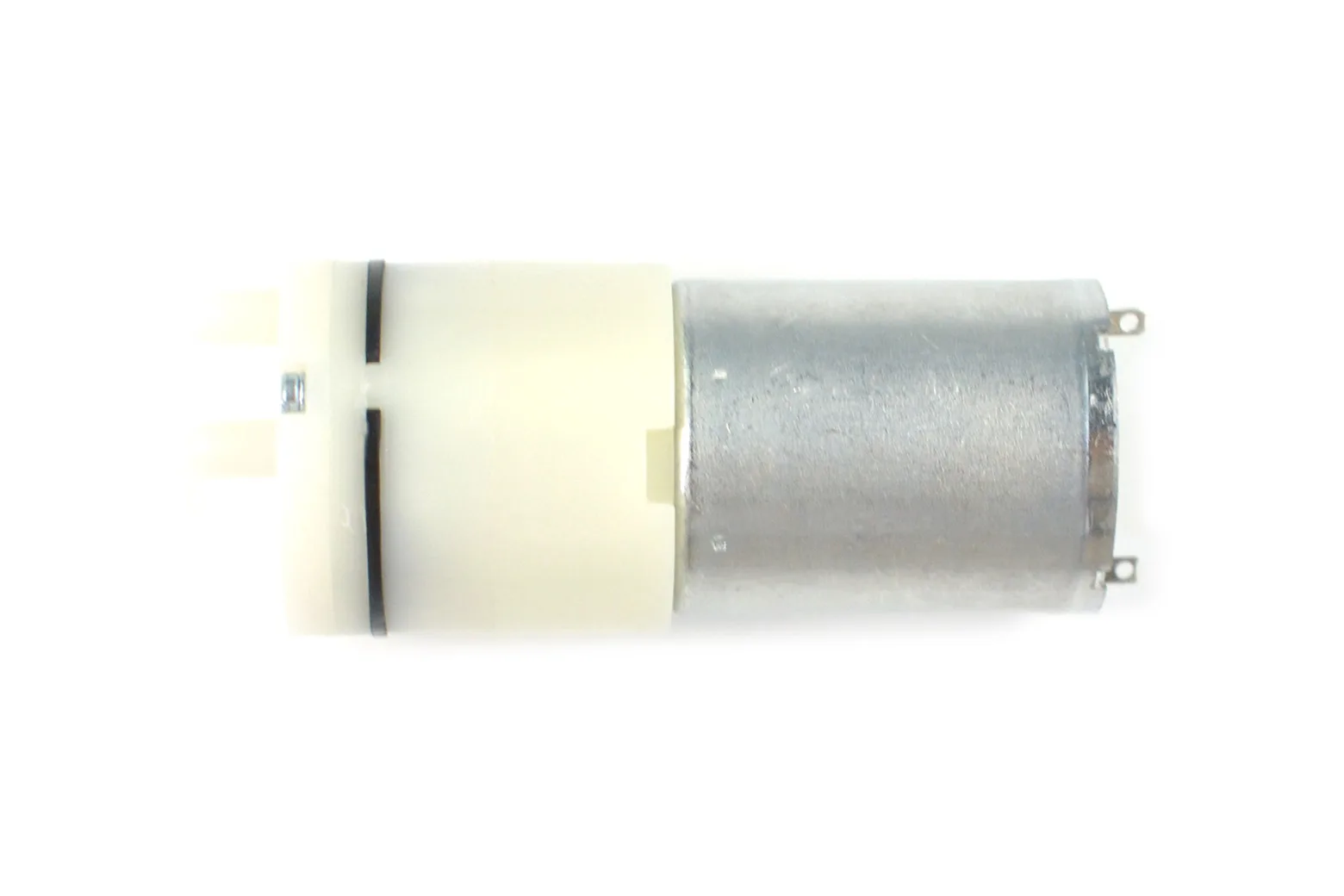

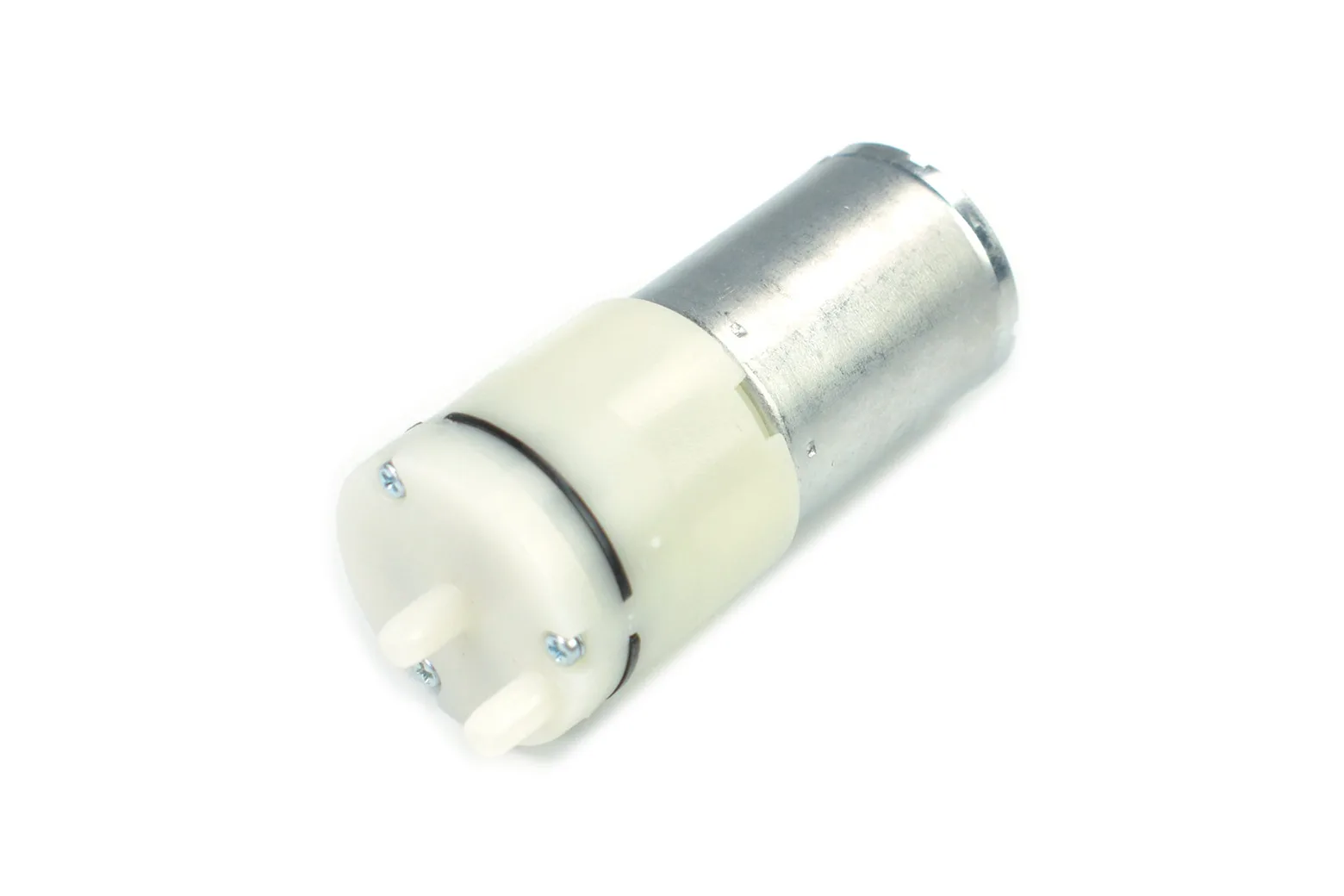

370 Mini Vacuum Pump

The 370 Mini Vacuum Pump is a compact, beginner-friendly air pump designed for pneumatic, suction, and inflatable projects. Powered by a standard DC motor, it suits students, hobbyists, and makers building automated systems or desktop prototypes.

Reliable pneumatic flow and suction

The pump delivers a no-load flow rate of at least 2.2 litres per minute alongside a maximum vacuum of -58 kPa. This makes it an effective choice for small-scale vacuum packaging, suction handling, and inflation tasks.

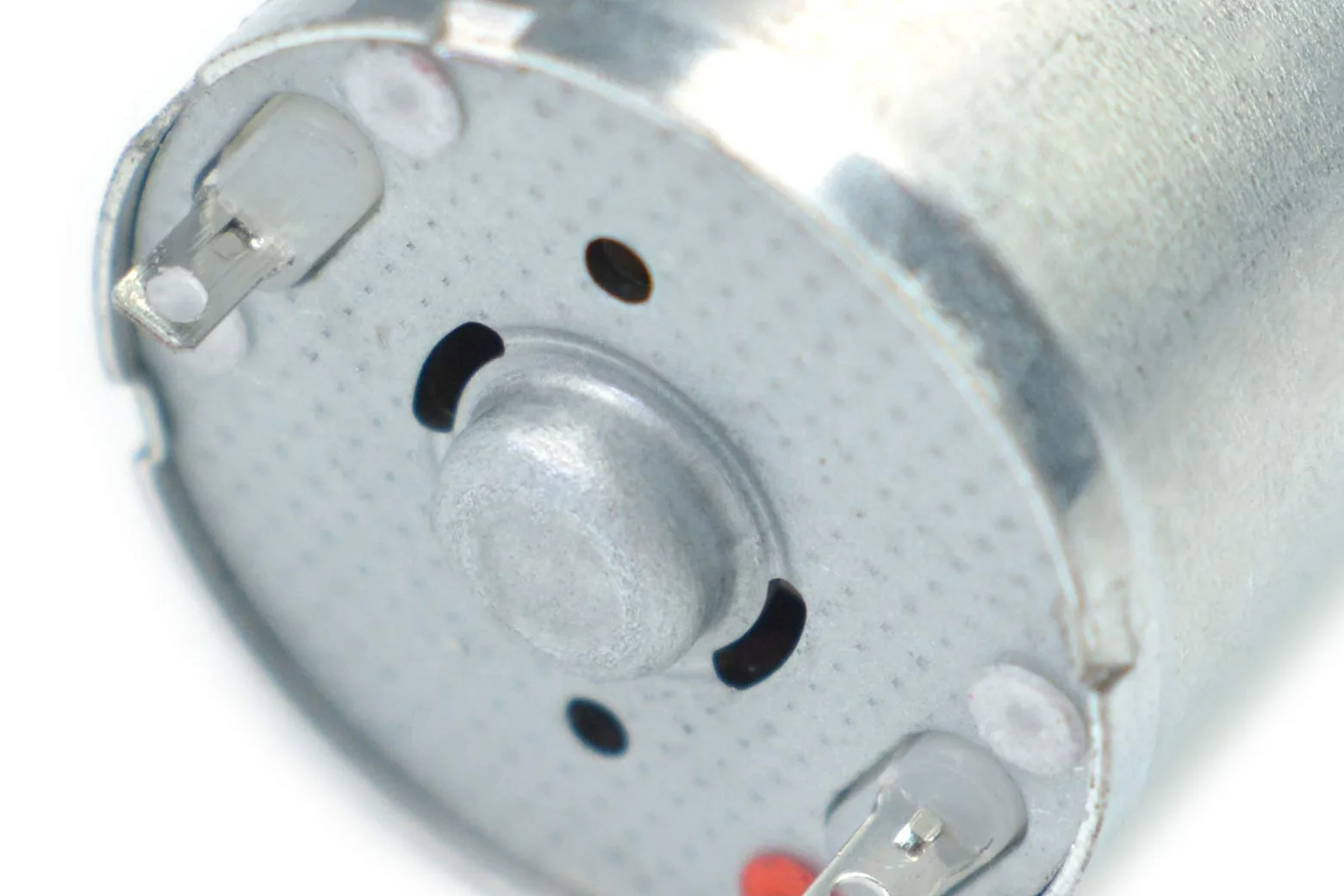

Low-voltage DC power compatibility

Operating across a 1.5V to 5V range, the pump draws 2.5W with a no-load current under 500 mA at 5V. It can share the same power supply used for standard servo systems and DC motors.

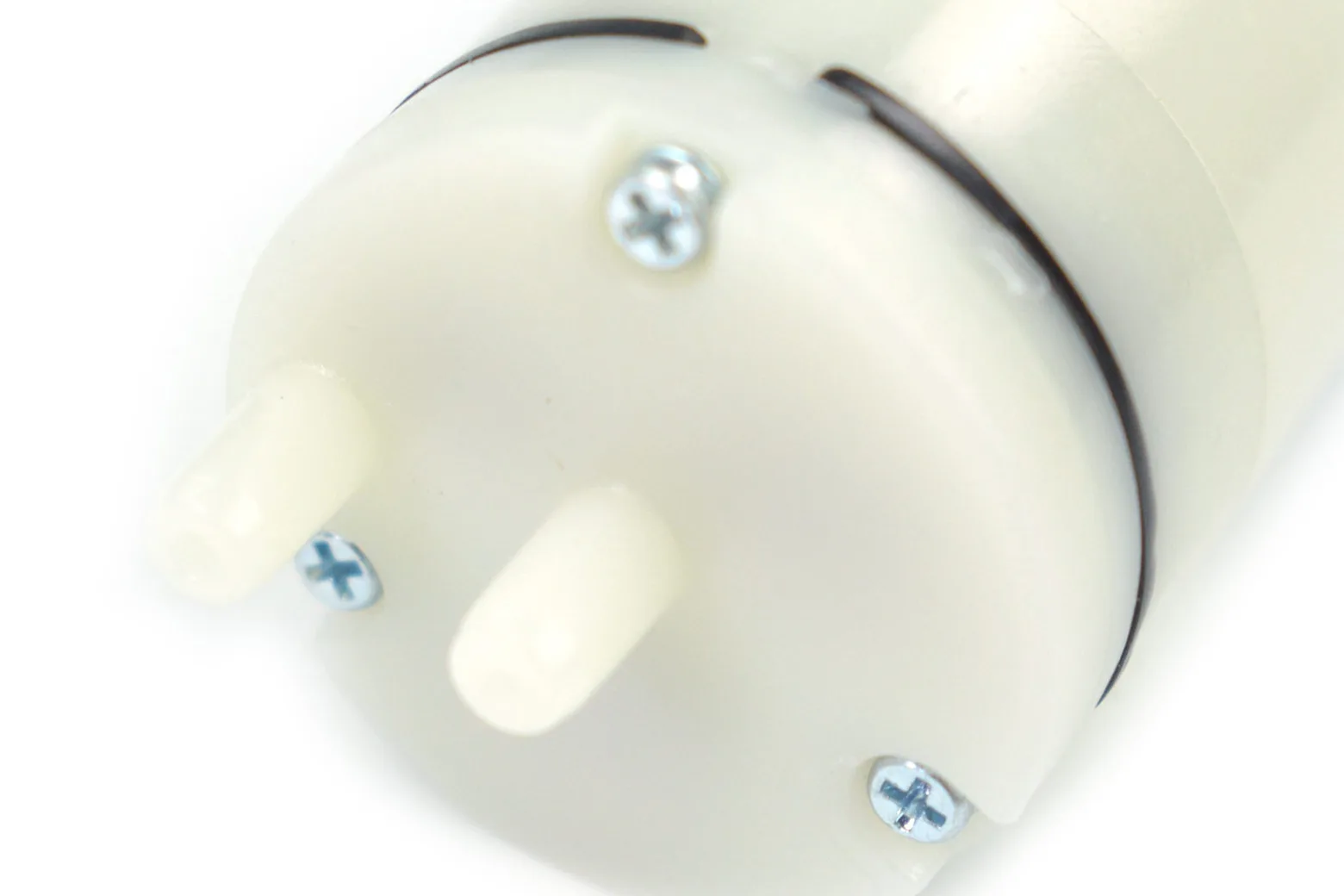

Directional dual-port airflow configuration

When powered, air is pulled through the side intake port and expelled through the middle outlet port. Two separate pump units can be paired together if your project requires simultaneous inflation and deflation.

Quiet operation for diverse applications

Operating at noise levels below 60 dB, the pump runs quietly in desktop and home settings. It is well suited for use in household appliances, medical equipment prototypes, and vacuum packaging machines.

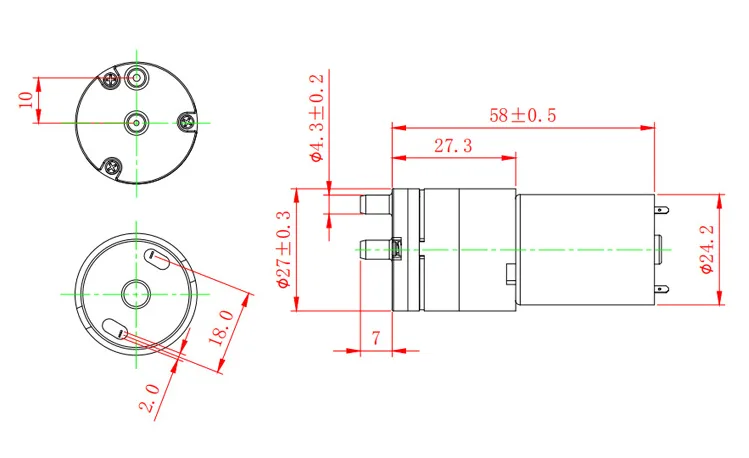

Compact dimensions and package contents

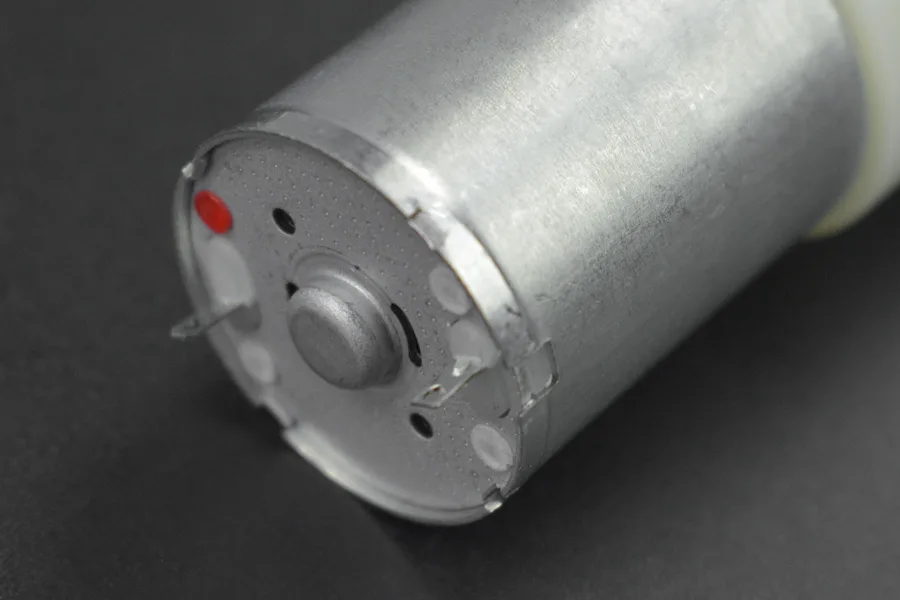

Built around a standard 370-size motor frame, the pump fits neatly into space-constrained enclosures. Each package includes one 370 Mini Vacuum Pump.
