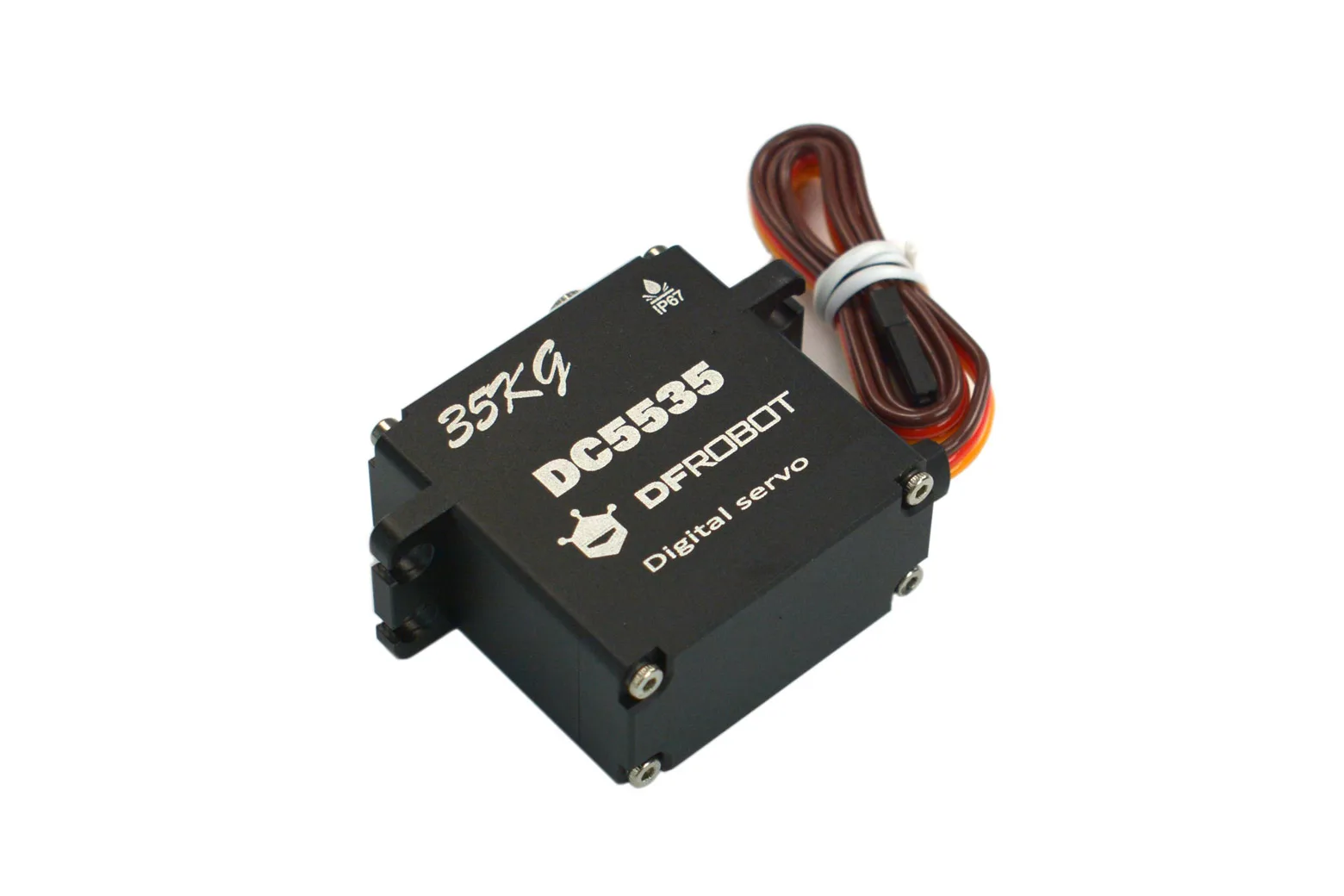

35KG High Torque Metal Waterproof Servo

The 35KG High Torque Metal Waterproof Servo delivers powerful, precise actuation with up to 35kg.cm of stall torque and an IP67 waterproof rating. Built with an aluminium shell and all-metal gearing, it is well suited for students, hobbyists, and makers developing multi-joint robotic arms, RC vehicles, and marine models.

IP67 waterproof aluminium construction

The servo features a rugged aluminium shell and all-metal gearing for high wear resistance and durability. The internal circuit board is sealed with a waterproof gasket and breathable composite glue that allows operational heat to dissipate freely while keeping moisture out.

Continuous rotation with 180-degree control

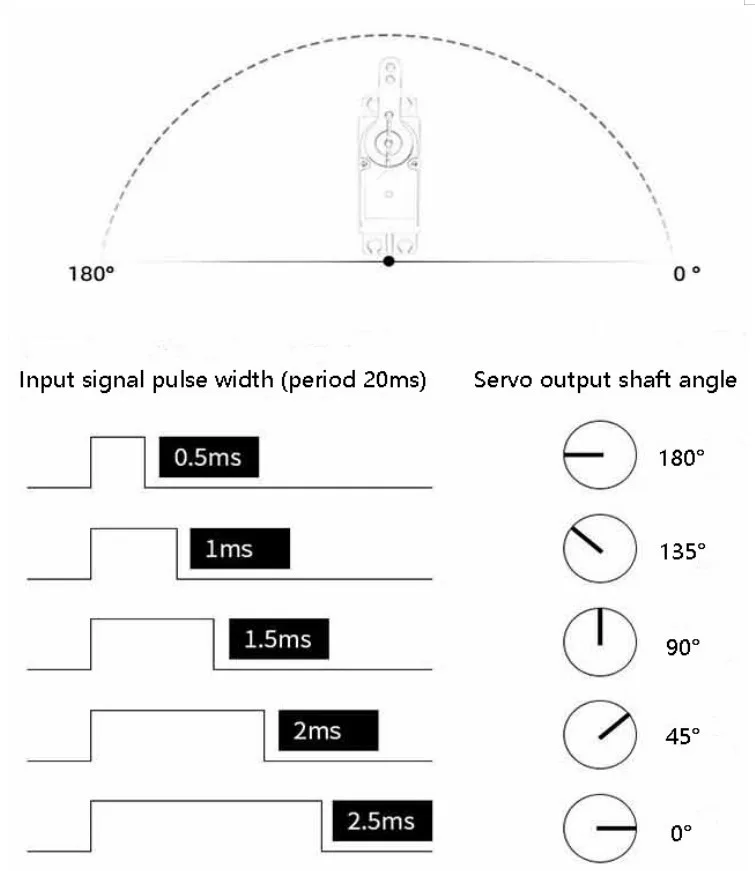

Without an internal mechanical stop, the output shaft can rotate 360 degrees freely without jamming, offering precise 180-degree positioning within a 500 to 2500 microsecond pulse range. An integrated pulse lock function maintains the hold angle with a single PPM pulse, reducing controller processing load.

High torque with low jitter

Operating across 4.8V to 7.4V, the unit outputs up to 35kg.cm stall torque at 7V with a no-load speed of 0.25 seconds per 60 degrees. High-frequency motor control and dual ball bearings keep jitter to a minimum under load for quiet, stable motion.

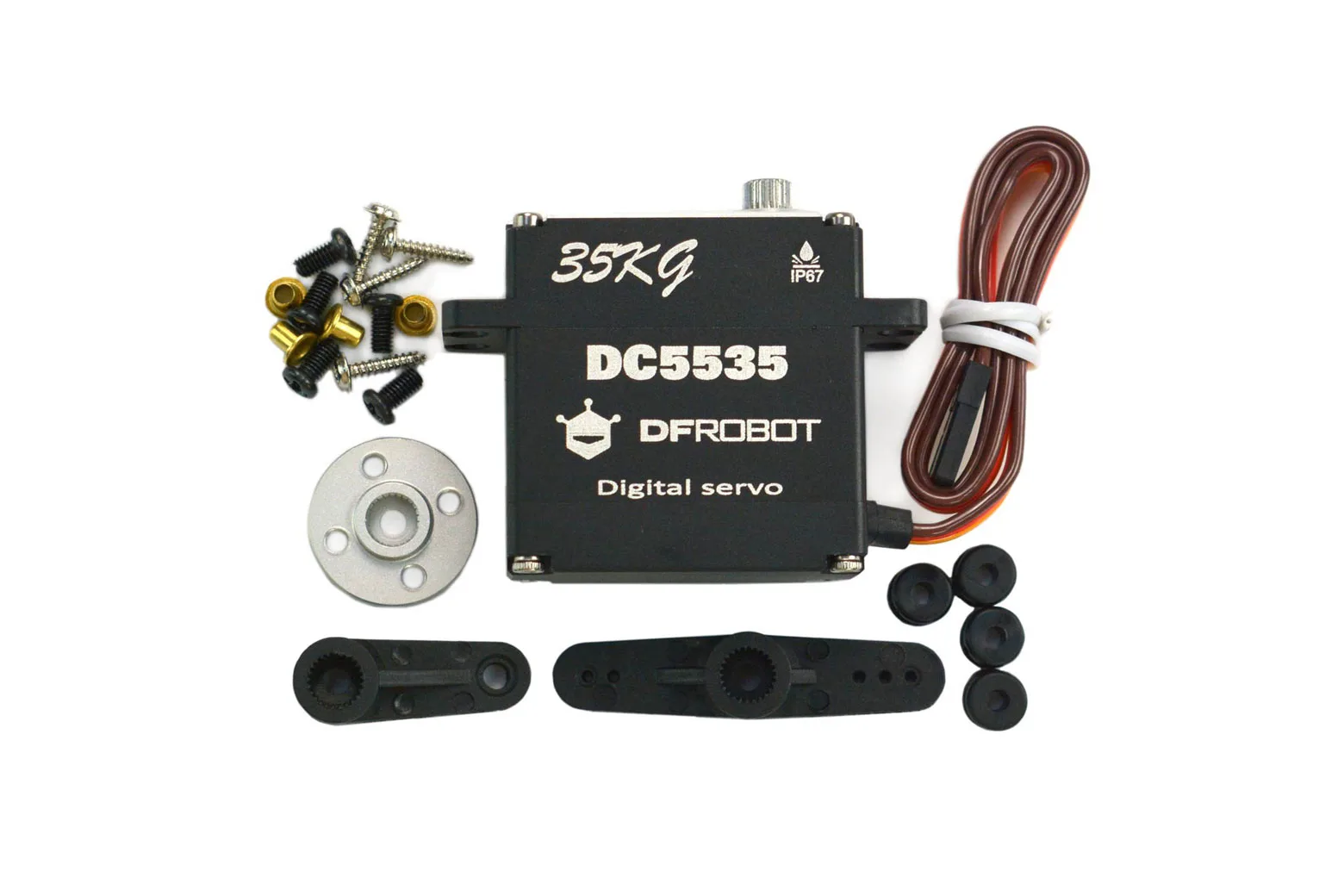

Included horns and versatile applications

The package includes a comprehensive servo horn and screw assortment to accommodate various linkage styles and project requirements. It is an ideal actuator for remote control steering mechanisms, multi-joint robots, and DIY surface vessels.
