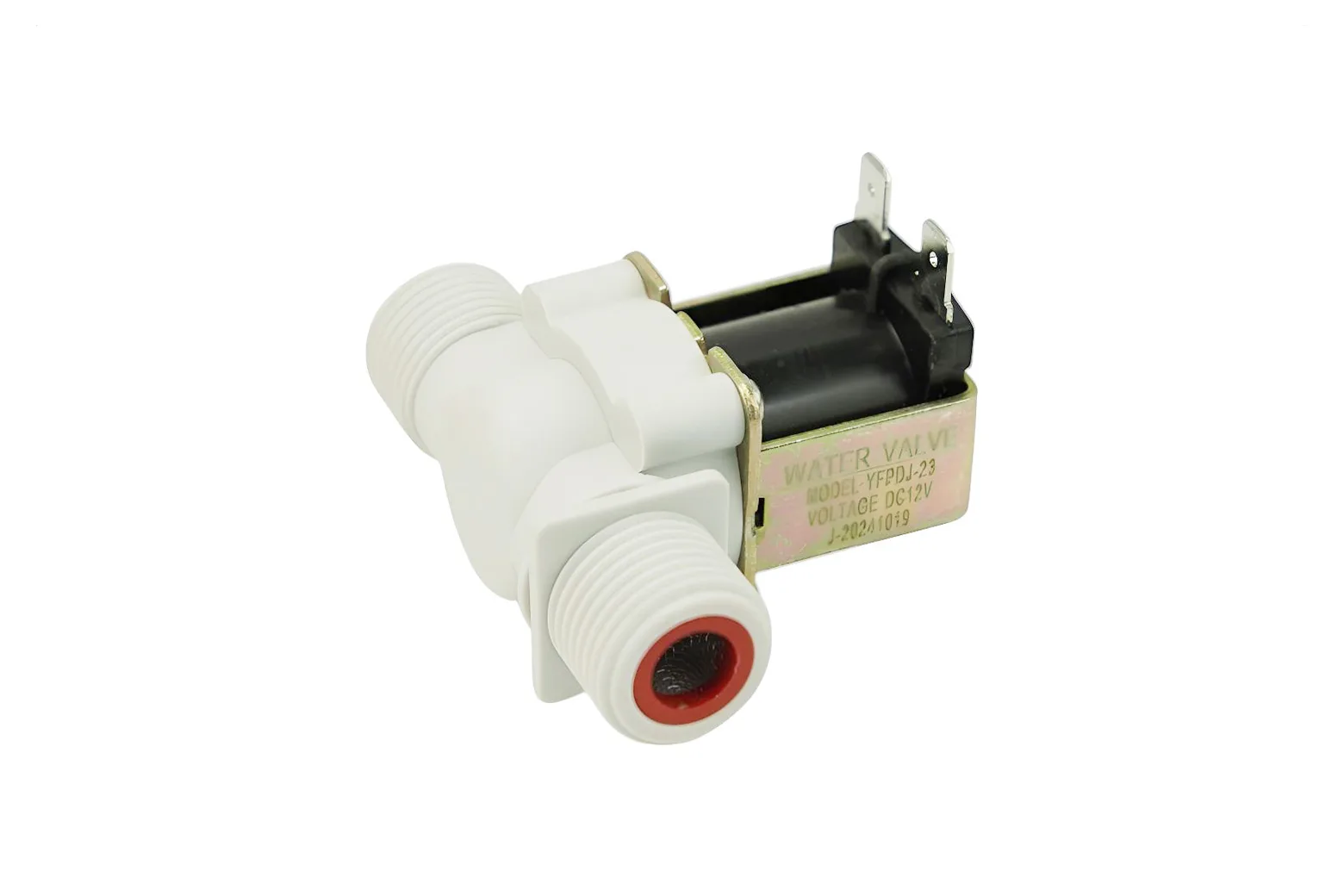

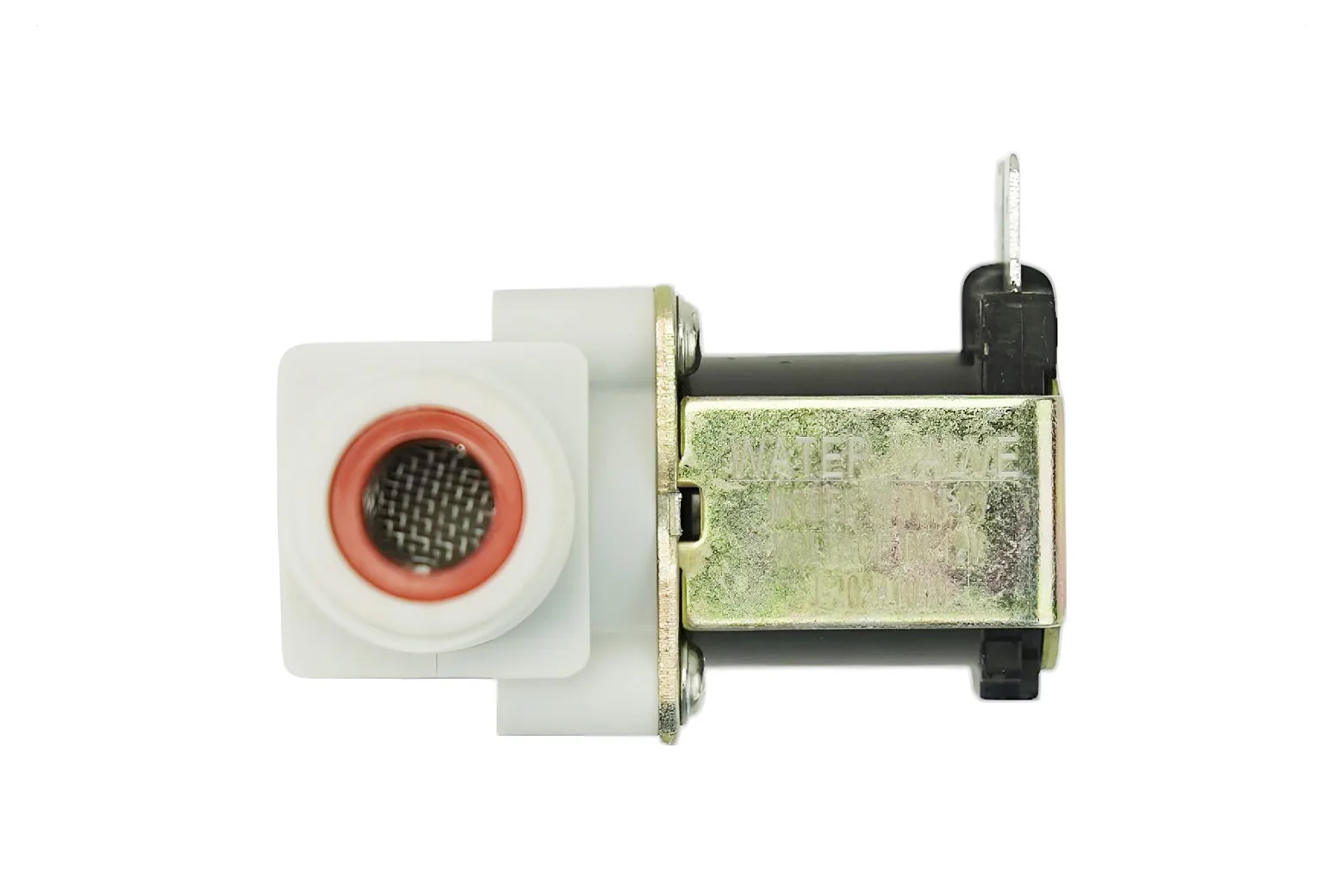

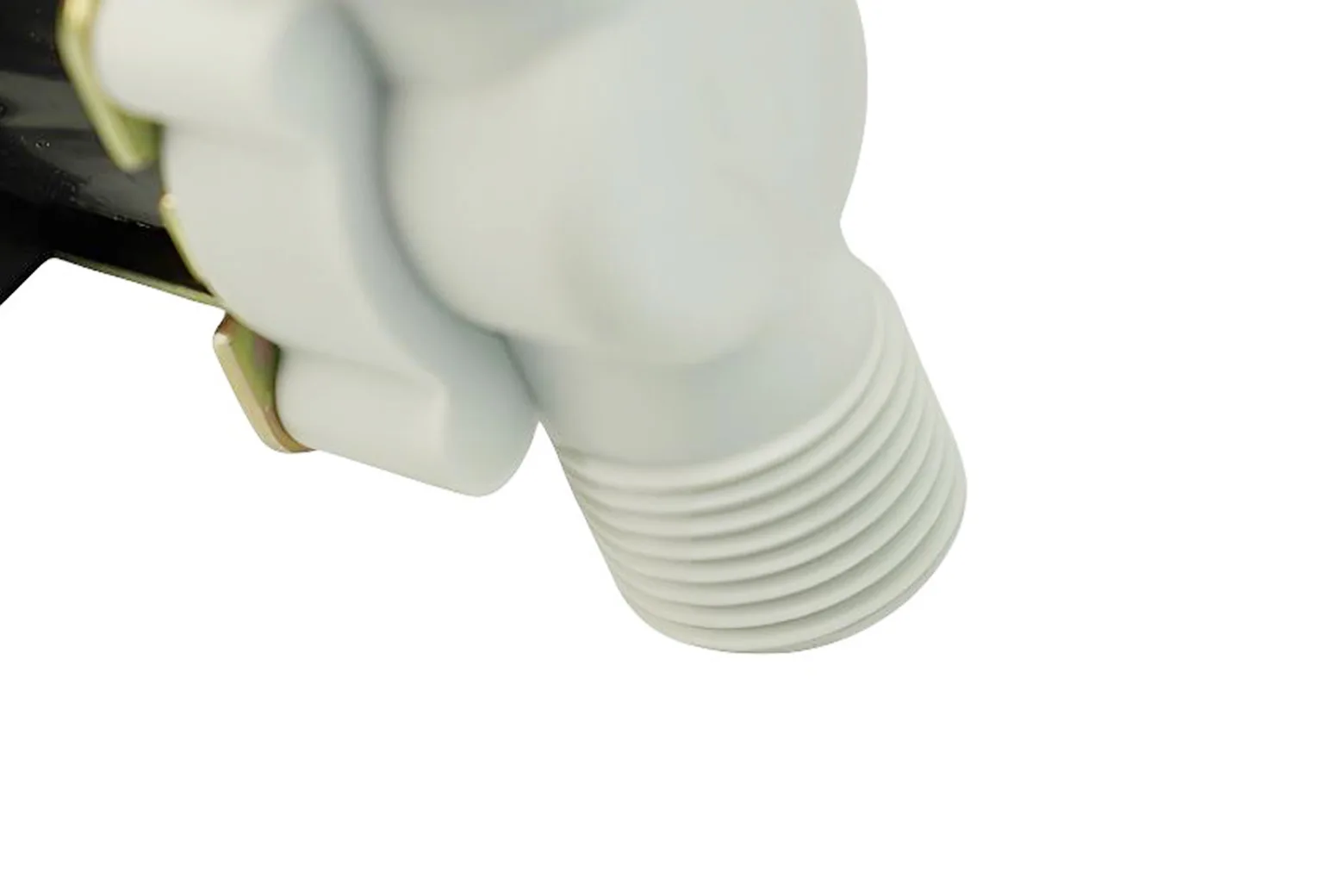

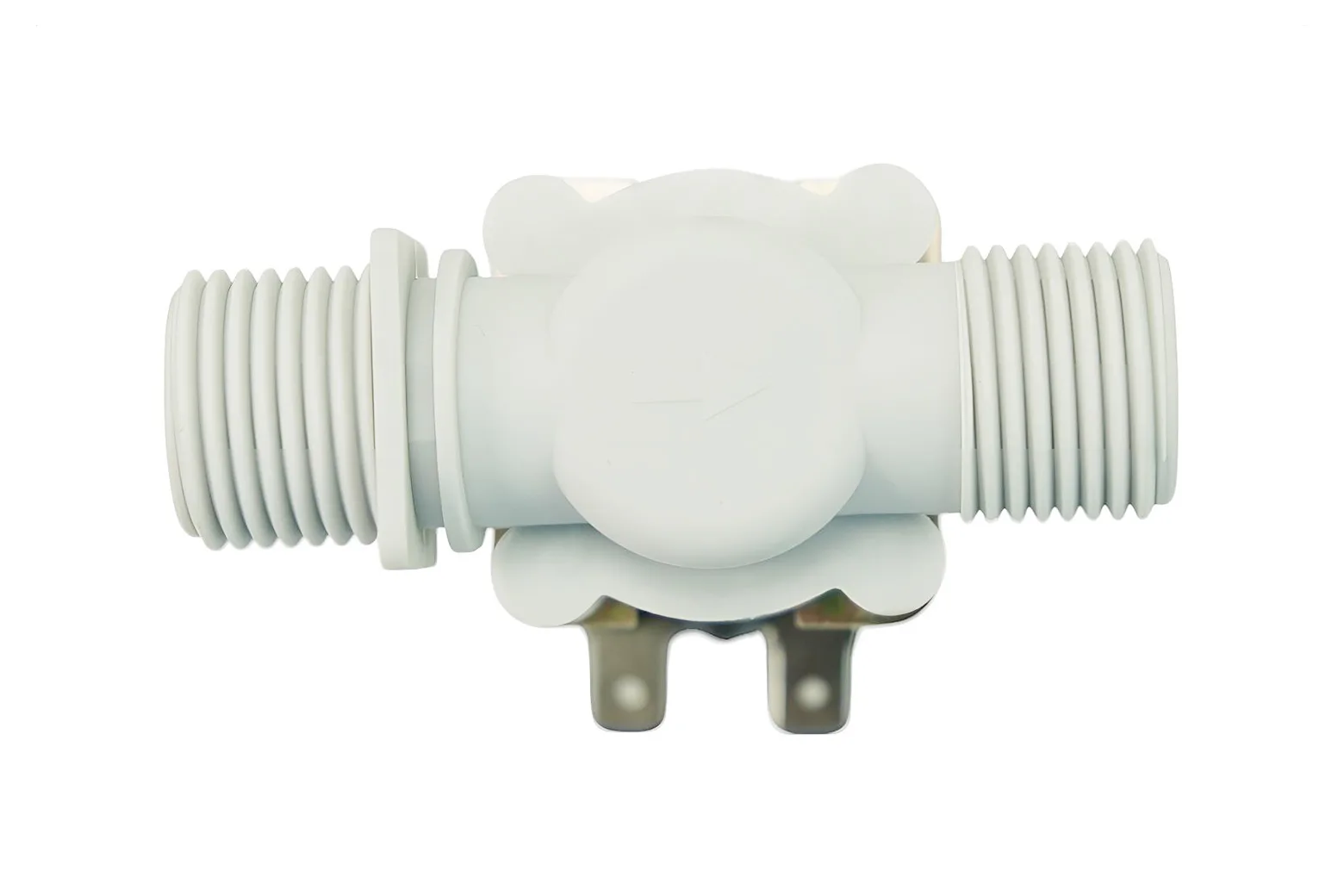

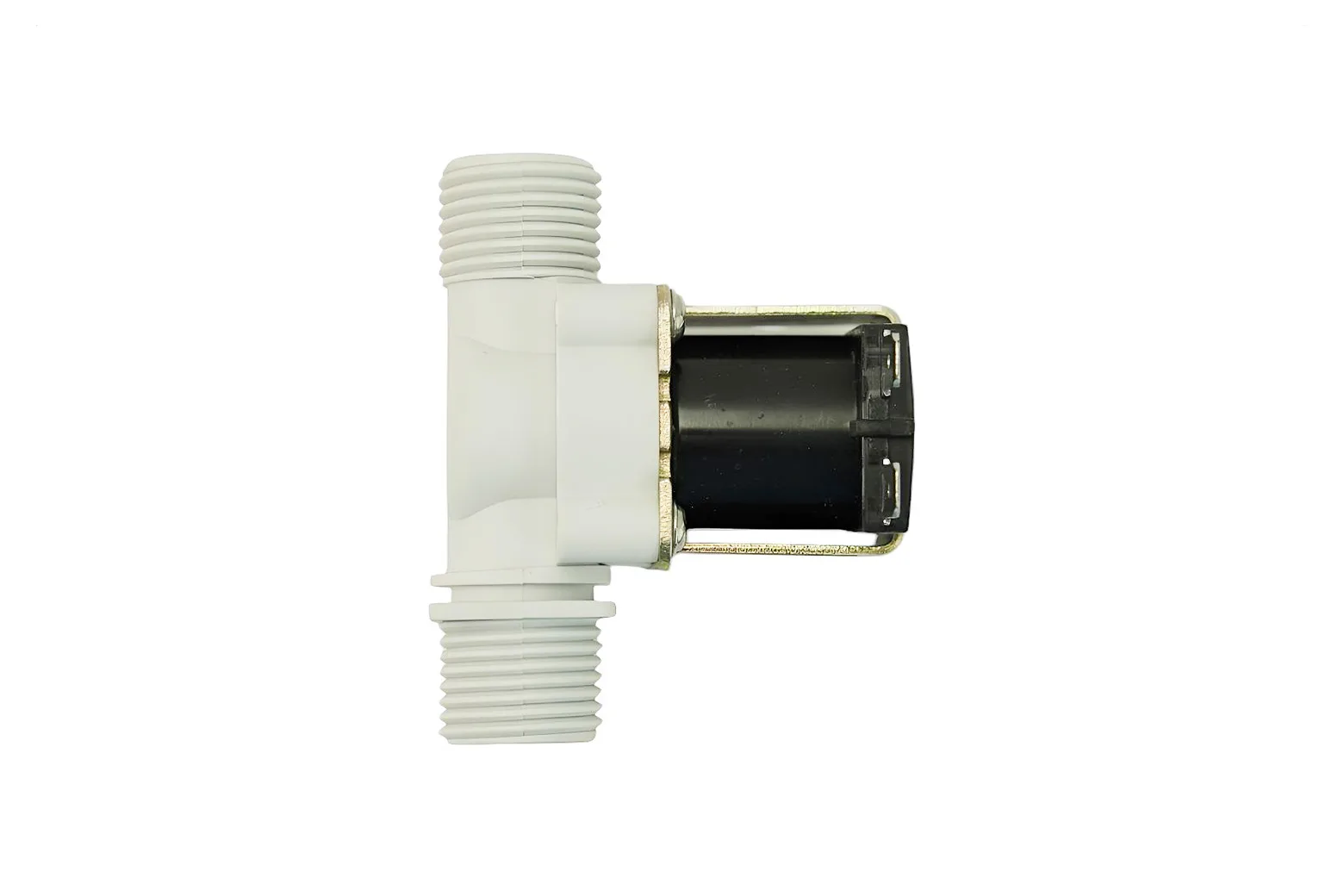

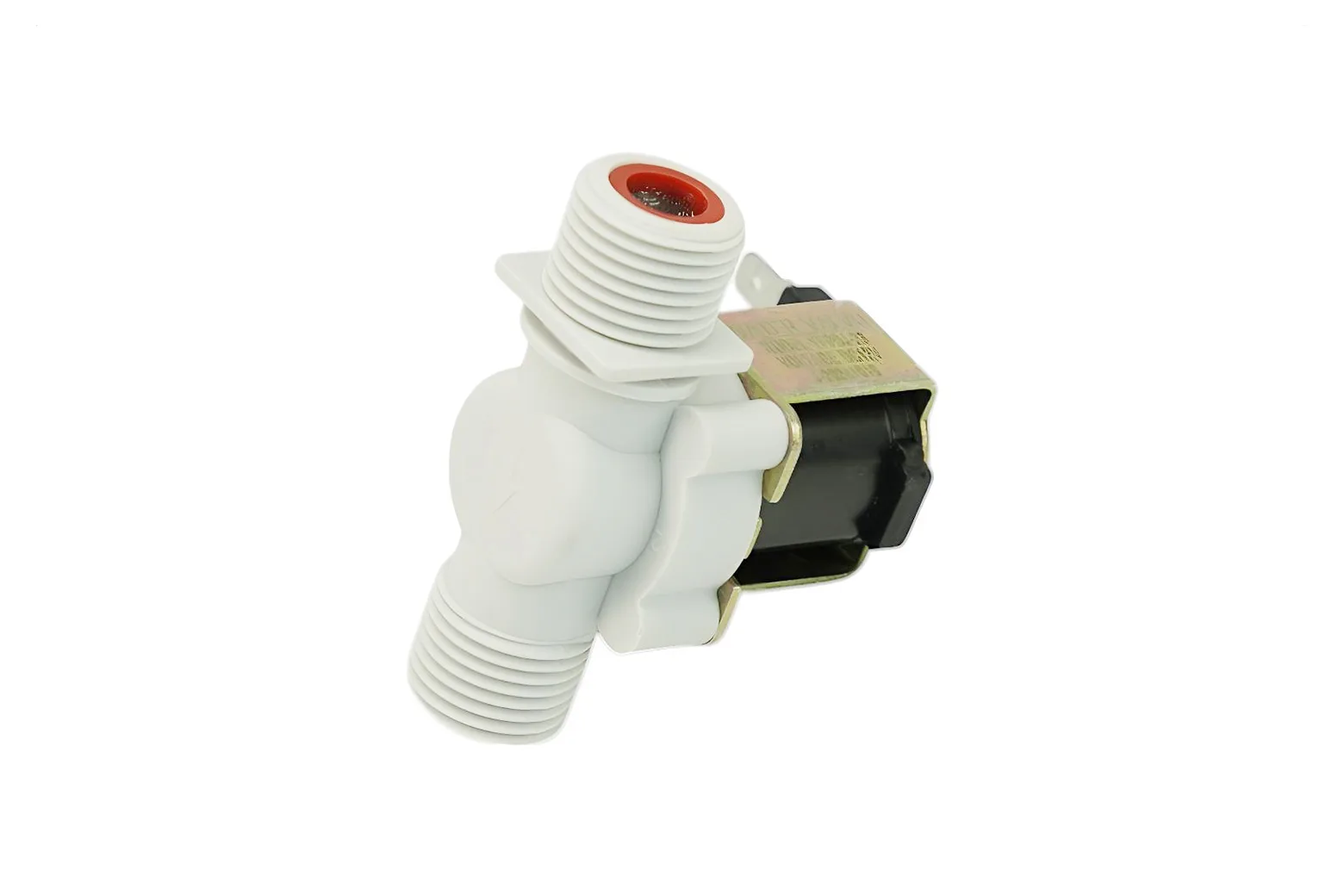

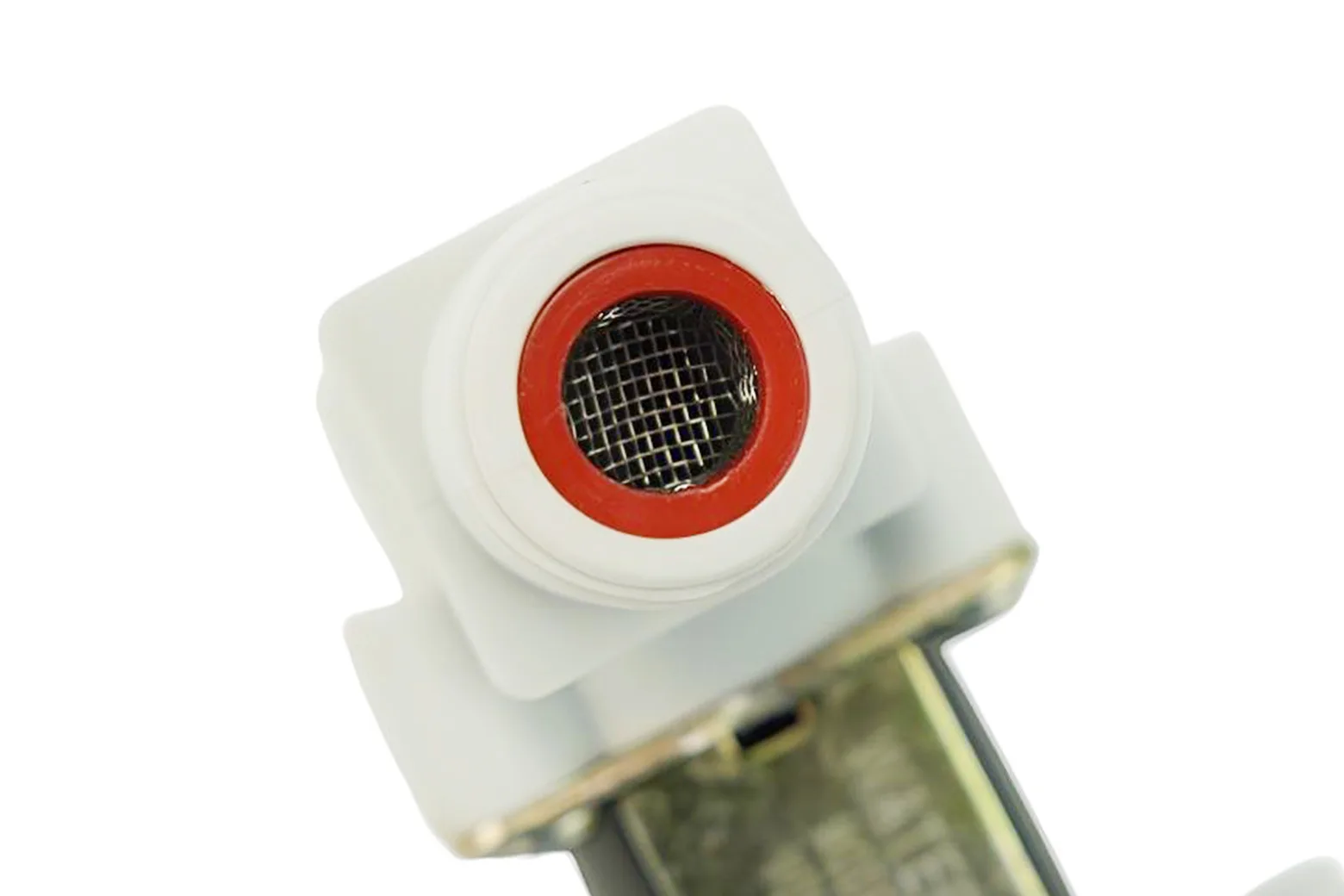

12V Solenoid Valve - DN15

The 12V Solenoid Valve - DN15 is an electronically controlled, normally closed valve designed for automated liquid regulation. It is well suited for makers, educators, and hobbyists building automated irrigation systems, fisheries, and fluid automation projects. It operates on a 12V power supply and can be paired with flow sensors for responsive water management.

Normally closed electronic operation

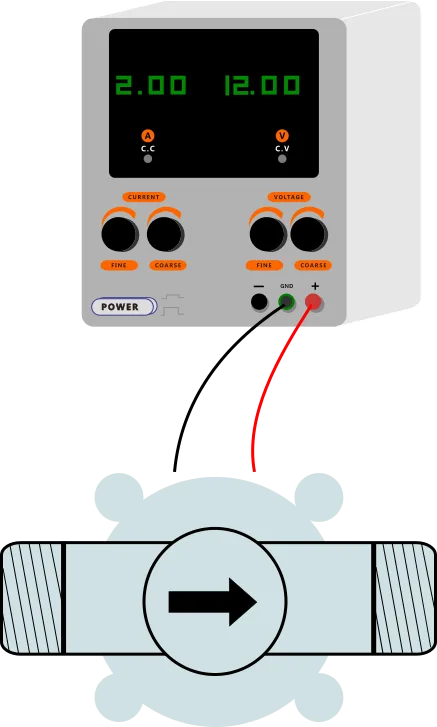

This solenoid valve remains closed until powered on by a 12V source with a rated current of 0.42 A. The terminals feature no polarity distinction, making integration into custom microcontroller driver circuits straightforward.

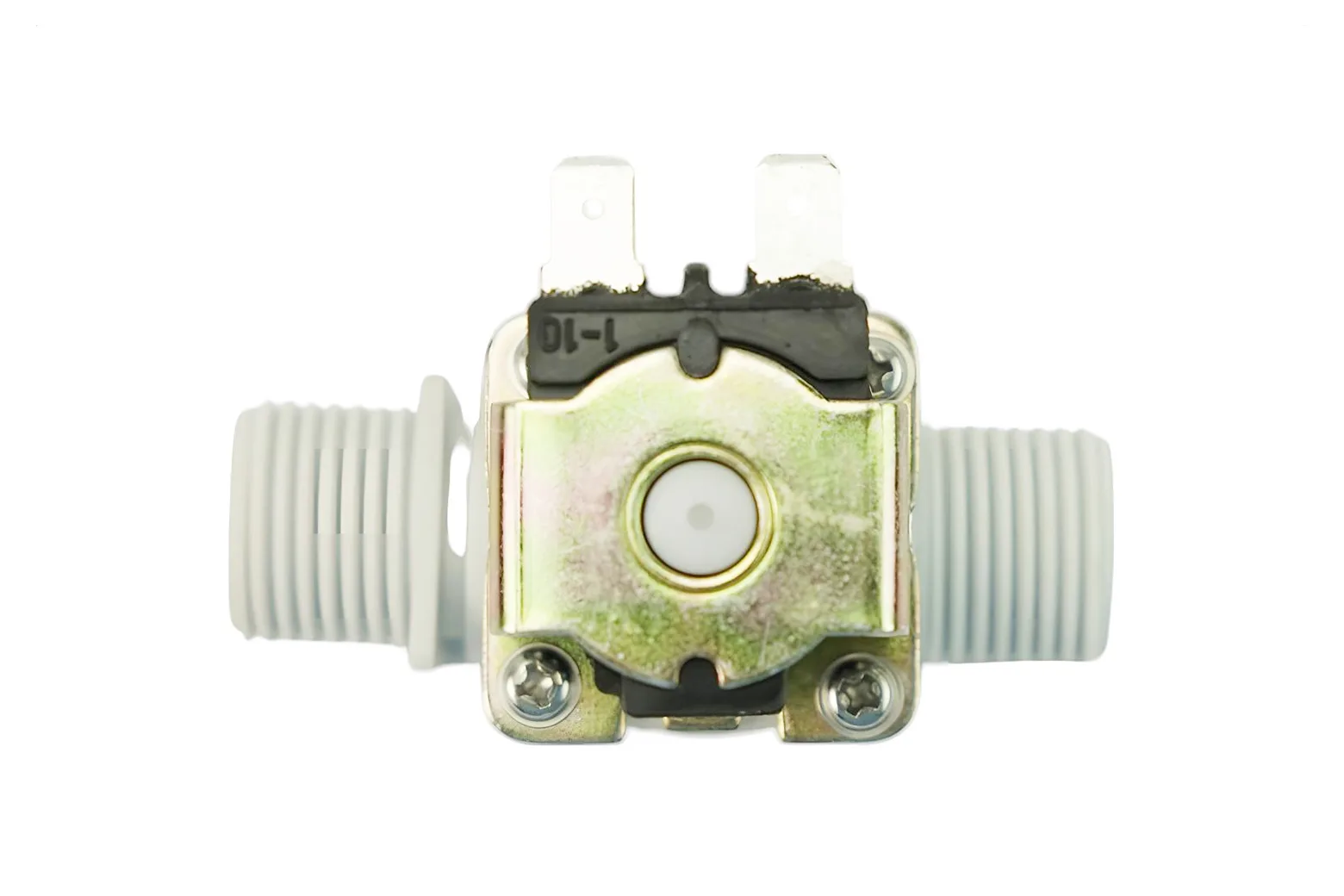

Adjustable terminals and durable construction

Terminal direction can be adjusted to suit your specific mounting and enclosure requirements. Fitted with a high-quality stainless steel spring, the valve delivers high sensitivity and is rated for at least 200,000 cycles.

Pressure and environmental specifications

Designed for working pressures between 0.02 and 0.8 MPa, the unit can withstand a static pressure of up to 2.0 MPa. It supports liquid temperatures ranging from 0 to 60 degrees Celsius in environments with up to 95 percent relative humidity.

Compact dimensions and automation applications

Weighing 116 g and measuring 70 by 57 by 45 mm, this IP00-rated valve is compact enough for tight project enclosures. It is suitable for automatic agriculture, aquaculture, and general fluid-switching installations.
