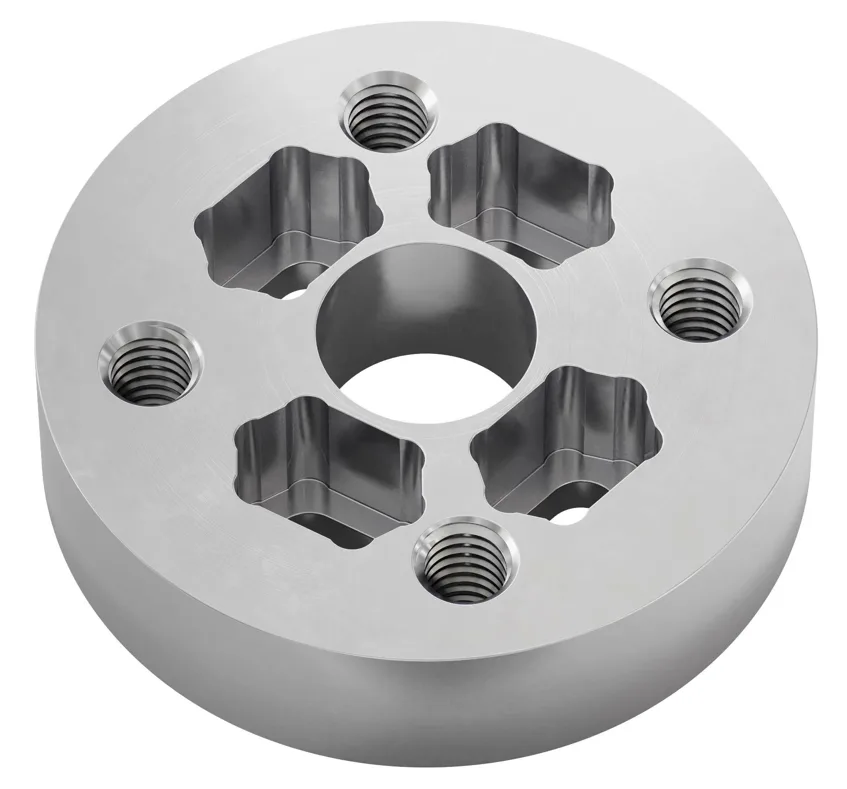

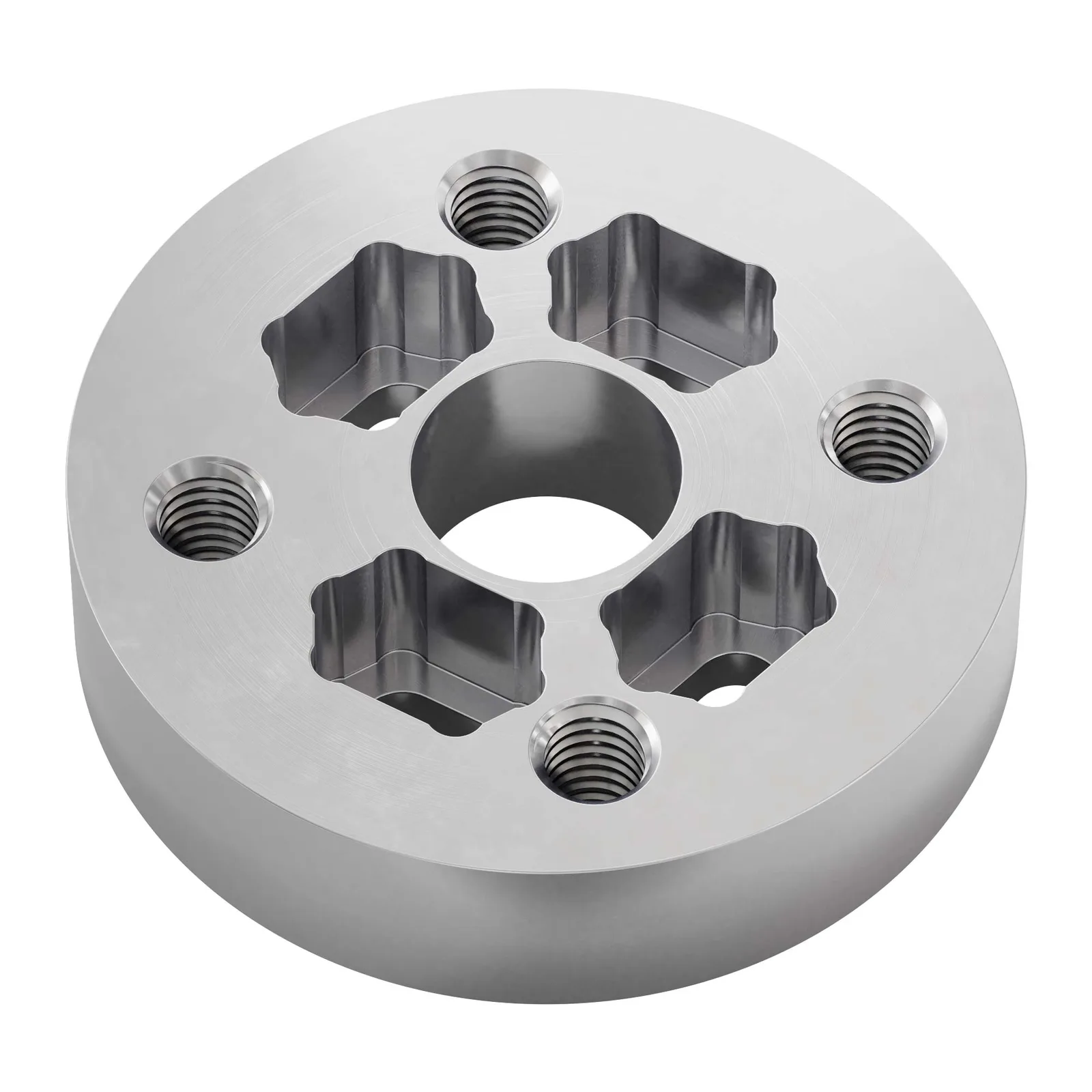

Thru-Hole REV to Threaded goBILDA Pattern Adaptor (16-10)
SKU: ZY-3206-0016-0010
R 103,46Ex Tax: R 89,97
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
This adaptor has thru-holes on two different REV patterns:
With screws or nuts slid to one extreme within the counterbored slot, they will align with the 4 x 16mm pattern found on some REV parts.
Slide the screws or nuts to the other end of the slots and they’ll align with the 6 x 16mm pattern found on other REV parts.
The remaining holes are tapped to M4 on the goBILDA 16mm grid pattern so that you can fasten to about any goBILDA component that suits your fancy.

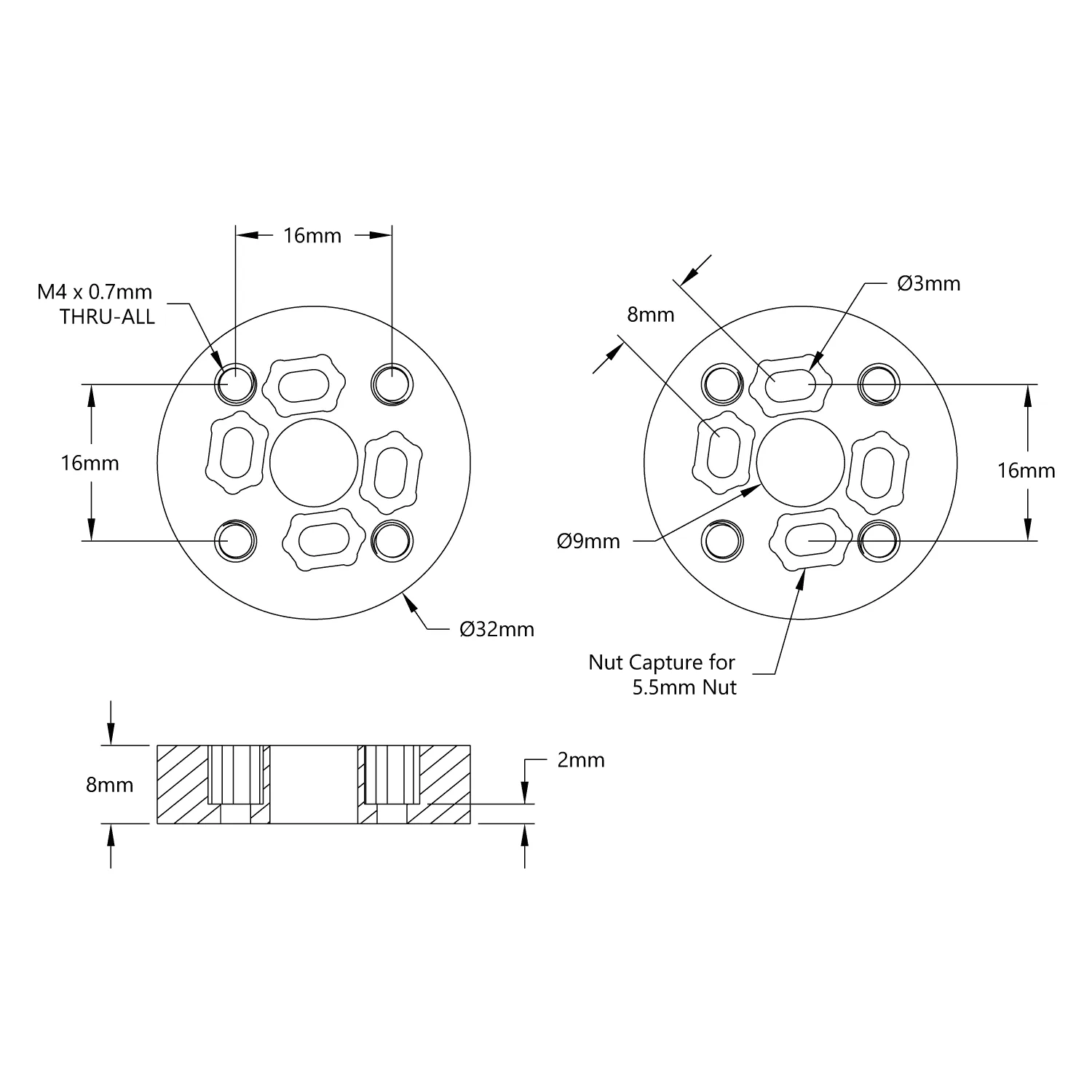

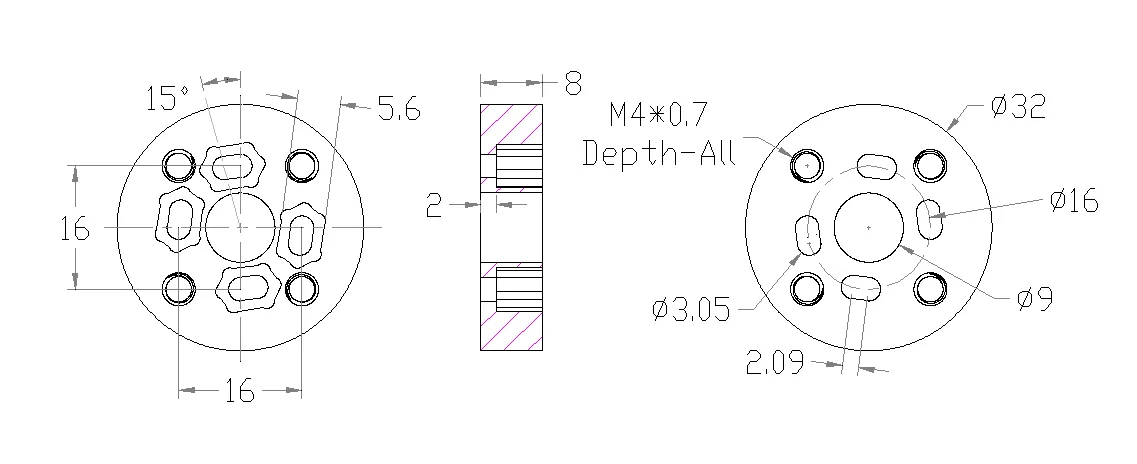

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3206-0016-0010 |
| Weight | 36g |
| Material | zinc alloy |
| Finish | Clear Anodized |
