Thru-Hole Actobotics to Threaded goBILDA Pattern Adaptor (16-6)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

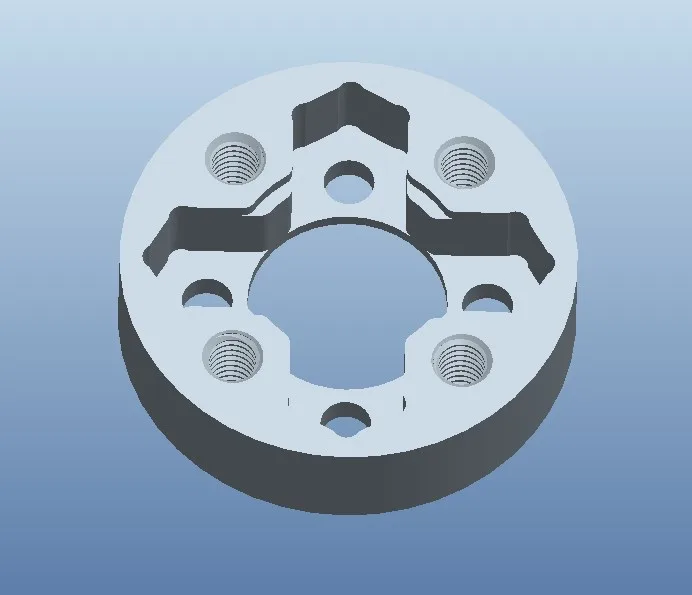

The thru-holes on this adaptor align with the 0.77" pattern of the Actobotics build-system. 6-32 screws or 6-32 locknuts (5/16” hex-size) are able to rest down in the counterbores, leaving the top surface clean and clear for the next part to fasten to. The M4 threaded holes are positioned on the 16mm grid pattern found throughout goBILDA and thefirsttool.
As an added bonus, 1mm deep counterbores have been added to both the top and bottom of this adaptor so you can use it in various ways to hold and capture a 1611 Series flanged bearing.

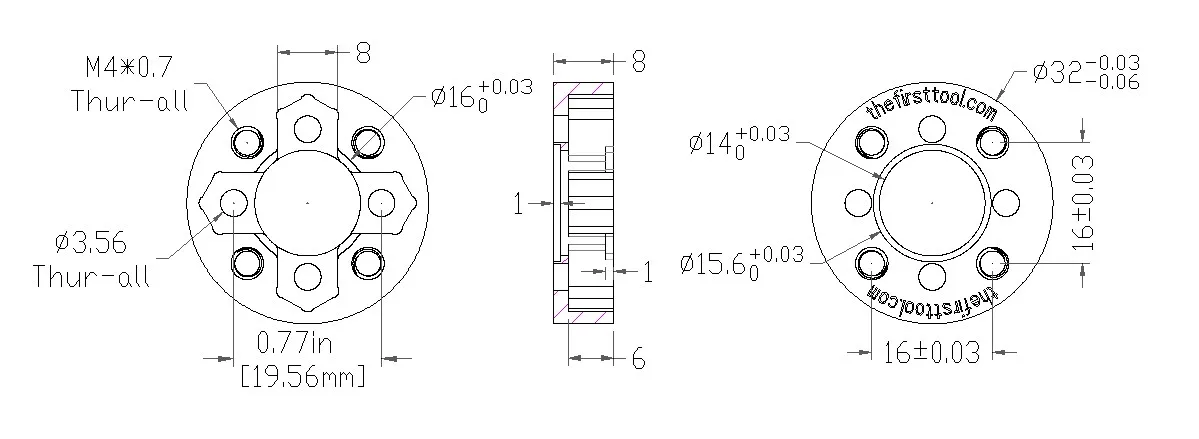

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3206-0016-0006 |
| Weight | 7.1g |
| Material | Aluminum |
| Finish | Clear Anodized |
