Threaded Tetrix to Thru-Hole goBILDA Pattern Adaptor (16-8)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

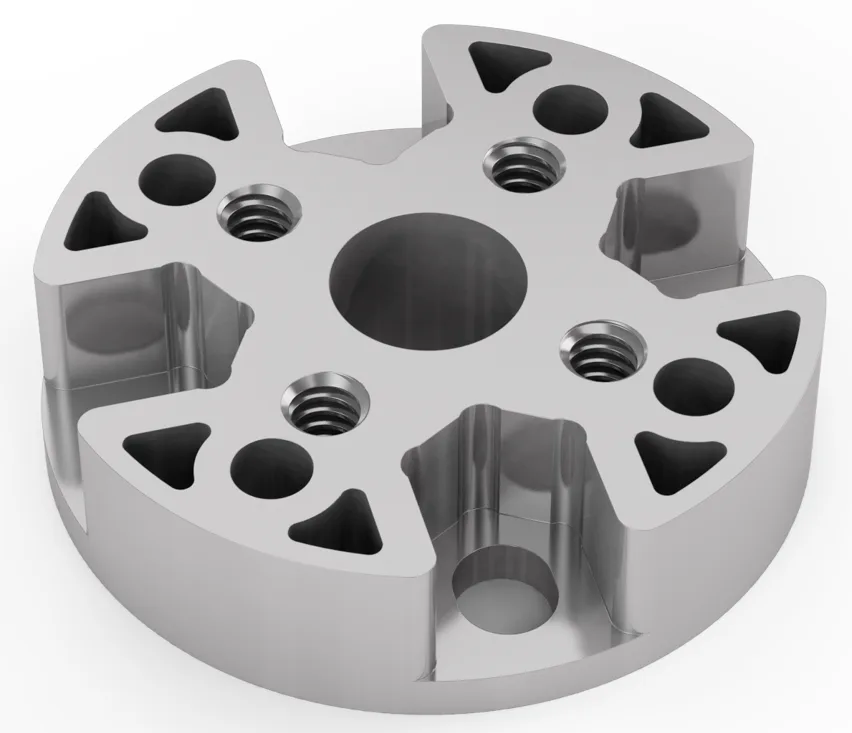

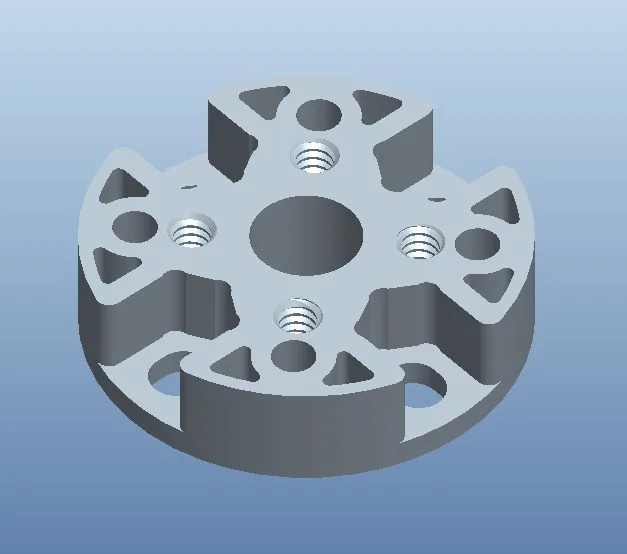

The thru-holes on this adaptor align with the 16mm pattern found on almost every goBILDA part but are slotted outward for edge-case situations where you need to align with holes spaced 24mm across the center. The counterbores allow heads of M4 socket head screws to rest below the top surface so you have a clean slate to fasten a part to. The counterbores are machined as a hex-profile in order to accept and capture an M4 locknut if you prefer to have screws come up through the bottom.
The remaining 6-32 UNC holes align with the pattern found throughout the Tetrix build system so that you can easily fasten a thru-hole component to the face of the adaptor.

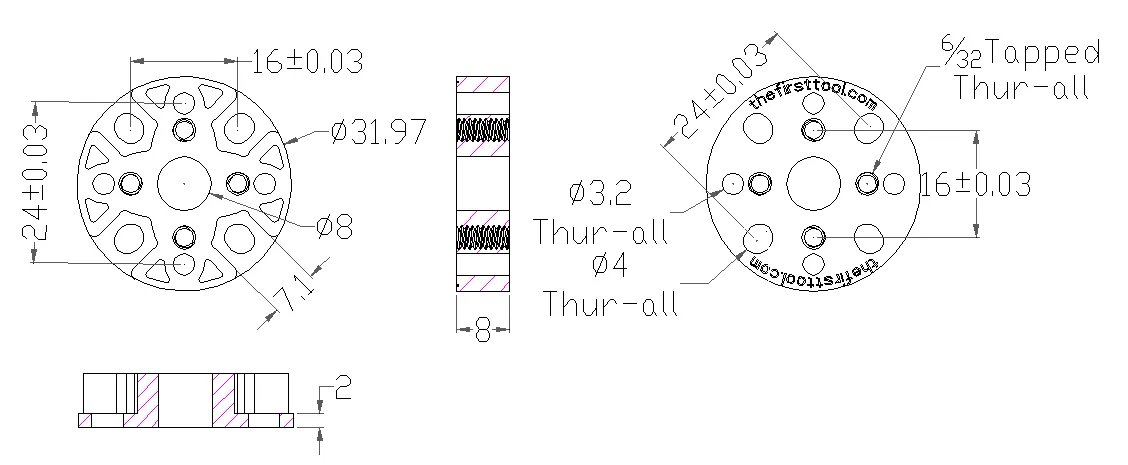

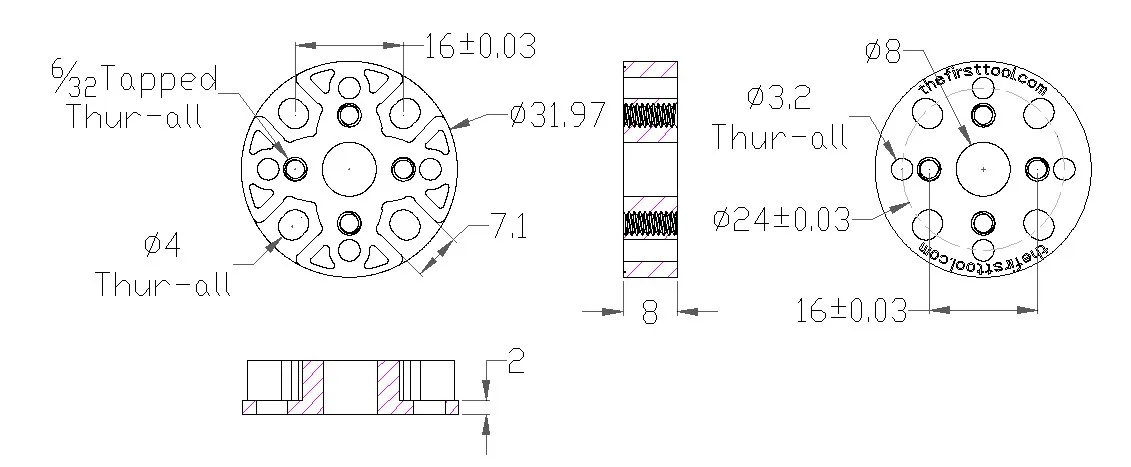

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3206-0016-0008 |
| Weight | 36g |
| Material | zinc alloy |
| Finish | Clear Anodized |
