Threaded REV to Thru-Hole goBILDA Pattern Adaptor (16-9)
SKU: ZY-3206-0016-0009
R 103,46Ex Tax: R 89,97
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

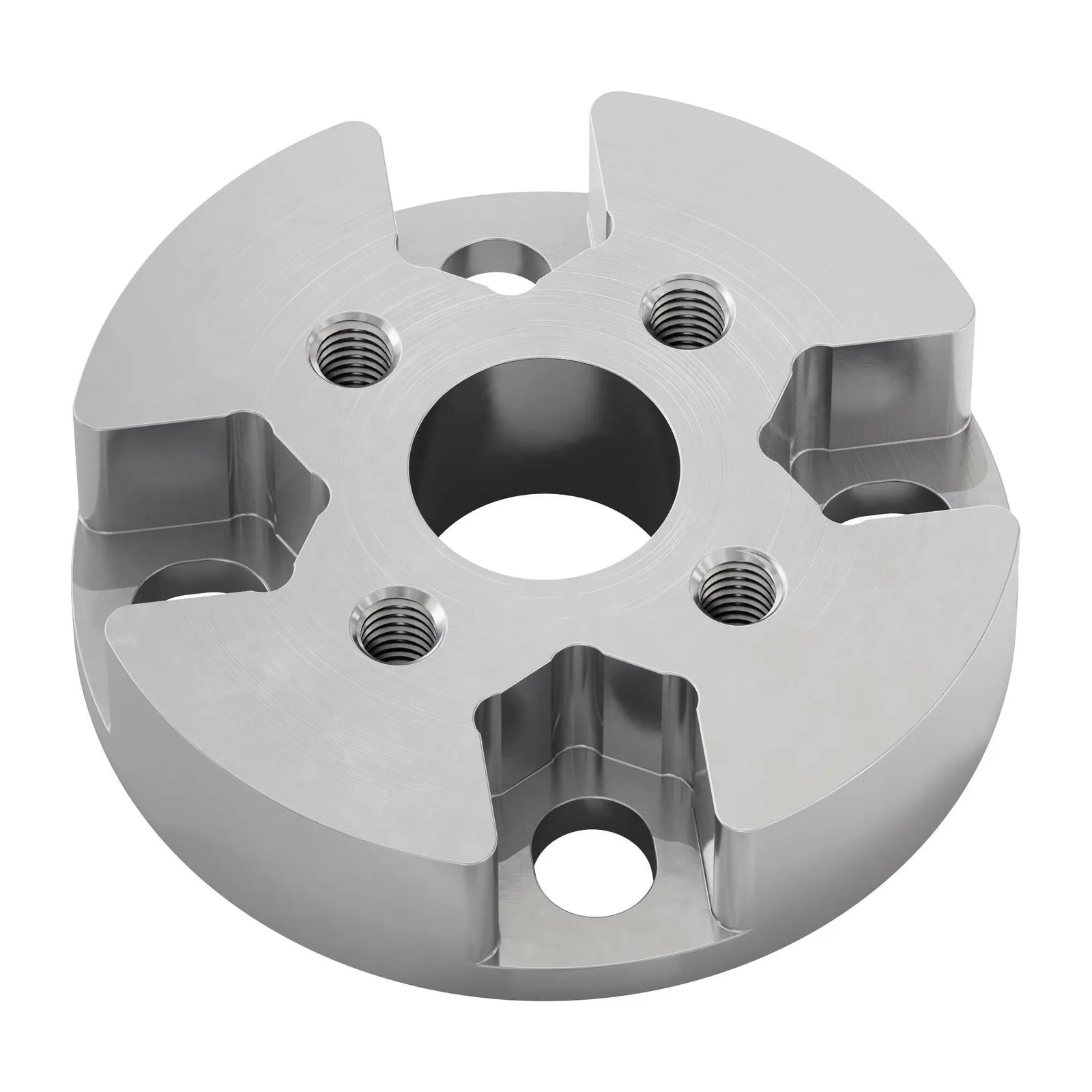

The thru-holes on this adaptor align with the 16mm pattern found on almost every goBILDA part but are slotted outward for edge-case situations where you need to align with holes spaced 24mm across the center. The counterbores allow heads of M4 socket head screws to rest below the top surface so you have a clean slate to fasten a part to.
The M3 threaded holes align with the REV pattern that measures 16mm across center. These holes allow you to fasten nearly any REV component that has thru-holes with ease.

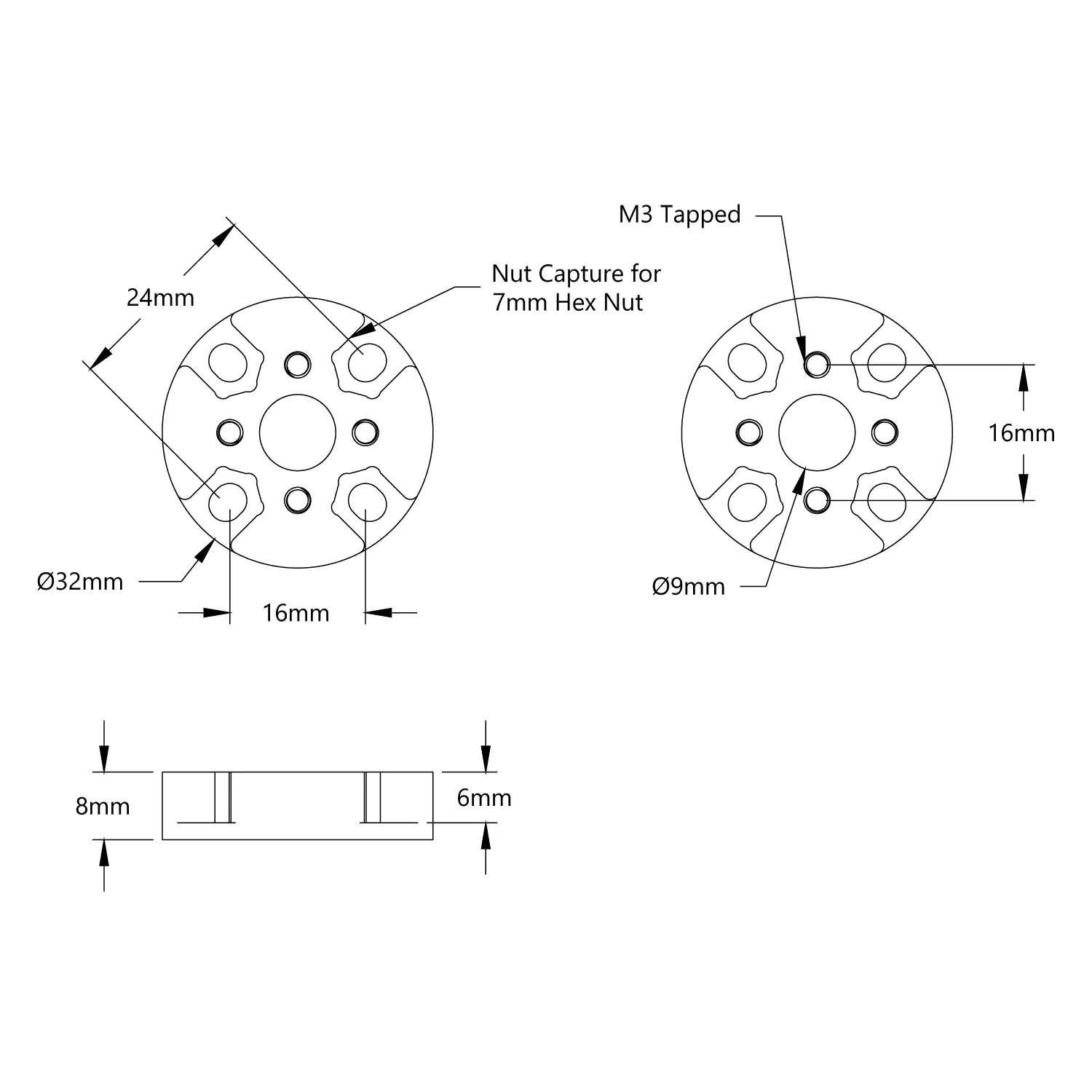

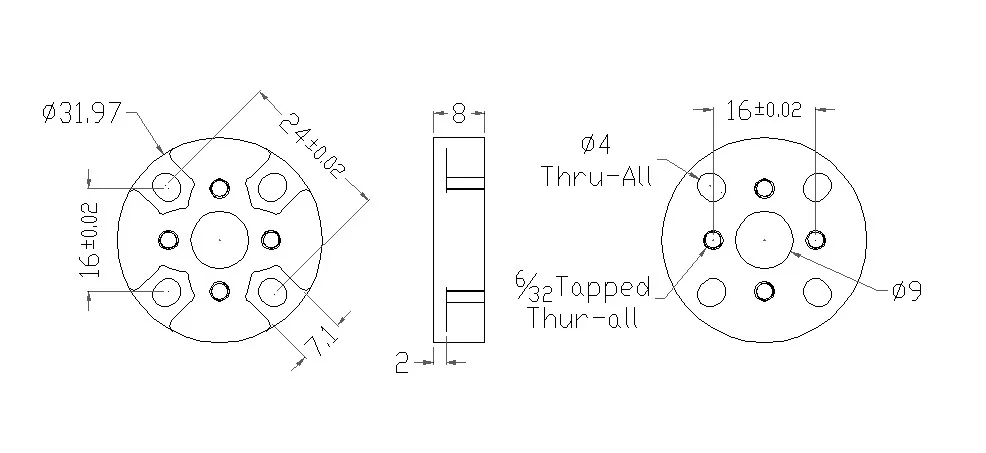

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3206-0016-0009 |
| Weight | 36g |
| Material | zinc alloy |
| Finish | Clear Anodized |
Reviews
No reviews yet — be the first to review this product.
