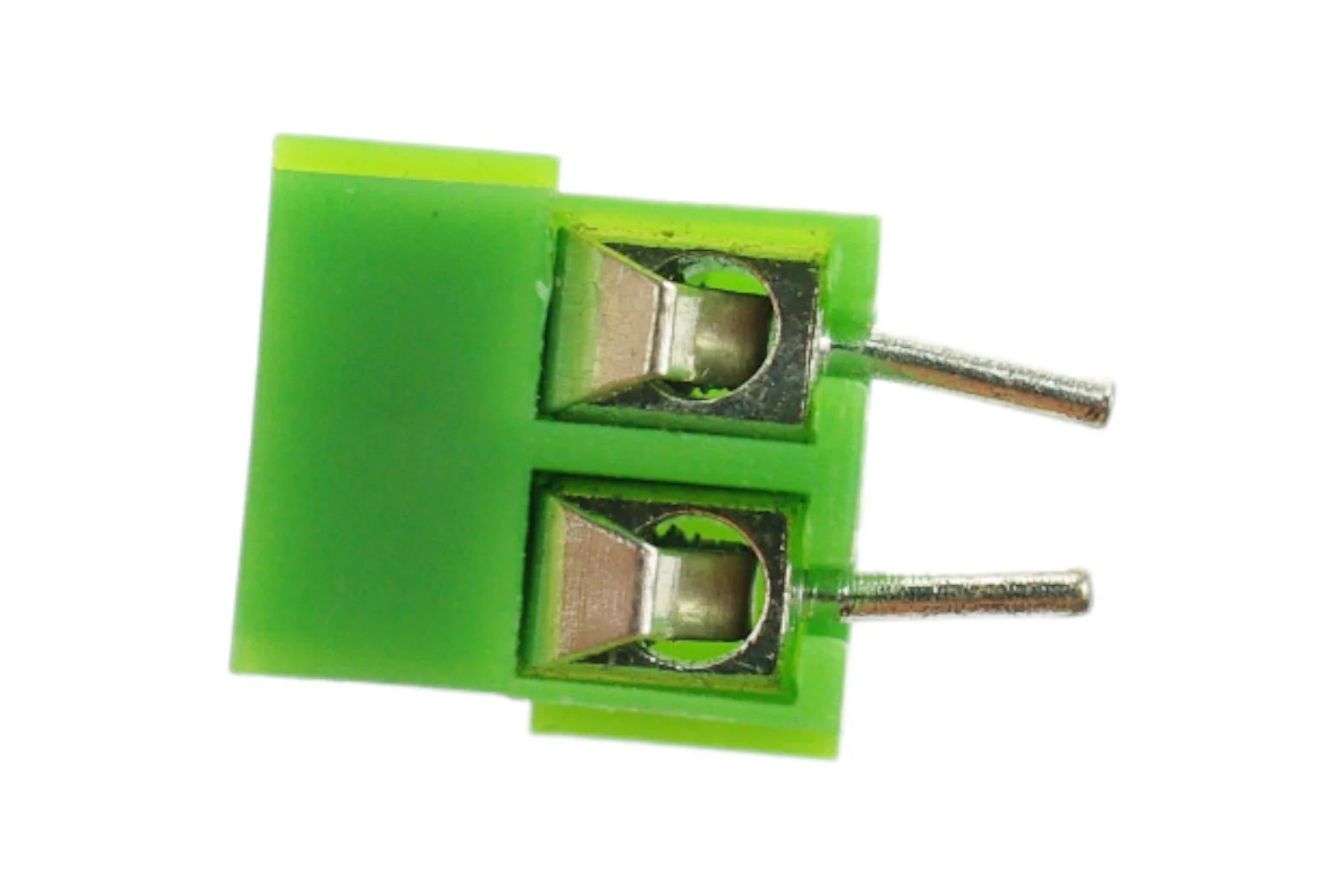

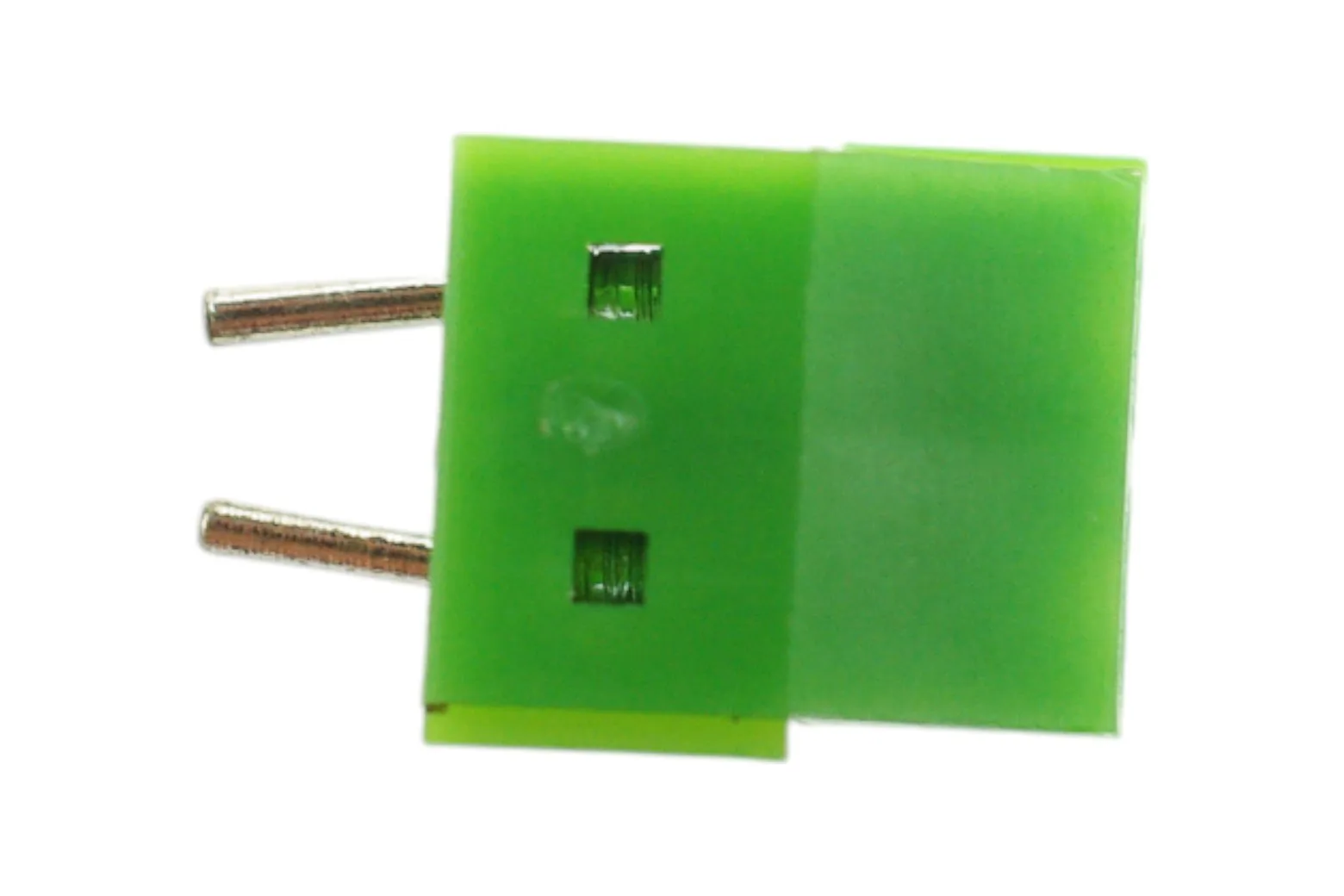

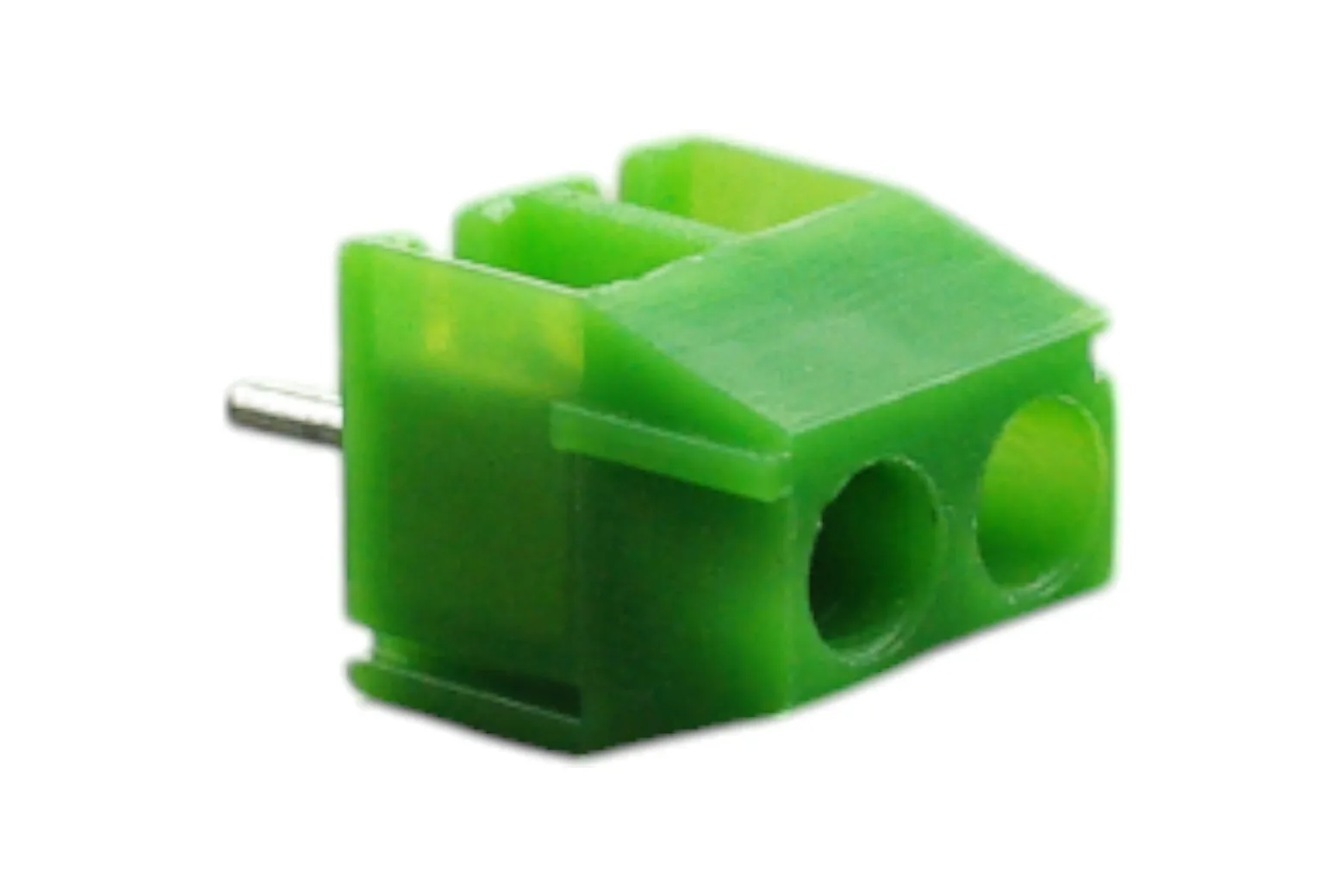

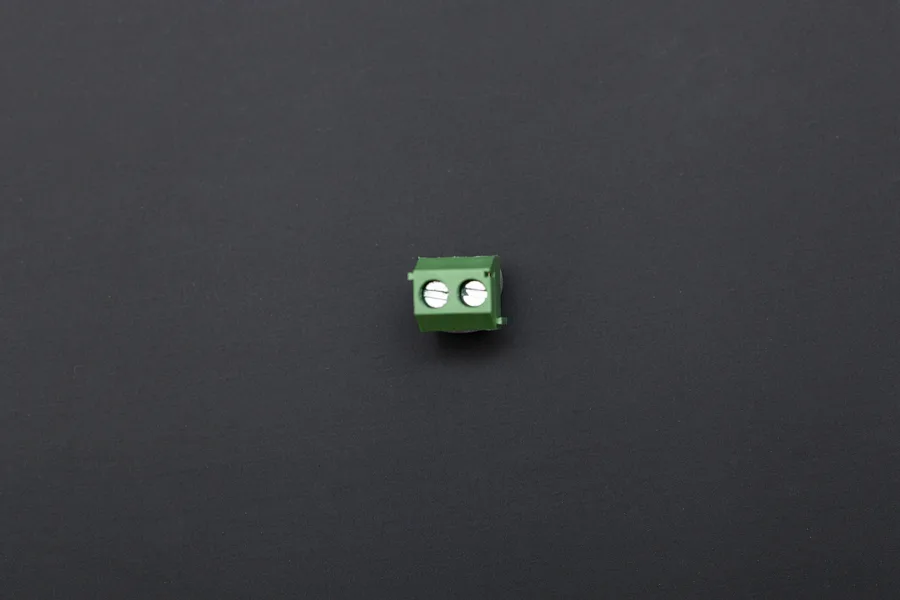

Screw Terminal 3.5mm Pitch(2-Pin)

This 2-pin screw terminal block features a standard 3.5mm pitch, providing a secure and reusable wire-to-board connection for custom electronics projects. It is ideal for makers, students, and hobbyists looking to attach external power or signals cleanly to their circuits.

Versatile wire gauge support

The terminal block accommodates solid or stranded wires ranging from 24 to 18 AWG. A recommended wire strip length of 4.5mm to 5mm ensures optimal contact within the clamp.

Robust electrical specifications

Rated for up to 300V and 10A, this connector handles a wide variety of power and signal tasks. It features a contact resistance of 20mΩ, insulation resistance of 5000Ω at 1000V, and an AC 2000V withstand voltage for one minute.

Wide temperature resilience

Designed to operate reliably across a continuous temperature range of -30°C to +120°C. It can also withstand instant exposure up to +250°C for up to five minutes during soldering.

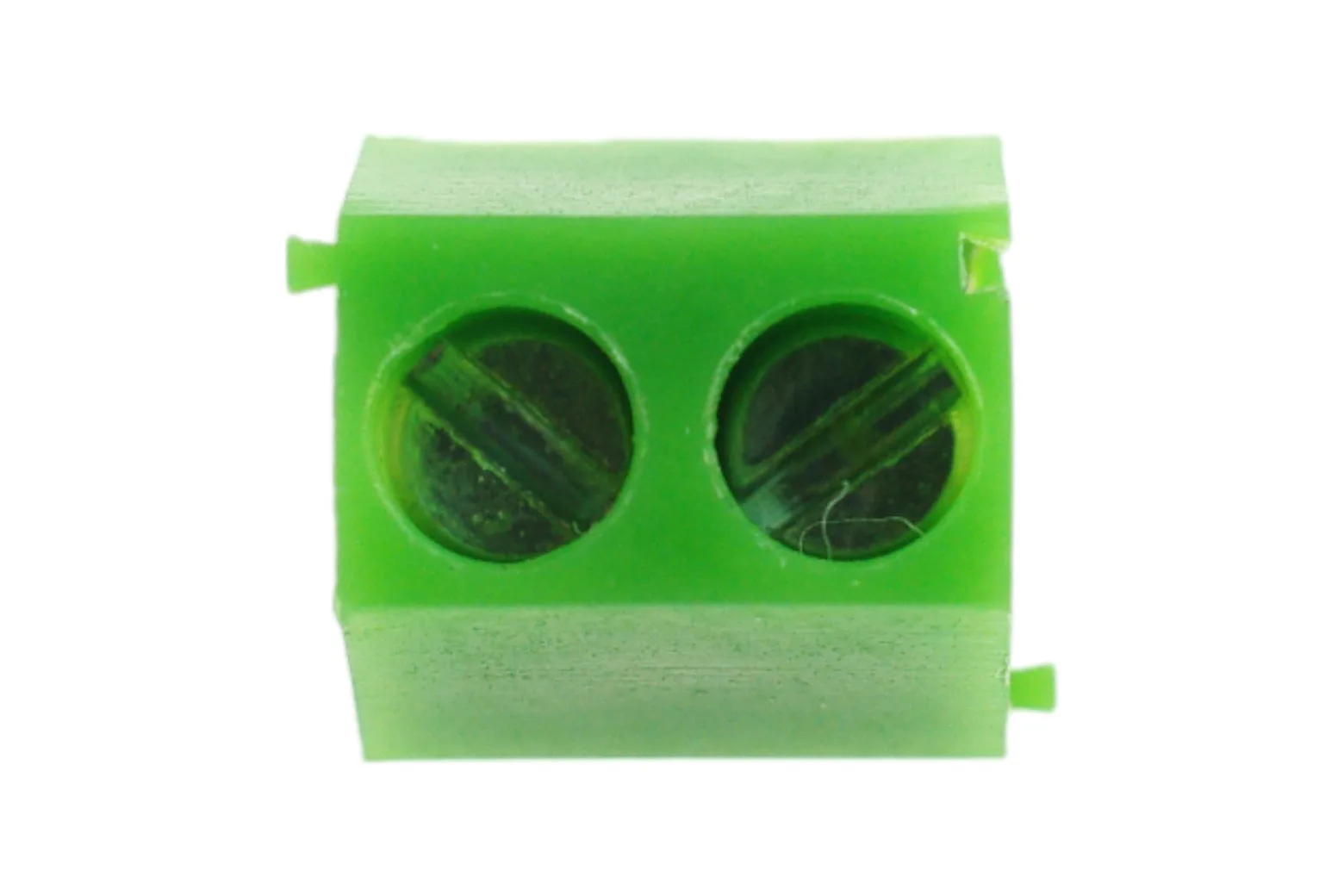

Secure screw clamping

The terminal mechanism tightens to a rated torque of 0.2Nm (1.7 lb.in) to keep connections firmly in place without damaging fine wire strands.

Included in the box

Each pack includes one 2-pin 3.5mm pitch screw terminal connector ready to solder directly to your PCB or prototype board.

Downloads & documentation

• Dimension
