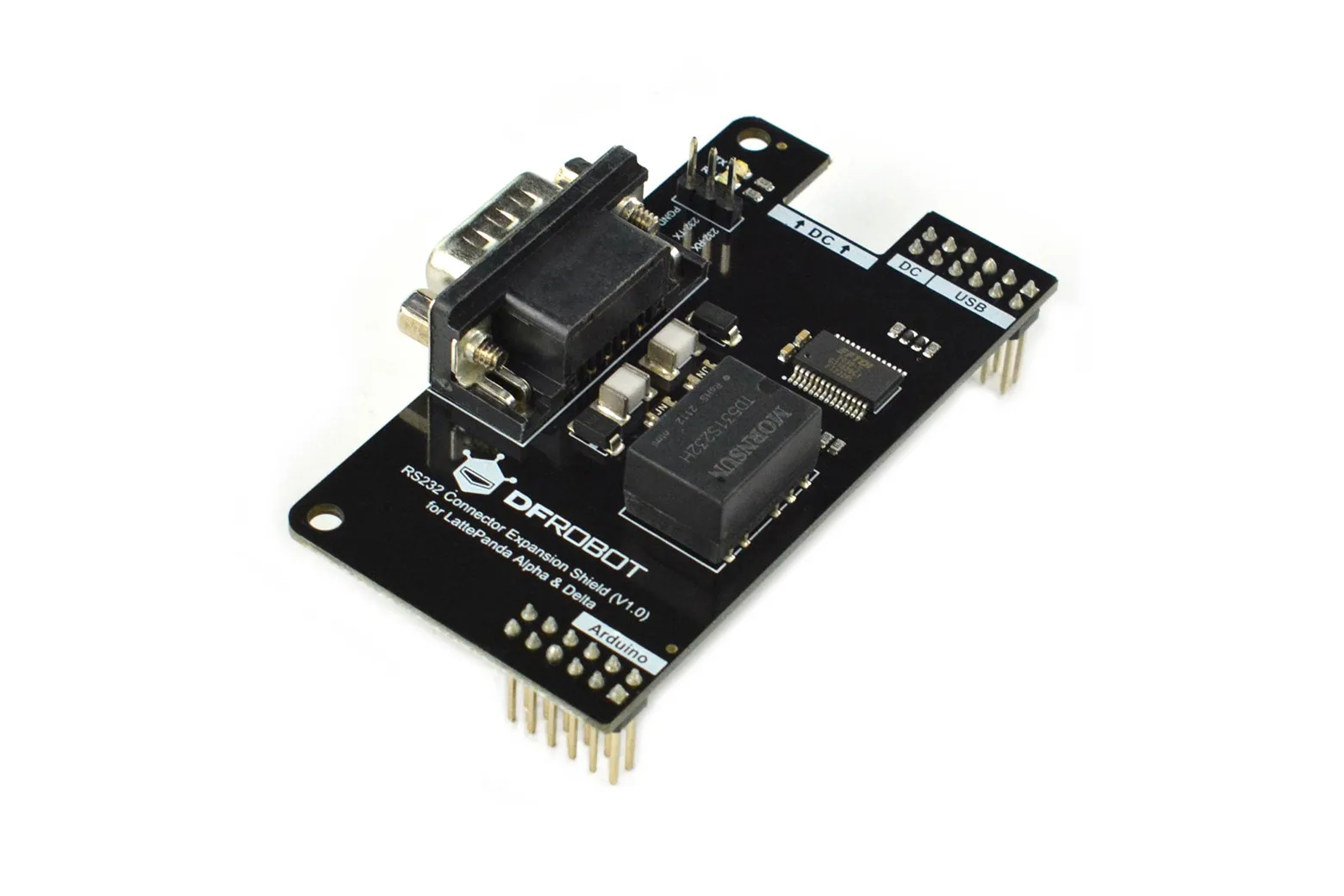

RS232 Connector Expansion Shield for LattePanda Alpha&Delta
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description

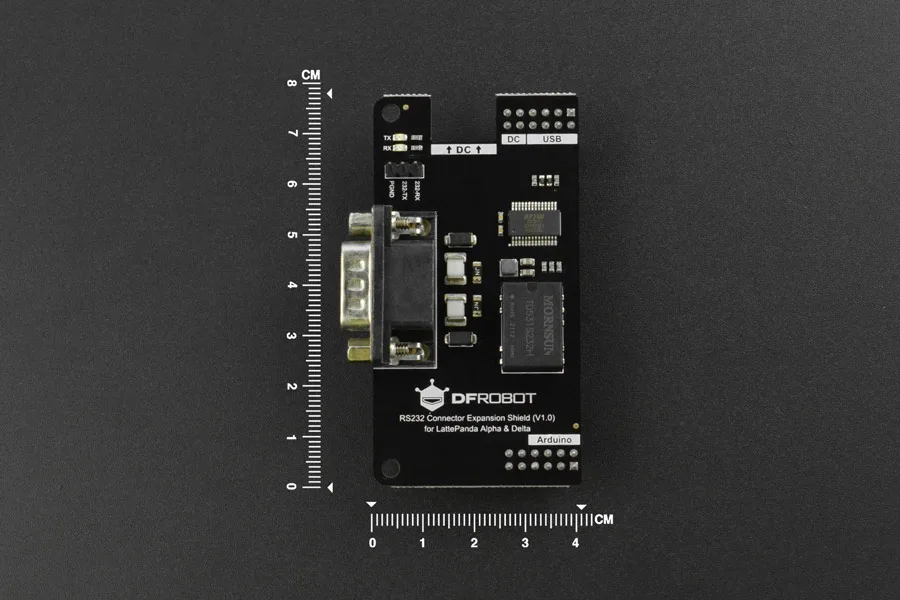

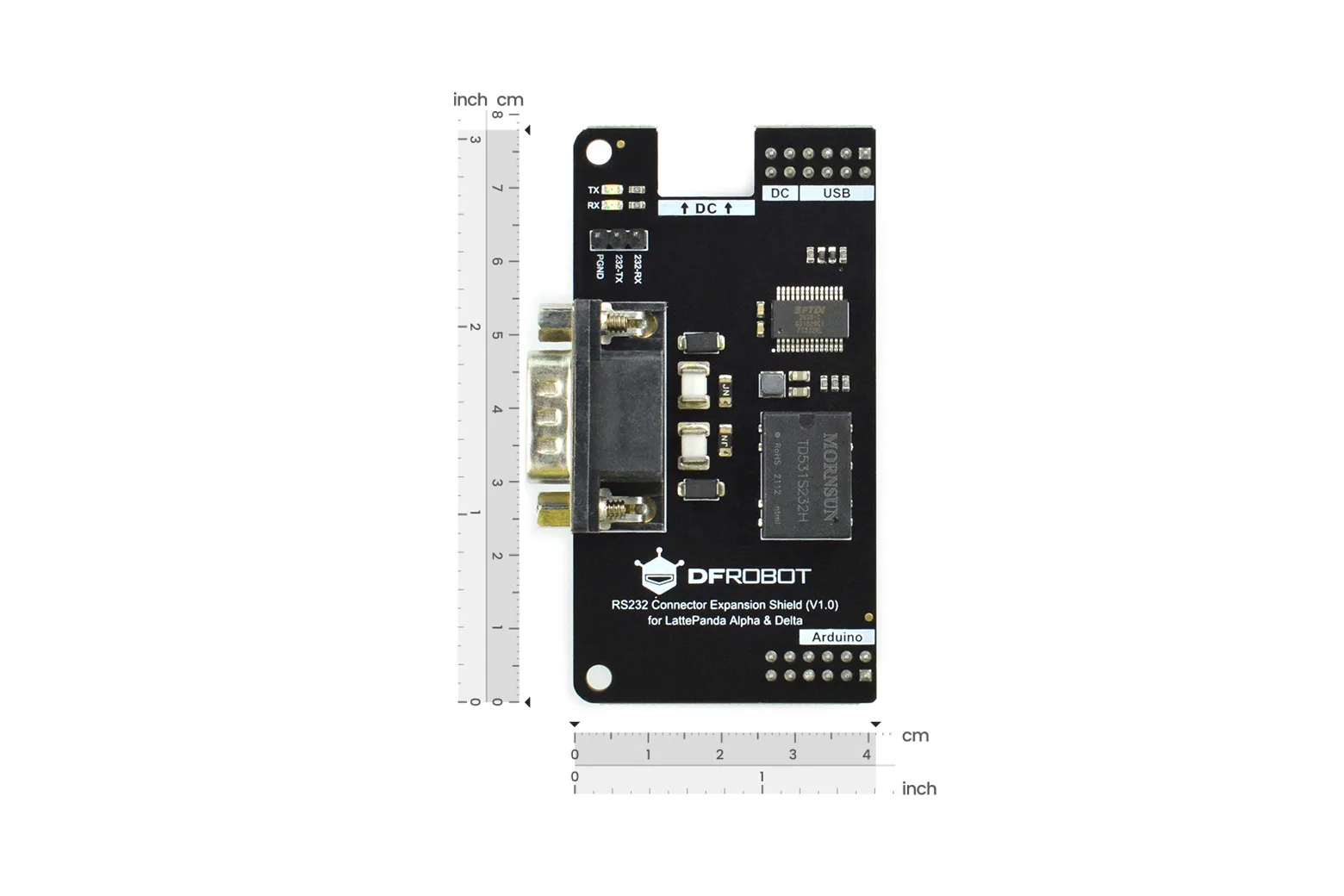

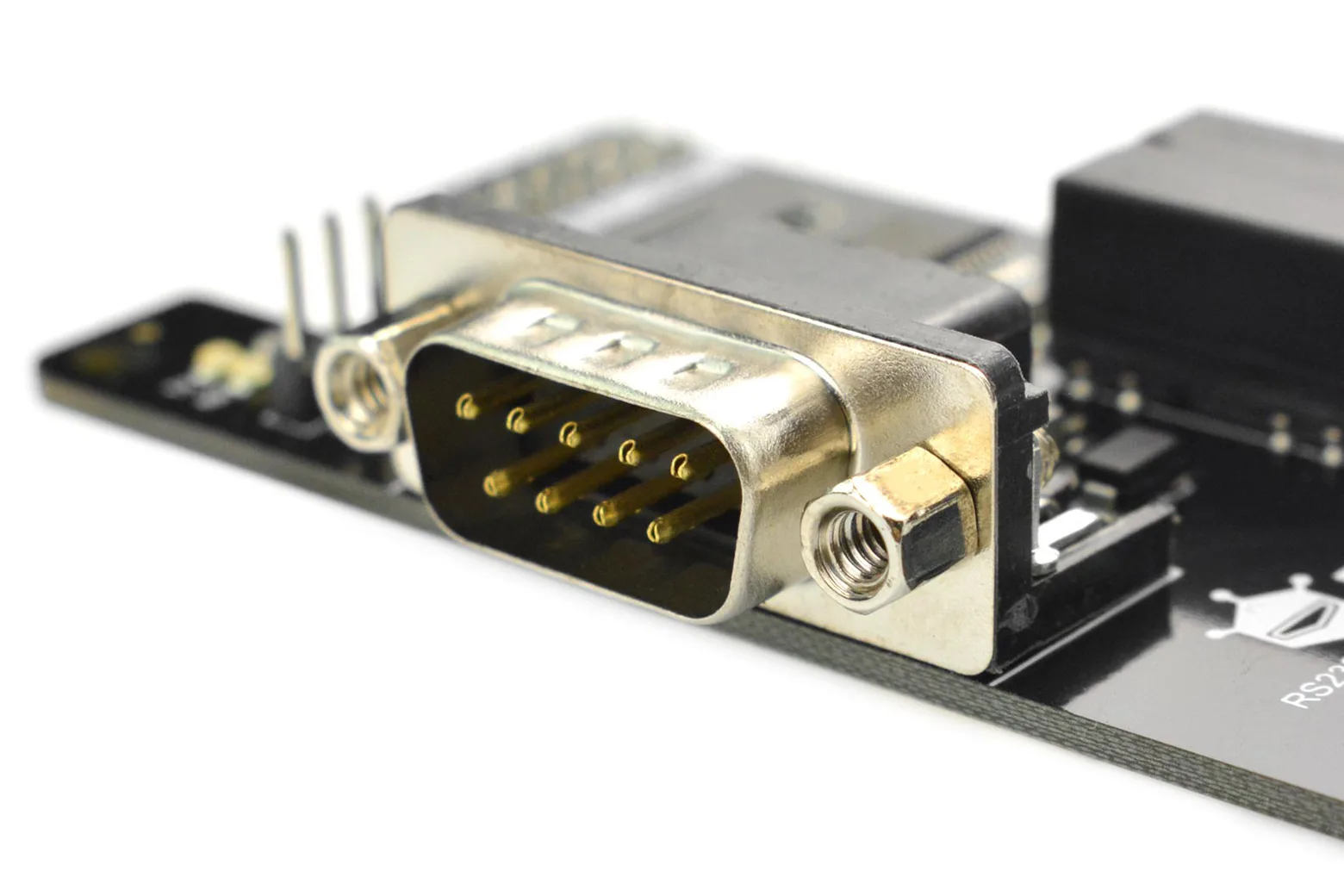

The RS232 Connector Expansion Shield for LattePanda Alpha and Delta adds a reliable, industrial-grade D-Sub 9-pin serial port to your single-board computer. Powered by an onboard FTDI USB-to-serial chip, it is ideal for makers, engineers, and educators deploying robust point-to-point industrial communications.
Industrial isolation and circuit protection

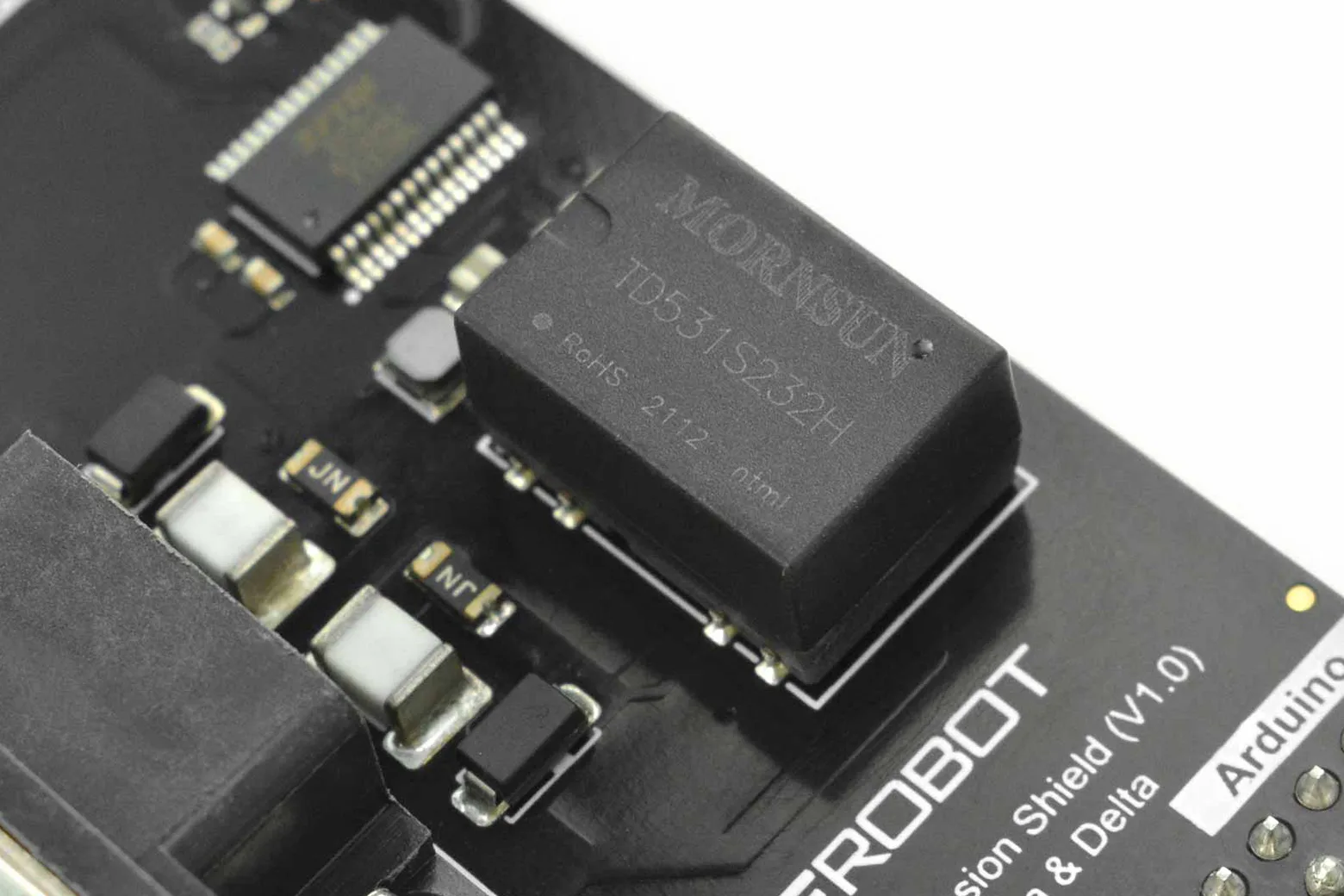

Equipped with an industrial-grade isolated transceiver module, the shield provides full signal and power isolation with an isolation voltage of 2500VDC. Built-in lightning, surge, bus, and transient impulse voltage protection safeguard your LattePanda mainboard during demanding operations.

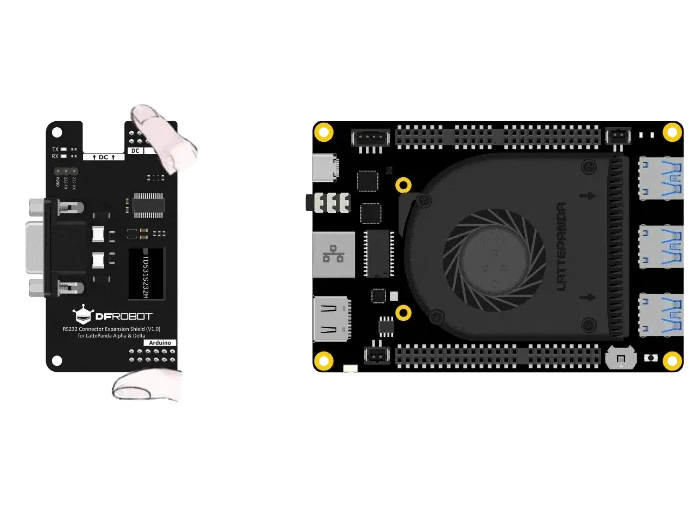

Stackable mounting with clear airflow

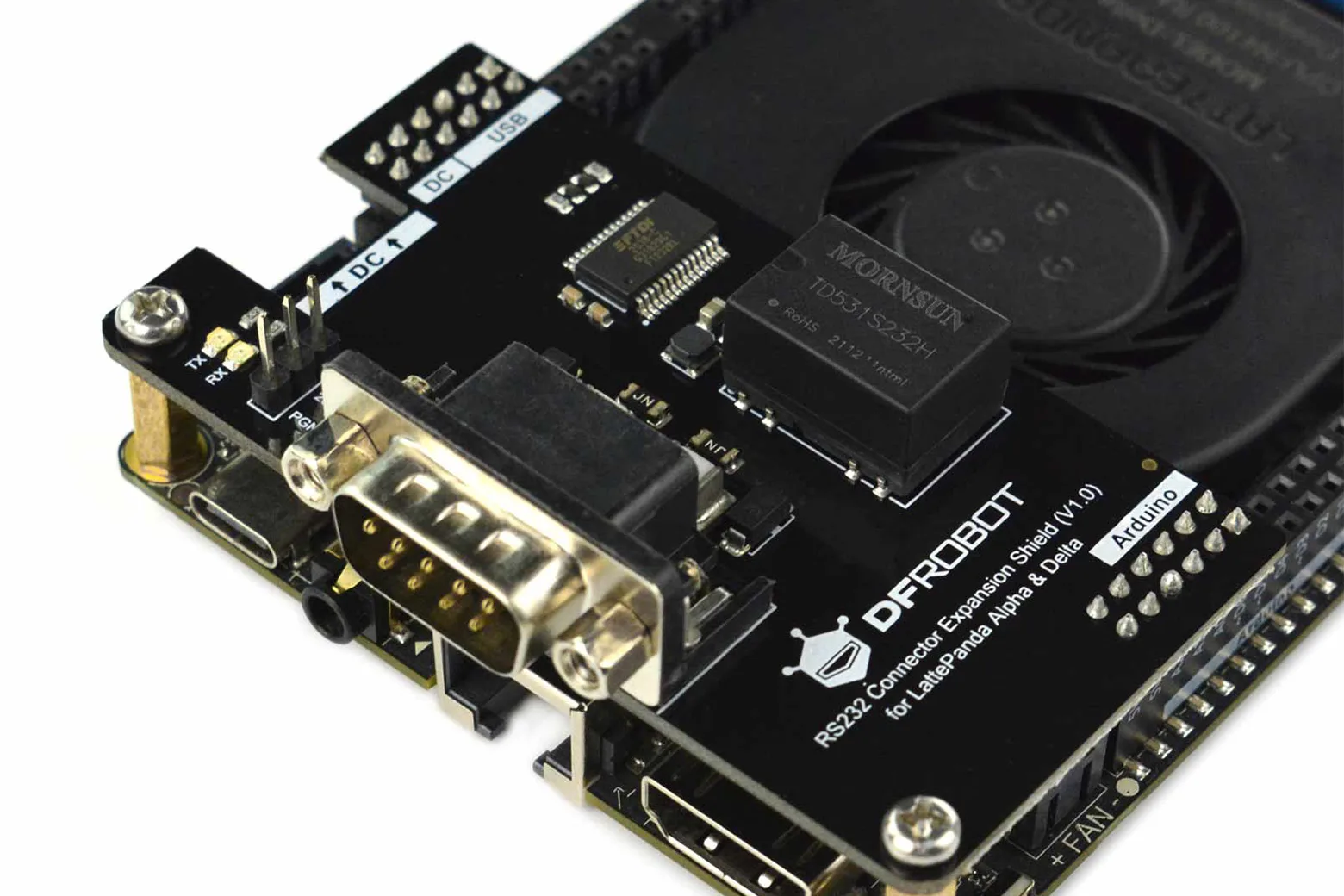

The board connects directly to the LattePanda using a stackable layout secured by copper standoffs. This configuration fastens securely without blocking the mainboard heat dissipation area or hindering system cooling.
High-speed reliable data communication
Compliant with the EIA/TIA-232-F standard, the shield supports communication baud rates up to 115200 bps for stable data transmission. It operates at 5V across an industrial temperature range of -40 degrees Celsius to +85 degrees Celsius on both Windows and Linux systems.

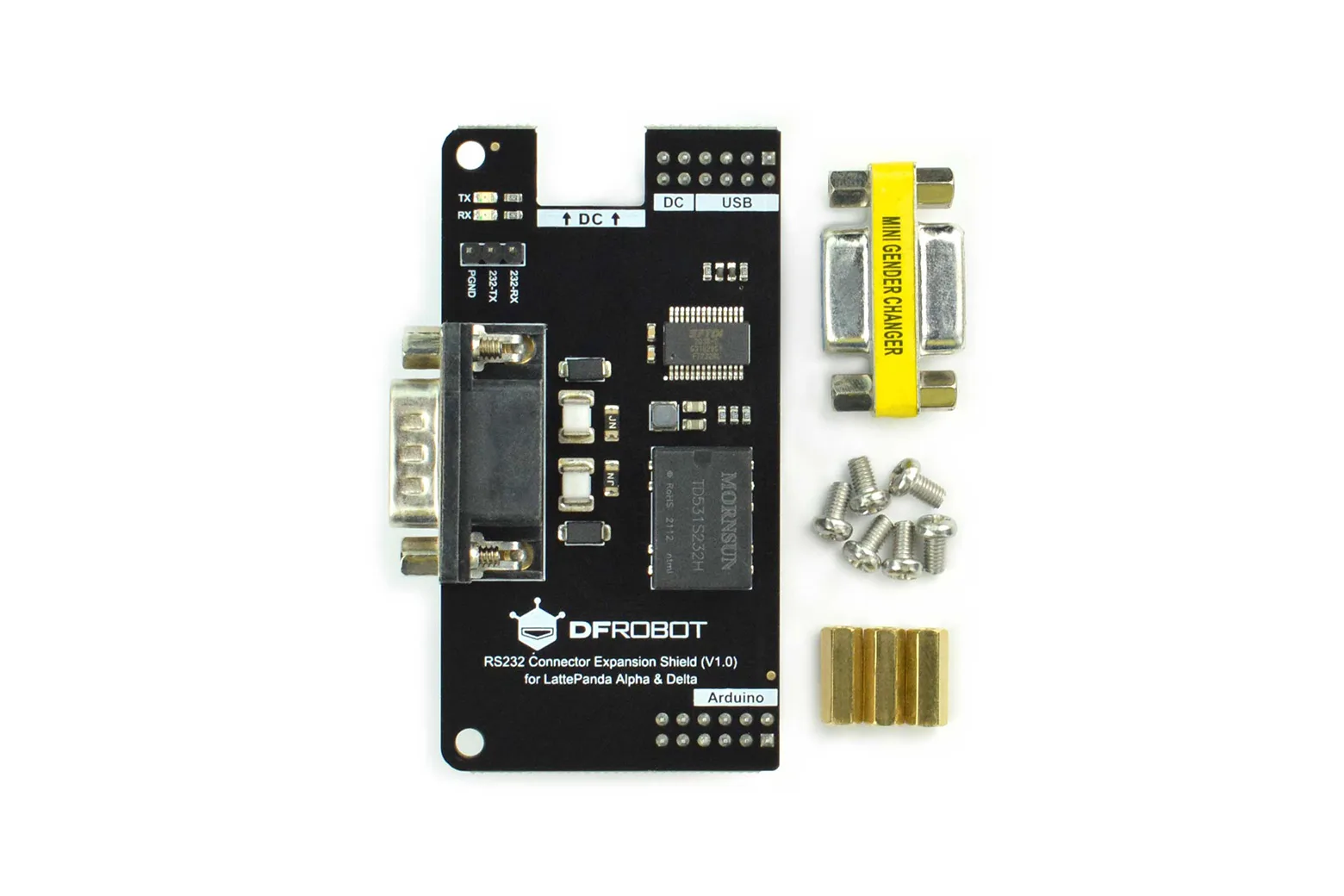

Included hardware and accessories
Each unit comes with a female-to-female DB9 adapter alongside three 12mm M3 hexagonal copper columns and six M3 round-head screws. Please note that the expansion interface does not support hot plugging.
Downloads & documentation
Specifications
| Operating Voltage | 5V |
| Operating Temperature | -40℃ to +85℃ |
| Baud Rate | up to 115200 bps |
| Isolation Voltage | 2500VDC |
In the box
| RS232 Connector Expansion Shield for LattePanda Alpha&Delta | 1 |
| DB9 Adapters female to female | 1 |
| M3 Double through hexagonal copper column (12mm) | 3 |
| M3 Round head screws | 6 |
