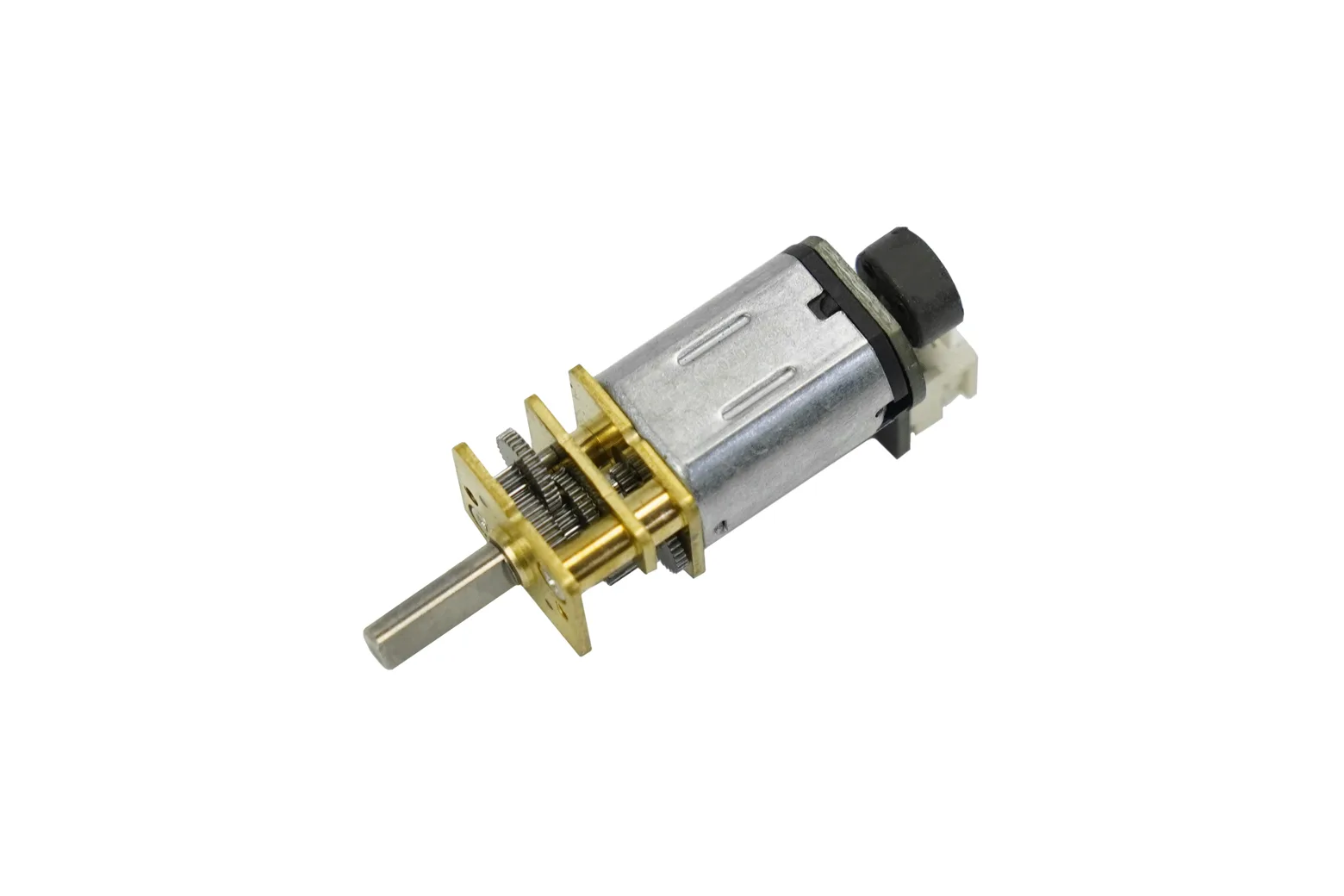

Replacement N20 Metal Motor Kit for Maqueen Plus V3 STEM Robot
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
The Replacement N20 Metal Motor Kit is an official spare part designed to restore your Maqueen Plus V3 STEM robot to full working order. Ideal for educators, students, and makers, it allows for quick, solder-free repairs after classroom wear or gear jams. Each kit contains everything required to replace a single motor unit.
Solder-free plug-and-play installation

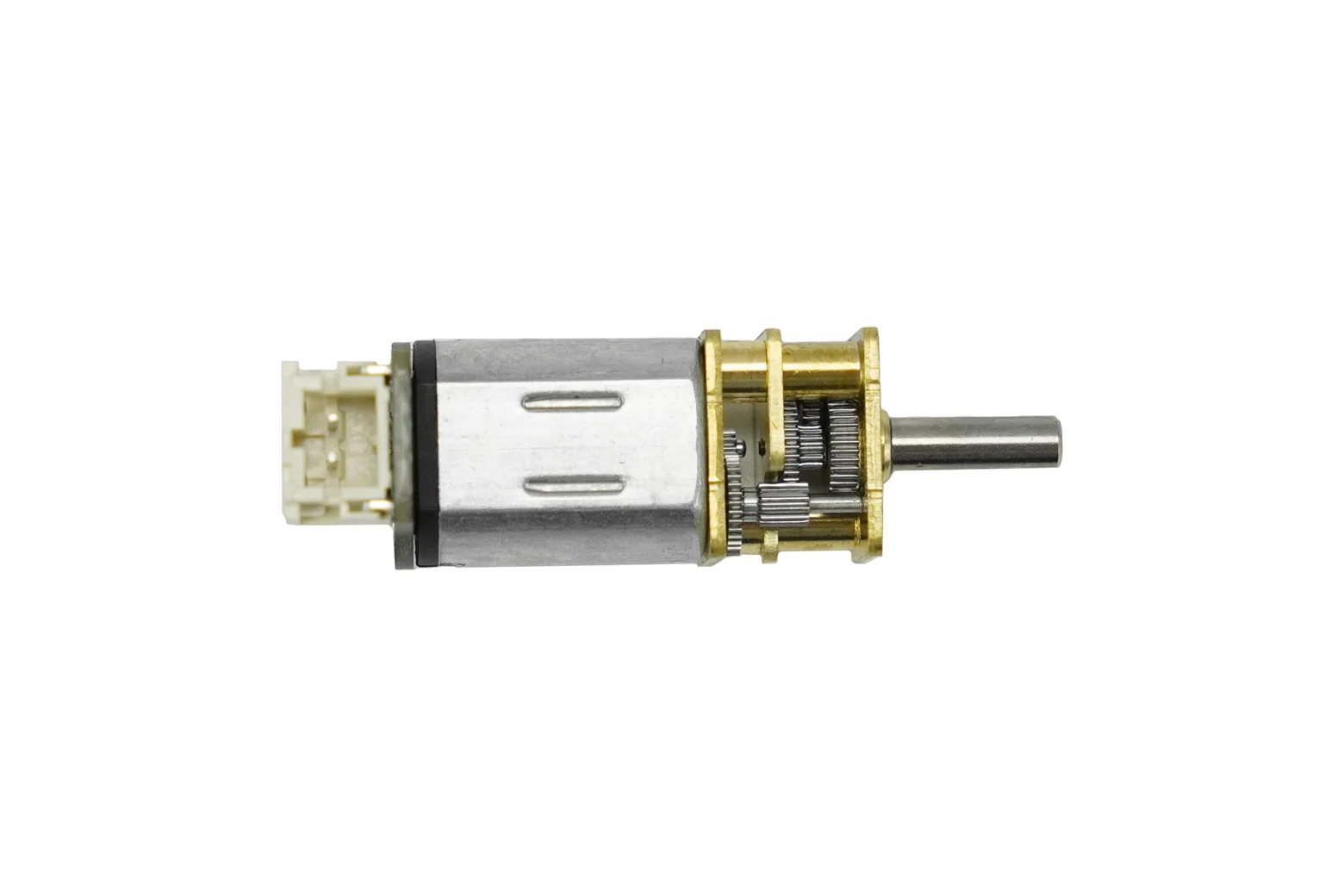

The motor connects using a dual-ended 2P PH2.0 cable, removing the need for any soldering. You can easily unmount the damaged unit and plug in the replacement to get your robot running in minutes.
Integrated Hall speed encoder
A pre-installed Hall magnetic ring and PCB are mounted to the rear output shaft. This setup provides precise closed-loop feedback for accurate speed and position control.
Geared motor technical performance

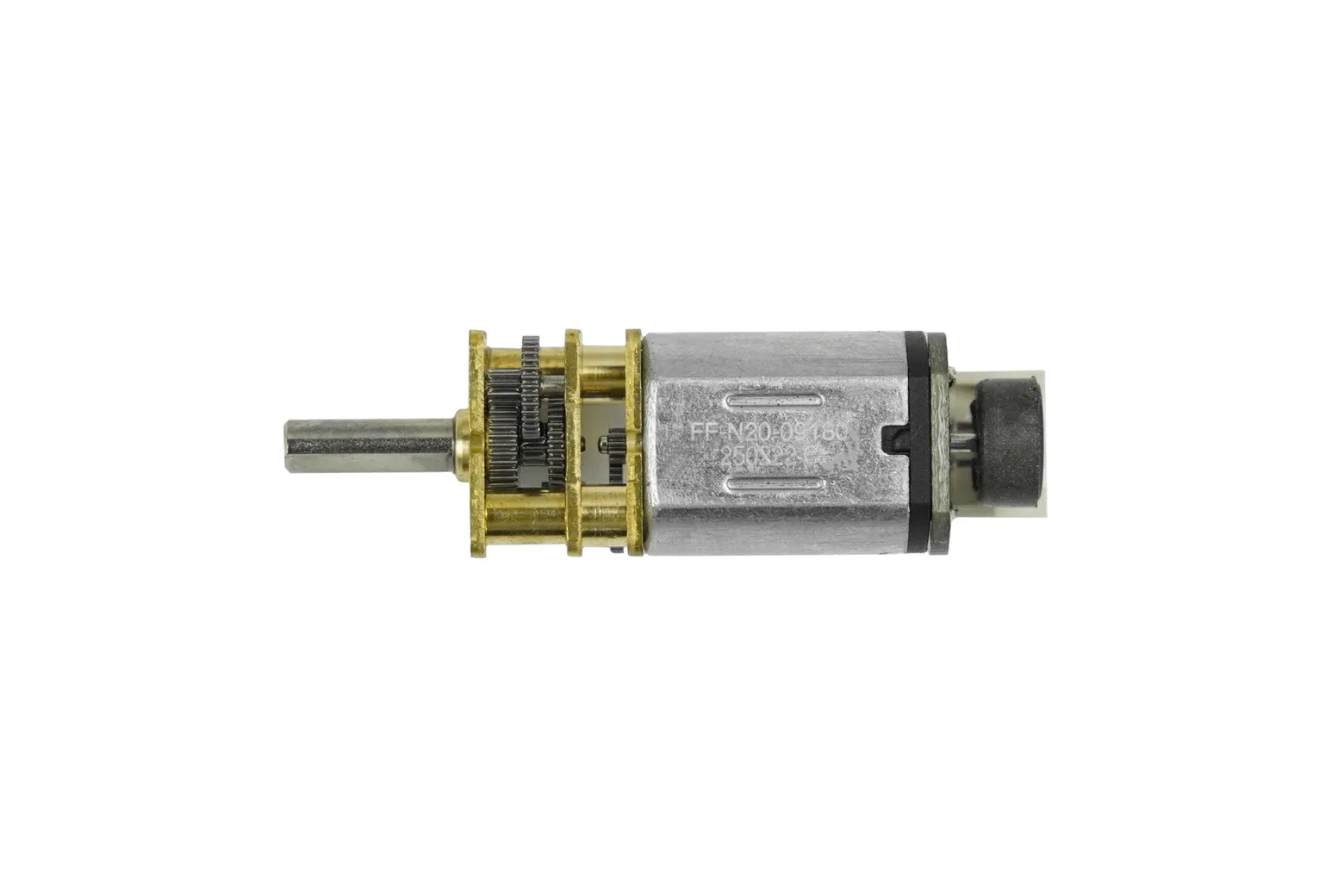

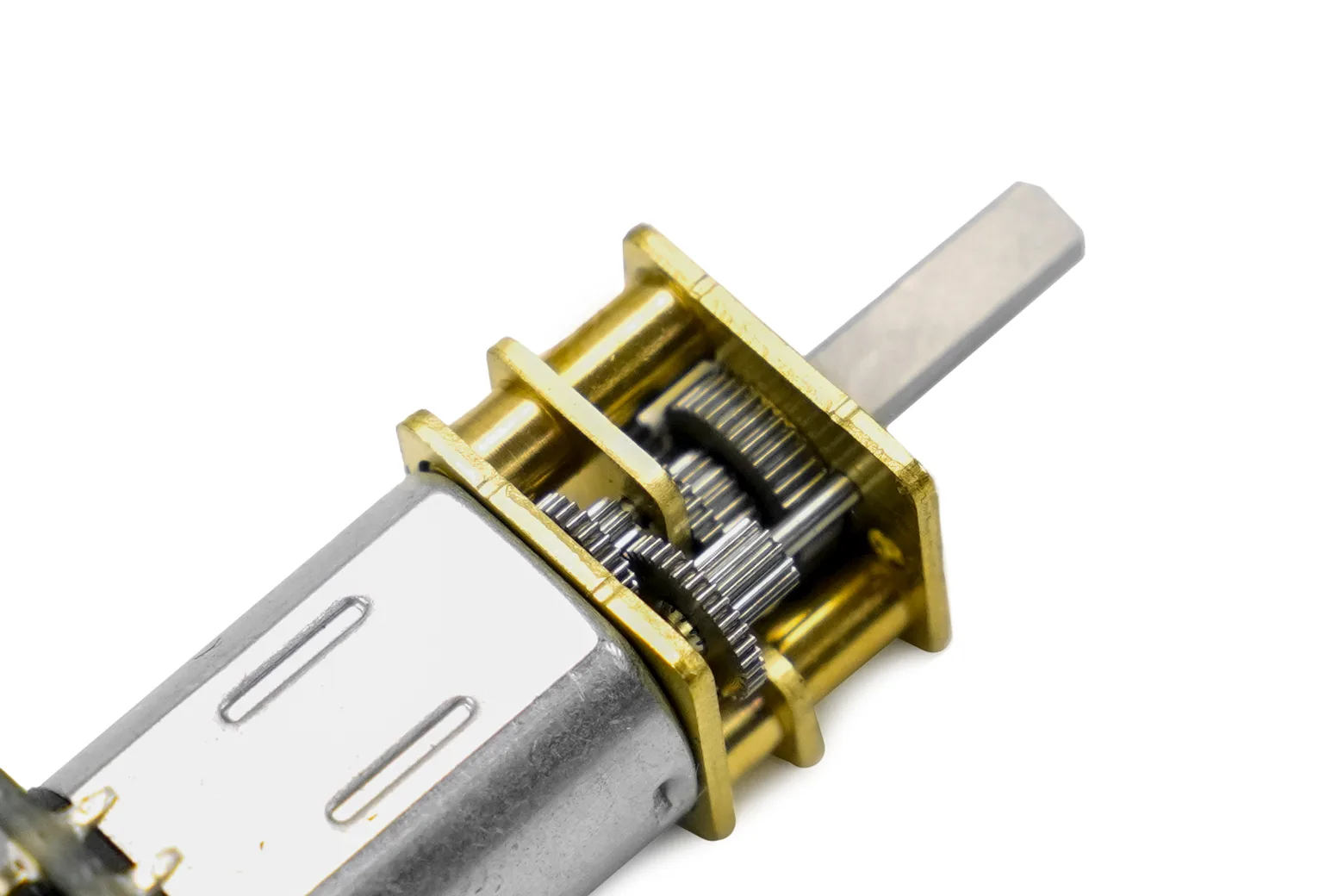

Operating at a rated 6V DC, the internal N20 motor runs at 20000 RPM. A 1:75 mechanical reduction gearbox delivers an output shaft speed of 266 RPM with counterclockwise rotation.
Complete single-motor hardware set
Each pack includes one N20 metal motor with encoder, an ABS mounting bracket, two M2x8 cross-recessed combination screws, and the PH2.0 connecting lead.
Maqueen Plus V3 compatibility
This kit matches the original factory specifications for Maqueen Plus V3 models MBT0050-AA and MBT0050-18650. Two kits are required if you need to replace both motors on a single robot chassis.
Downloads & documentation
Specifications
| Interface | 2P PH2.0 |
| Screw | M2×8 Cross-Recessed Combination Screw |
| Model | N20 (with rear output shaft) |
| Rated Voltage | 6V DC |
| Motor Speed | 20000 RPM (at Rated Voltage) |
| Gear Reduction Ratio | 1:75 (Mechanical Reduction) |
| Output Shaft Speed | 266 RPM (at Rated Voltage) |
| Rotation Direction | CCW (Counterclockwise, Viewed from Output Shaft End) |
| Motor Mount | ABS (Acrylonitrile Butadiene Styrene) |
| Connecting Wire | 2P PH2.0 Dual-Ended Cable |

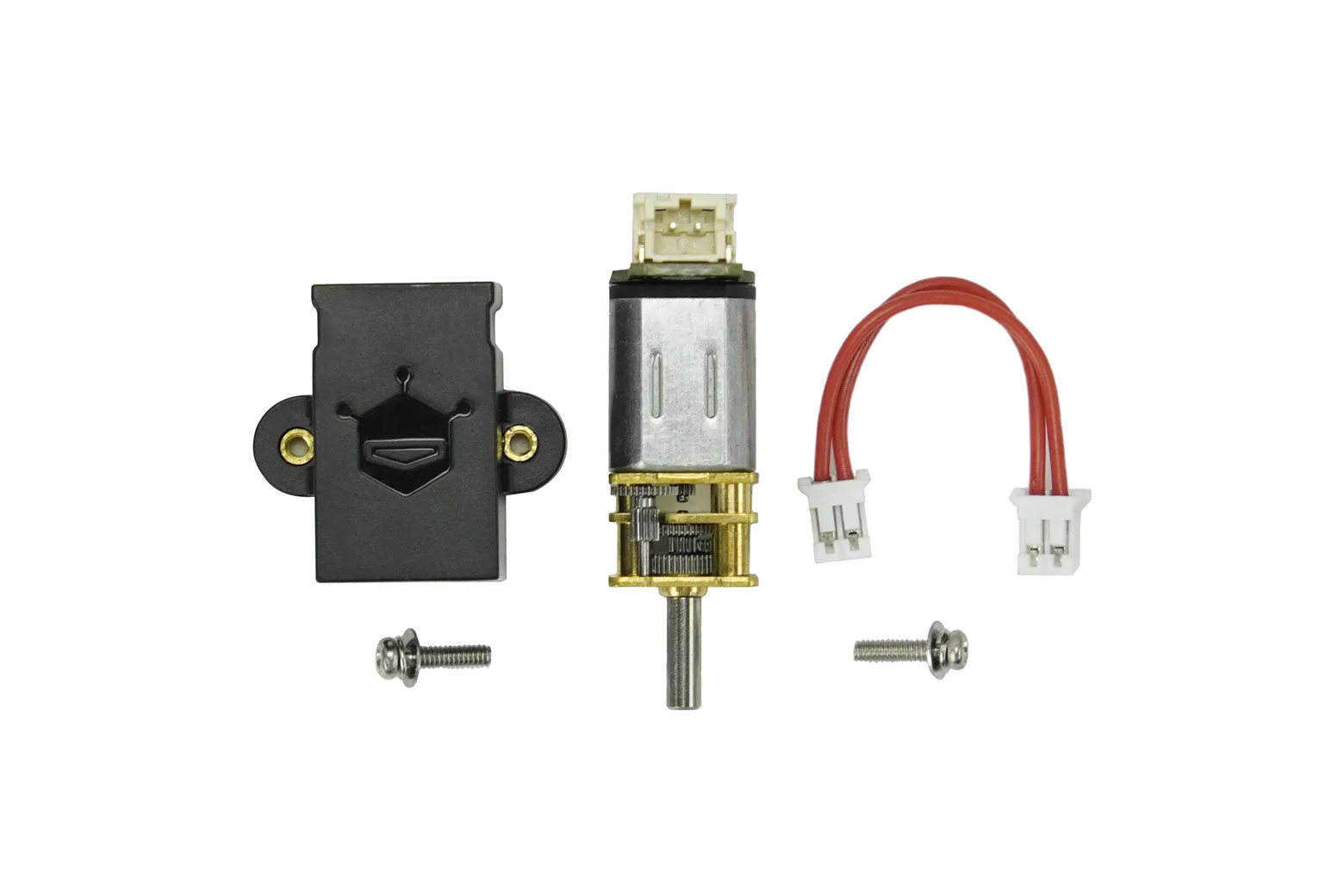

In the box
| N20 Metal Motor (with pre-installed Hall magnetic ring and PCB) ×1 | 1 |
| Motor Mounting Bracket ×1 | 1 |
| Mounting Screws ×2 | 1 |
| Motor Connecting Wire ×1 | 1 |
