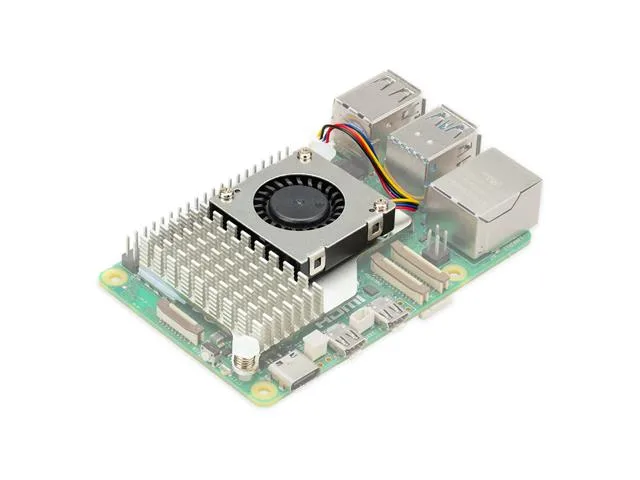

Raspberry Pi 5 Active Cooler with Aluminium Heatsink and Fan

The Raspberry Pi Active Cooler is a dedicated clip-on thermal management solution engineered specifically for the Raspberry Pi 5. It pairs a single-piece anodised aluminium heatsink with a temperature-controlled blower fan to sustain optimal operating temperatures under heavy workloads. It is ideal for students, hobbyists, and makers requiring reliable thermal performance for demanding computing projects.

Efficient thermal management

The cooler combines an anodised aluminium heatsink with a heatsink-mounted blower fan delivering up to 1.09 CFM of airflow. It features pulse width modulation control with a tachometer to dynamically adjust fan speeds up to 8000 RPM based on temperature.

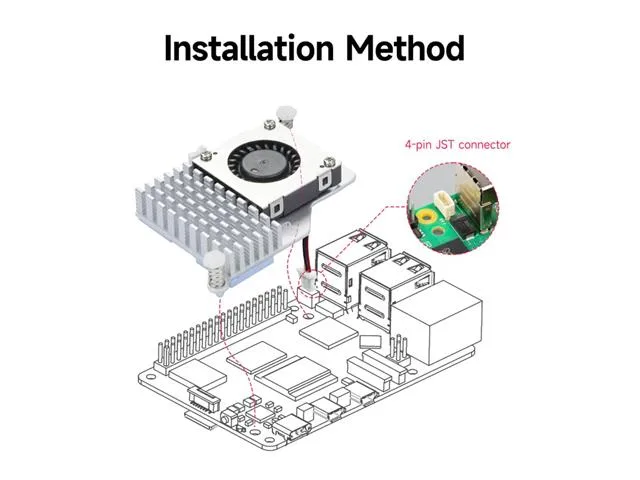

Direct board integration

Spring-loaded push pins and pre-applied thermal pads ensure secure heat transfer and straightforward mounting onto the Raspberry Pi 5. Power and control are supplied directly through the dedicated four-pin fan header on the board.

Extended production availability

Designed for long-term project deployments, the Active Cooler will remain in production until at least January 2036. Please note that the Raspberry Pi 5 board is not included.

Downloads

• Datasheet
