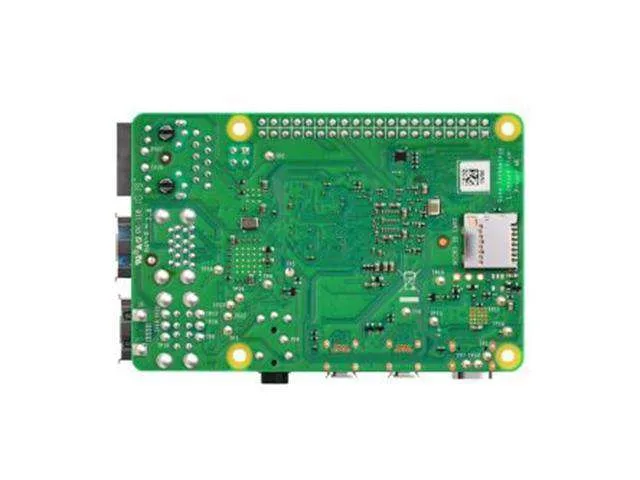

Raspberry Pi 4 Model B Single Board Computer, 4GB RAM

The Raspberry Pi 4 Model B is a powerful single-board computer offering desktop-level performance with a 1.5 GHz 64-bit quad-core processor and 4 GB of RAM. It provides dual 4K display support, fast networking, and versatile peripheral connectivity for coding projects and embedded builds. It is ideally suited to students, makers, educators, and hobbyists building advanced electronics applications.

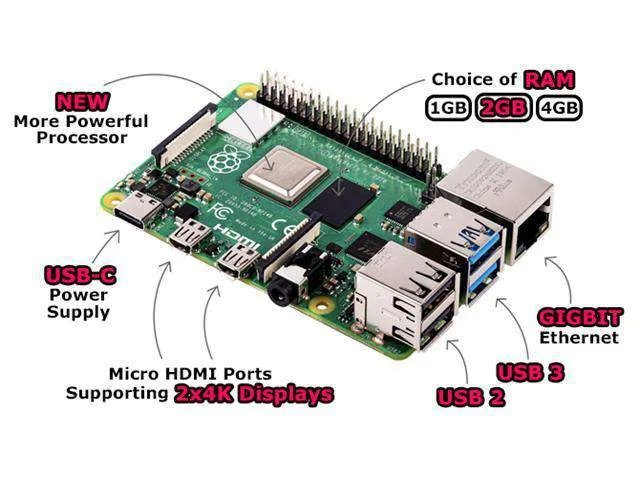

Desktop-level processing power

Powered by a Broadcom BCM2711 quad-core Cortex-A72 64-bit processor running at 1.5 GHz, the board provides desktop performance comparable to entry-level x86 PC systems. It features 4 GB of RAM and supports hardware video decoding up to 4Kp60 using H.265.

Dual 4K display support

The board includes two micro-HDMI ports capable of driving dual displays at resolutions up to 4Kp60. It also incorporates 2-lane MIPI DSI display and MIPI CSI camera ports along with a 4-pole stereo port.

Comprehensive networking and interfaces

Connectivity options include dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, and PoE capability when paired with a separate PoE HAT add-on. For data and peripherals, the board offers two USB 3.0 ports, two USB 2.0 ports, and an SD card socket.

Handling and enclosure advice

It is advisable to place the Raspberry Pi into an enclosure during use to protect against static damage.

Downloads

• Datasheet Download
