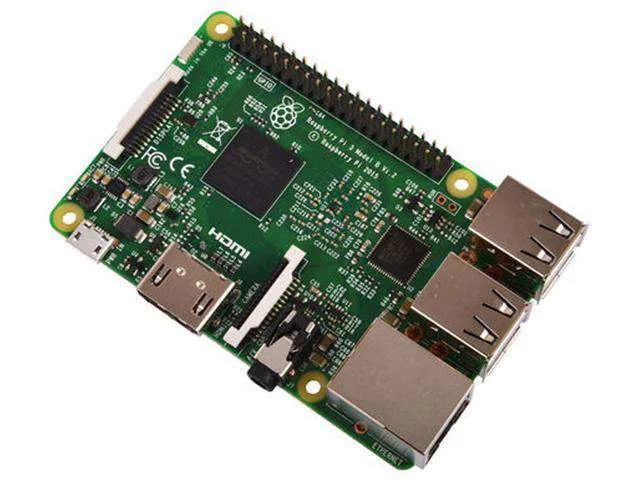

Raspberry Pi 3 Model B Single Board Computer, 1.2 GHz, 1 GB RAM

The Raspberry Pi 3 Model B is an accessible single-board computer featuring a 1.2 GHz processor alongside integrated wireless connectivity. It is designed to aid in the teaching of programming and computing while serving as a versatile foundation for Internet of Things (IoT) designs. Ideal for students, makers, and educators, it provides a flexible platform for desktop computing, servers, and electronics projects.

Enhanced processing and wireless connectivity

Equipped with a 1.2 GHz CPU, the Pi 3 delivers significantly faster processing speeds than previous generations. It features on-board 802.11 b/g/n Wireless LAN and Bluetooth Classic with Bluetooth Low Energy (BLE), enabling swift wireless communication without external adapters.

Versatile connections and components

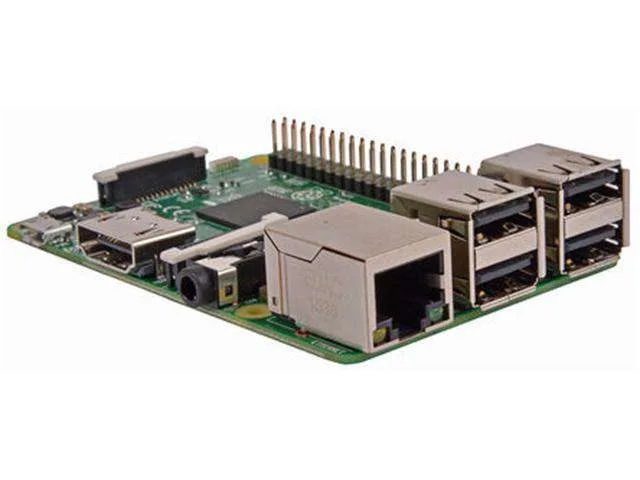

The board is equipped with four USB ports, an Ethernet port, full-size HDMI, an RCA socket, and a 3.5 mm audio jack. Storage is handled via an integrated microSD card socket, placed next to the board's status LEDs and chip antenna.

Power and protection requirements

Due to the higher performance processor and integrated wireless radios, the Raspberry Pi 3 requires a 2.5 A power supply to operate reliably. Housing the board inside an enclosure is recommended to safeguard sensitive components against static damage.

Software and versatile applications

The board runs Linux-based operating systems with access to an extensive library of free software. It is well suited for use as a media centre, personal server, desktop workstation, or home security and monitoring hub.
