Mini ENC28J60 Ethernet LAN Network Module, 3.3V
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description

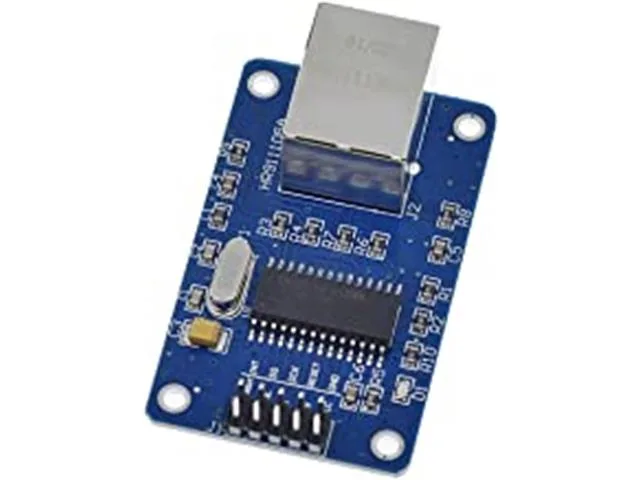

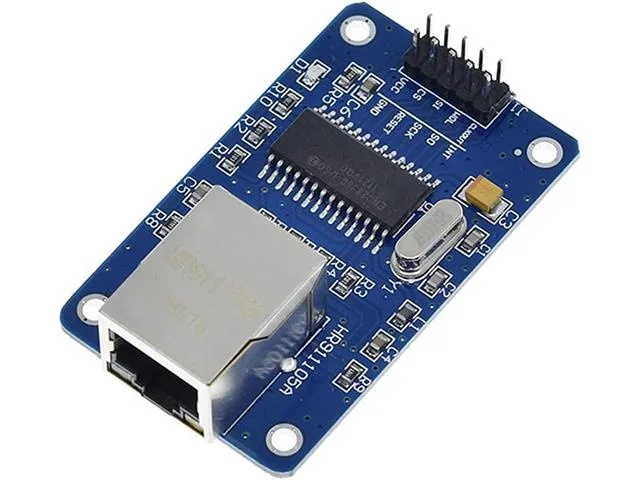

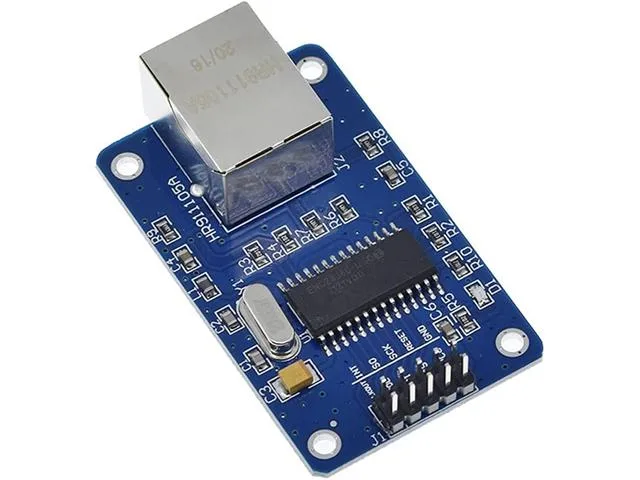

The Mini ENC28J60 Ethernet LAN Network Module brings wired networking capabilities to your microcontroller projects. Featuring an onboard HR911105A network connector and SPI interface, it allows microcontrollers such as Arduino, AVR, PIC, and STM32 to connect to local networks and the Internet of Things. It is an accessible choice for students, makers, and hobbyists developing networked embedded systems.
Hardware features
The module is built around the ENC28J60/SS controller chip and includes an onboard 25MHz crystal for stable operation. It integrates an HR911105A RJ45 network interface for reliable Ethernet cable connections.
Microcontroller connectivity
Equipped with an SPI interface, this module communicates with a wide range of platforms including Arduino, 51, AVR, PIC, STM32, and LPC microcontrollers. It is powered via a 3.3V power supply pin.
Compact form factor
With dimensions of 48.8 mm by 18.5 mm, the slim board profile is well suited for compact enclosures and space-constrained prototyping setups.
Specifications
| Device | Network Module |
| Type | Mini | ENC28J60 | Ethernet | LAN |
| Controller Chip | ENC28J60/SS |
| Network Interface | HR911105A |
| Crystal Frequency | 25MHz |
| Supply Voltage | 3.3V |
| Dimensions | 48.8 mm x 18.5 mm |
