micro:Maqueen Plus V2 (Ni MH Rechargeable Battery) with micro:Maqueen Mechanic and micro:bit V2

The micro:Maqueen Plus V2 with Mechanic Kit and micro:bit V2 is an advanced, all-in-one educational robotics platform designed for STEAM learning. Supplied with the micro:bit V2 board and mechanical expansion hardware, it is ideal for primary and secondary school classrooms, robotics clubs, and competition preparation.

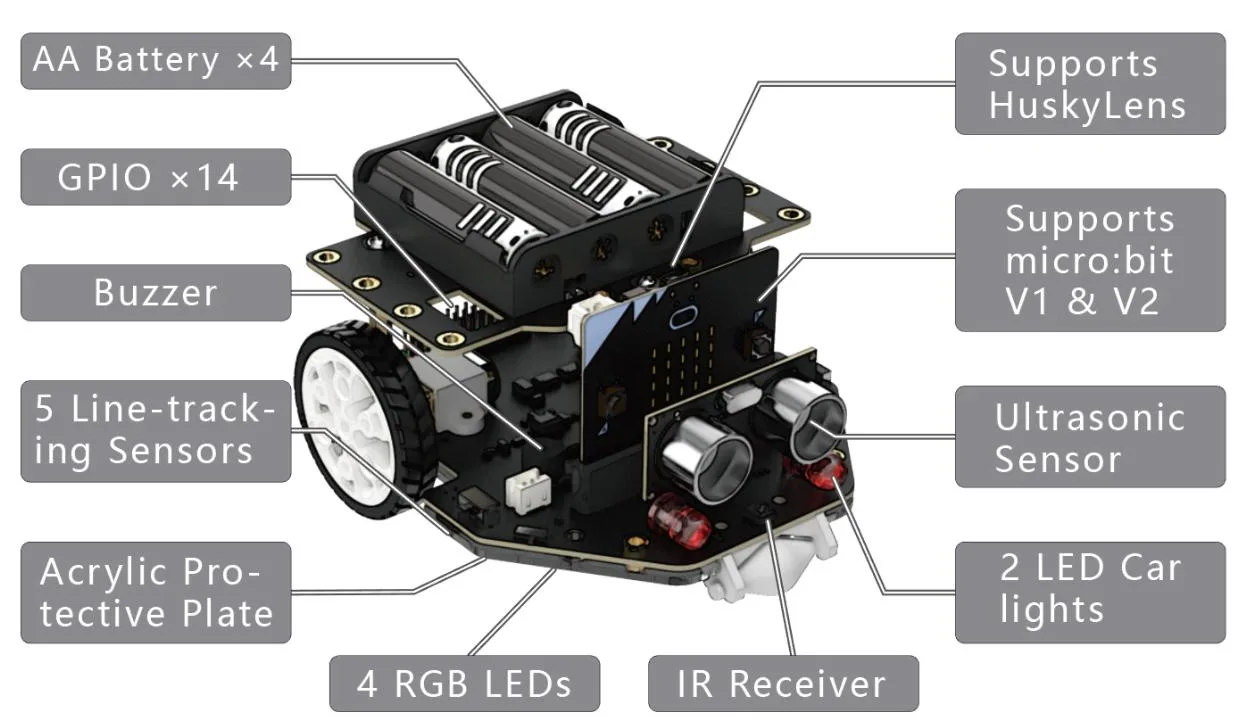

Complete STEAM robotics package

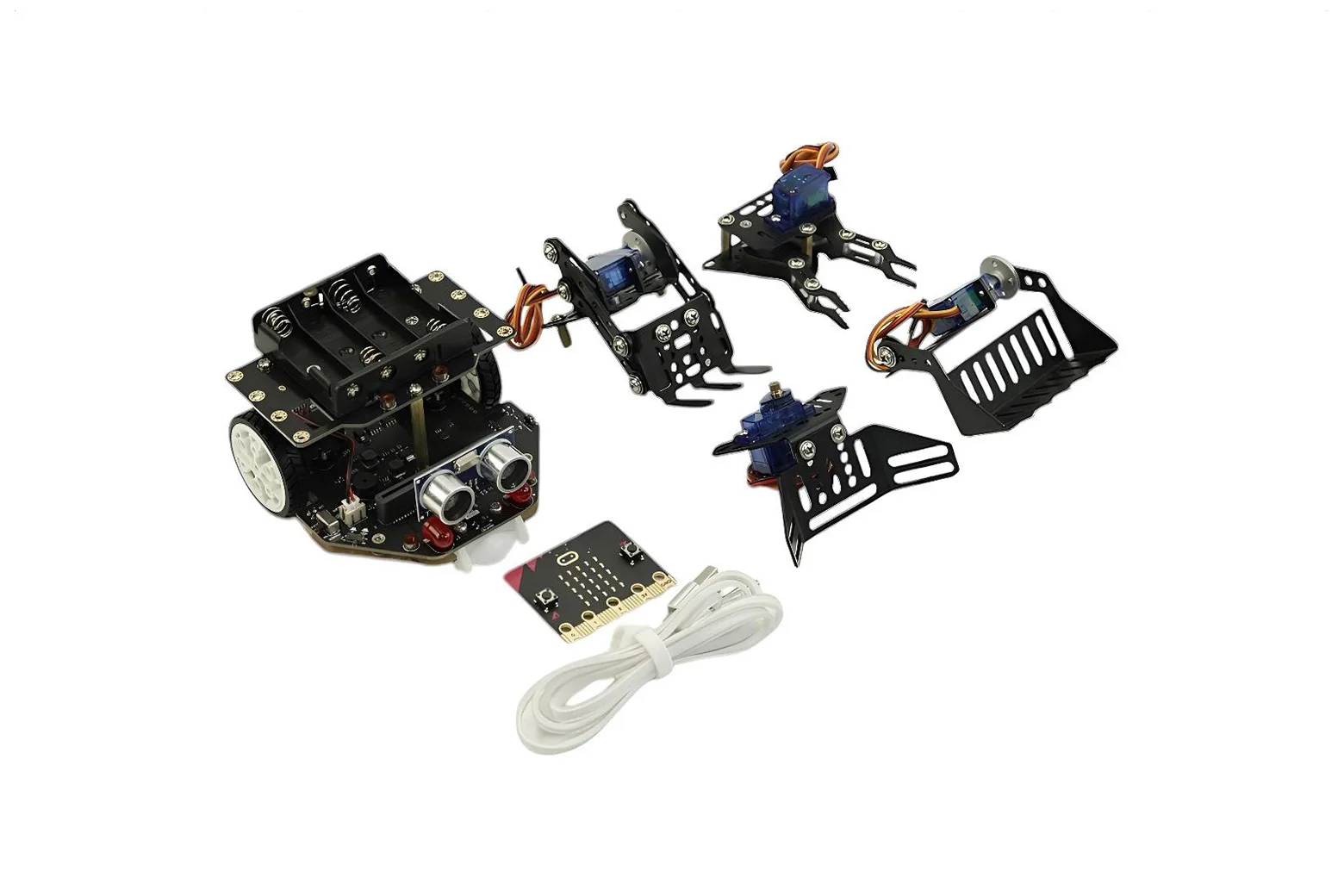

This comprehensive kit combines the Maqueen Plus V2 base with a micro:bit V2 board and the Maqueen Mechanic accessory pack. Learners can assemble and code four distinct mechanical configurations, including a loader, forklift, beetle gripper, and push mechanism.

Precise line tracking and navigation

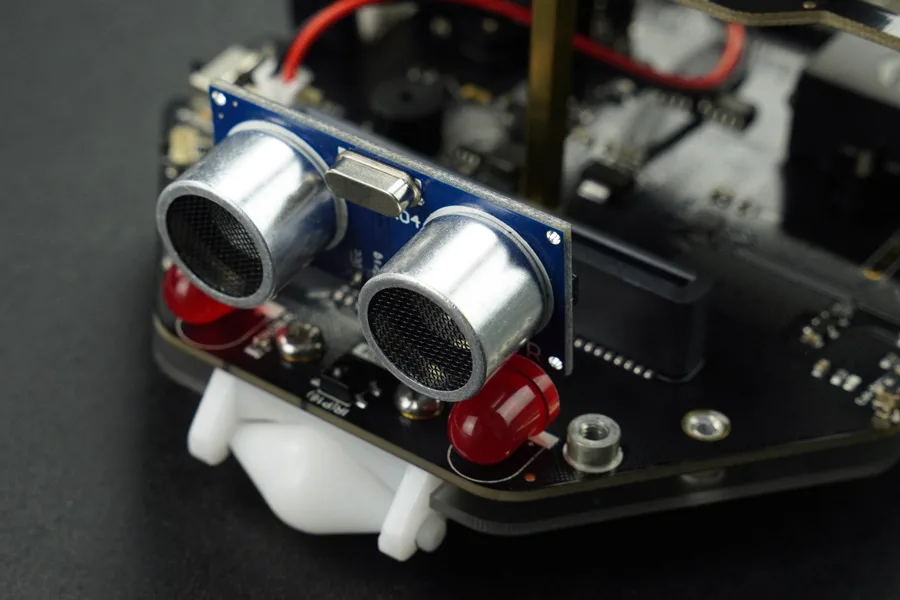

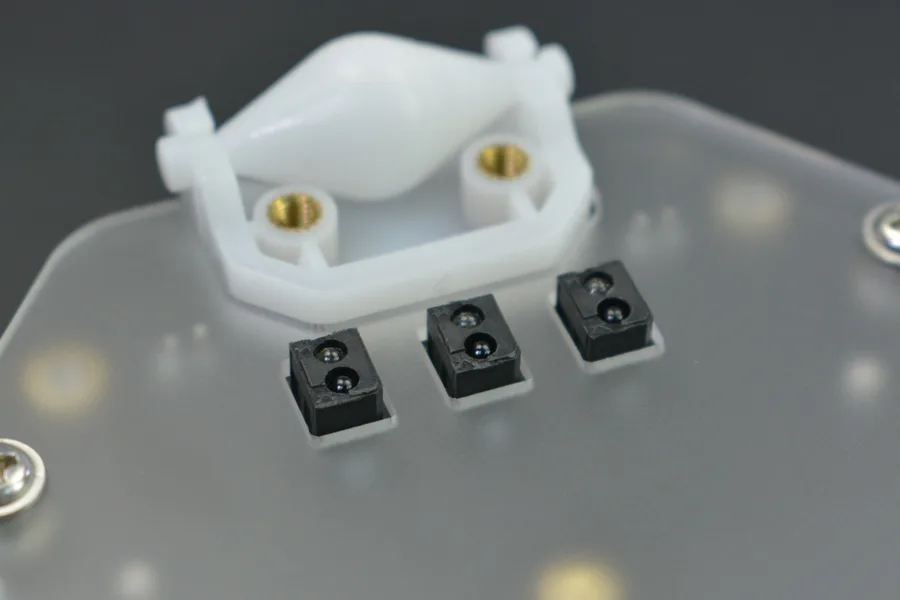

Five onboard line-tracking sensors with one-key calibration simplify path following and complex intersection programming. Distance detection and remote control are handled by the included SR04 ultrasonic sensor and integrated infrared receiver.

Extensive expansion and IO options

A generous layout provides seven 3.3V IO ports, three 5V IO ports, two 3.3V I2C ports, and one 5V I2C port for adding custom electronics. The platform also offers physical mounting space for advanced hardware like the HuskyLens AI camera.

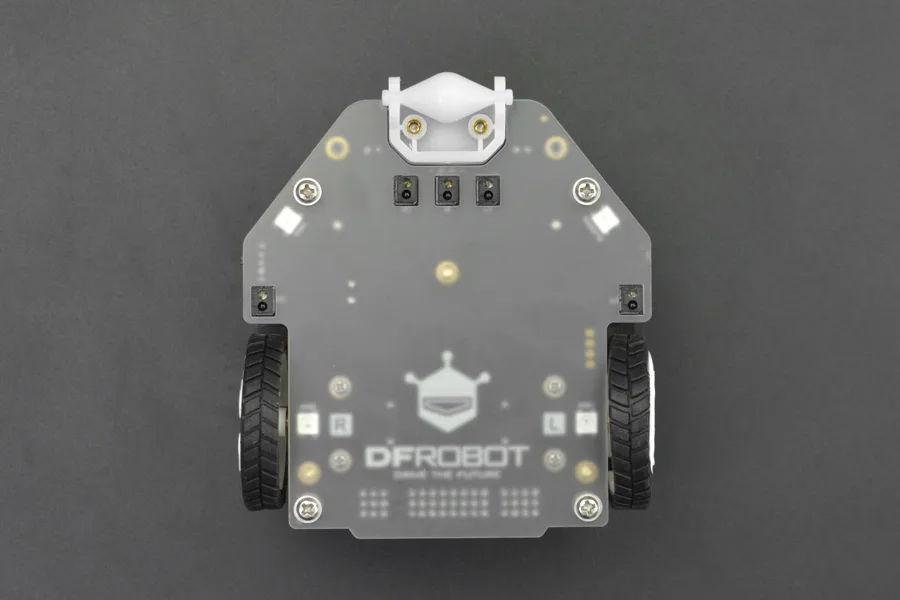

Durable chassis with custom lighting

Dual N20 all-metal gear motors deliver smooth driving performance protected by a frosted acrylic base plate. The vehicle includes two front LED headlights, four base-mounted RGB ambient lights, and an integrated buzzer for audiovisual feedback.

Battery power and coding support

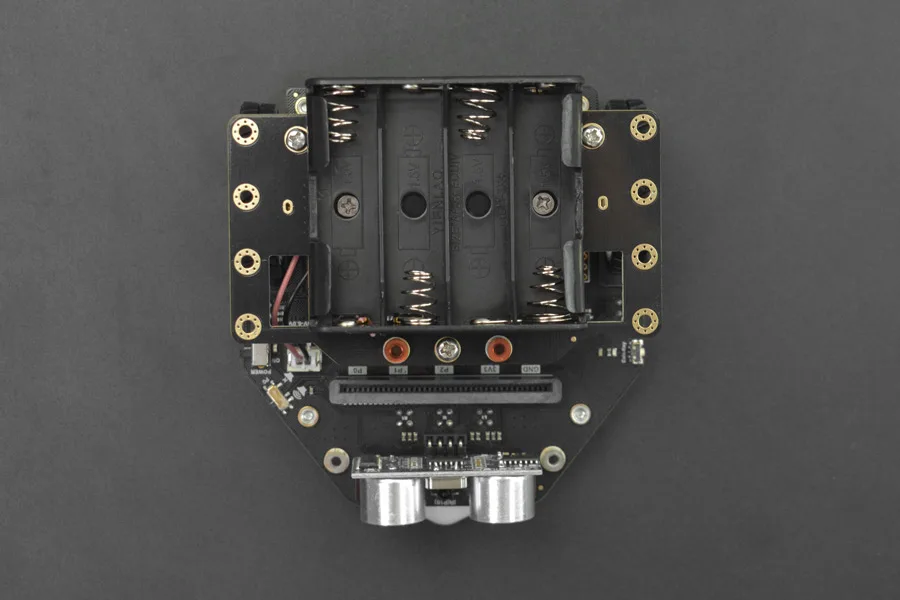

The chassis is powered using four 1.2V AA Ni-MH rechargeable batteries or four 1.5V AA alkaline batteries. Students can program behaviors quickly using standard graphical environments such as Microsoft MakeCode and Mind+.

Downloads & documentation

• Product wiki (DFRobot)
