micro:Maqueen Plus V2 (Ni MH Rechargeable Battery) with micro:Maqueen Mechanic
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
The micro:Maqueen Plus V2 with Mechanic Kit is an advanced micro:bit-powered STEAM educational robot platform designed for primary and secondary students, educators, and hobbyists. It combines an expanded chassis and enhanced sensor array with a multi-configuration mechanical add-on set for hands-on classroom projects, coding lessons, and robotics competitions.

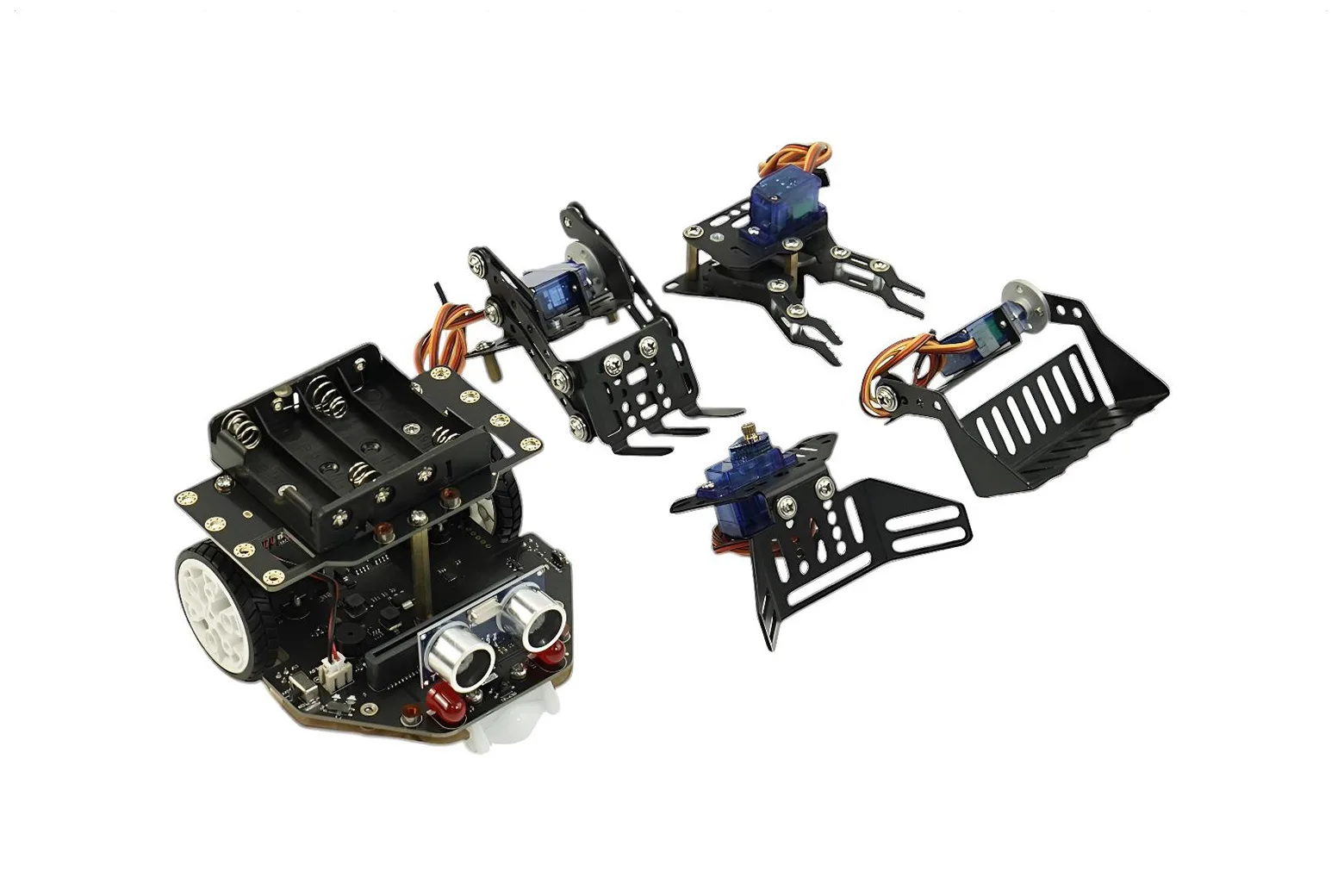

Four mechanical build configurations
The included Maqueen Mechanic kit comes with two 9g servos and structural hardware to build Loader, Forklift, Beetle, and Push configurations. These mechanical accessories allow students to explore kinematics and practical robotics applications using visual or text-based coding.

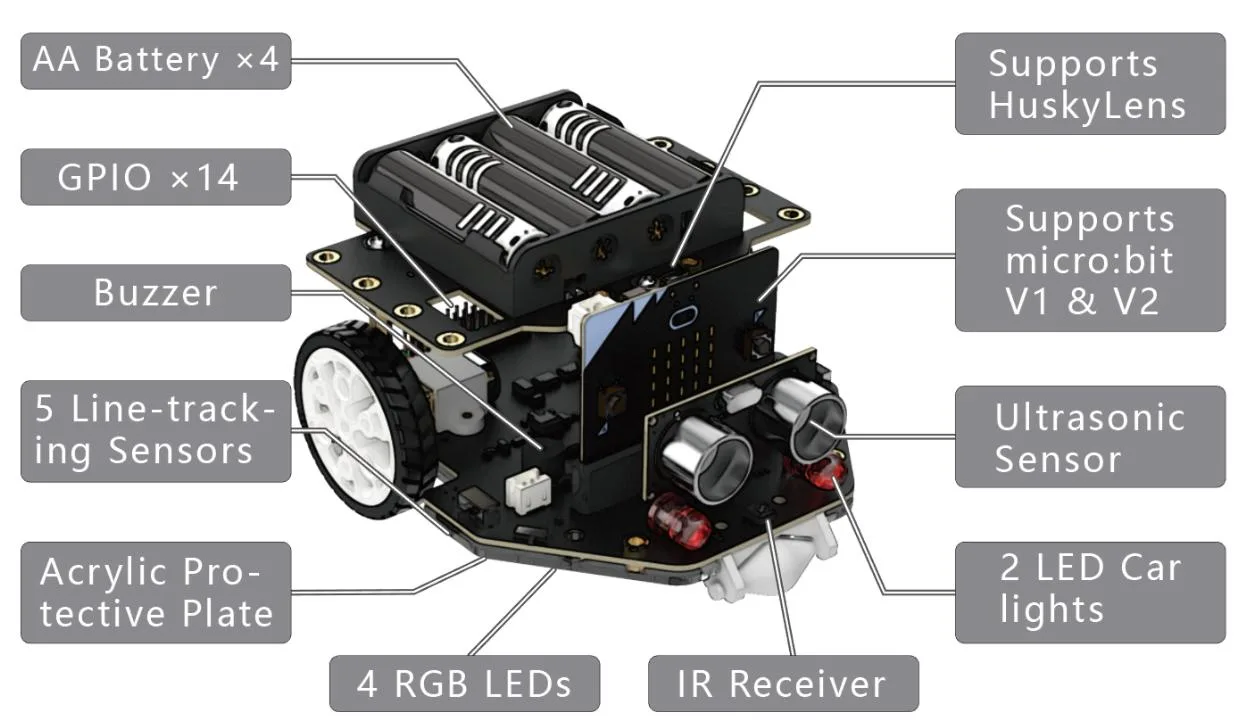

Upgraded V2 educational platform

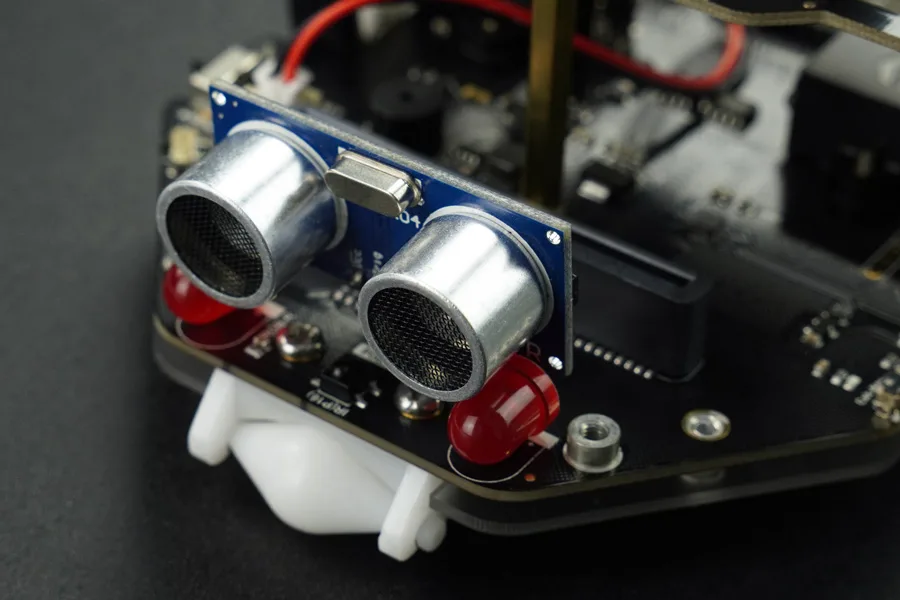

Built for quick setup with no complex assembly required, the V2 platform features two smooth-running N20 all-metal gear motors, an easily mounted SR04 ultrasonic sensor, four base-mounted RGB ambient lights, and dual front LED headlights. It supports both micro:bit V1 and V2 boards and programs via MakeCode and Mind+.
Optimised five-sensor line tracking

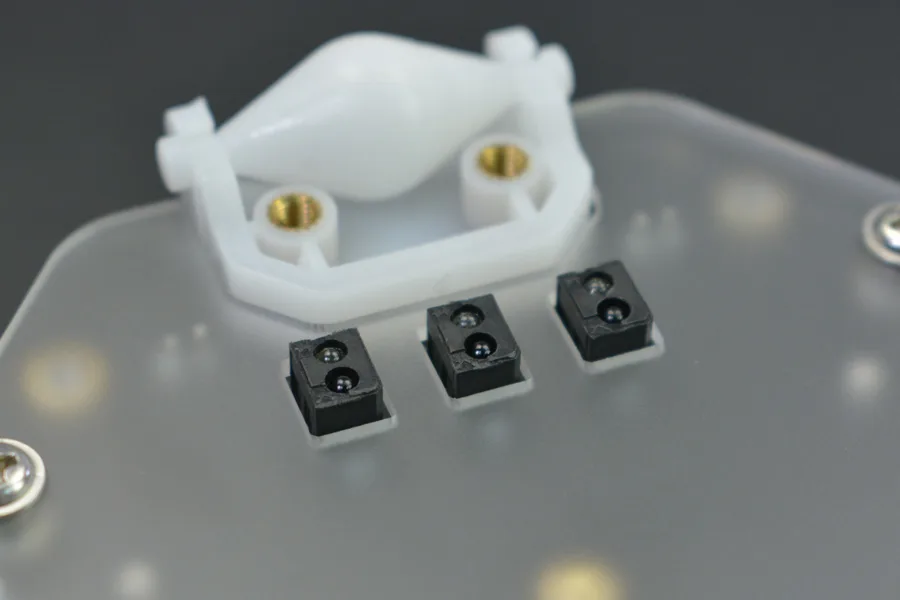

Five integrated line-tracking sensors with one-key calibration simplify programming and algorithm optimisation for complex tracks. The layout delivers reliable line following and intersection detection for robotics challenges and competitions.
Extensive peripheral and AI expansion
The mainboard provides three 5V IO ports, seven 3.3V IO ports, two 3.3V I2C ports, one 5V I2C port, an IR receiver, and an onboard buzzer. The larger chassis offers broad compatibility with external modules, including seamless support for the HuskyLens AI vision camera.
Durable chassis and flexible power

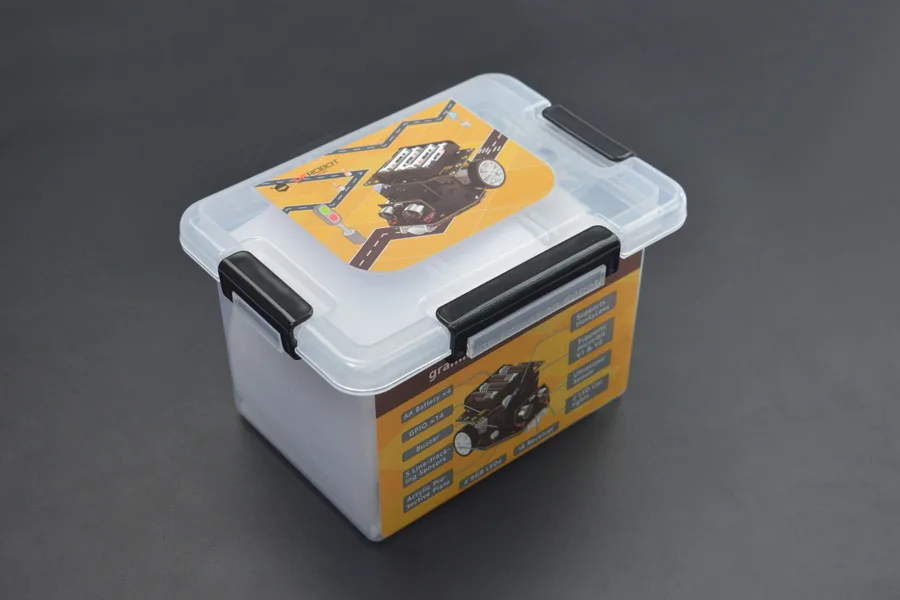

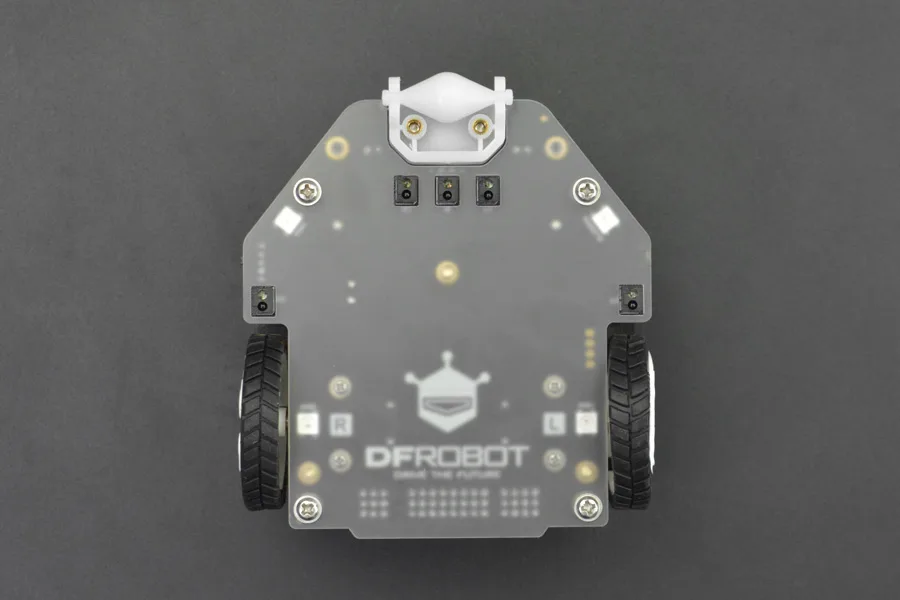

This AA battery version runs on four 1.2V AA Ni-MH rechargeable batteries or four 1.5V AA alkaline batteries. It includes a protective frosted acrylic bottom plate for increased durability and ships with a deep-base storage box that accommodates the fully assembled car.
Downloads & documentation
Specifications
| Power Supply | 1.5V AA alkaline battery x 4 or 1.2V AA Ni-MH battery x 4 |
| Support micro | bit V1 and V2 |
| Dimension | 136mm×65mm/5.35×2.56" |
| Programming Platform | Mind+, MakeCode |
| https | //github.com/DFRobot/pxt-DFRobot_MaqueenPlus_v20 |
In the box
| Maqueen Plus V2 (AA battery): | 1 |
| Maqueen Plus V2 (AA battery) Vehicle body | 1 |
| (Note: the motor, vehicle wheel, support wheel, and battery panel have been installed before delivery) | 1 |
| H-SR04 Ultrasonic Sensor | 1 |
| Line-tracking Map | 1 |
| micro: Maqueen Mechanic: | 1 |
| Loader Servo Panel | 1 |
| Loader Bucket | 1 |
| Pan-tilt-zoomMount Plate | 2 |
| Trolley Plate | 1 |
| Ultrasonic MountHolder | 1 |
| Arm Servo Base | 1 |
| Arm Baseplate | 1 |
| Arm Linkage | 3 |
| Arm Plate | 1 |
| Servo Arm Linkage | 1 |
| Forklift Plate | 1 |
| Gripper Upper Arm | 2 |
| Gripper DrivenForearm | 1 |
| Gripper ServoForearm | 1 |
| Gripper Panel | 1 |
| M3*35mm Copper Bolt | 2 |
| M3*25mm Copper Bolt | 2 |
| M3*15mm Copper Bolt | 6 |
| M3*17mm Copper Bolt | 3 |
| 9g servo | 2 |
| M2.5*5mm nut | 12 |
| M3*5mm nut | 45 |
| Installation Manual | 1 |
