micro:Maqueen Plus V2 (18650 Battery) with Mechanic, micro:bit V2 and Gamepad
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
The micro:Maqueen Plus V2 (18650 Battery) Bundle is a comprehensive STEAM robotics kit powered by the BBC micro:bit. Designed for primary and secondary classrooms, robotics competitions, and makers, this kit includes the upgraded vehicle chassis, two micro:bit V2 boards, a wireless gamepad, and the multi-configuration Mechanic kit.

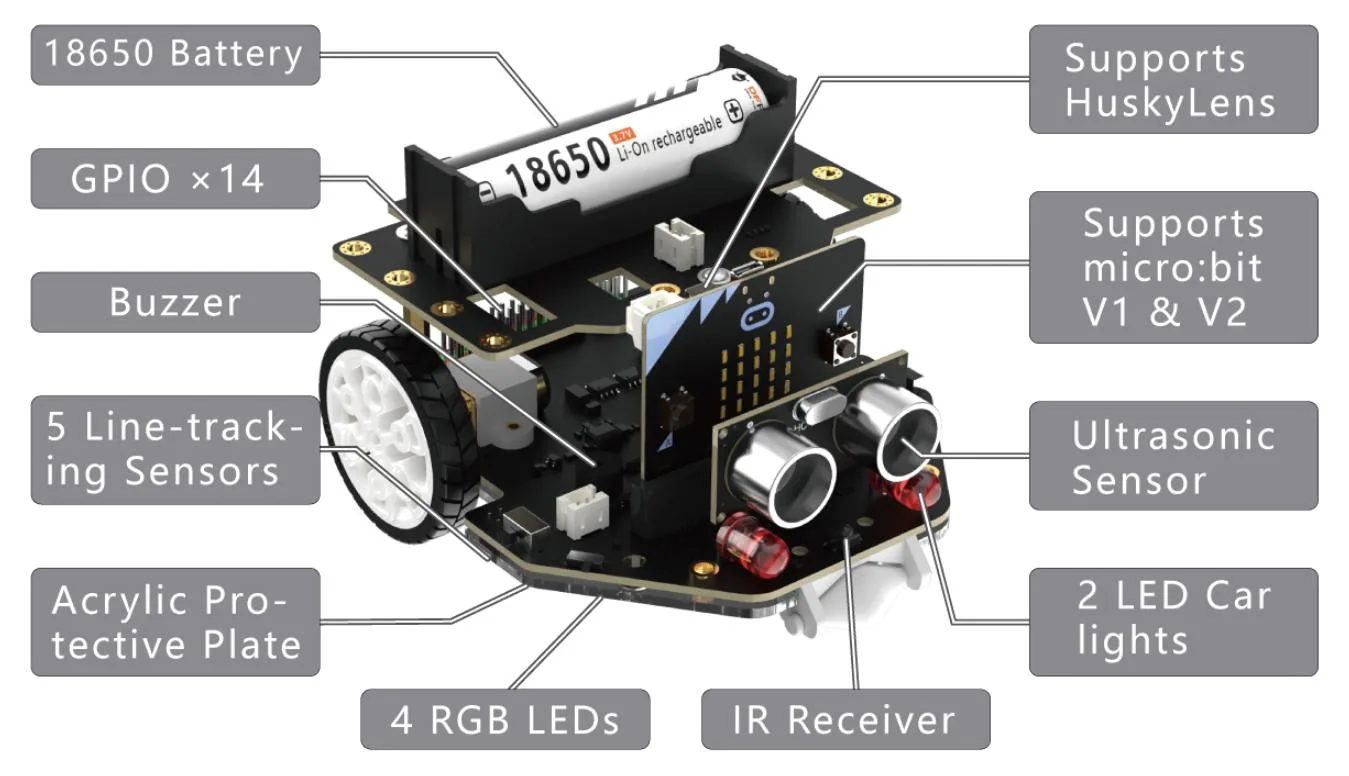

Complete robotic expansion set

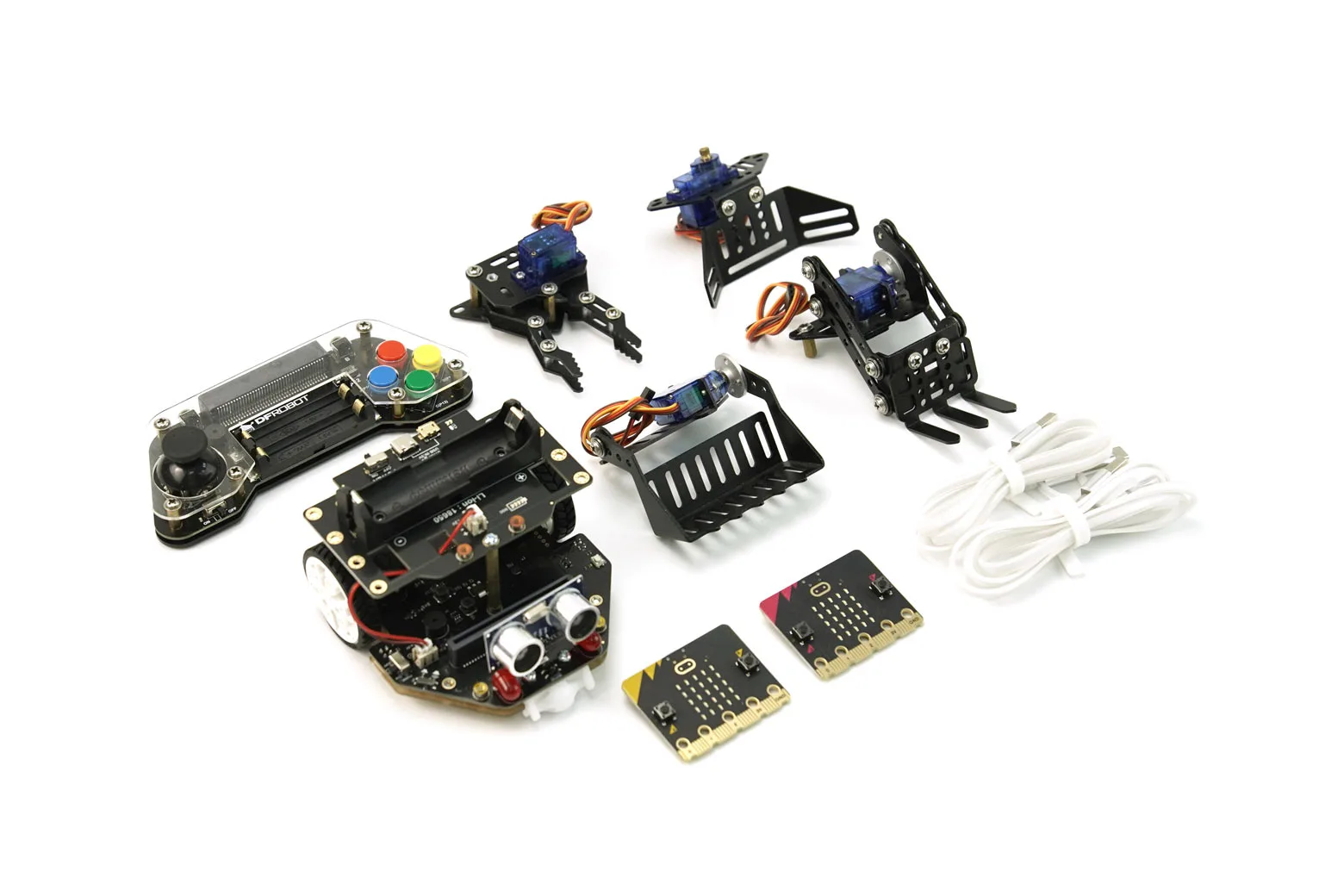

This complete educational package pairs the Maqueen Plus V2 platform with two micro:bit V2 boards and a wireless gamepad for remote operation. It also includes the Maqueen Mechanic kit with two 9g servos, allowing learners to construct forklift, loader, beetle, and pusher configurations.
Optimised line-tracking and obstacle detection

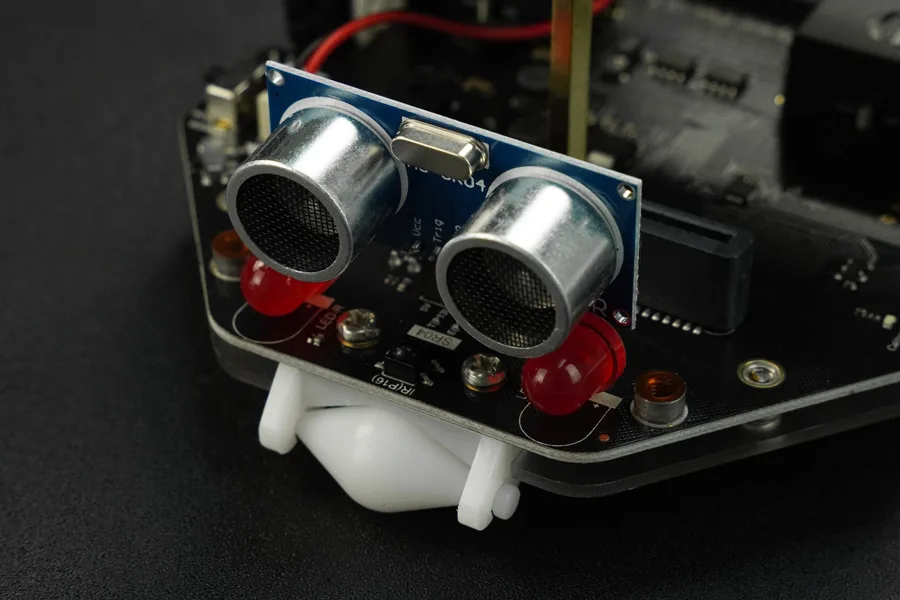

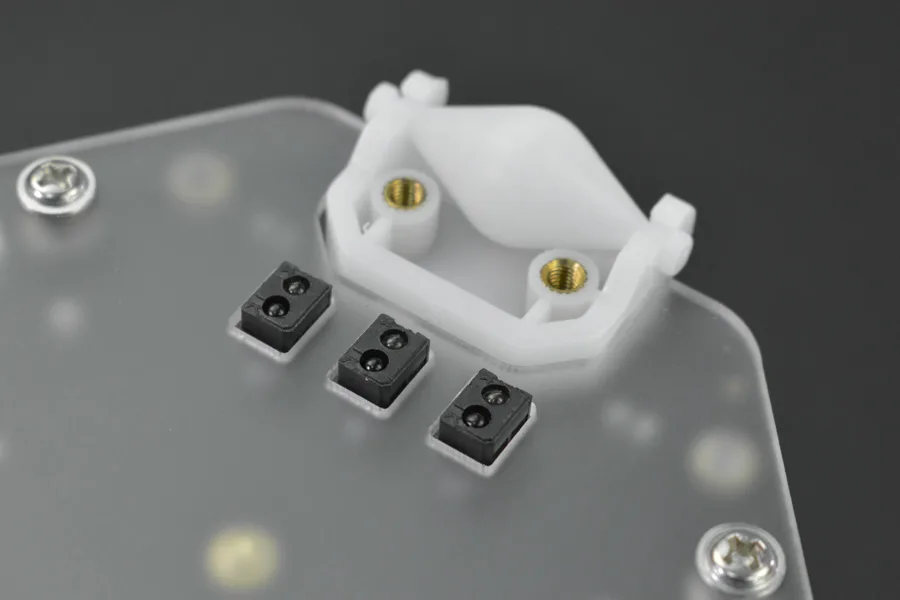

The chassis features five line-tracking sensors with one-key calibration for simplified route coding and competition navigation. An easily installed SR04 ultrasonic sensor provides distance measuring, supported by an integrated infrared receiver and buzzer.

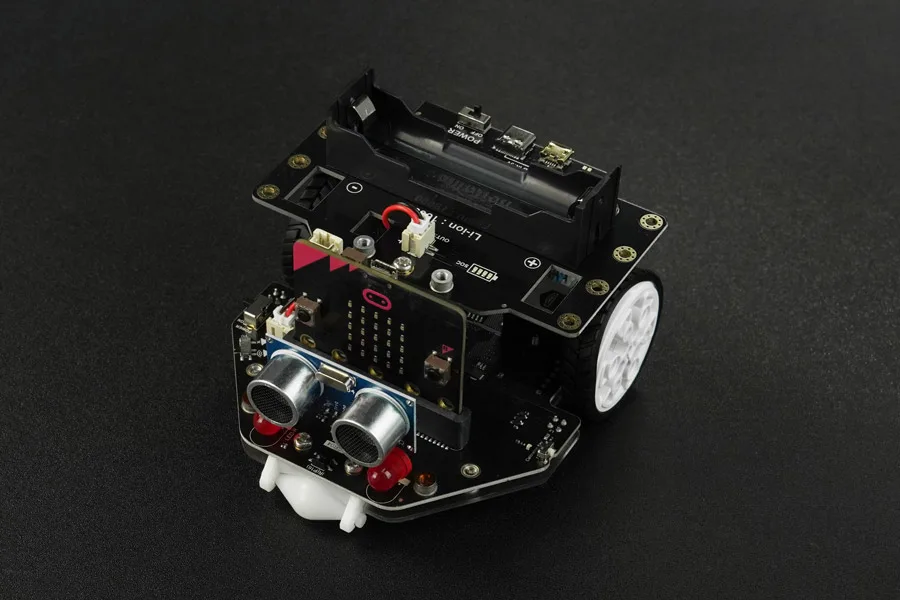

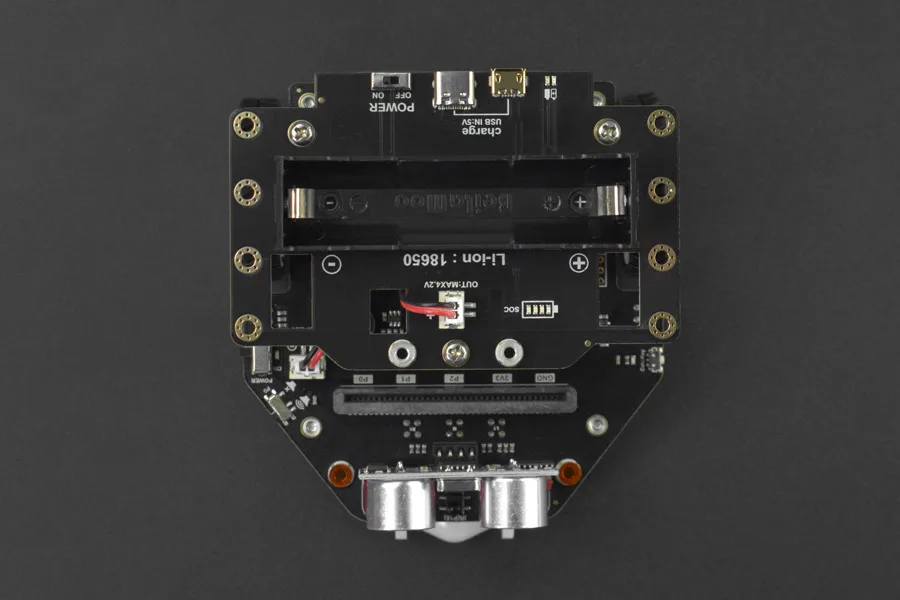

Rechargeable 18650 power management
Equipped with an onboard charging circuit, the chassis runs on a single 3.6V or 3.7V 18650 lithium battery (available separately). It charges via either Type-C or Micro-USB interfaces in approximately four hours.
Rich IO and sensor expansion
The board breaks out seven 3.3V IO pins, three 5V IO pins, two 3.3V I2C ports, and one 5V I2C port. This layout allows direct connectivity for hardware upgrades such as the HuskyLens AI vision sensor.
Durable hardware and lighting

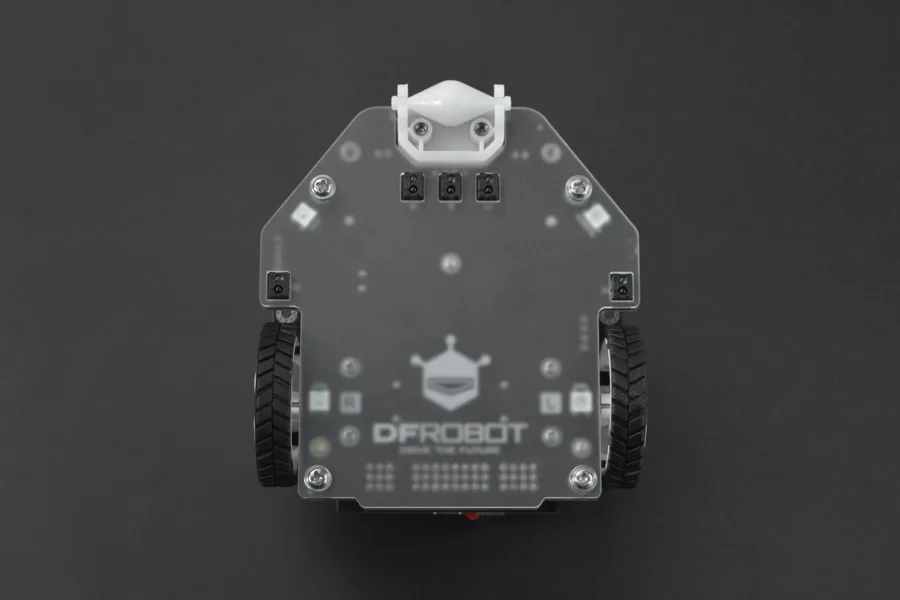

Two N20 all-metal gear motors deliver smooth driving, protected underneath by a frosted acrylic plate. Visual feedback is provided by two large front LED headlights and four base-mounted RGB ambient lights.
Accessible graphical programming

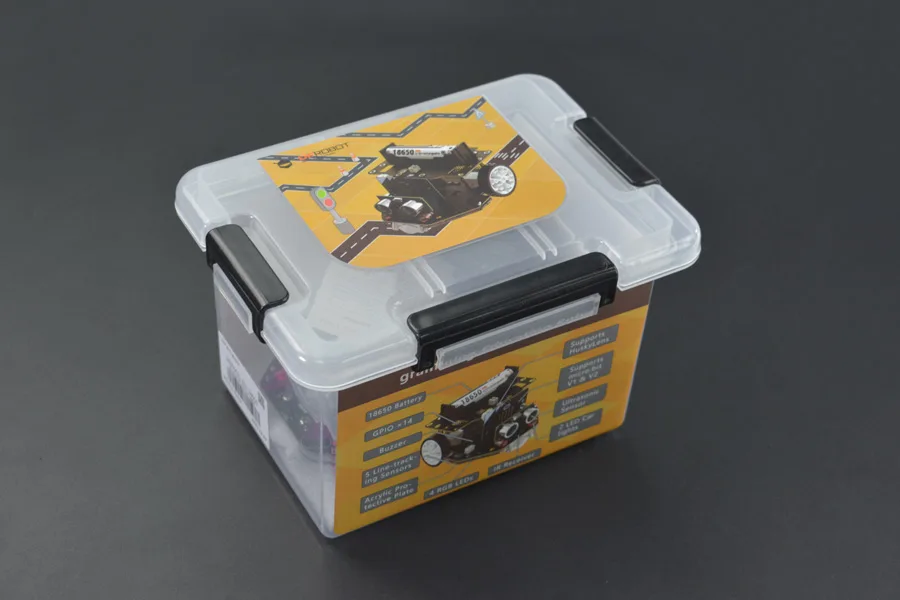

The robot supports block-based and text-based coding via Microsoft MakeCode and Mind+. It comes packaged in a deep-base storage box designed to house the fully assembled car between lessons.
Downloads & documentation
Specifications
| MBT0021-EN-18650 | 18650 Lithium battery (3.6V or 3.7V) x 1, onboard charging circuit, MicroUSB and TYPE-C charging interfaces, 4 hours to charge fully |
| Support micro | bit V1 and V2 |
| Dimension | 136mm×65mm/5.35×2.56" |
| Programming Platform | Mind+, MakeCode |
| https | //github.com/DFRobot/pxt-DFRobot_MaqueenPlus_v20 |

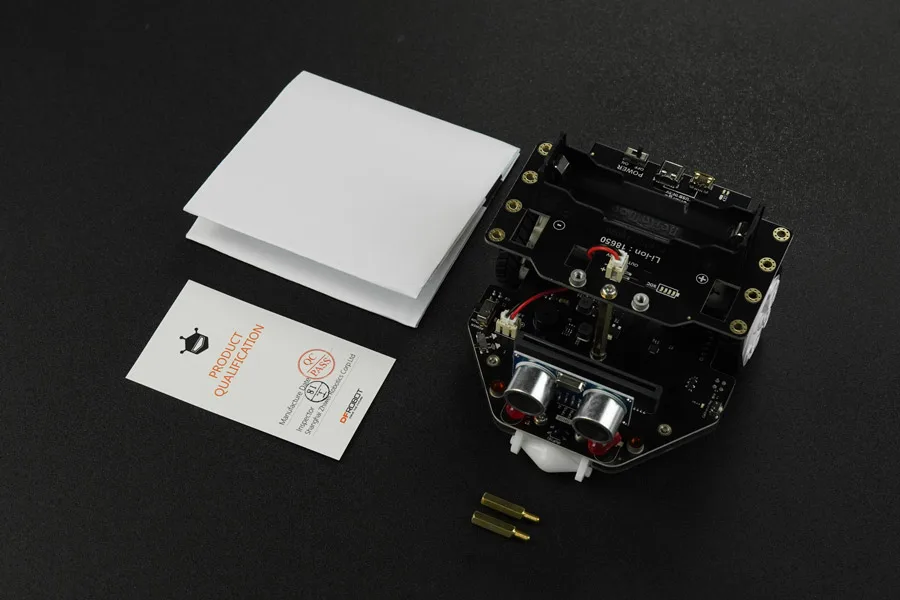

In the box
| Maqueen Plus V2 (18650 battery) Vehicle body | 1 |
| (Note: the motor, vehicle wheel, support wheel, and battery panel have been installed before delivery) | 1 |
| H-SR04 Ultrasonic Sensor | 1 |
| Warranty Card | 1 |
| micro:Maqueen Mechanic ( Forklift , Push , Beetle , and Loader ) | 1 |
| micro: bit V2- an Educational Creative Tool for Kids | 2 |
| Type-C & Micro 2-in-1 USB Cable | 2 |
| micro: Gamepad - a Wireless Gamepad Based on micro:bit | 1 |
| micro: Maqueen Mechanic ( Forklift , Push , Beetle , and Loader ): | 1 |
| Loader Servo Panel | 1 |
| Loader Bucket | 1 |
| Pan-tilt-zoomMount Plate | 2 |
| Trolley Plate | 1 |
| Ultrasonic MountHolder | 1 |
| Arm Servo Base | 1 |
| Arm Baseplate | 1 |
| Arm Linkage | 3 |
| Arm Plate | 1 |
| Servo Arm Linkage | 1 |
| Forklift Plate | 1 |
| Gripper Upper Arm | 2 |
| Gripper DrivenForearm | 1 |
| Gripper ServoForearm | 1 |
| Gripper Panel | 1 |
| M3*35mm Copper Bolt | 2 |
| M3*25mm Copper Bolt | 2 |
| M3*15mm Copper Bolt | 6 |
| M3*17mm Copper Bolt | 3 |
| 9g servo | 2 |
| M2.5*5mm nut | 12 |
