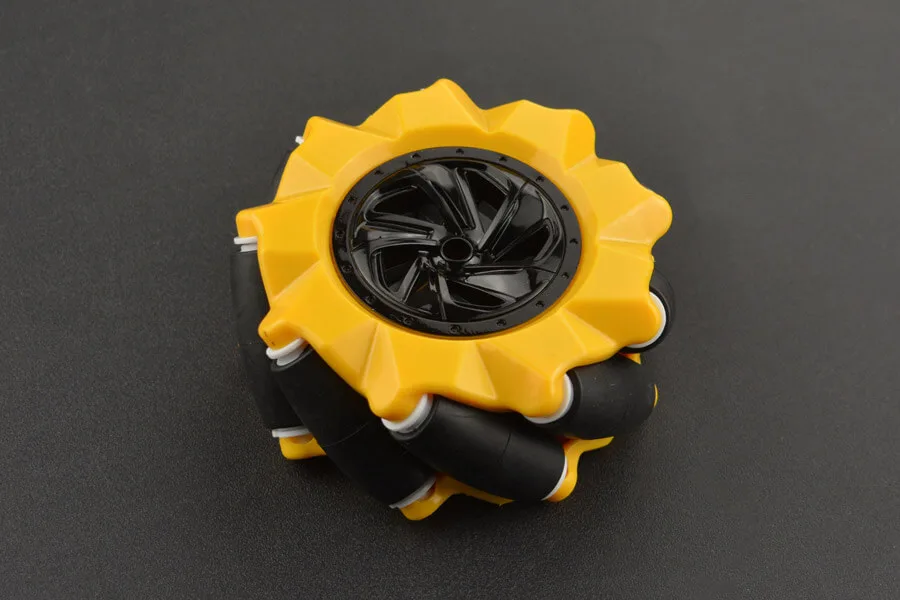

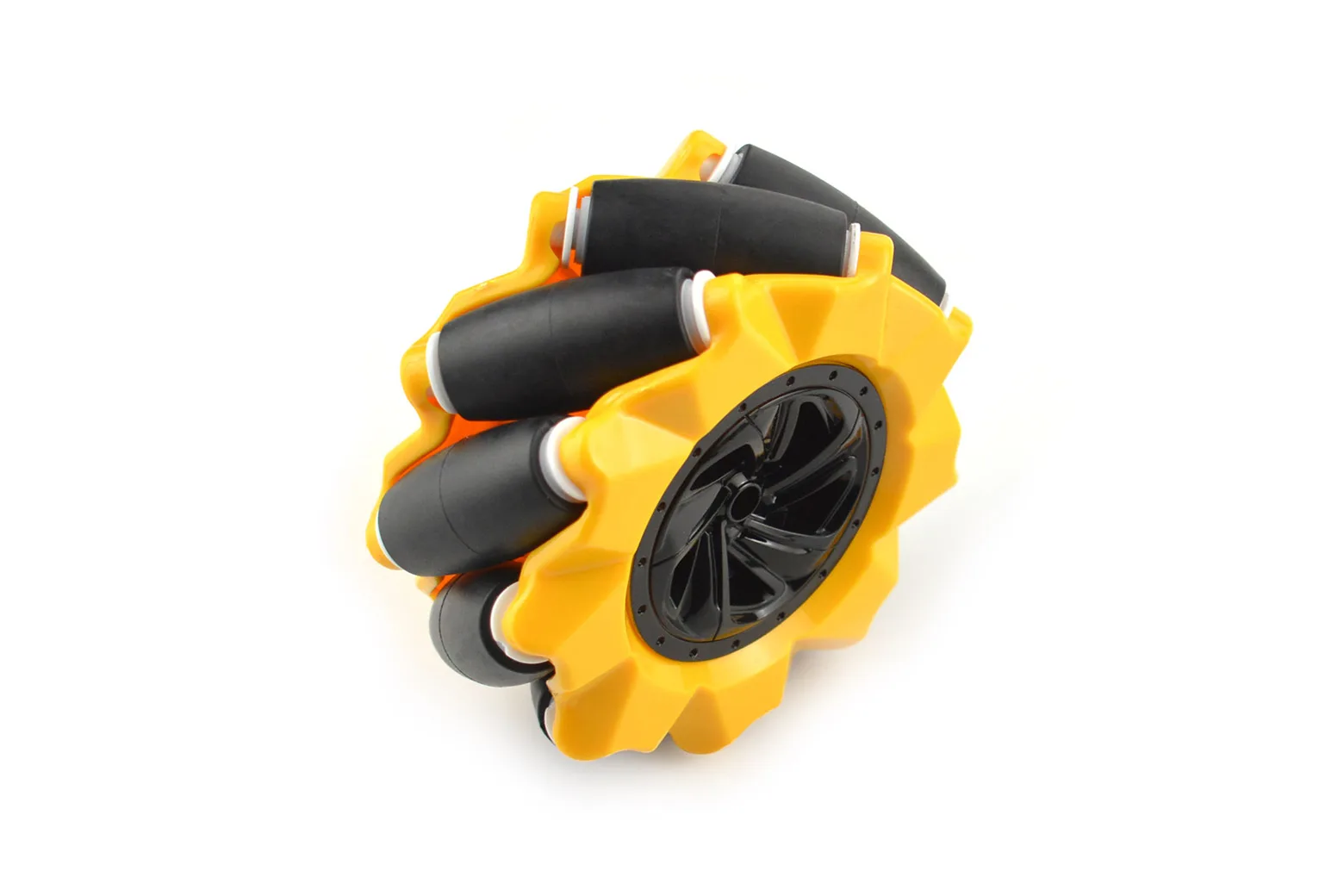

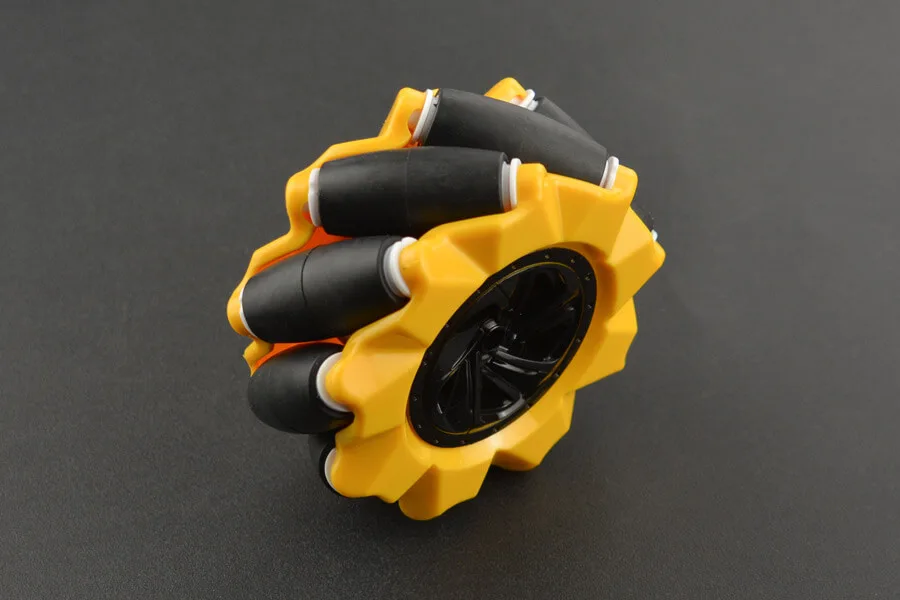

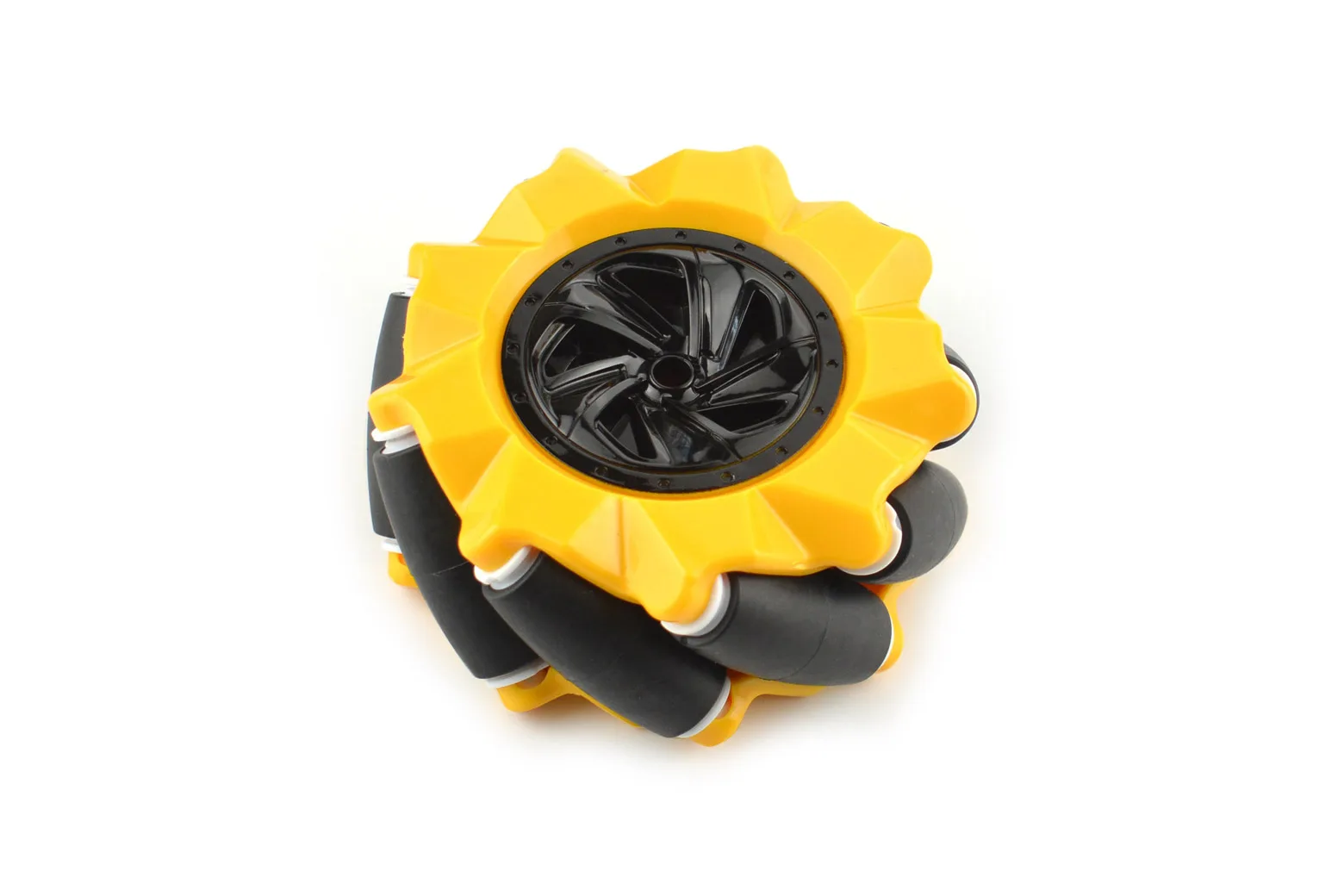

Mecanum Wheel (80mm) - Right

The 80mm Right Mecanum Wheel is an omnidirectional drive wheel designed for agile mobile robotics platforms. Suitable for students, makers, and robotics hobbyists, it allows robot chassis to move in any direction and rotate on the spot.

Full omnidirectional movement

Based on omnidirectional drive technology, this wheel enables vehicles to travel forwards, horizontally, diagonally, in S-curves, and execute zero-radius rotations. This provides high manoeuvrability and precise navigation in confined spaces.

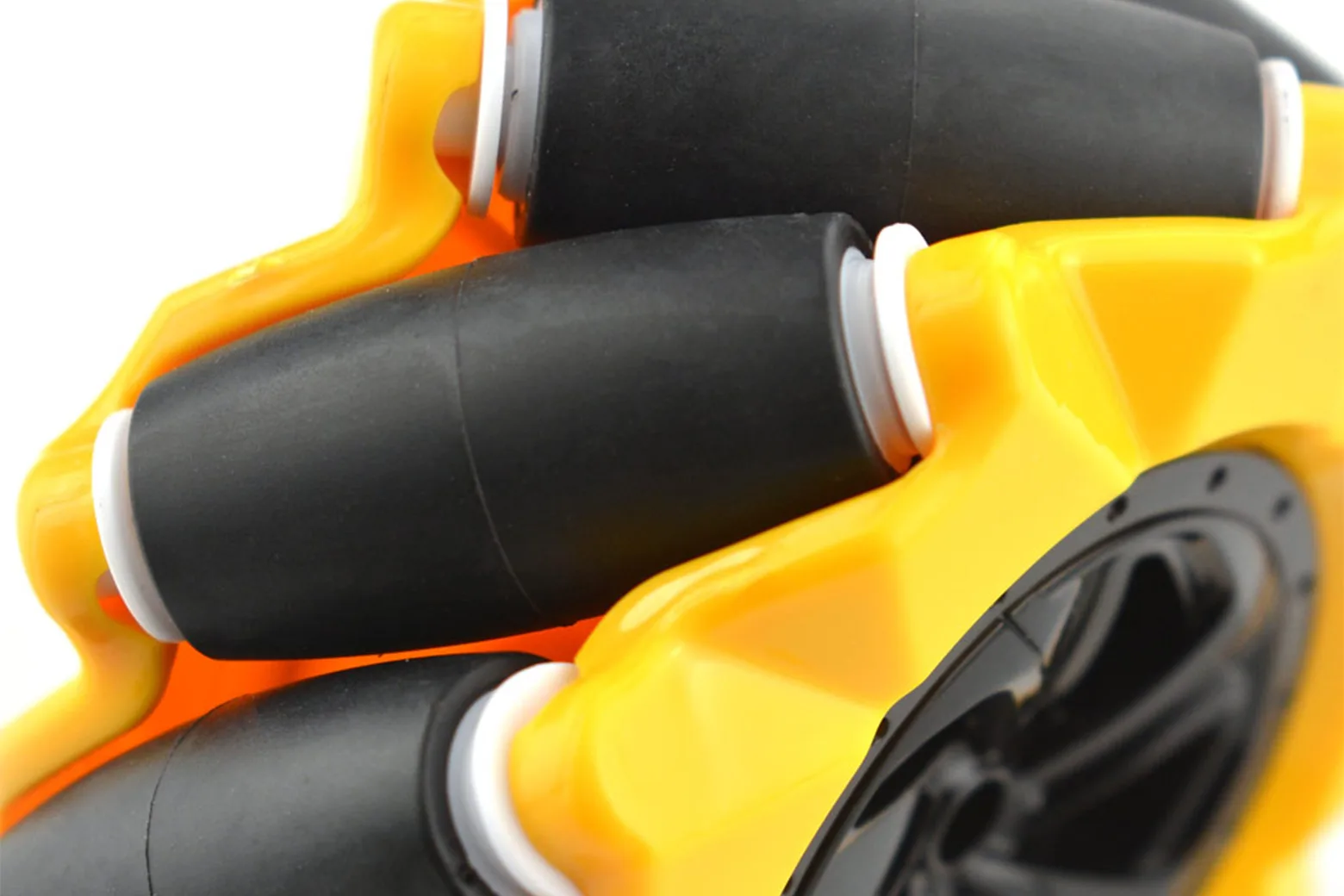

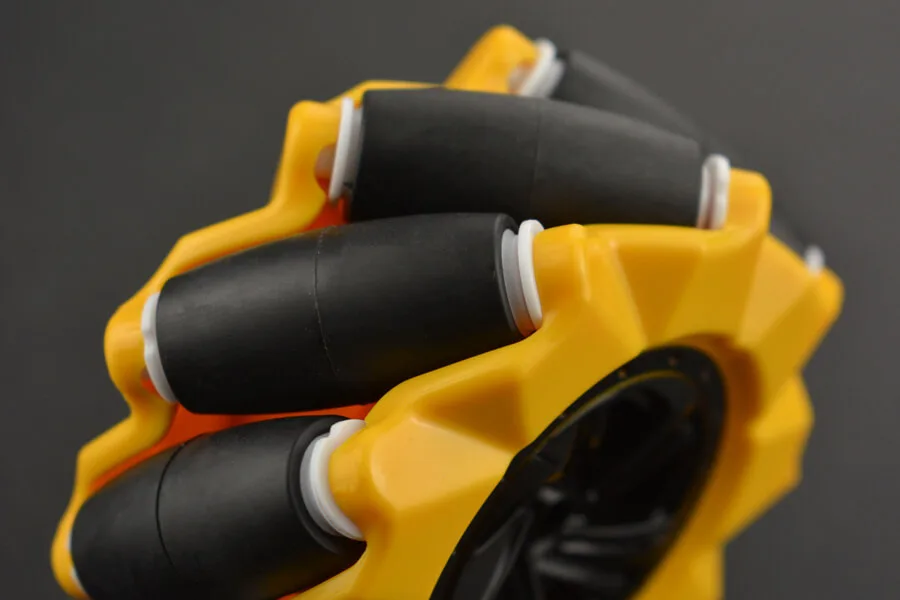

High-friction silicone rollers

The wheel incorporates nine plastic rollers coated in durable, high-friction silicone rubber. This rugged, impact-resistant construction delivers smooth, low-noise movement with dependable traction.

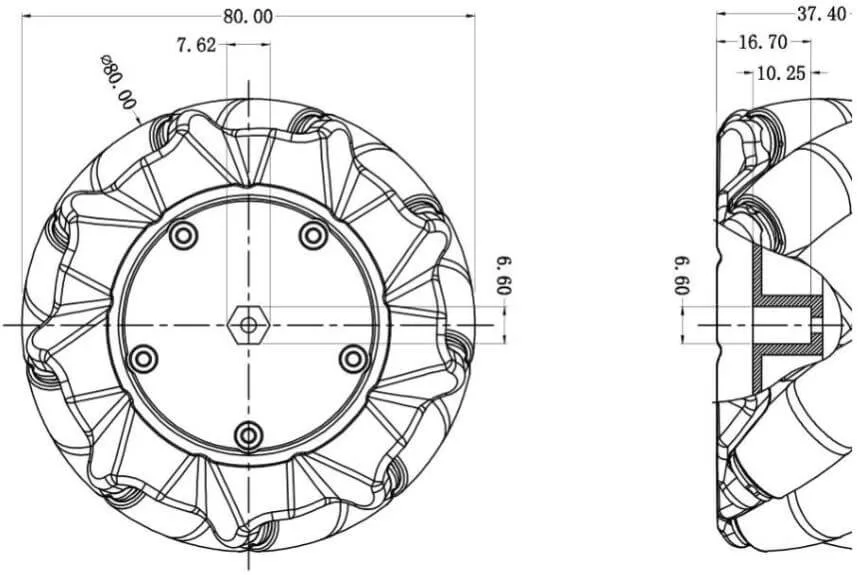

Dimensions and coupling size

Measuring 80mm (3.15 inches) in diameter and 37.5mm (1.48 inches) in thickness, the wheel features a 7x7x7mm hex mounting hole for direct motor attachment.

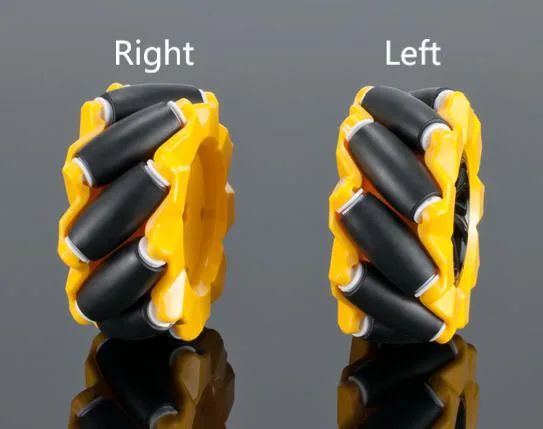

Right-hand orientation and pairing

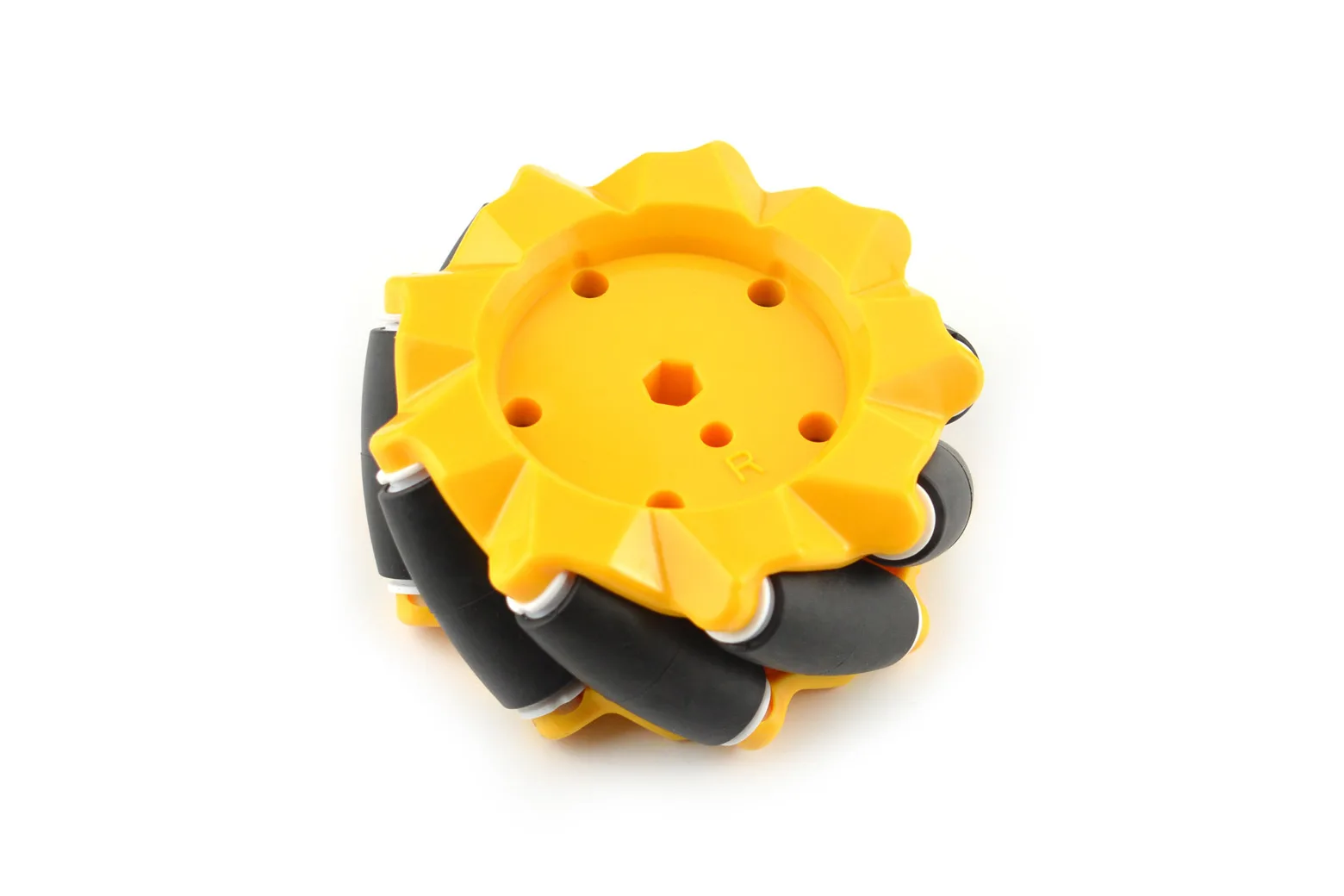

Mecanum wheels are produced in distinct left-handed and right-handed variants, clearly marked with an L or R on the rear. For proper omnidirectional kinematics, right-handed wheels should be used in matched sets alongside left-handed wheels.

Load rating and roller angle

Built with a 45-degree roller angle, this yellow plastic and silicone assembly supports a maximum load capacity of 10kg.

Package contents

Each pack contains one 80mm right-handed Mecanum wheel.
