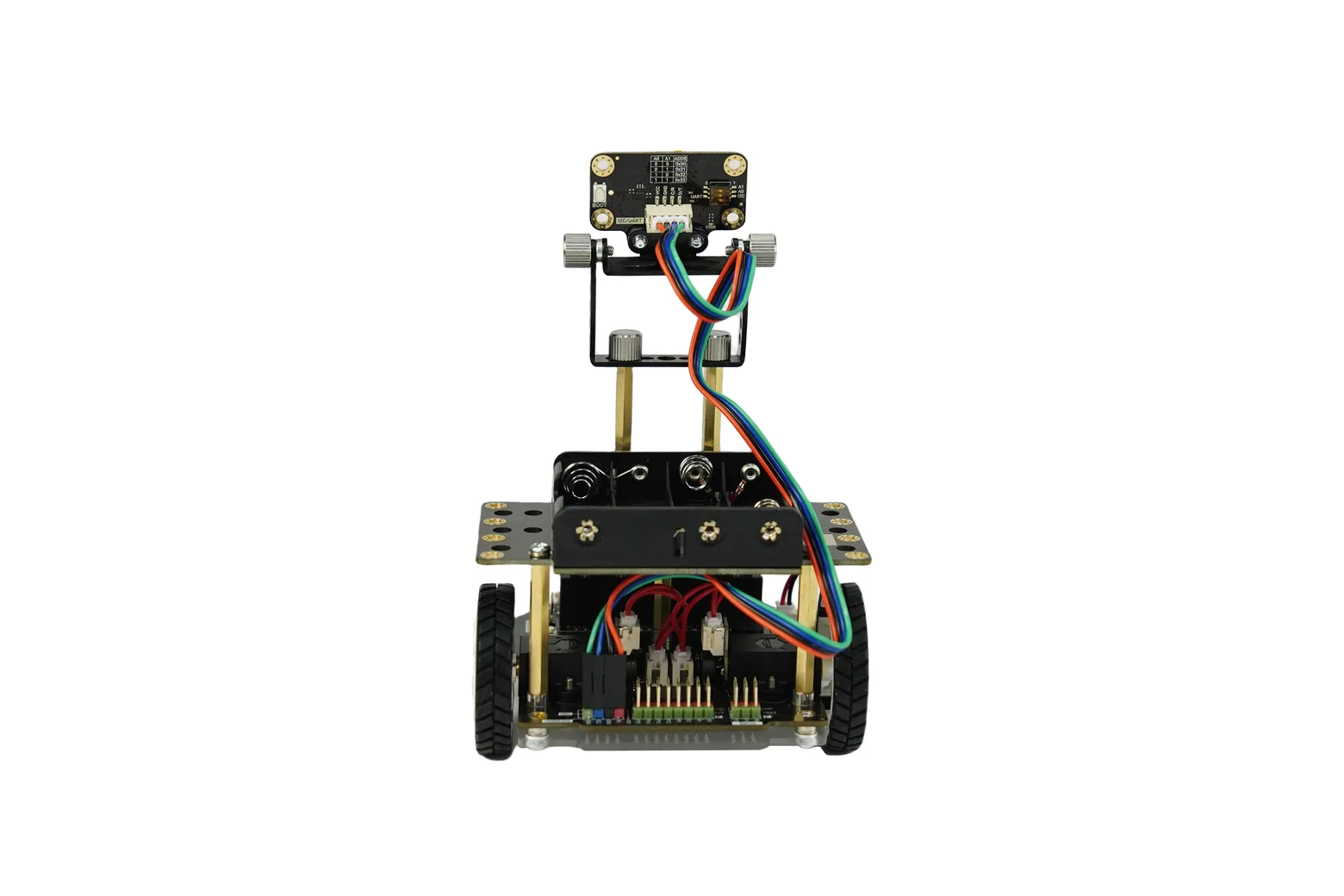

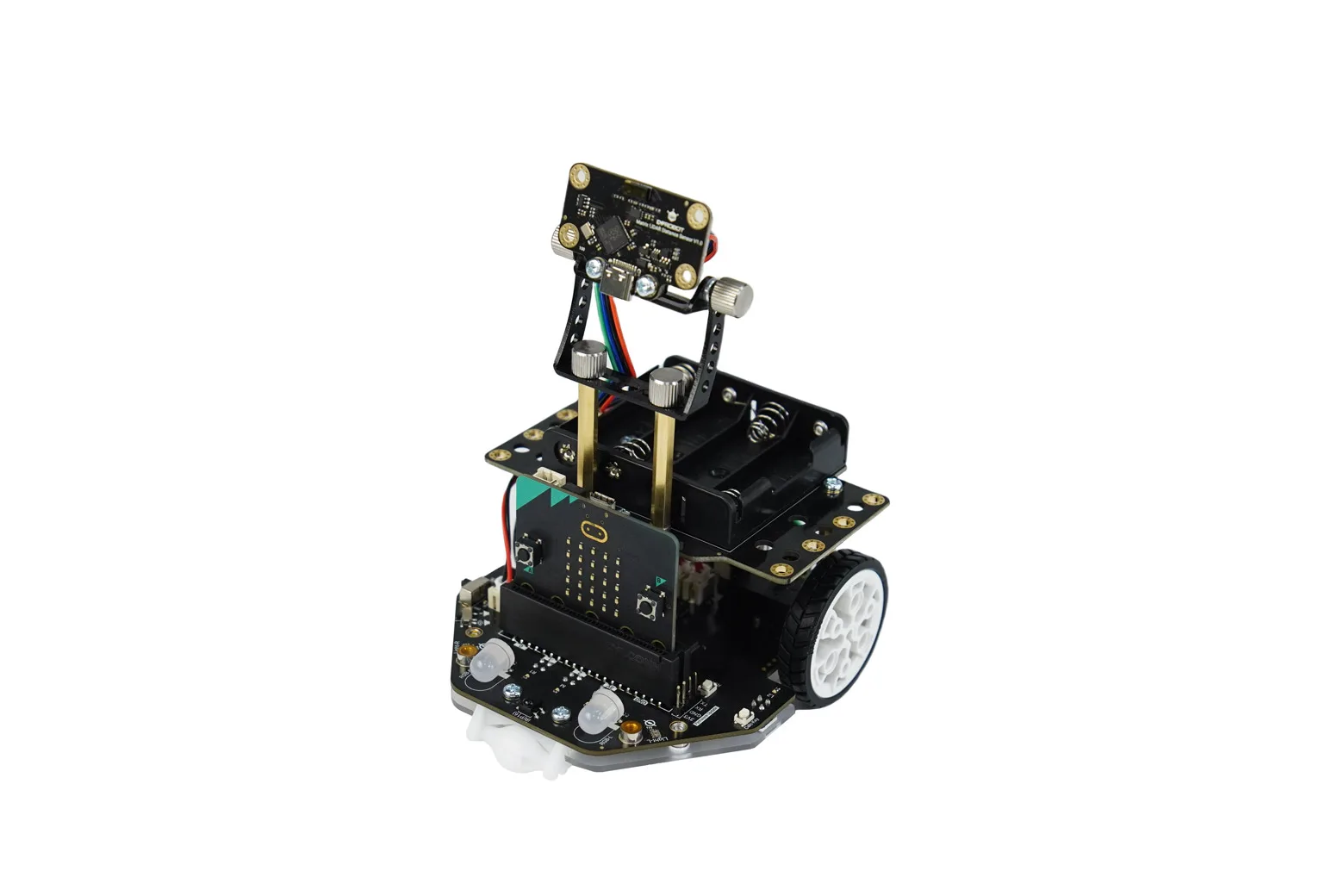

Maqueen Plus V3 - Advanced Matrix Laser Navigation STEM Robot for Competitions (AA Battery)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
The Maqueen Plus V3 is an advanced educational robotics platform powered by a micro:bit, engineered specifically for primary and secondary school STEM education and competitive challenges. It integrates a matrix laser ranging sensor, high-precision motor encoders with PID control, and built-in navigation algorithms for advanced autonomous tasks.

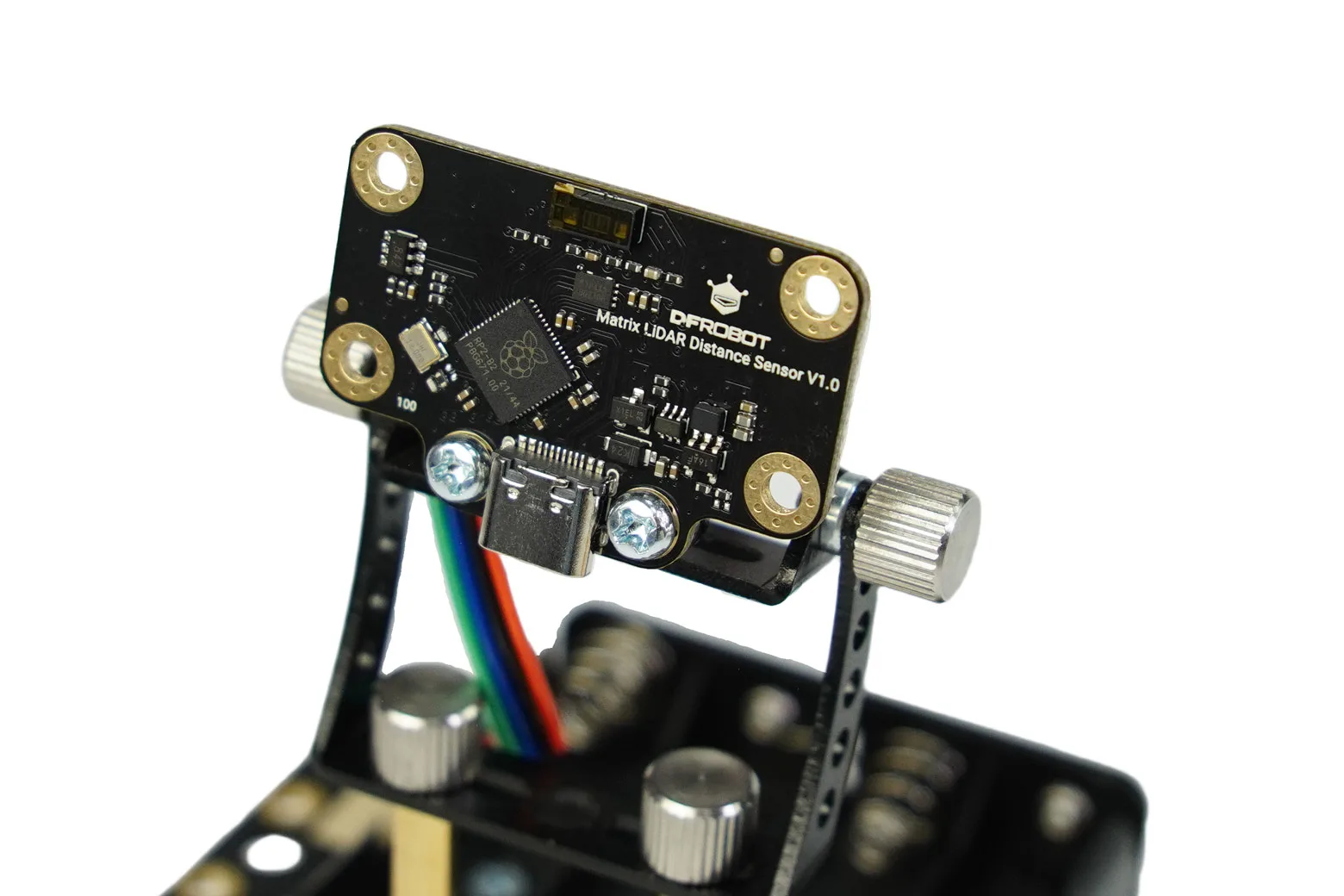

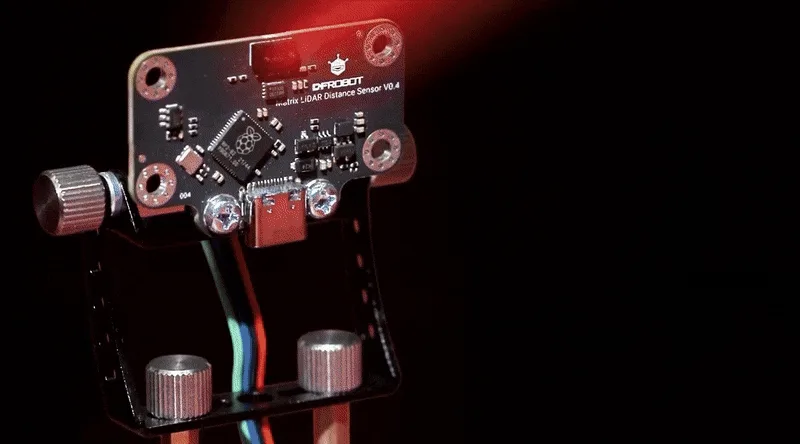

Matrix laser ranging navigation
An onboard 8x8 matrix laser ranging sensor detects obstacles between 20mm and 4000mm across a 60-degree field of view, achieving update rates up to 60Hz. This multi-point spatial perception allows for precise obstacle position tracking and real-time route planning.

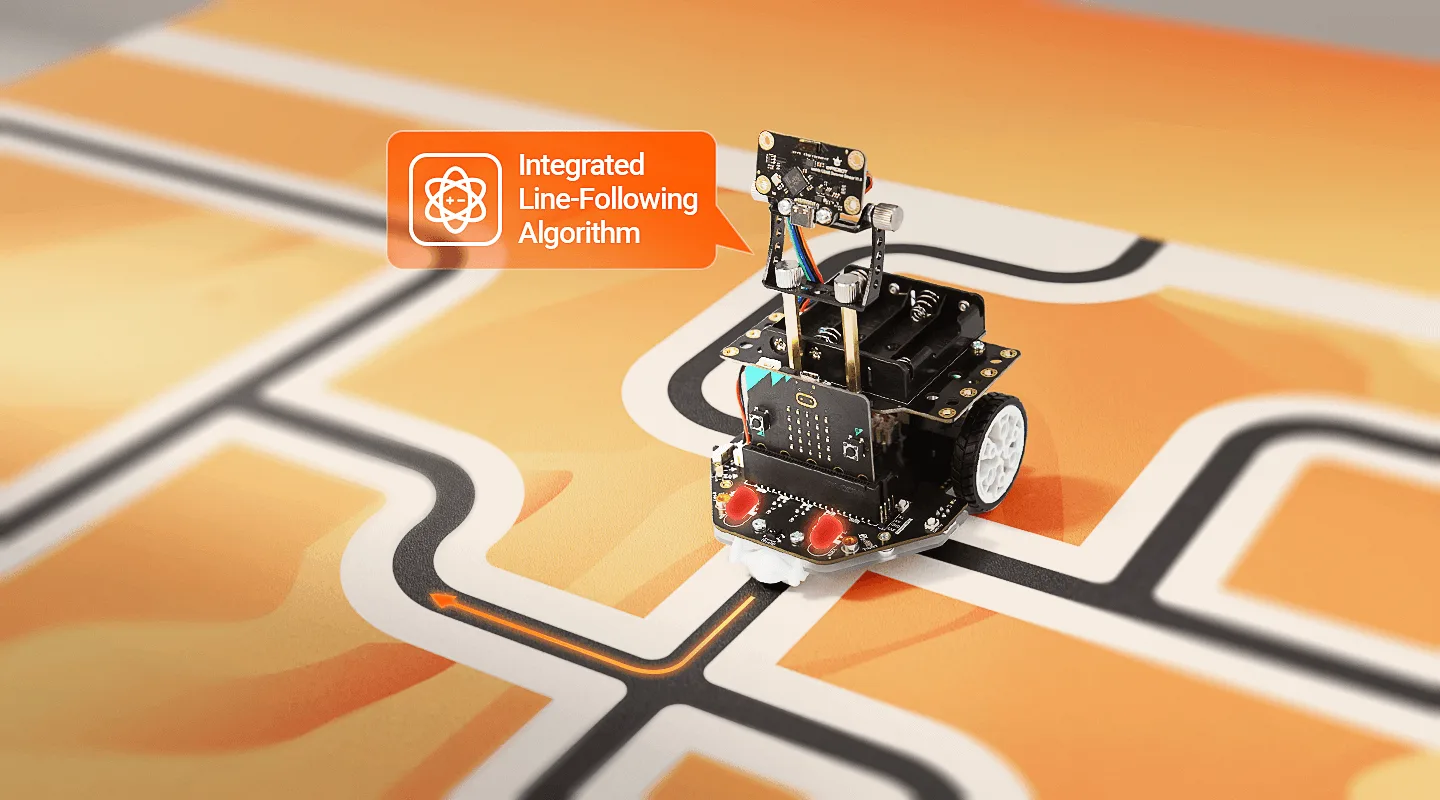

Onboard line-tracking algorithms
A five-sensor line-tracking array features dedicated one-touch calibration, supporting digital and analog output modes across five adjustable speed levels. Integrated onboard processing handles line detection independently, freeing up the main micro:bit processor for higher-level logic.
Real-time intersection recognition
The built-in recognition algorithm automatically identifies four standard intersection formats: crossroads, T-junctions, right-turn straights, and left-turn straights. This allows students to tackle complex grid and map navigation challenges in robotics competitions.
Closed-loop PID motor control
Two magnetic induction encoders work with PID control to maintain accurate travel distances and precise turning angles without guesswork. This ensures consistent, repeatable movement across varying track surfaces and competitive tasks.

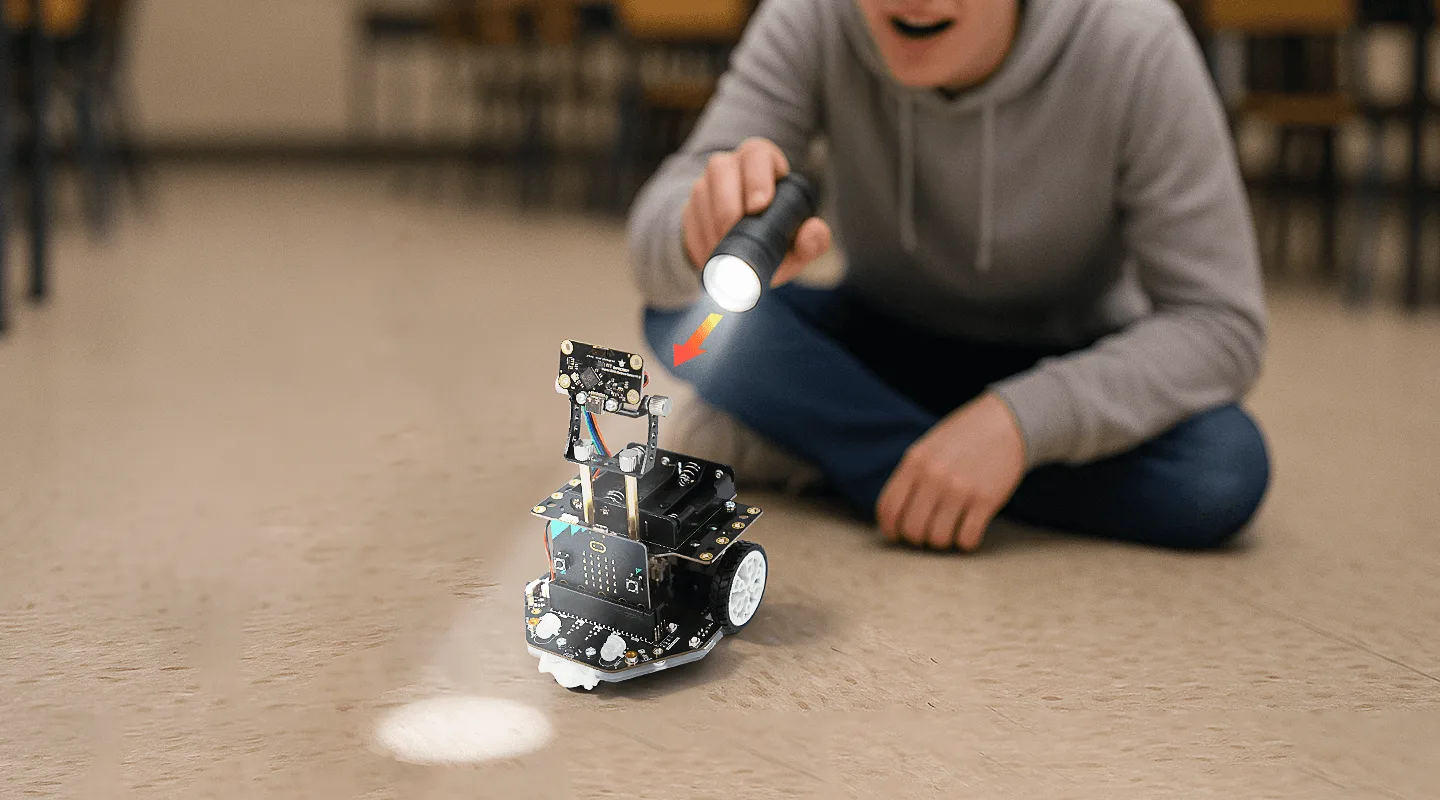

Dual light sensors and RGB illumination
Dual light intensity sensors support light-seeking behaviours and automated headlights with a 0 to 1023 sensing range. Visual feedback is provided by two programmable RGB headlights and four WS2812 full-spectrum ambient LEDs.
Protected detachable metal gear motors
Two matched N20 metal gear motors feature enclosed housings to keep out debris and a screw-fixed detachable design for quick servicing. A dedicated onboard 5V voltage regulator maintains constant motor speed regardless of battery voltage drops.
Downloads & documentation
Specifications
| 18650 Version | 3.5V - 4.2V (1x 18650 lithium battery) |
| Protection | Battery reverse connection protection supported |
| Sensors | 5 |
| Calibration | Dedicated button |
| Output | Digital / Analog |
| Built-in Intersection Recognition | 4 types (Crossroad, T-shaped, Right turn & Straight, Left turn & Straight) |
| Built-in Algorithm Speed | 5 adjustable levels |
| Interface | I2C / UART / USB (PH2.0-4P & TYPE-C) |
| Matrix Resolution | 8x8 (64 points) |
| Modes | Matrix measurement / Intelligent obstacle avoidance |
| I2C Address | 4 selectable (0x30 - 0x33) |
| Ranging Update Rate | 15Hz - 60Hz |
| Ranging Range | 20mm - 4000mm |
| Accuracy (20-200mm) | ±11mm (white targets), ±12mm (gray targets) |
| Accuracy (200-4000mm) | ±5% (white targets), ±6% (gray targets) |
| Detection Angle | 60° H x 60° V (90° Diagonal) |
| Laser Safety | Class 1 compliant |
| Firmware Update | Supported via USB |
| Quantity | 2 |
| Data Range | 0 - 1023 |
| Infrared Receiver | 1 |
| Motors | 2x N20 Metal Motors |
| Power Supply | Independent 5V regulated |
| Mounting | Screw-fixed, detachable |
| Encoders | 2 (Magnetic induction, 4-line resolution) |
| PID Control | For precise distance and angle control |
| Speed Measurement Unit | Centimeters per minute (Note: Consider "cm/s" for more conventional robotics speed representation) |
| Ambient Lights | 4x WS2812 (Full R255 G255 B255 color spectrum) |
| Car Headlights | 2x Programmable RGB (Red, Green, Yellow, Blue, Purple, Cyan, White) |
| Buzzer | 1 |
| Metal Bracket Parts | 2 |
| Bracket Adjustment | 1-axis, 270° range (M3 thumb screws) |
| PCB Threaded Interfaces | 2 |
| Expansion | 14x Extended GPIOs |
| Firmware Upgrade | Dedicated interface and button |

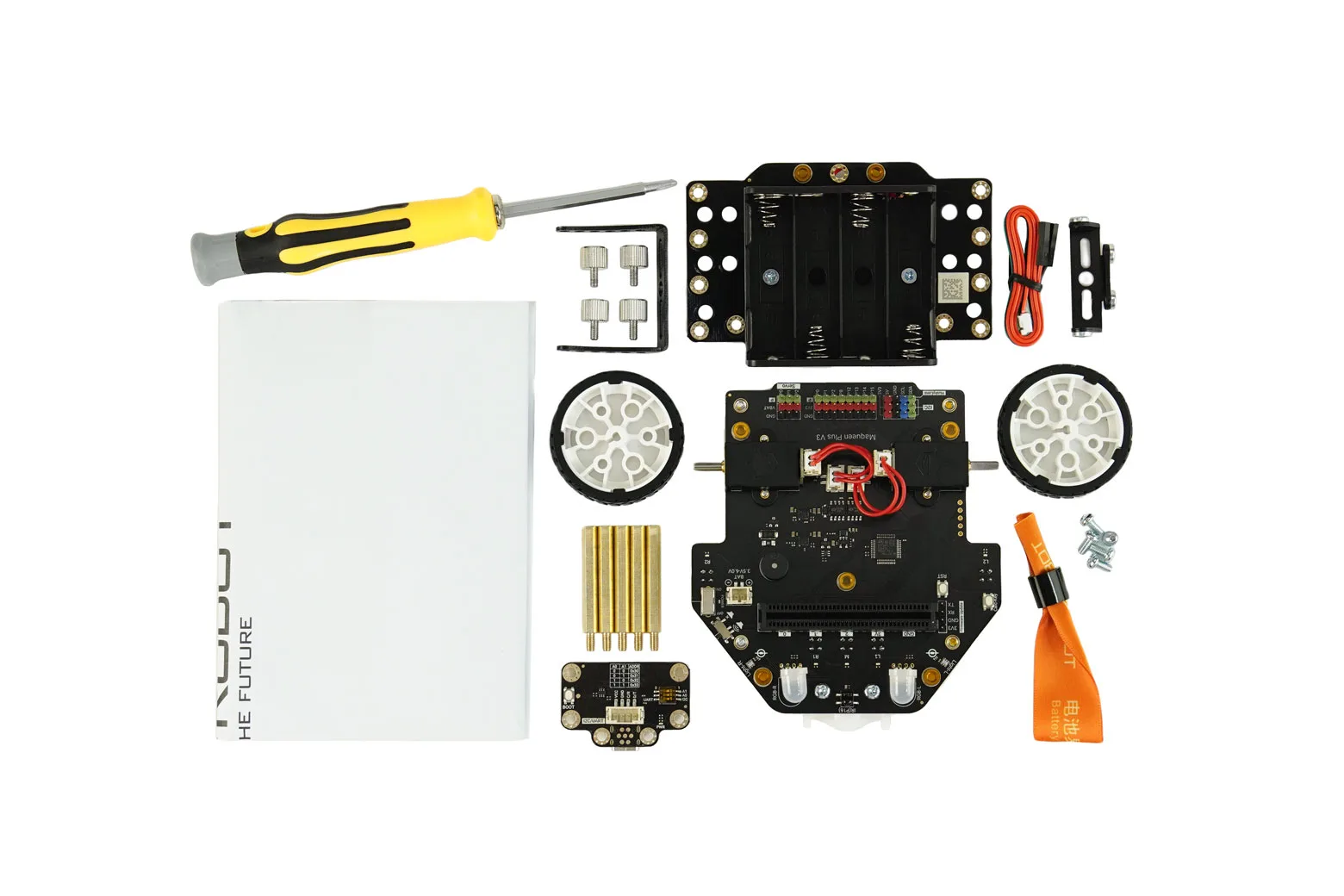

In the box

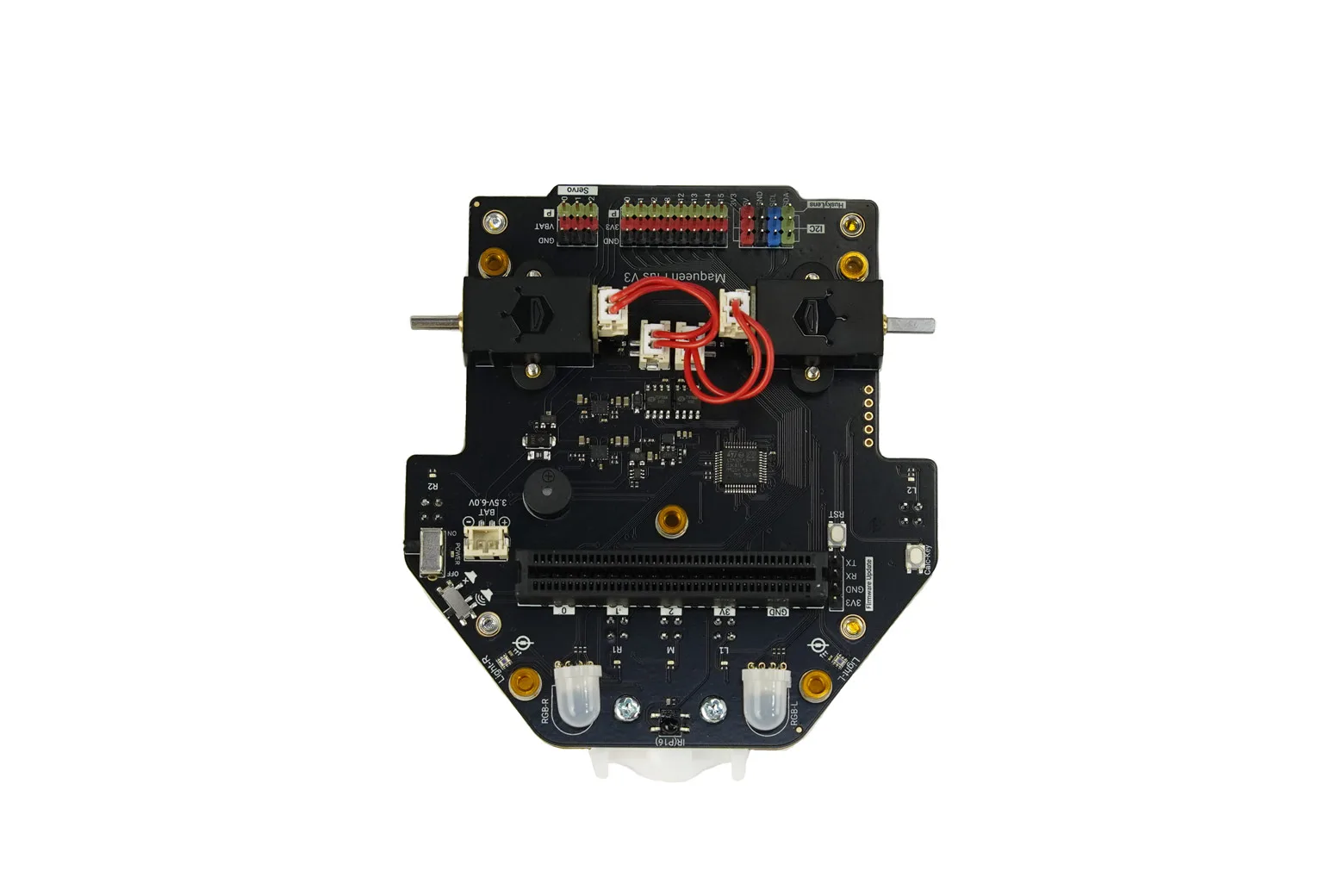

| Maqueen Plus V3 Baseboard | 1 |
| Metal Motor with Encoder and Connection Cable (already installed on the baseboard) | 2 |
| AA Battery Board | 1 |
| Matrix Laser Ranging Sensor | 1 |
| PH2.0 - 4P Sensor Connection Cable | 1 |
| Wheels | 2 |
| Line-Tracking Map | 1 |
| Screwdriver | 1 |
| Metal Support Frame | 1 |
| Metal Mounting Bracket | 1 |
| 35mm Mounting Copper Pillars | 5 |
| M3 Mounting Screws | 5 |
| M3 Thumb Screws | 4 |
