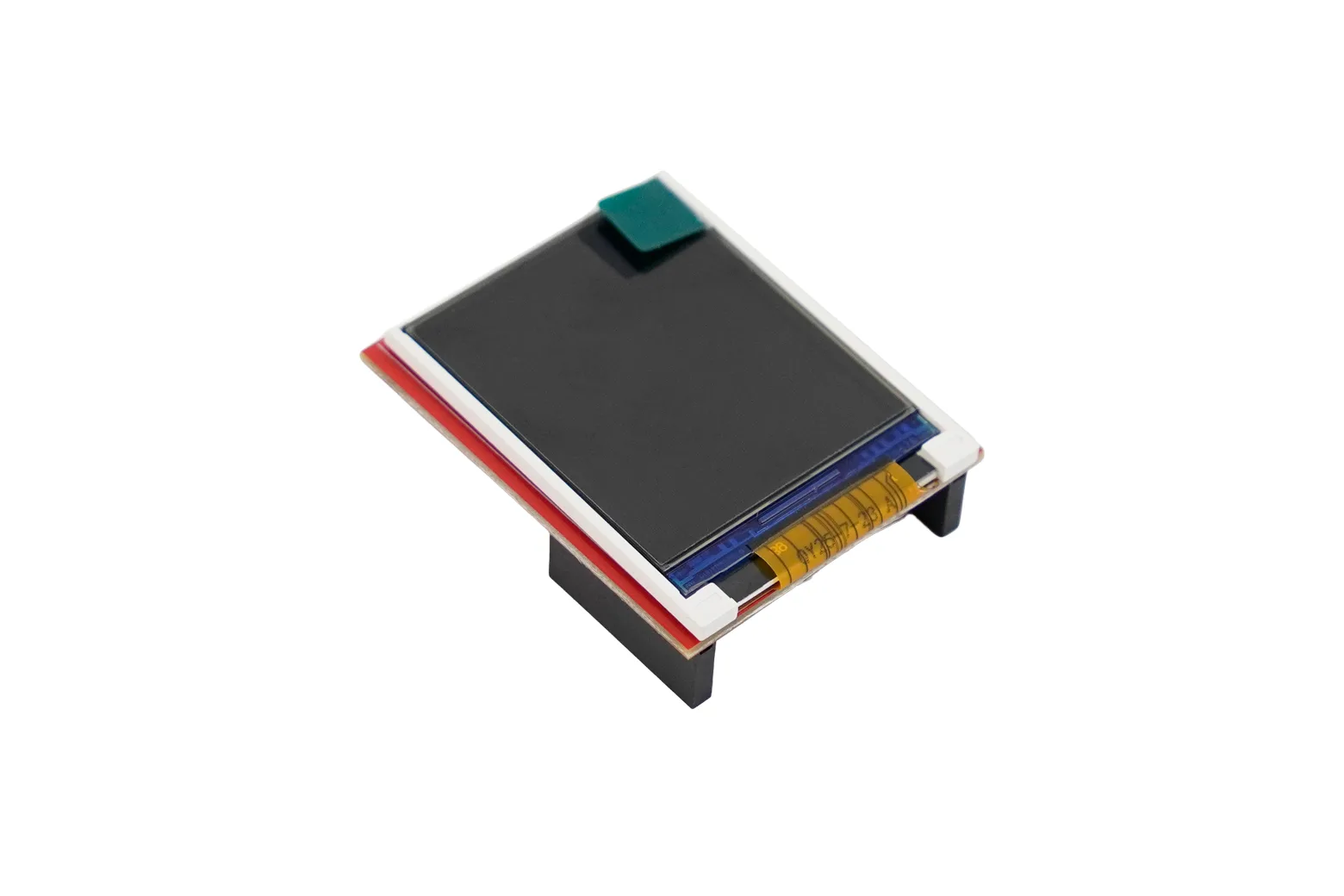

LCD Shield for OpenMV CAM (1.8

The LCD Shield for OpenMV CAM provides a compact 1.8-inch TFT display module designed directly for your OpenMV camera board. It enables real-time visual output and debugging for machine vision projects. This shield is ideal for students, makers, and developers wanting a dedicated screen for their embedded vision applications.

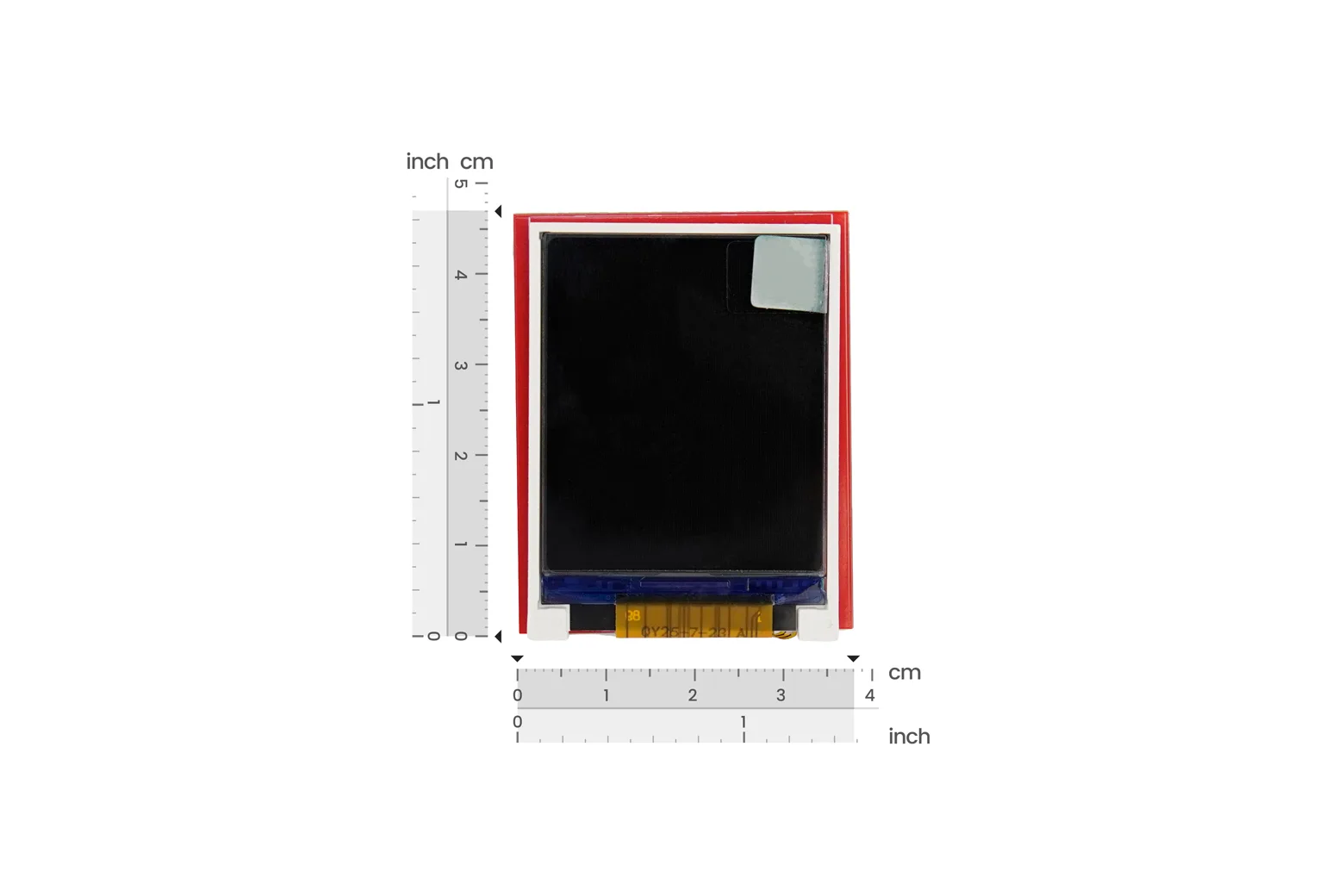

Compact 1.8-inch TFT panel

The shield features a 1.8-inch TFT display tailored to sit directly on your OpenMV CAM. This form factor offers visual feedback without adding unnecessary bulk to your hardware setup.

128x160 resolution with 64K colours

With a 128x160 resolution and 64K RGB565 colour support, the screen renders clear graphics, test patterns, and live sensor frames. It gives you precise visual verification of camera tracking and detection algorithms.

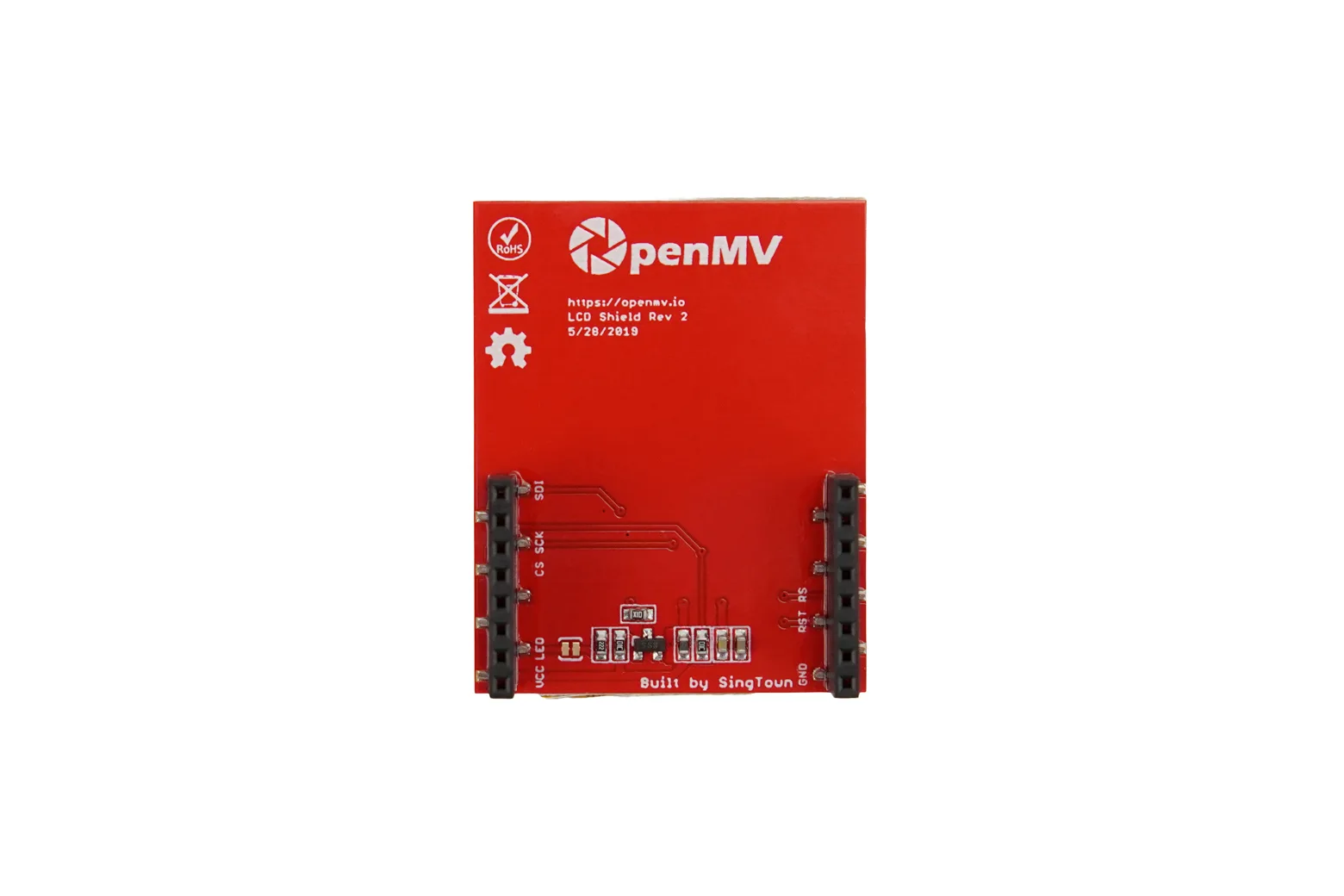

Direct SPI interface connectivity

Communication is handled via a dedicated SPI interface, ensuring fast data transfer from the OpenMV board to the screen. This allows for smooth frame updates during active vision processing.

Controllable backlight and RGB lighting

The module includes adjustable backlight functionality for varying ambient light environments. Integrated RGB lighting provides additional visual status indications for your programs.
