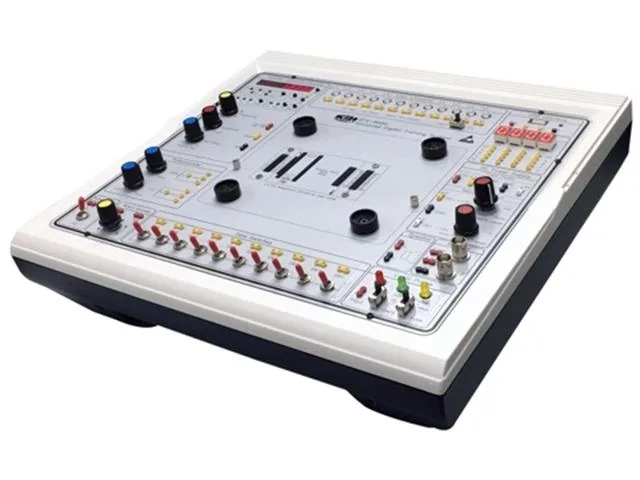

K&H MFG ETS-9000 Advanced Digital Educational Training System

The K&H MFG ETS-9000 is an advanced digital educational training platform designed for teaching and mastering combinational logic, sequential logic, microprocessor circuits, and FPGA design. Featuring integrated power supplies, testing equipment, and a large prototyping area, it provides an all-in-one workstation for digital electronics experiments. It is ideal for engineering students, educators, and electronics laboratories.

Comprehensive digital training platform

The system supports hands-on learning across combinational logic, sequential logic, microprocessor circuits, and FPGA applications. It includes an integrated power supply, function generator, counter, and dedicated testing devices.

Prototyping and breadboard area

A universal 1440 tie-point breadboard provides ample space for custom circuit design, prototyping, and mounting faya-Nugget NGT-series breakout boards. The tie points accommodate standard solid wire leads from AWG #22 to #30 (0.3 to 0.8 mm).

Interface and signal control

On-board signal generators feature selectable TTL and CMOS levels managed via a dedicated switch. The system also includes a USB interface configured for optional FPGA, MCU, or fayaduino Nano modules.
