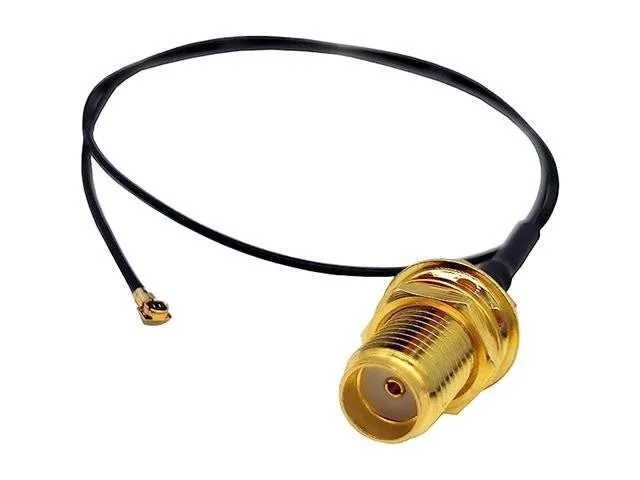

IPEX to SMA Female Antenna Adapter Cable, 15cm
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
This 15cm pigtail adapter converts a compact on-board IPEX connector to a standard SMA female port. It allows makers, students and developers to connect a wider variety of external SMA antennas to their cellular and wireless development modules. It is ideal for IoT prototyping, GSM communication projects and embedded electronics.
Versatile antenna connectivity
The cable features an IPEX male connector on one end and an SMA female connector on the other. This allows you to adapt miniature RF ports on modules to standard external SMA antennas for flexible mounting and improved reception.
Module compatibility
This adapter is suitable for cellular and RF modules featuring top-mounted IPEX connectors, such as SIMCOM SIM908, SIM900 and SIM900A boards.
Durable RF construction
Constructed with tin-plated RG178 coaxial cable, the adapter offers a 50 ohm impedance, low VSWR, and an operating temperature range of -40°C to +85°C.
Specifications
| Device | Antenna Adapter |
| Cable Length | 15cm |
| Cable Type | RG178 Cable (Tinplating) |
| Connectors | IPEX male to SMA female |
| Frequency Range | 880MHz~960MHz; 1710MHz~1880MHz |
| Polarization | Vertical or Level |
| V.S.W.R | =1.2 |
| Output Impedance | 50 ohm |
| Power | 50W |
| Working Temperature | -40~+85°C |
