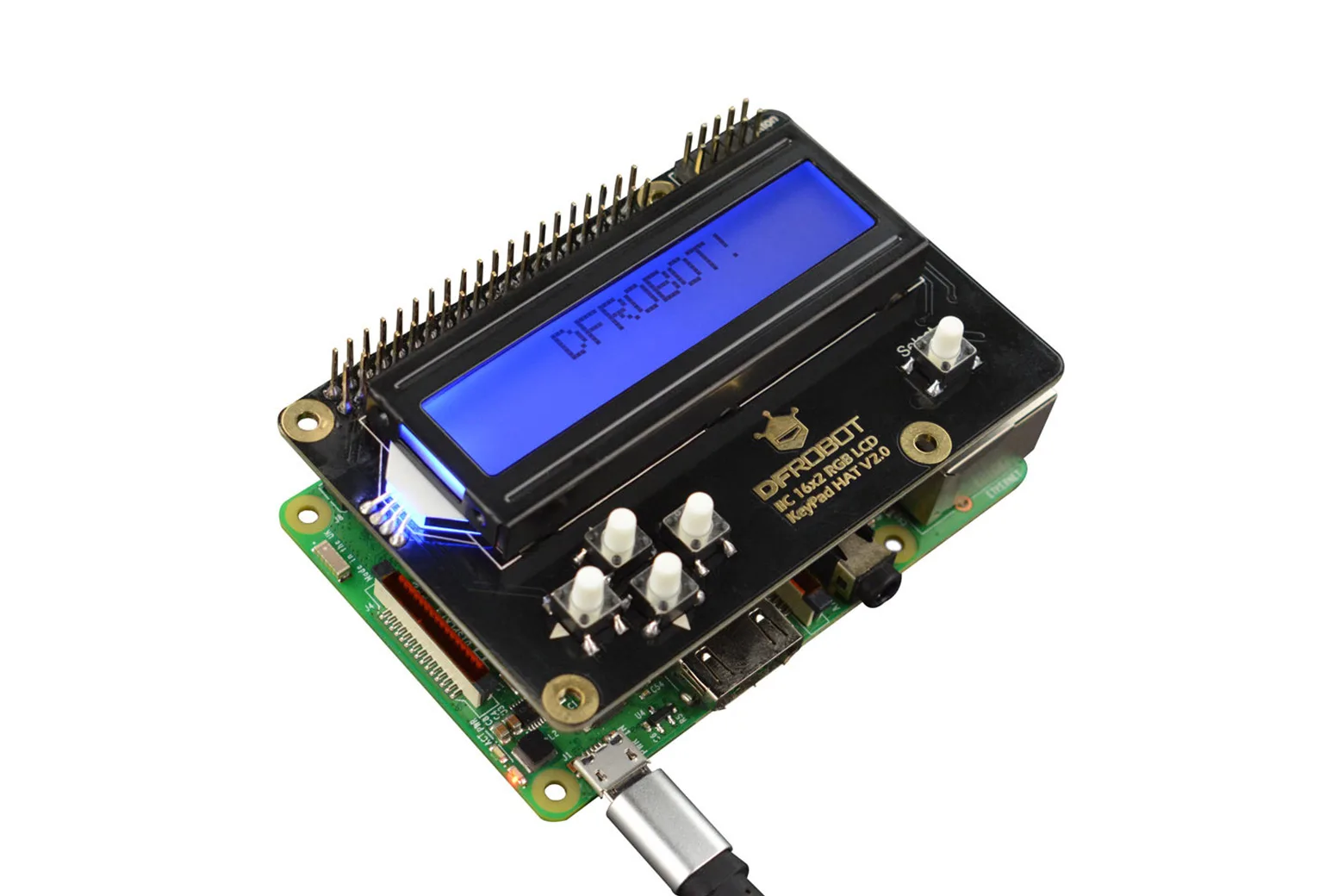

I2C 16x2 RGB LCD KeyPad HAT with RGB Backlight V2.0 (Compatible with Raspberry Pi 4B/3B+)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The I2C 16x2 RGB LCD KeyPad HAT provides a plug-and-play display and user interface for your Raspberry Pi 4B or 3B+. Featuring a customisable 16-million-colour RGB backlight and five programmable buttons, it is ideal for students, makers, and hobbyists building standalone control panels or data monitors.
Customisable RGB character display
The 16x2 character screen supports standard 5x8 font rendering with full RGB backlight adjustment across 16 million colour combinations. It offers two distinct display styles, letting you choose between colourful text on a dark background or dark characters against a coloured backdrop.
Efficient I2C interface
All screen controls, colour adjustments, and keypad inputs communicate over the I2C bus to minimise pin usage. The board eliminates manual contrast tuning and features streamlined wiring, allowing you to focus directly on coding your application.
Integrated navigation buttons

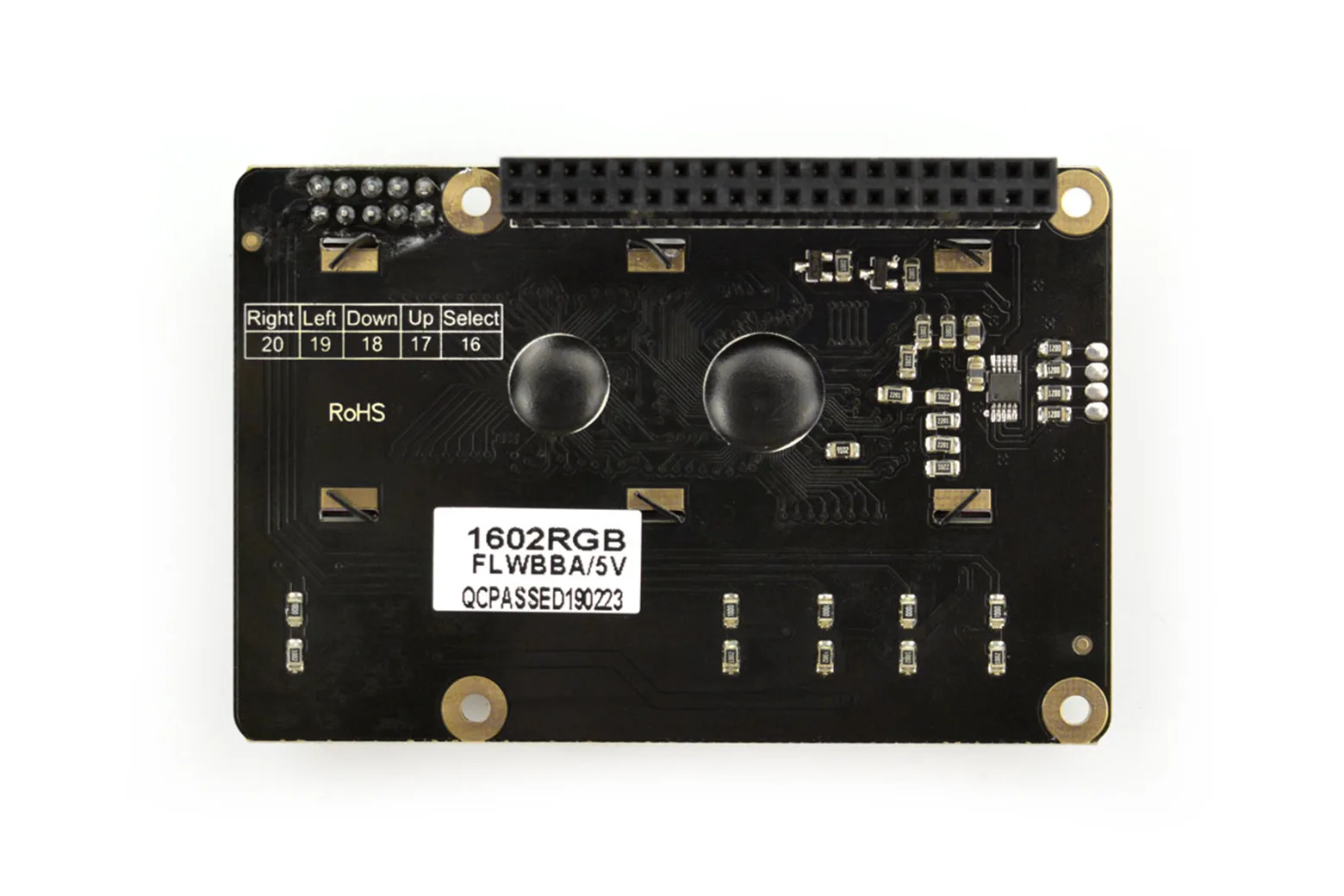

Five on-board tactile push-buttons make it straightforward to cycle through sensor readouts, navigate menus, and configure settings. This makes the HAT well suited for building portable diagnostics and compact operating interfaces.
Pass-through GPIO connectivity
The shield routes out the Raspberry Pi GPIO pins, allowing you to connect extra sensors, relays, and hardware modules while the screen is mounted. It operates at 5V supply voltage with 3.3V logic levels.
Compact and robust dimensions

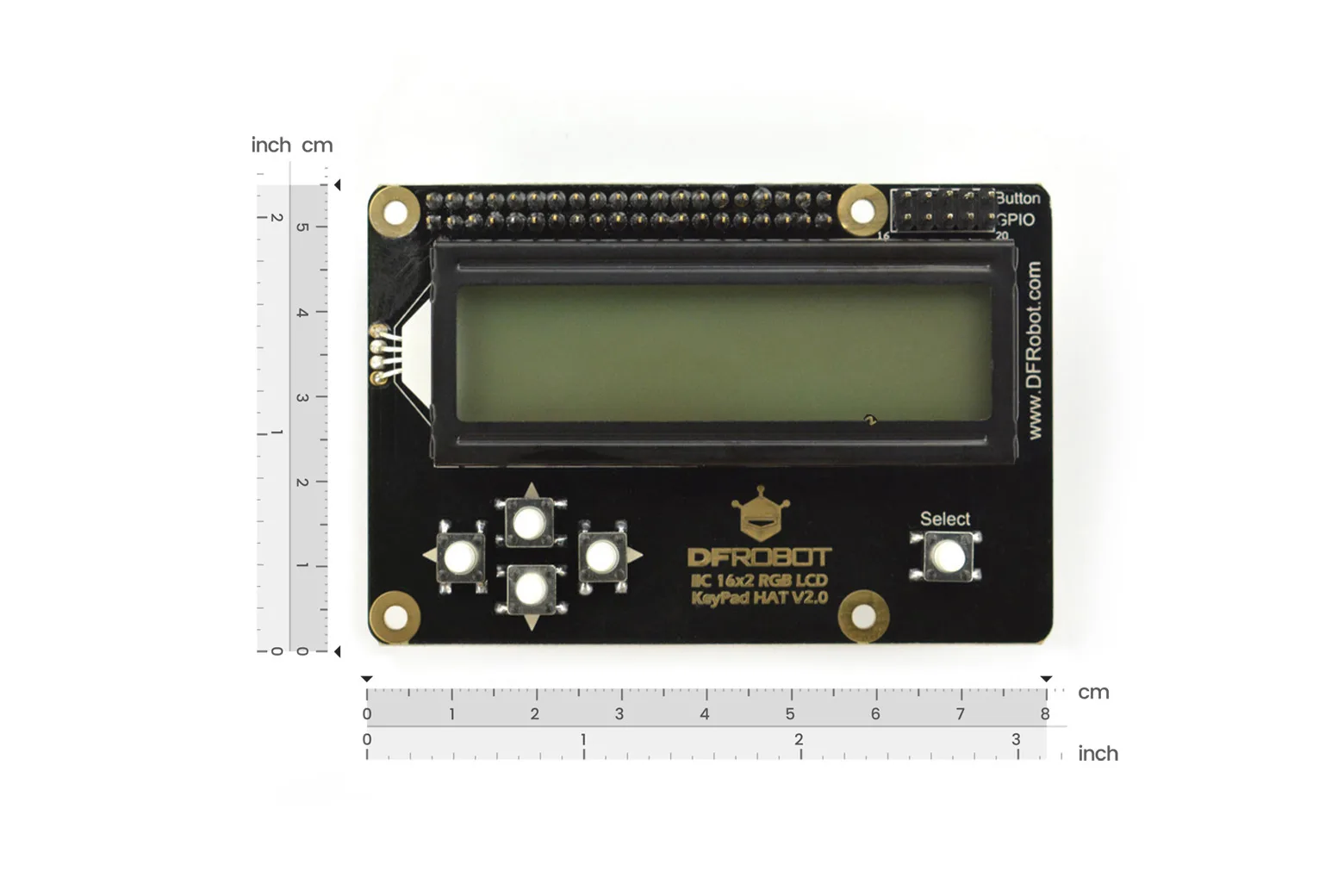

Measuring 85.0 mm by 56.0 mm by 26.8 mm, the HAT fits neatly atop standard Raspberry Pi boards. It is built to operate reliably across a temperature range of -20 to +70 degrees Celsius.
Downloads & documentation
Specifications
| Supply Voltage | 5V |
| Logic Voltage | 3.3V |
| Communication | I2C |
| Font | 5*8 |
| Backlight | RGB adjustable backlight (16 million) |
| Operating Temperature | -20 ~+70℃ |
| Storage Temperature | -30 ~ +80℃ |

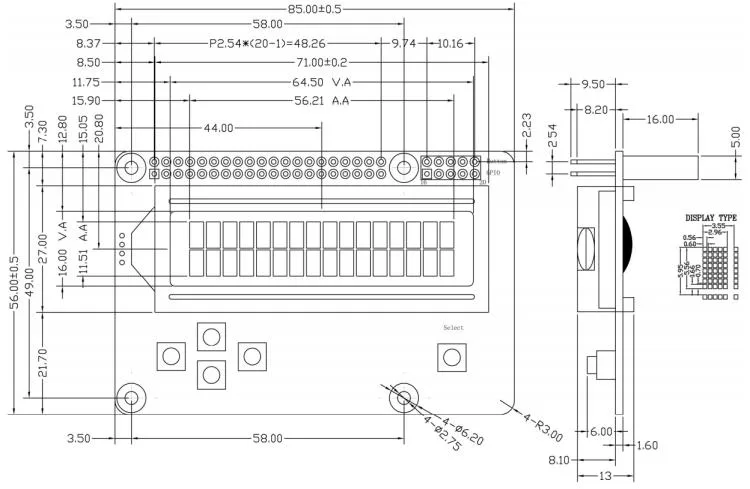

| Dimension | 85.0mm*56.0mm*26.8mm/3.35*2.20*1.06” |

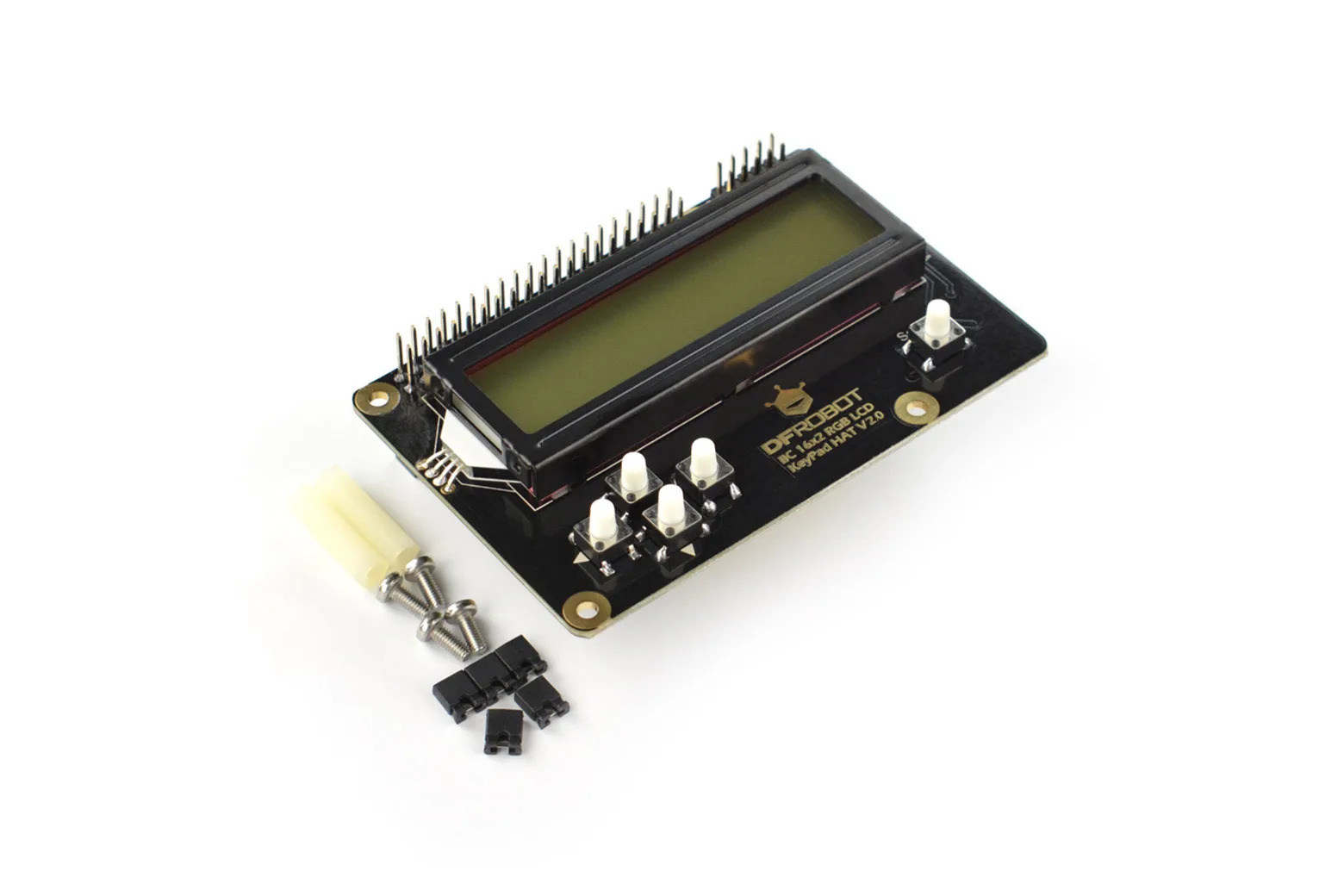

In the box
| I2C 16x2 RGB LCD KeyPad HAT V1.0 | 1 |
