Hiwonder Jetson Orin NX Development Kit 8GB/16GB SOM Module

The Hiwonder Jetson Orin NX Development Kit is a high-performance edge AI platform combining the official Jetson Orin NX core module with a versatile carrier board. Available in 8GB and 16GB memory options, this kit is ideal for students, educators, and advanced makers building next-generation robotics and computer vision projects. It comes complete with essential accessories, including a pre-flashed SSD and wireless connectivity, to get your development started immediately.

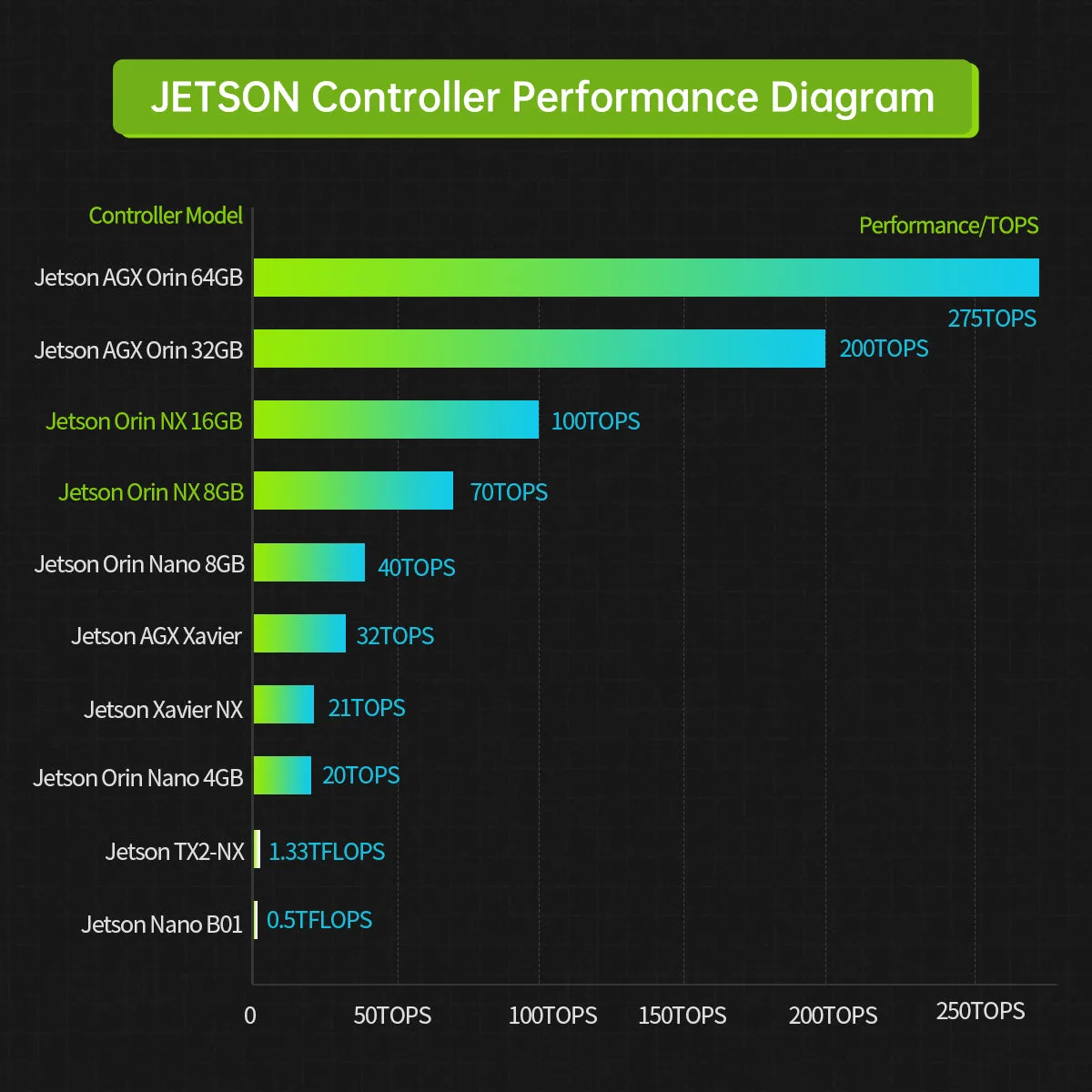

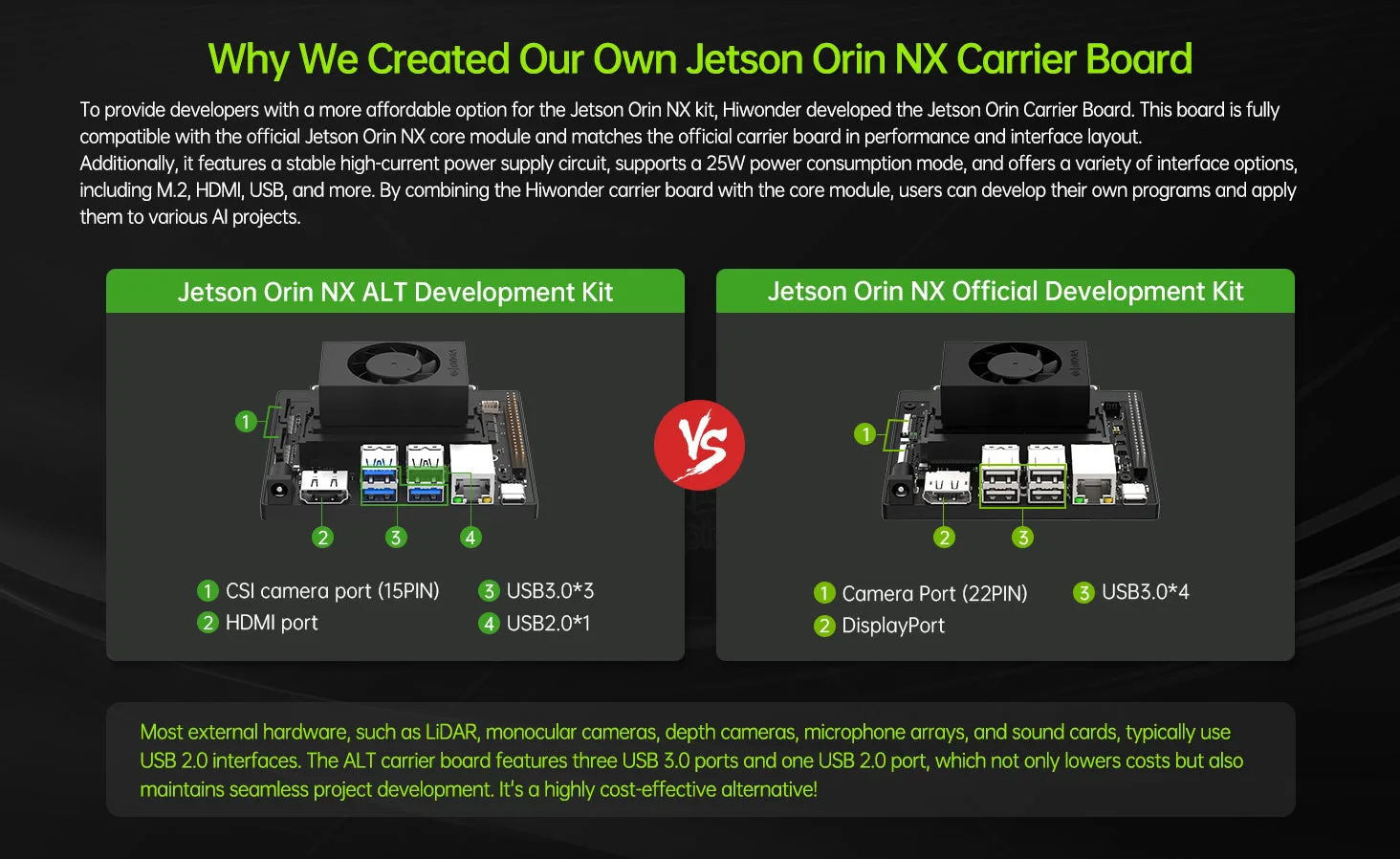

High-performance development platform

This kit pairs the official Jetson Orin NX core module with Hiwonder's high-performance carrier board to deliver robust processing power. It includes a power supply, WiFi network card, a 256GB M.2 SSD, and essential accessories, with a choice of 8GB or 16GB memory capacities.

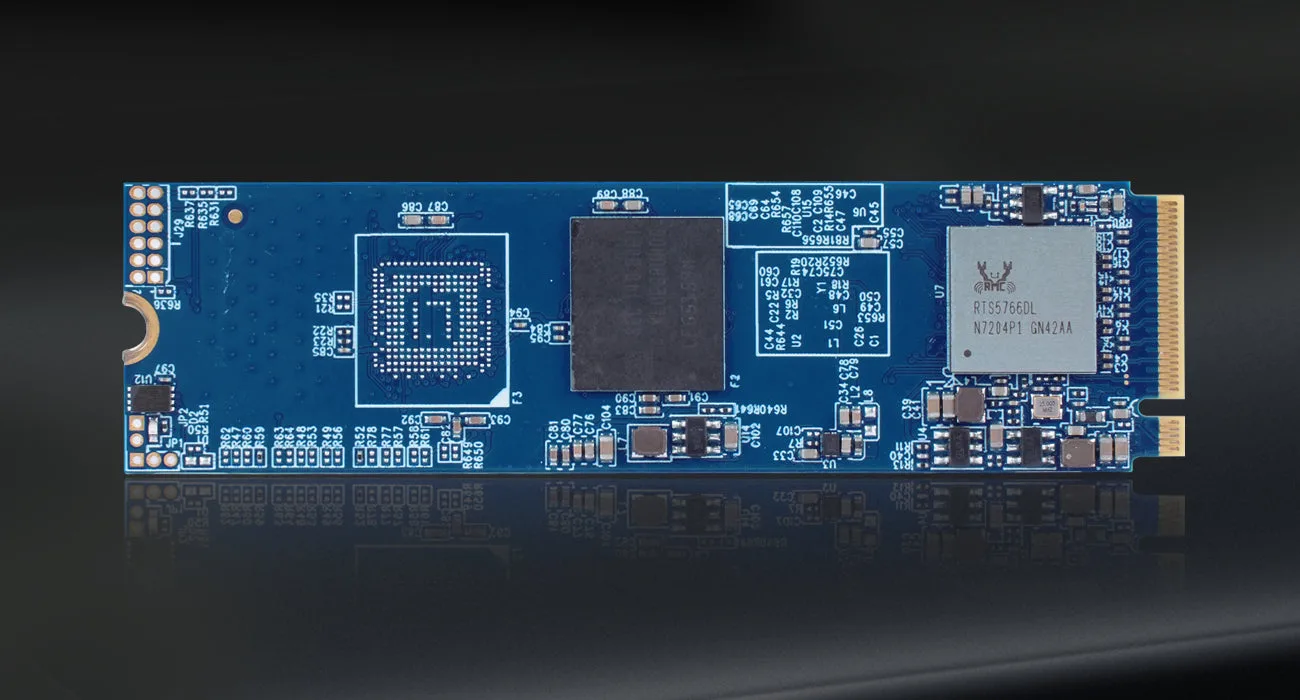

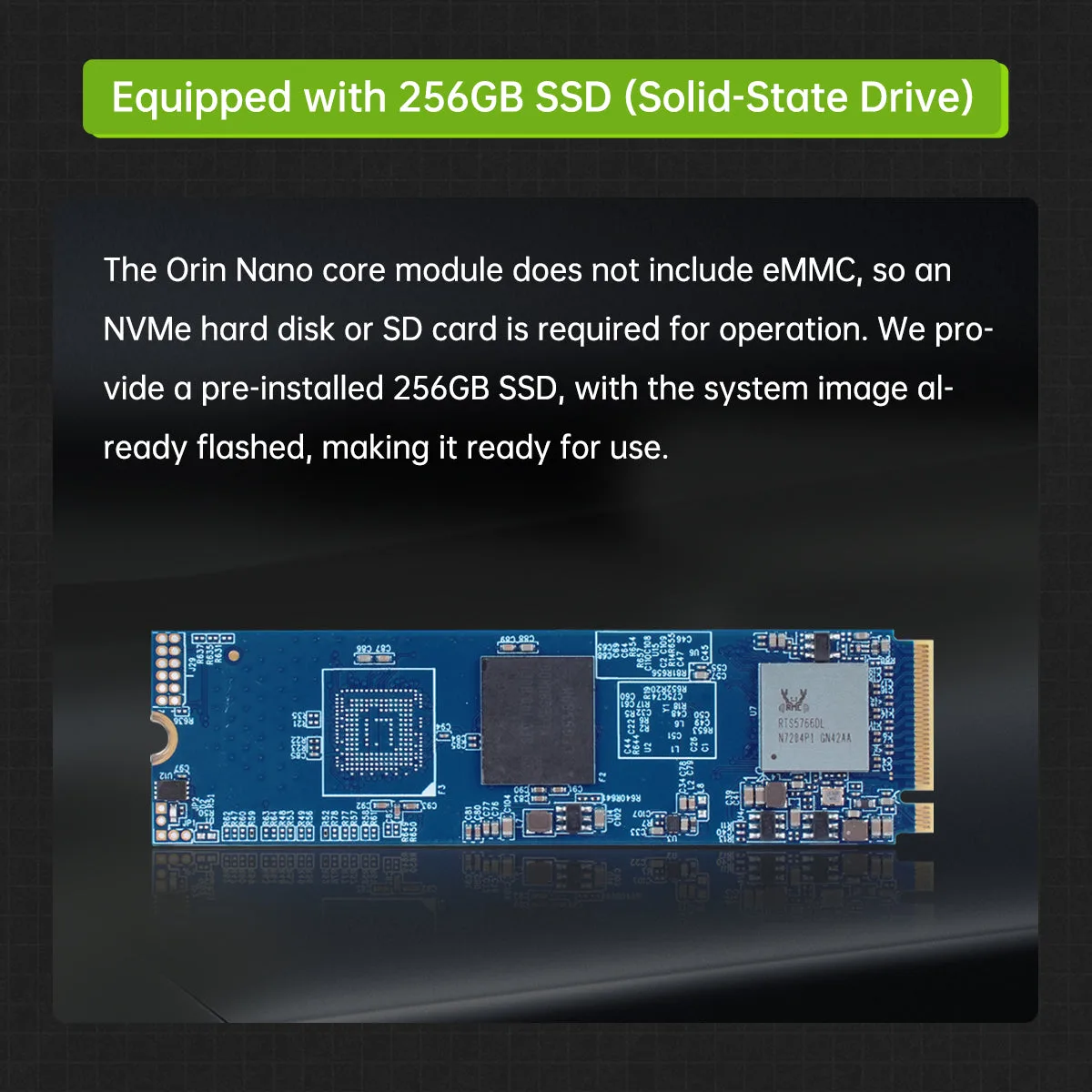

Pre-installed high-speed SSD storage

Since the core module does not feature onboard eMMC, the kit includes a pre-installed 256GB NVMe SSD. The system image is pre-flashed onto the drive, allowing you to start development straight out of the box.

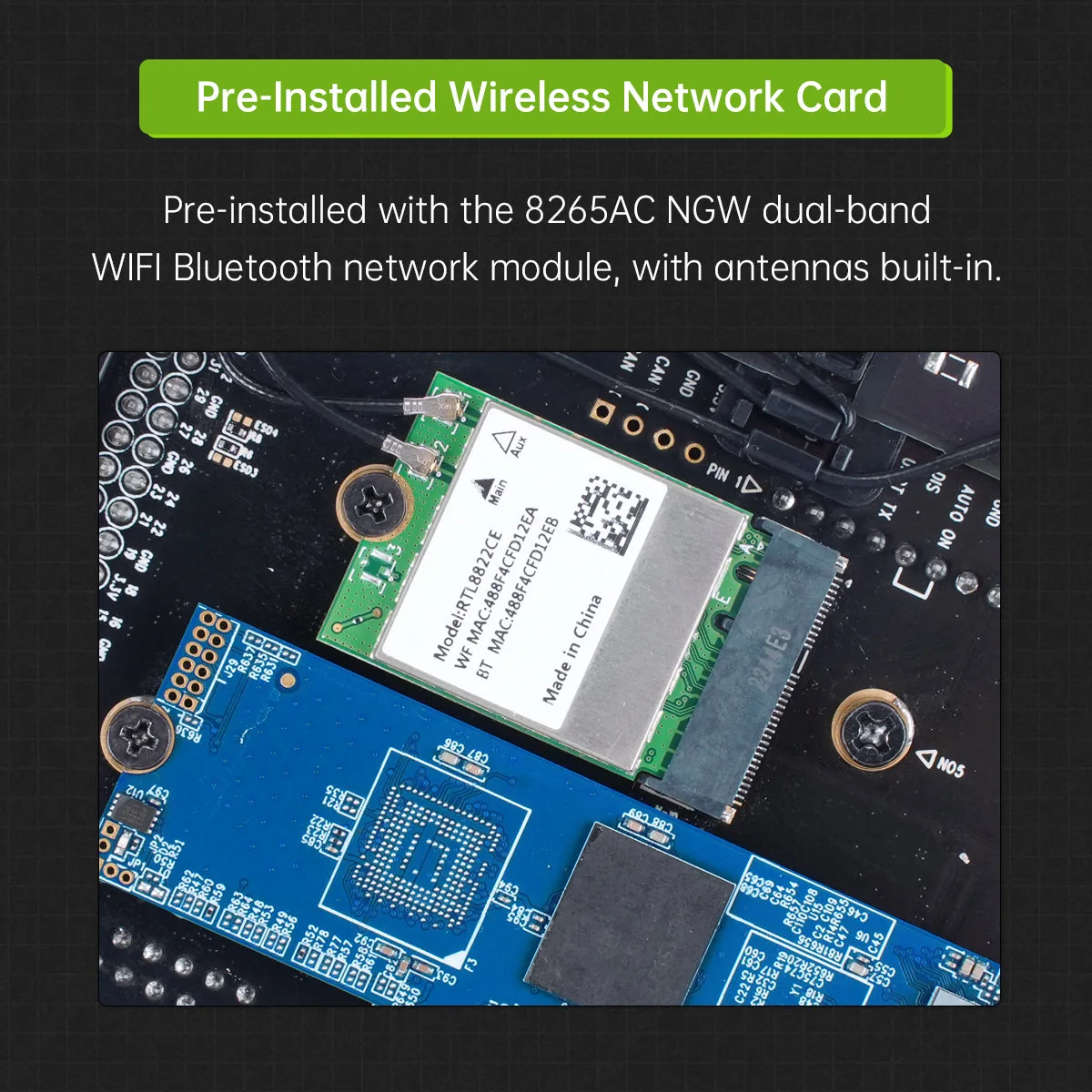

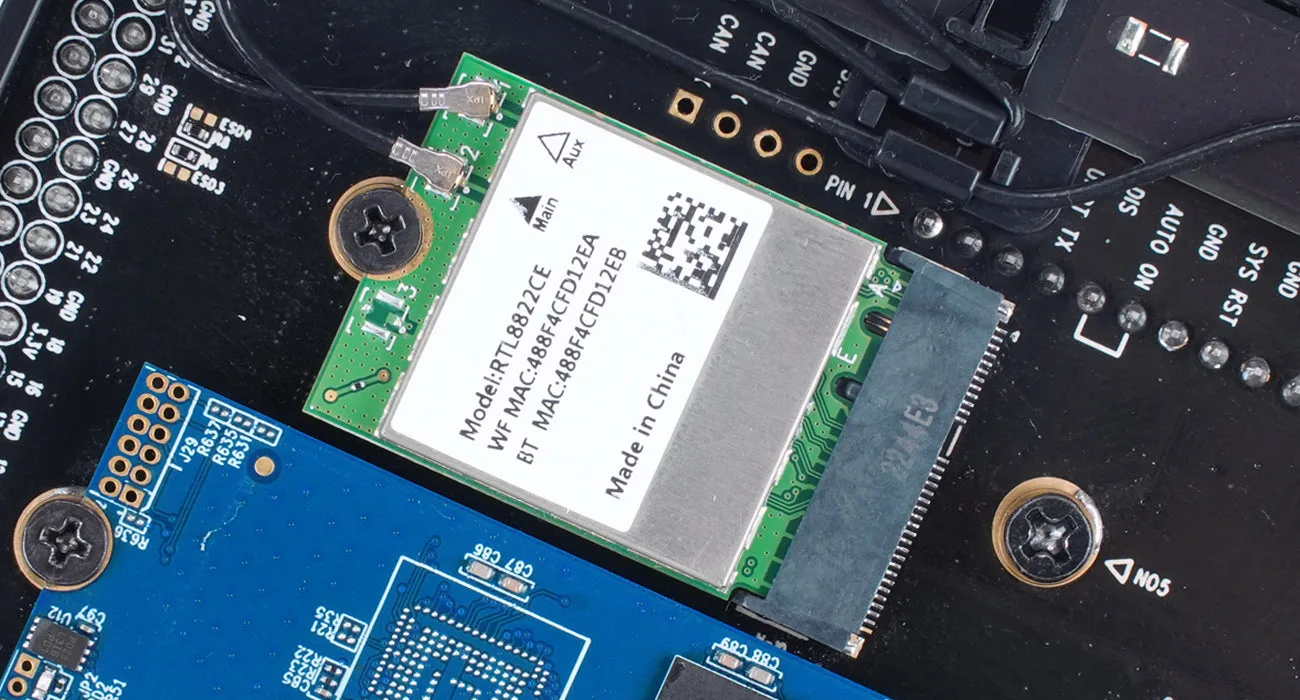

Dual-frequency wireless connectivity

The development kit features a pre-installed 8265AC NGW dual-frequency WiFi and Bluetooth network module. External antennas are included to ensure stable, high-speed wireless communication for your projects.

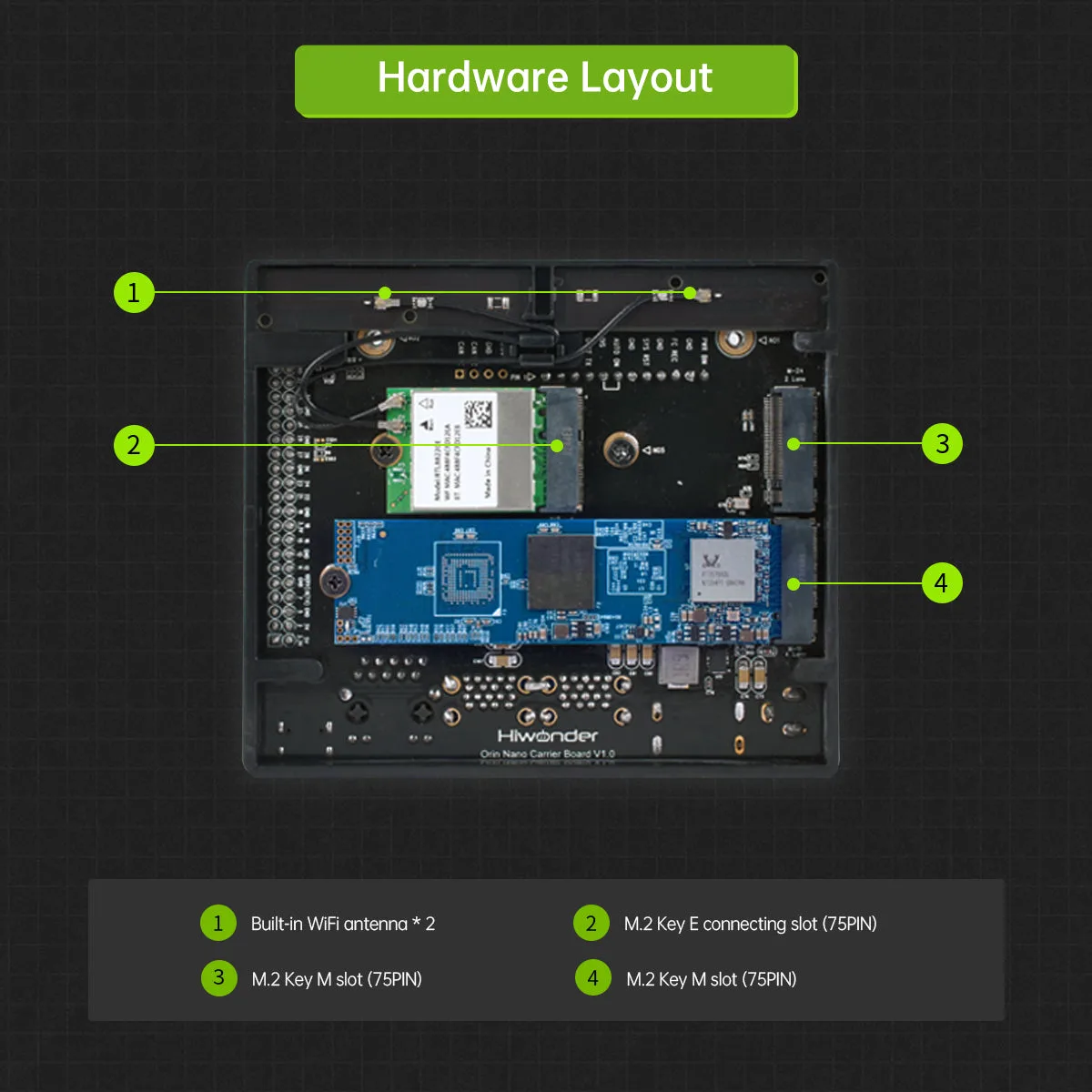

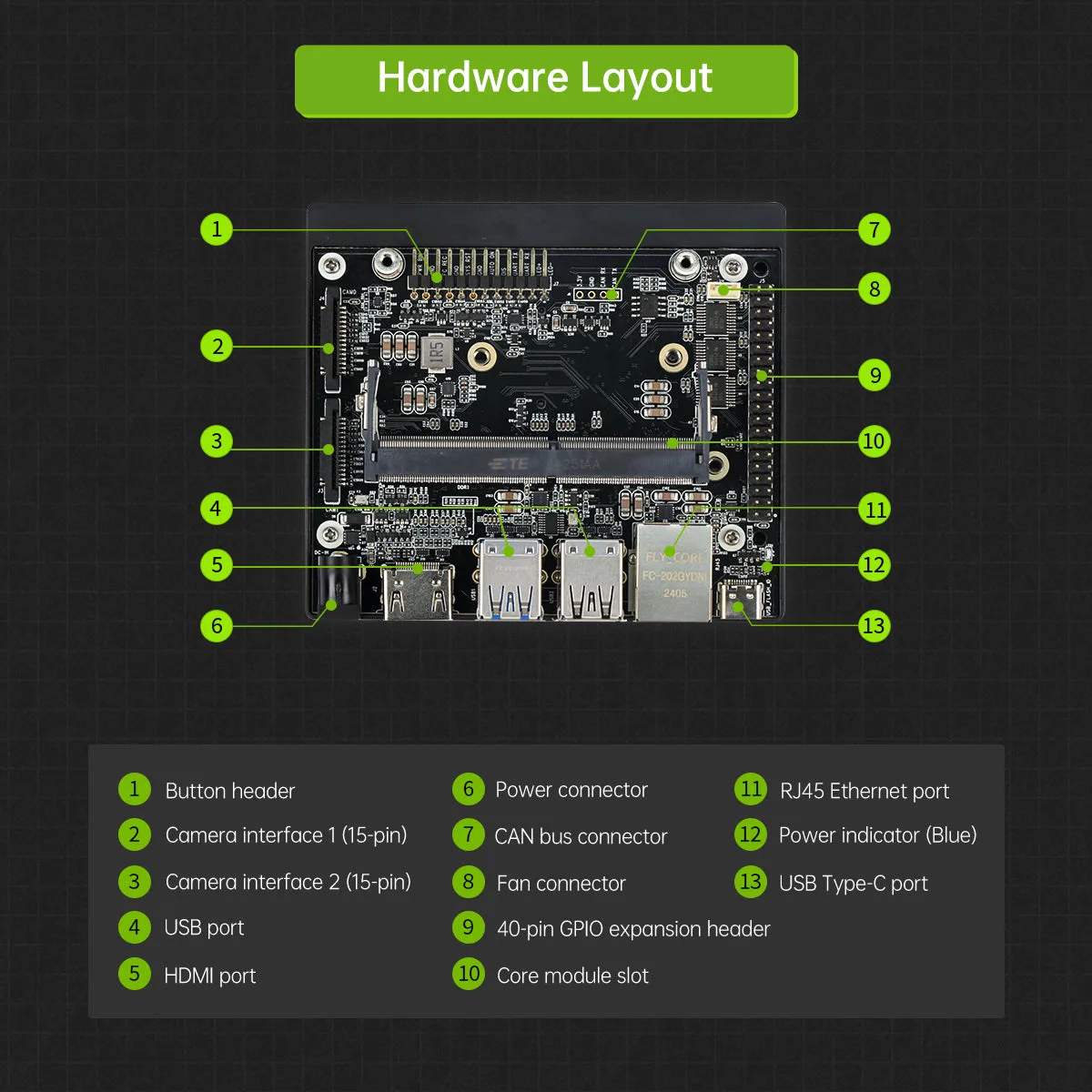

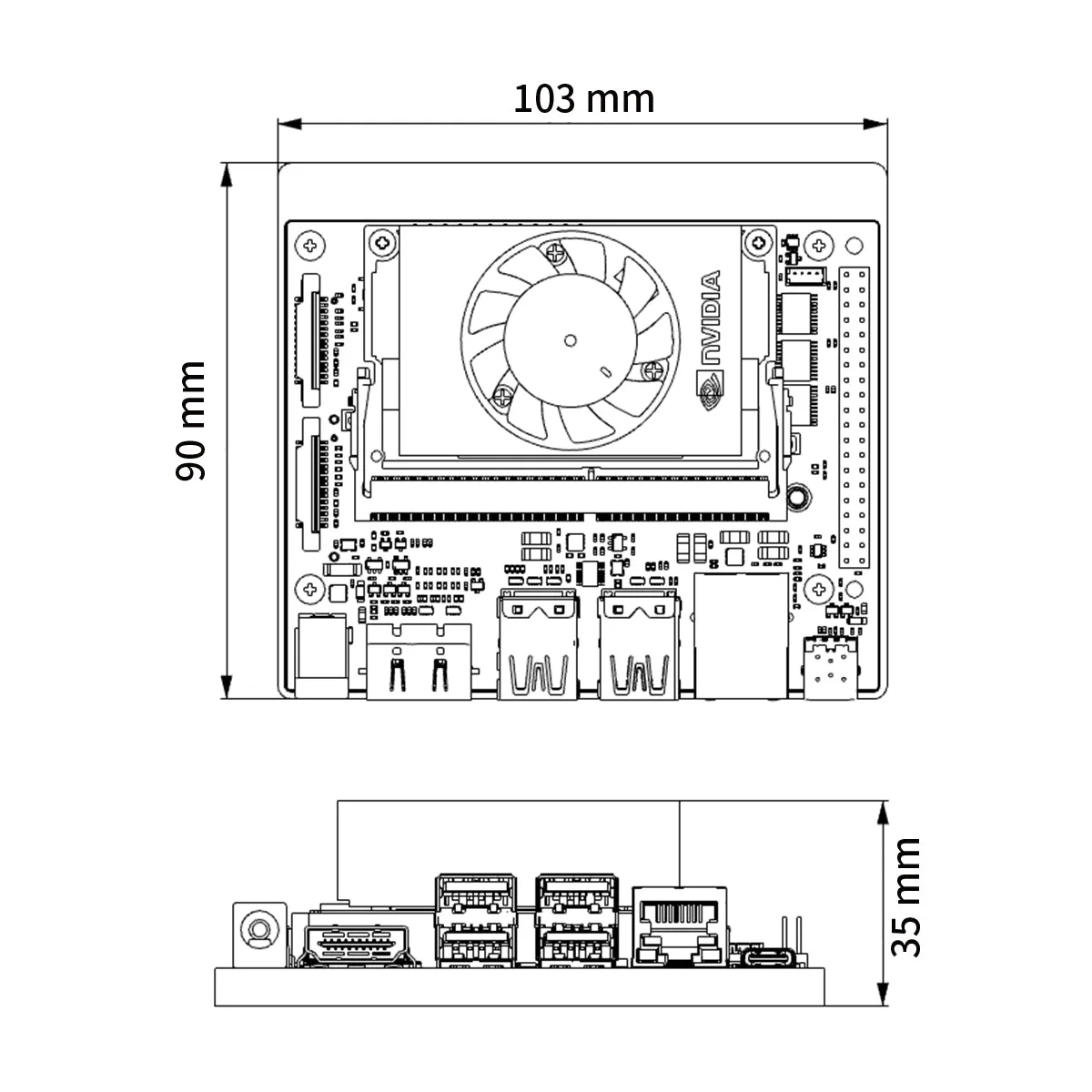

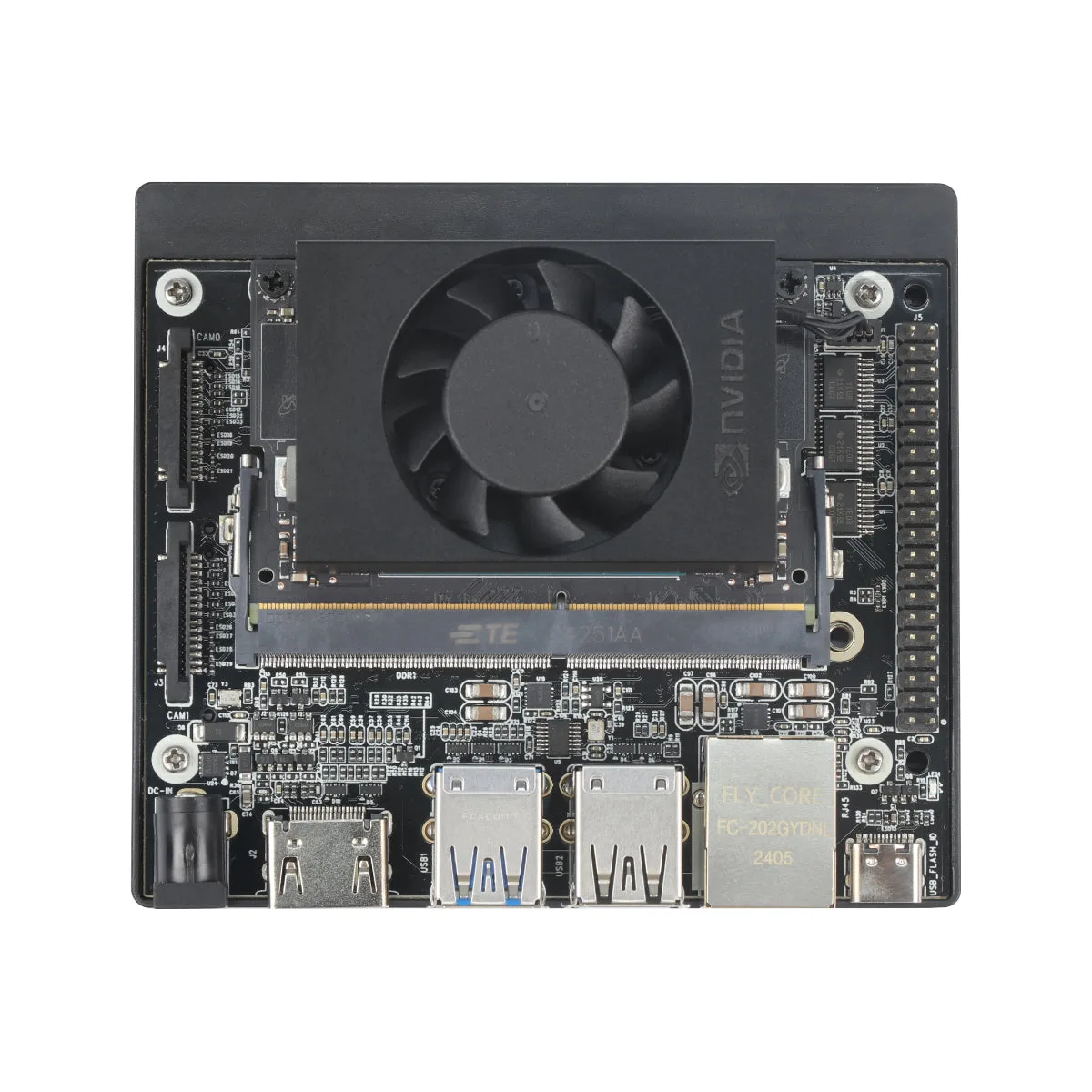

Comprehensive hardware layout

The carrier board is designed with a rich array of interfaces to accommodate various sensors, actuators, and peripherals. This layout simplifies hardware integration and expansion for complex robotics applications.

Modern Ubuntu system image

Operating on Ubuntu 20.04, the system provides a full desktop Linux environment with hardware-accelerated graphics. It comes ready with essential AI libraries, including NVIDIA CUDA 11.4.19, TensorRT 8.5.2, and CuDNN 8.6.0.

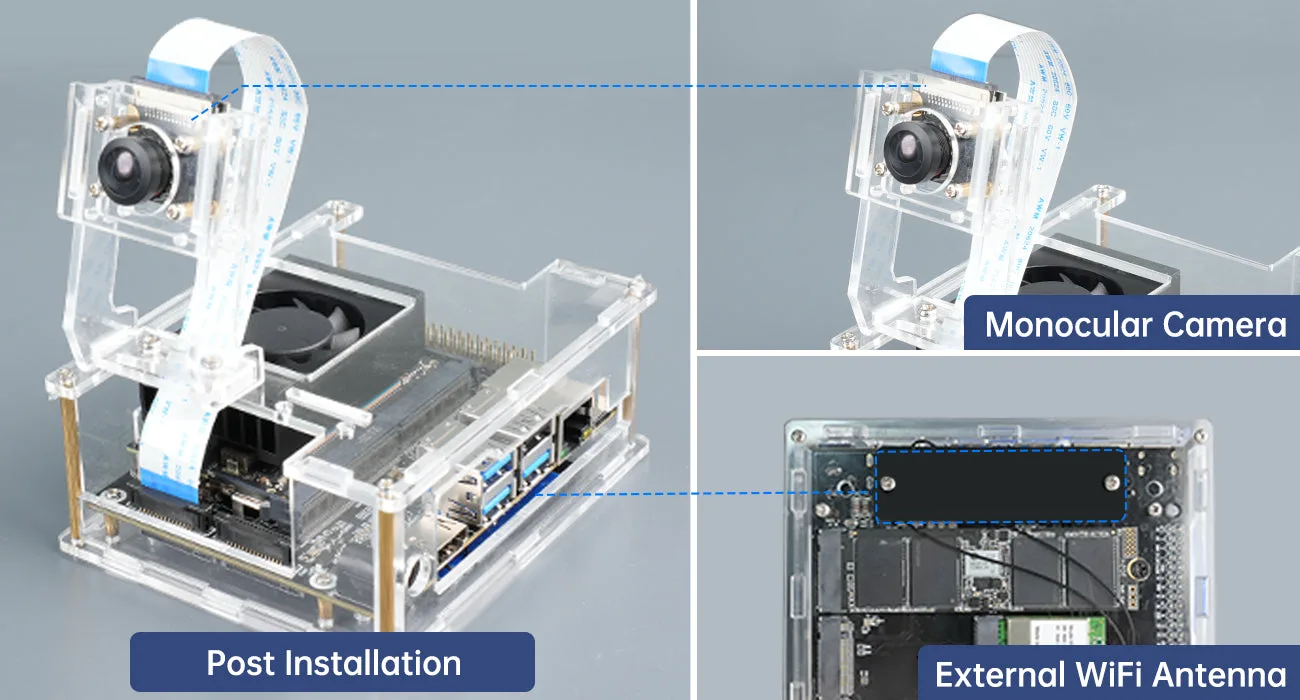

Protective custom acrylic casing

A custom-designed acrylic shell is provided to safeguard the controller during operation. The casing features dedicated mounting points for easy installation of external antennas and monocular cameras.
