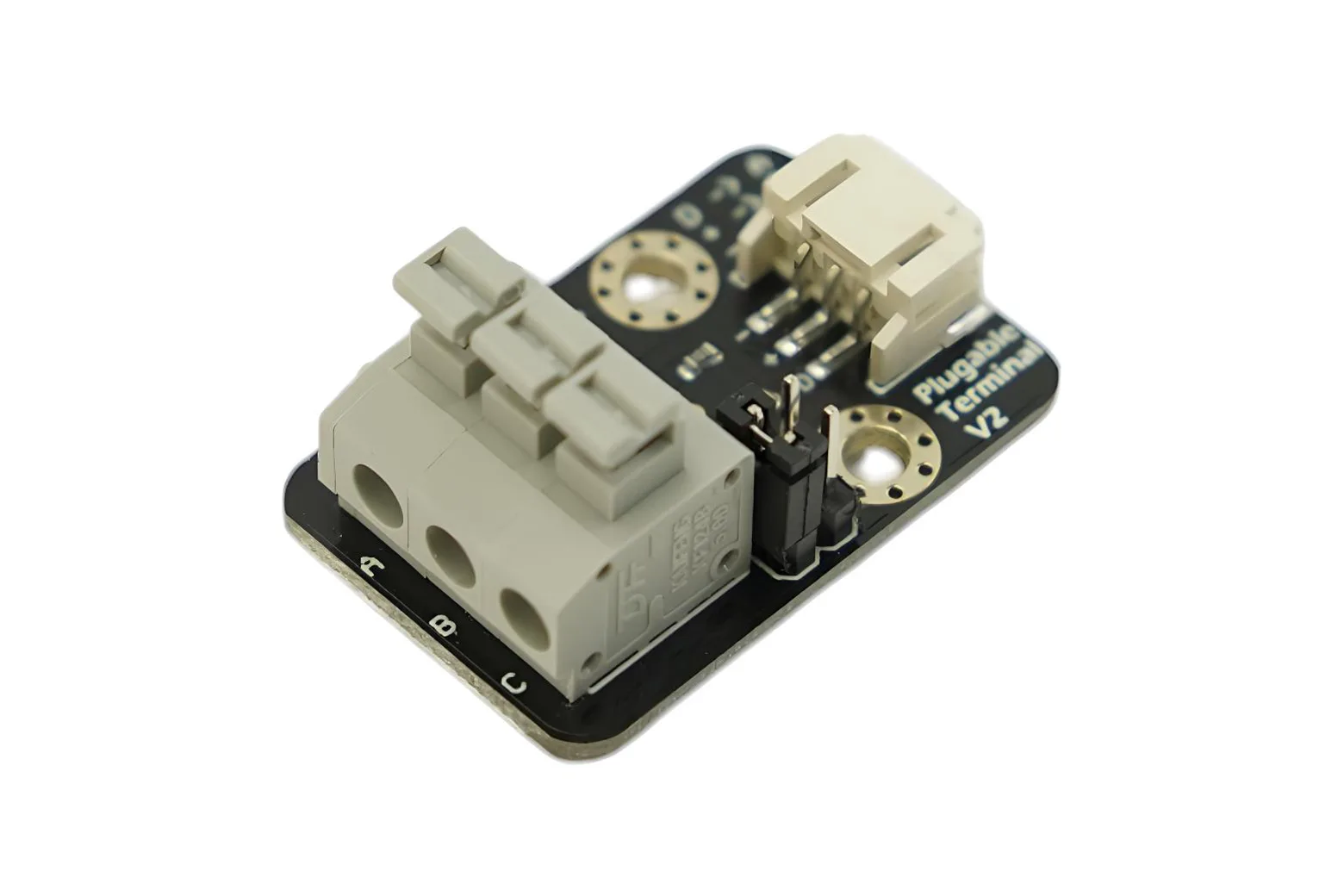

Gravity: Terminal Sensor Adapter V2.0

The Gravity: Terminal Sensor Adapter V2.0 is a universal interface board designed to simplify wiring between microcontrollers and external inputs. It provides a convenient connection point for switches and sensors, making it ideal for students, hobbyists, and makers working on electronics and prototyping projects.

Integrated pull resistors

This updated version includes onboard 10K resistors placed between terminals A and B, as well as A and C. This built-in configuration removes the need to manually wire external pull-up or pull-down resistors when connecting switches or sensor modules.

Digital and analog module support

The terminal adapter is designed to accommodate both digital and analog input modules. It provides a clean, secure screw-terminal interface for sensors requiring pull-up or pull-down circuitry.

Microcontroller shield compatibility

The module works smoothly in combination with standard Arduino sensor expansion boards. It establishes a straightforward connection path from raw wire inputs directly to your microcontroller setup.

Compact form factor and voltage

The board operates at a standard +5 V operating voltage and features a compact footprint of 22 mm by 34 mm (0.87 by 1.3 inches).

Package contents

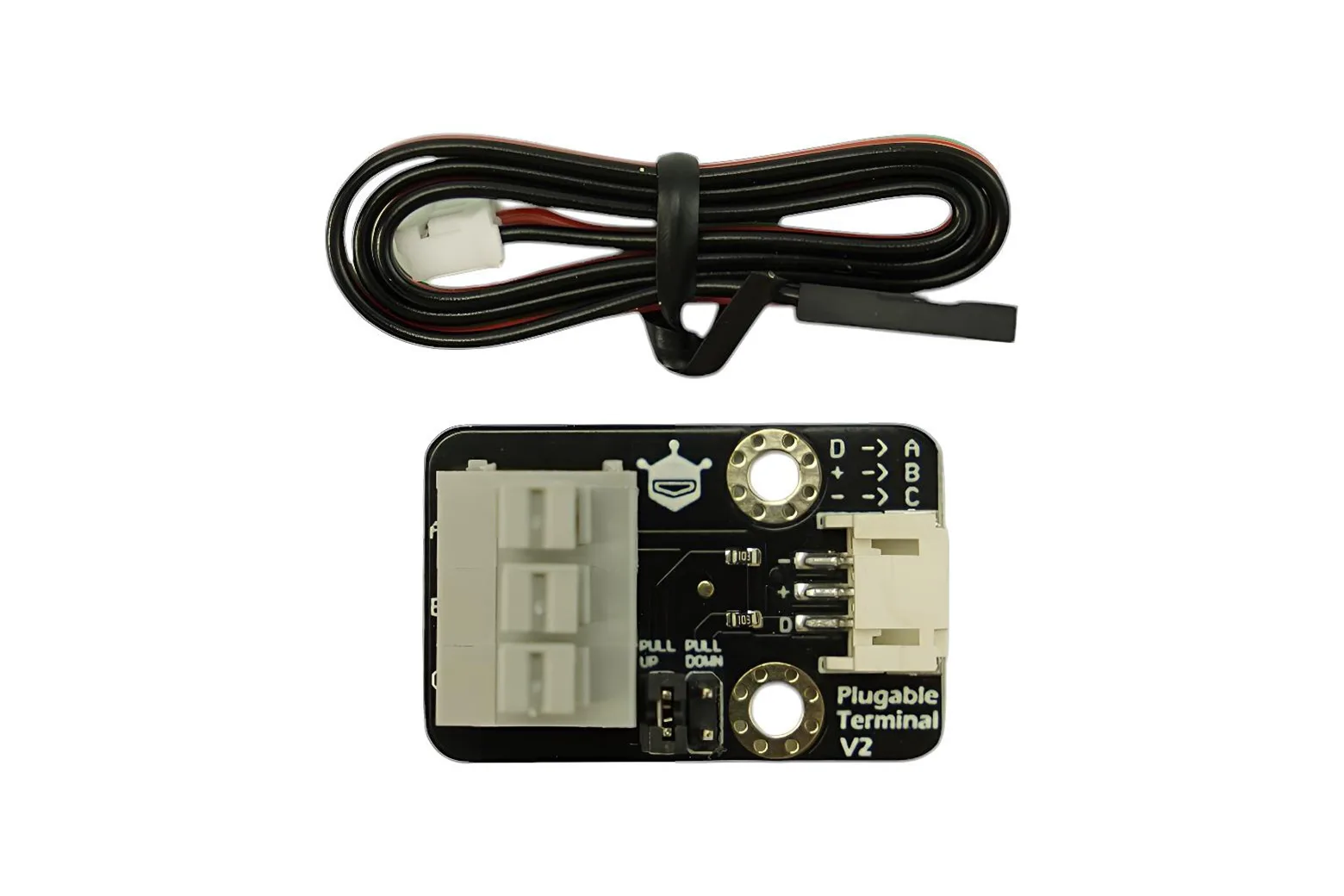

The package includes one Terminal Sensor Adapter V2.0 unit.

Downloads & documentation

• Product wiki (DFRobot)
