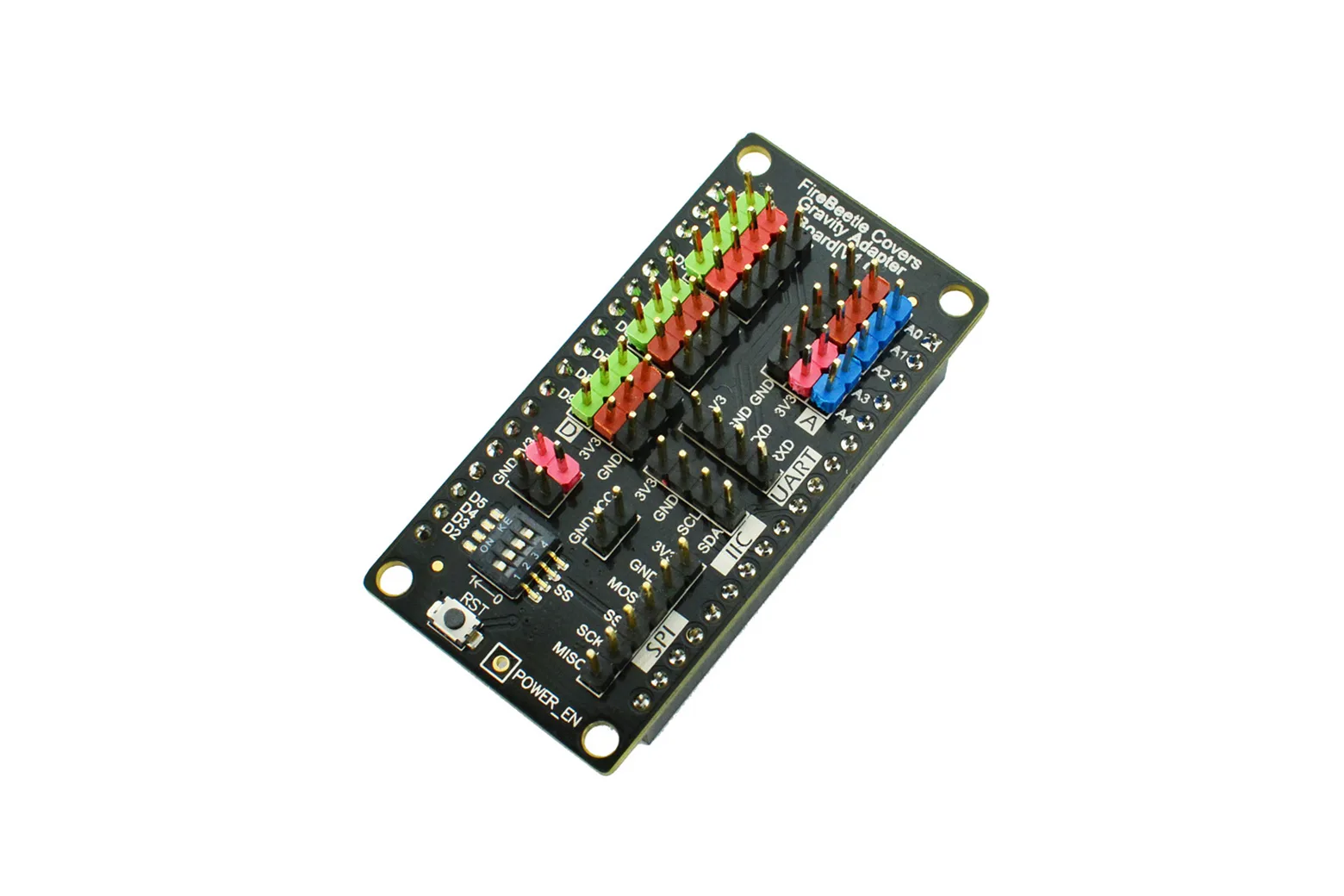

Gravity I/O Expansion Shield - FireBeetle Covers
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description

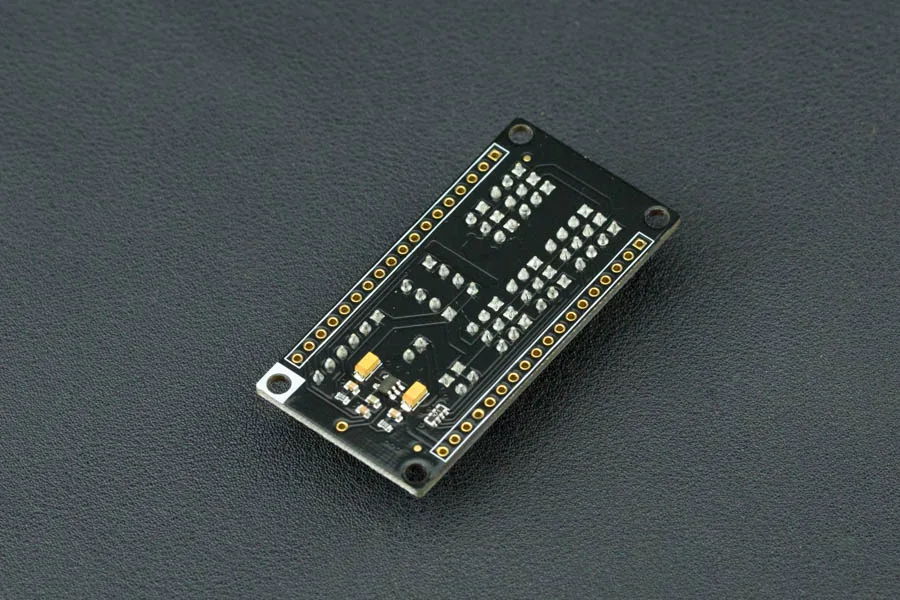

The Gravity I/O Expansion Shield for FireBeetle enables quick and reliable connections between FireBeetle microcontrollers and standard Gravity sensors. Built specifically for low-power IoT development, it provides dedicated power and signal lines for every peripheral. It is ideal for students, educators, and makers prototyping compact connected hardware.

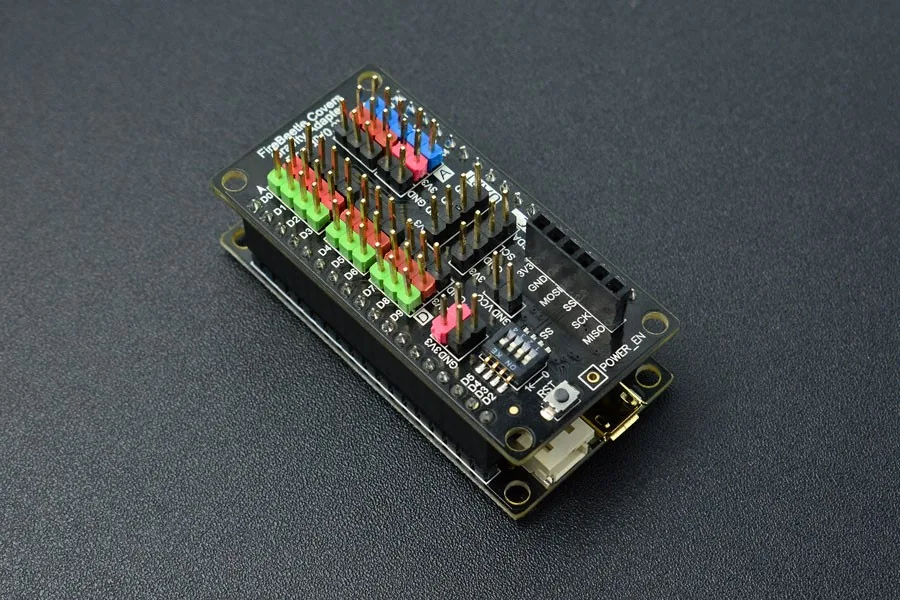

Plug-and-play Gravity sensor integration
The expansion shield provides standard Gravity ports that allow you to connect sensors and modules directly to your FireBeetle without complex wiring. Every sensor port features independent power pins delivering a regulated 3.3V operating voltage.
Dedicated digital and analogue I/O

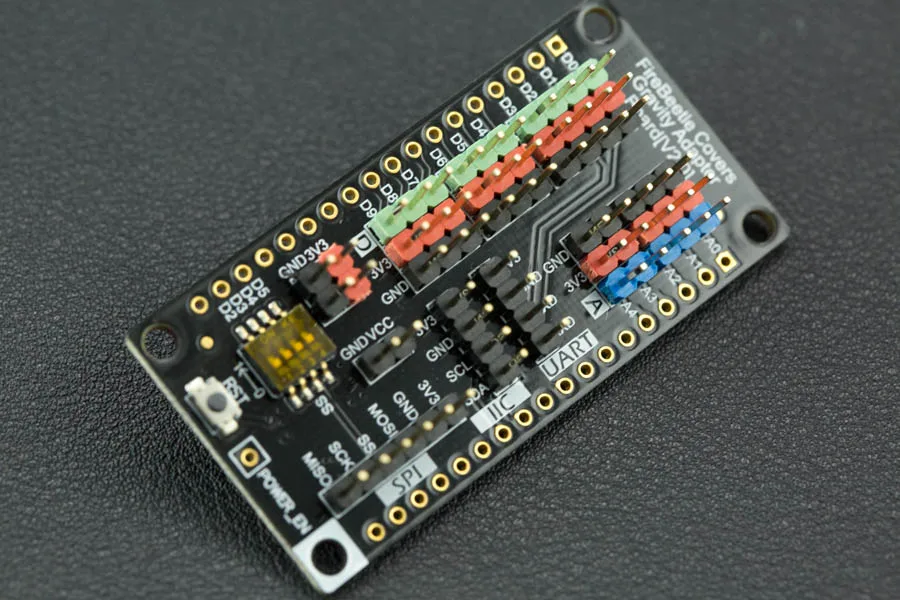

Break out your FireBeetle pins with ease using 10 digital I/O pins and 5 analogue input pins. Dedicated interfaces are also broken out for I2C, UART, and SPI communication to drive displays, relays, and serial devices.
Low-power supply management

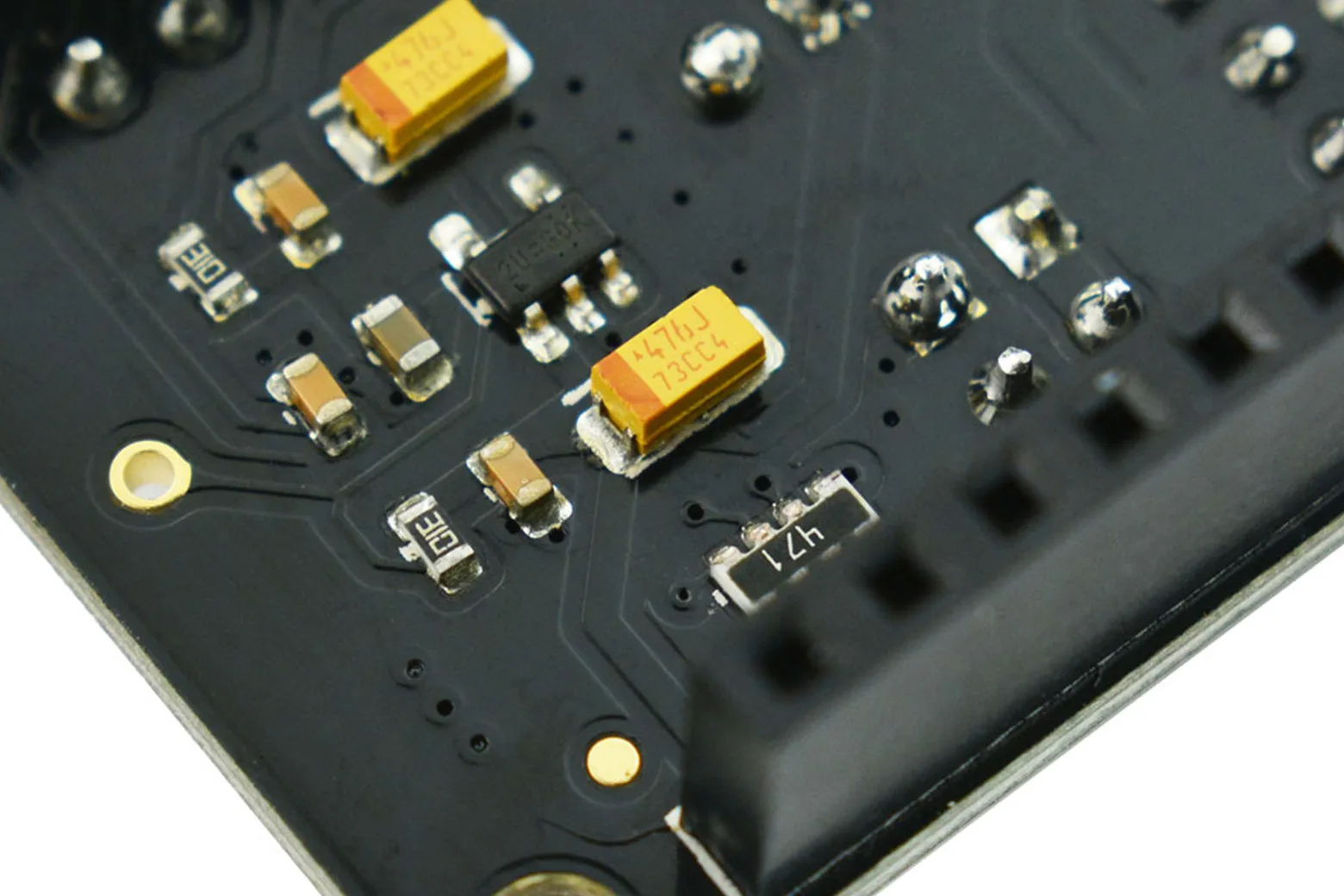

Accepting an input voltage of 3.7V to 5.5V, the onboard LDO supplies 3.3V with a maximum discharge current of 600mA. It supports low-power consumption mode when POWER_EN is pulled low, making it well-suited for battery-powered projects.
Compact stackable footprint

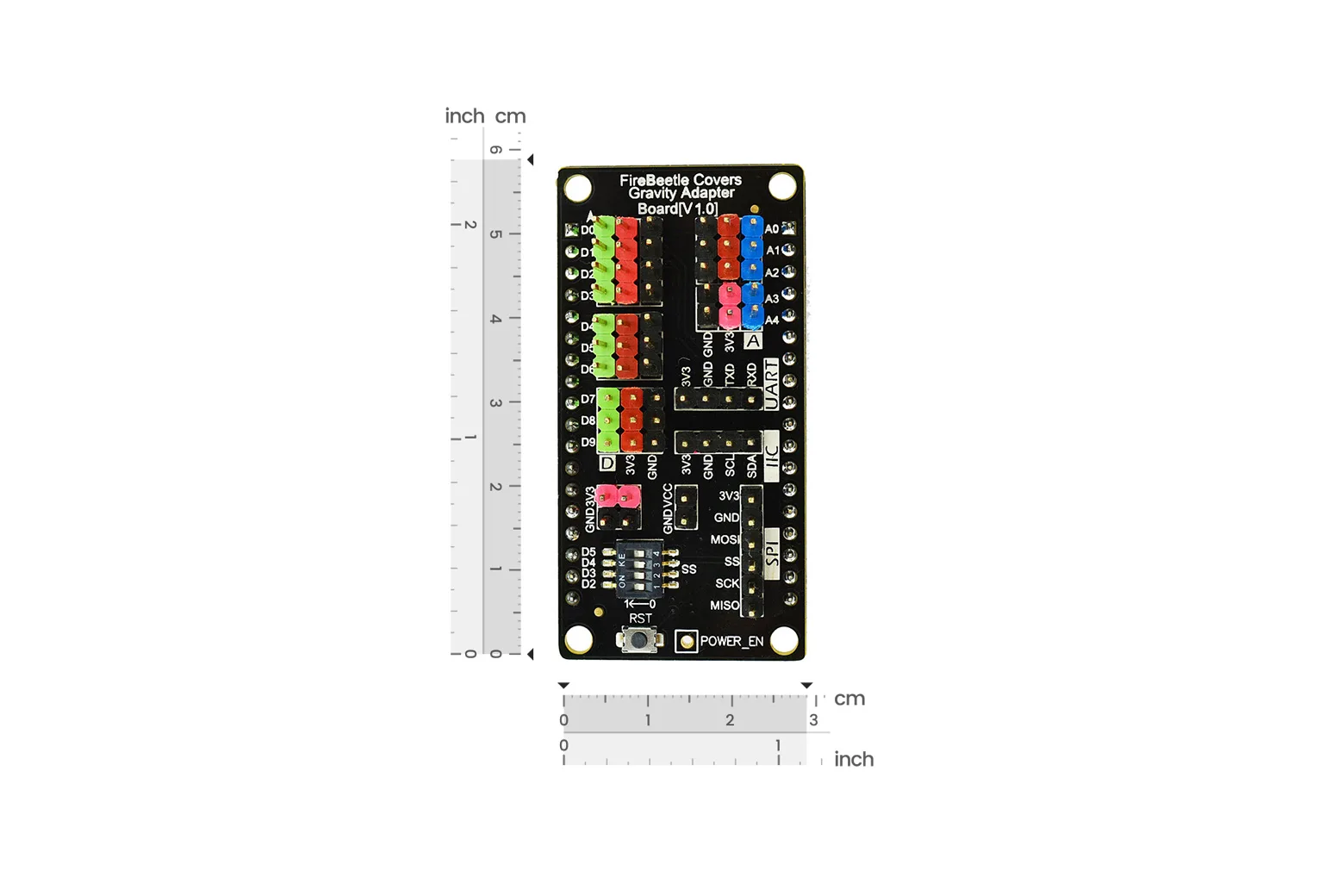

Measuring just 29.00 by 58.00 mm, the shield neatly matches the FireBeetle form factor to keep your custom enclosures and IoT nodes compact.
Included pin headers
Each shield includes two standard 18-pin 2.54mm headers and two 18-pin 2.54mm long pin headers for flexible stacking configurations with your main control boards.
Video
Downloads & documentation
Specifications
| Input voltage | 3.7V~5.5V (VCC) |
| Output voltage | 3.3V |
| Supports low-power consumption Mode | POWER_EN = LOW |
| Support maximum discharge current | 600mA(Output voltage: LDO-3.3V ) |
| Interface | Gravity standard interface |
| Digital I/O Pins | 10 |
| Analog Input Pins | 5 |
| Dimension | 29.00×58.00mm/1.14 x 2.28ches |
In the box
| FireBeetle Covers-Gravity I/O Expansion Shield | 1 |
| 18 pin-2.54mm pin | 2 |
| 18 pin-2.54mm long pin header | 2 |
