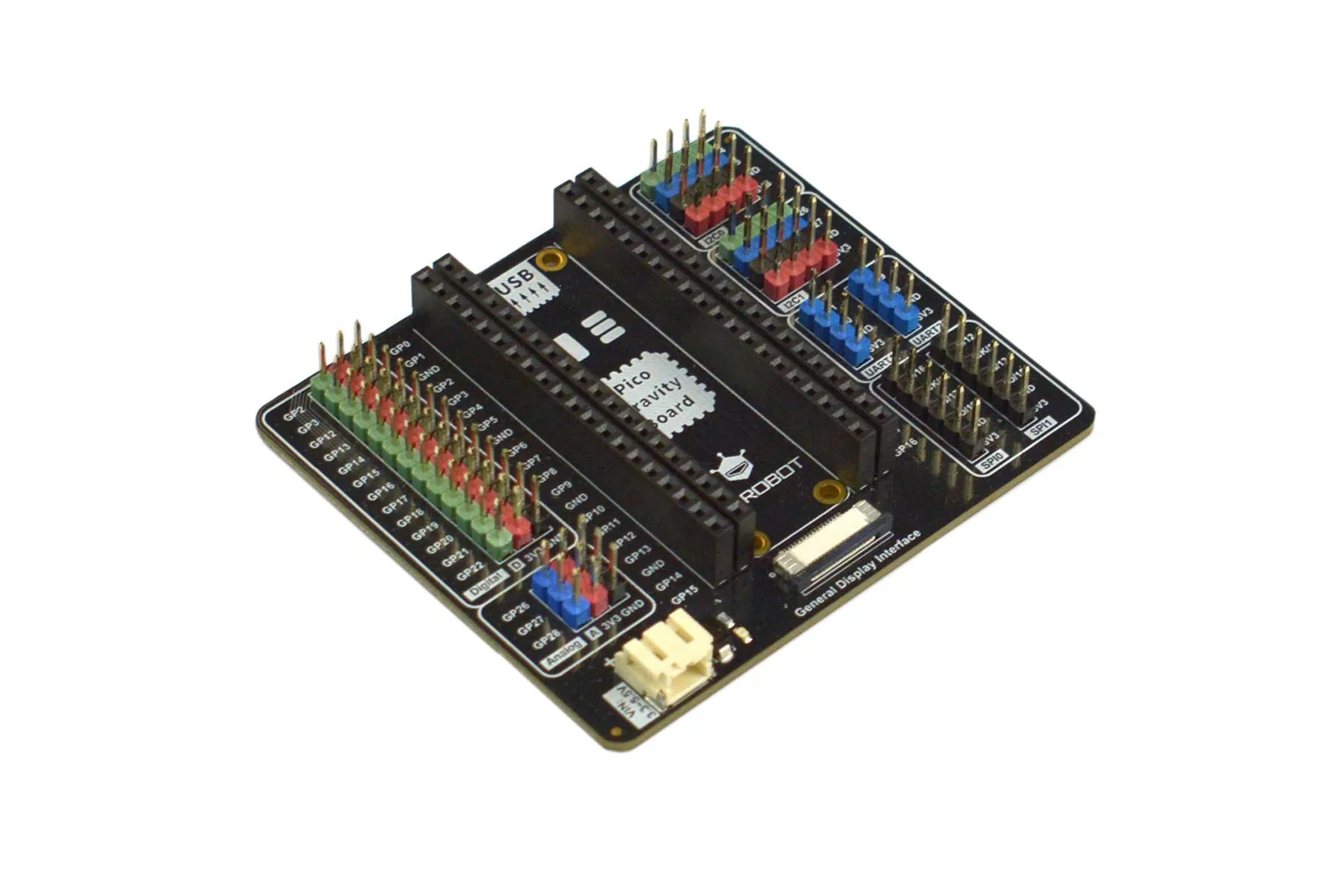

Gravity: Expansion Board for Raspberry Pi Pico / Pico 2
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description

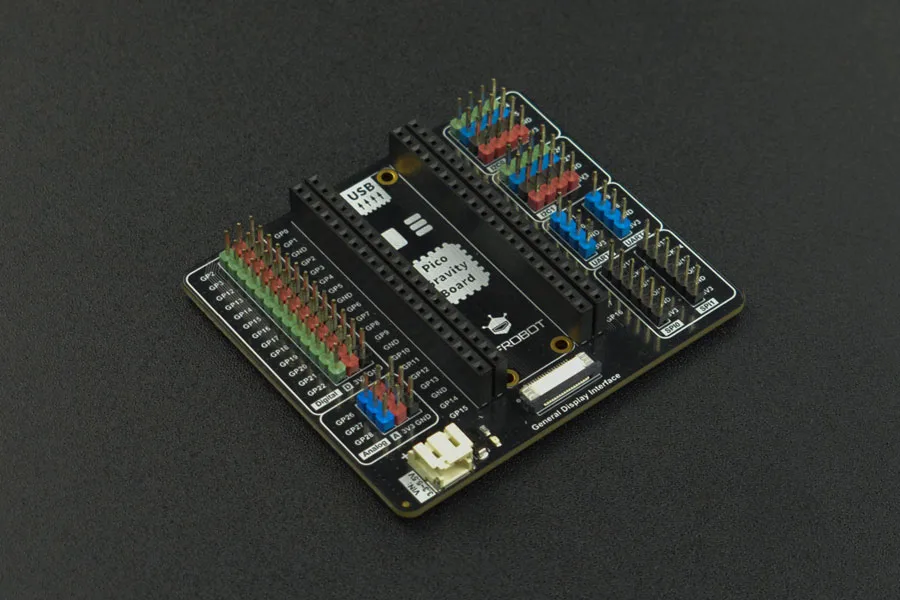

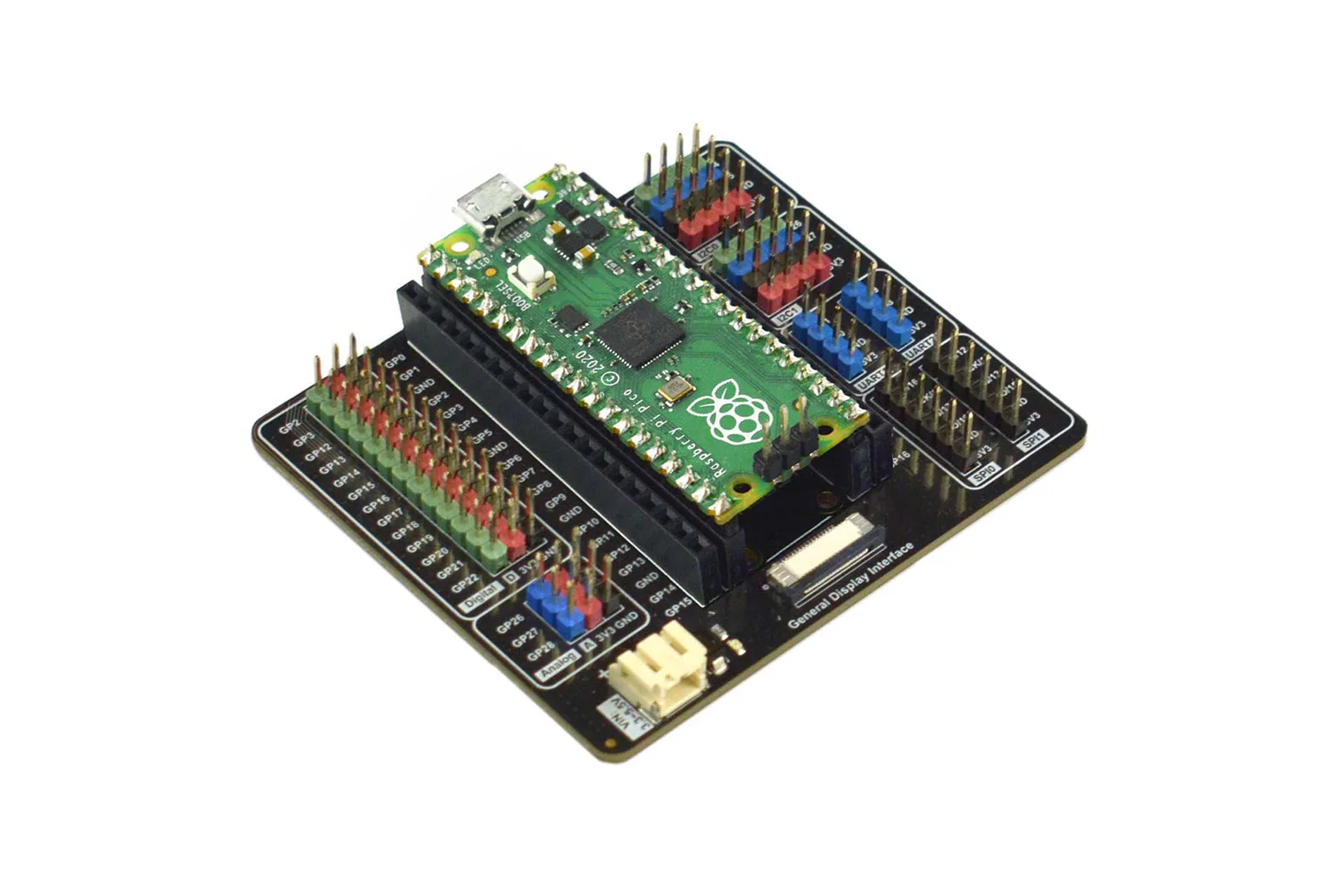

The Gravity Expansion Board for Raspberry Pi Pico and Pico 2 is a dedicated prototyping platform designed to simplify sensor integration and circuit assembly. Ideal for students, educators, and makers, it breaks out all board pins into standard headers compatible with the Gravity module ecosystem.

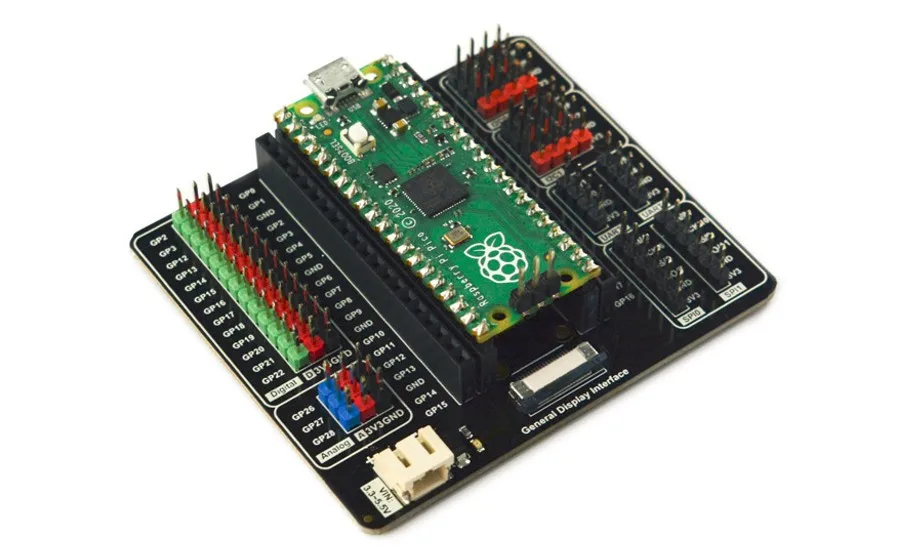

Solderless plug-and-play breakout
All pins are routed directly to female headers, allowing you to connect components and test circuits without any soldering.

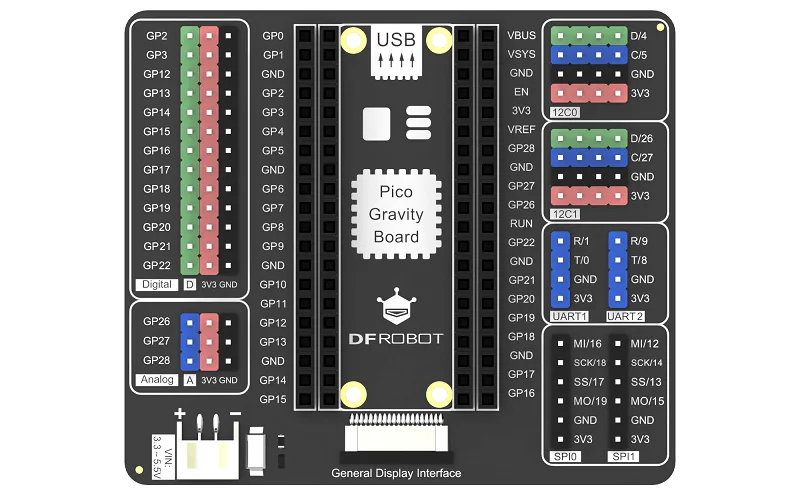

Gravity sensor ecosystem support
The board provides direct plug-and-play compatibility with a wide range of Gravity sensors and expansion modules for rapid prototyping.

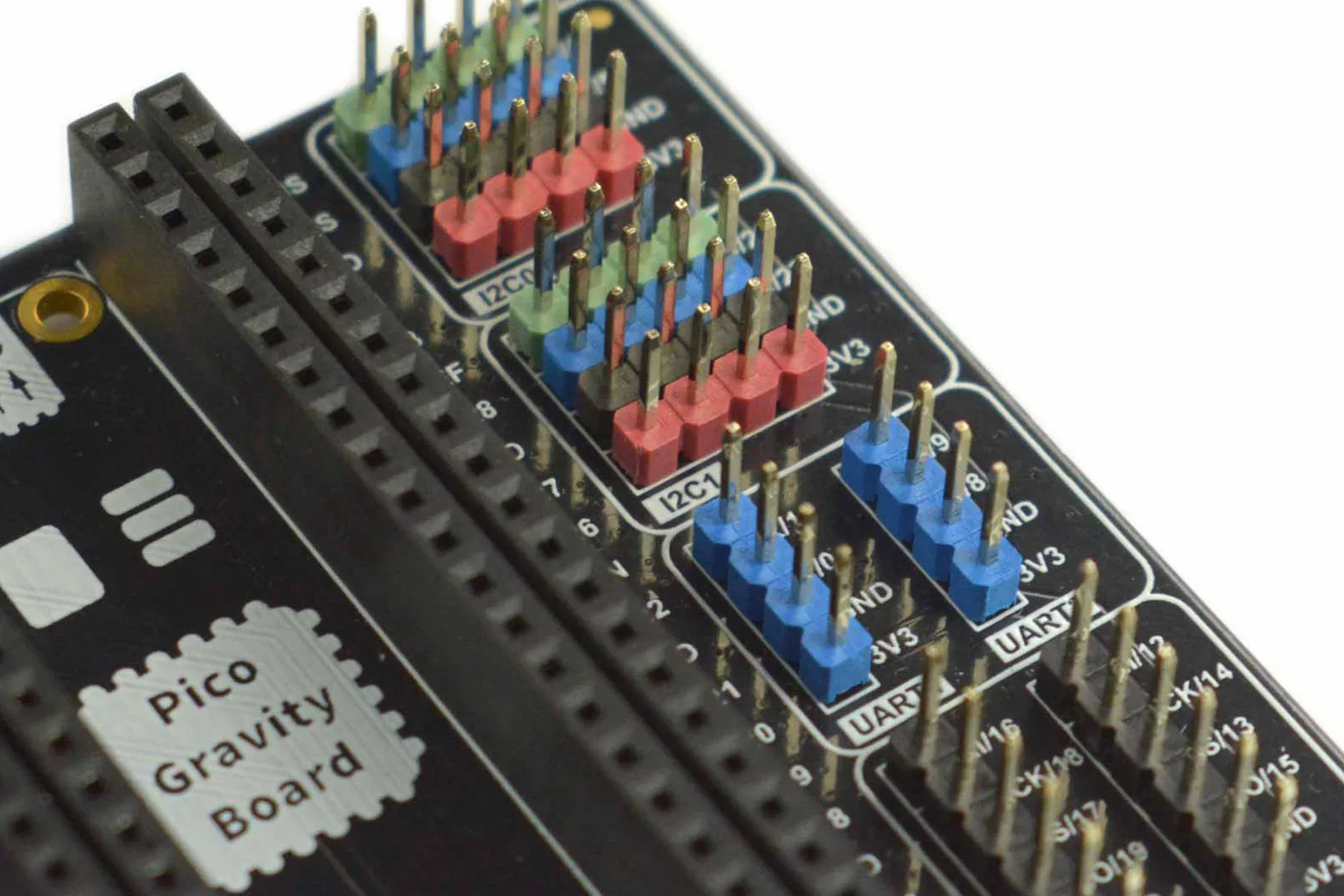

Extensive IO and communication ports
Features 13 digital IOs (GP2, GP3, GP12 to GP22), 3 analogue IOs (GP26 to GP28), 2 I2C, 2 UART, and 2 SPI interfaces to manage complex multi-device projects.
Dedicated GDI display interface
An onboard GDI connector enables straightforward wiring to compatible GDI series display screens without consuming extra jumper wires.
External PH2.0 power interface
Equipped with a 3.3 V to 5.5 V PH2.0 power connector, making the expansion board suitable for standalone and mobile robotics builds.
Downloads & documentation
Specifications
| Digital IO x 13 | GP2, GP3, GP12-22 |
| Analog IO x 3 | GP26-GP28 |
| PH2.0 Power Connector | 3.3 V - 5.5 V |
| Display Screen Interface | GDI |

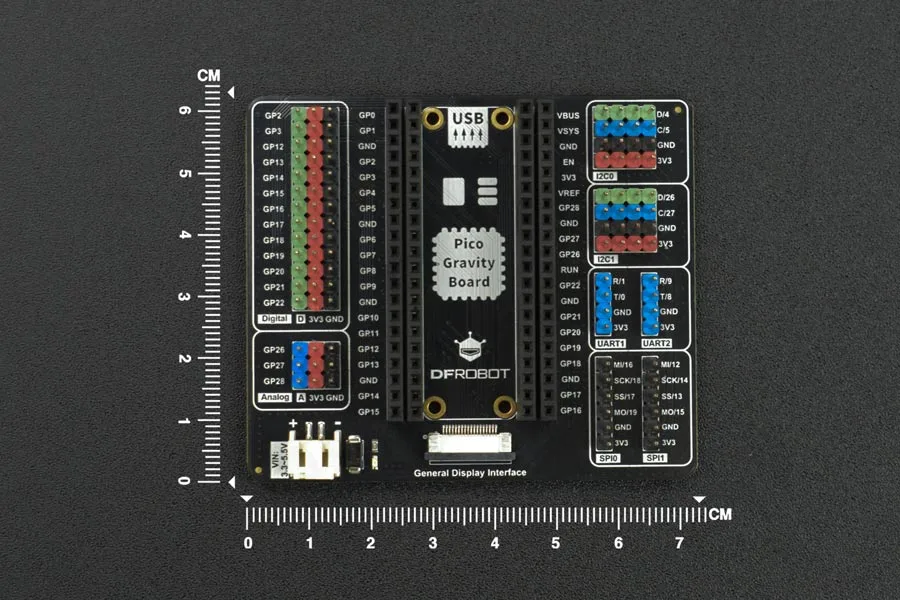

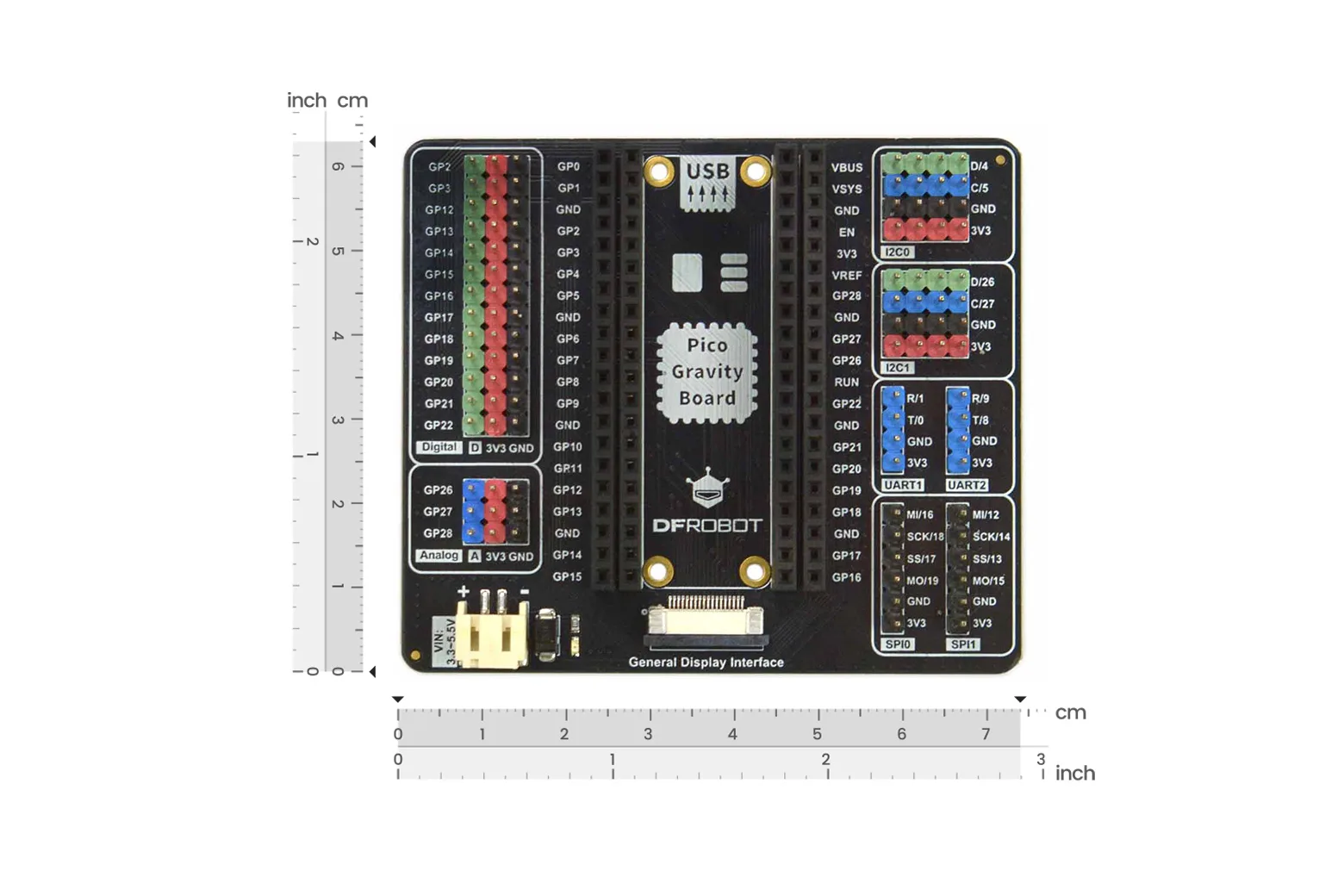

| Dimension | 73.00x63.00 mm/28.74x24.8 inch |
In the box
| Gravity: Expansion Board for Raspberry Pi Pico | 1 |
