Description

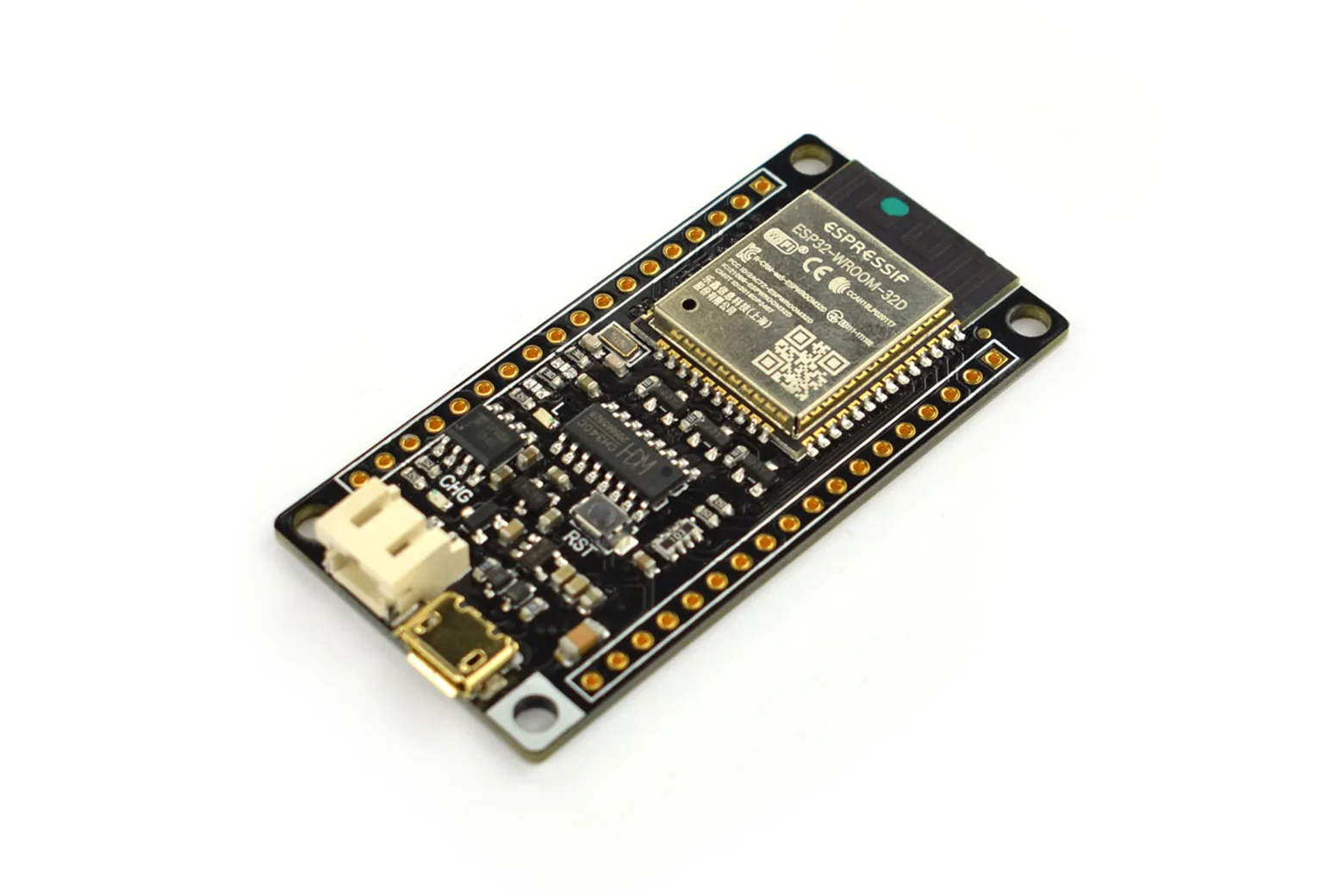

The FireBeetle ESP32 is a compact, low-power IoT development board built around the ESP-WROOM-32 dual-core processor with onboard Wi-Fi and Bluetooth. It is an ideal platform for students, makers, and educators developing connected electronics and battery-powered automation projects.
Dual-core processing and wireless connectivity

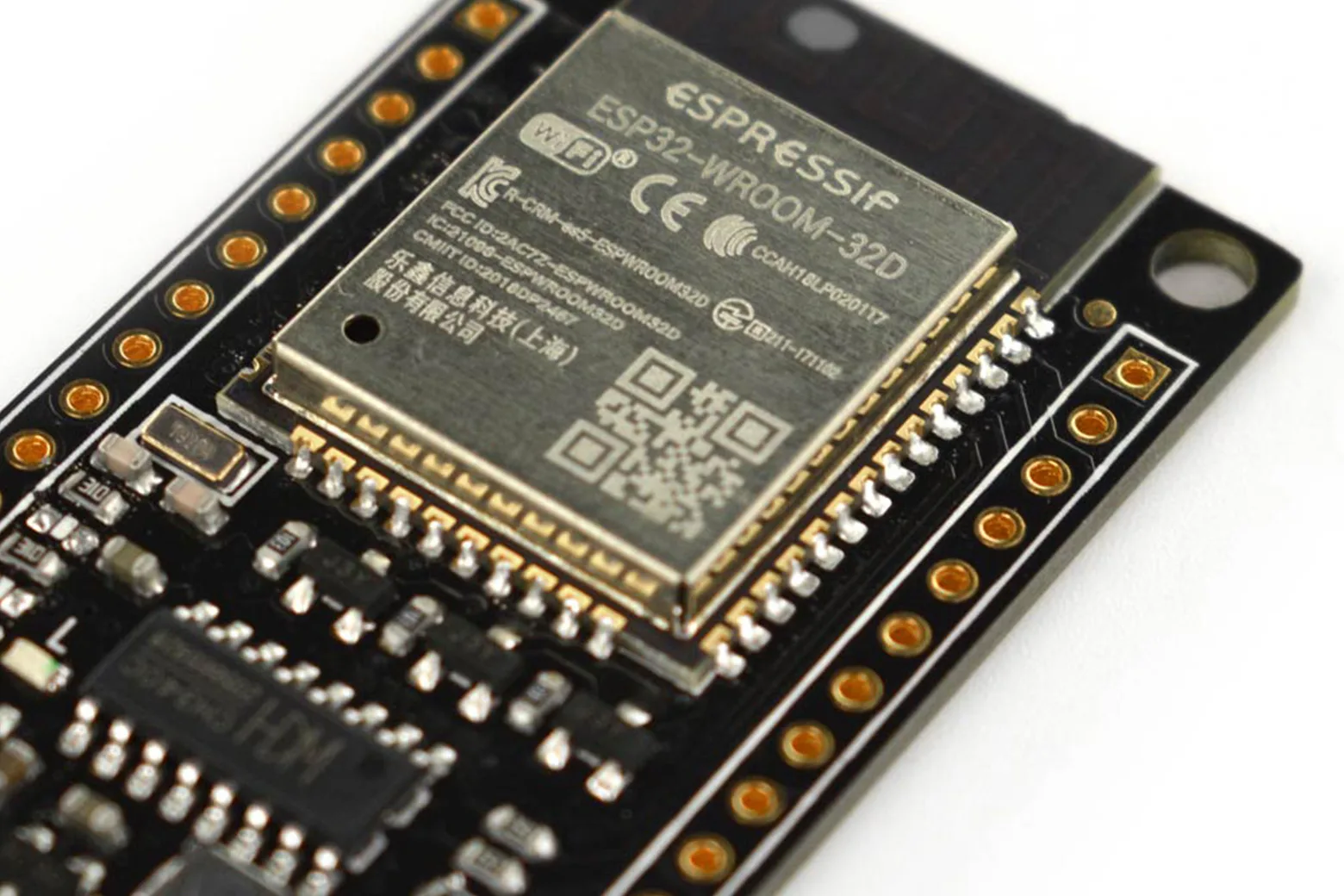

Powered by a 240MHz Tensilica LX6 dual-core processor with 16MB Flash and 520KB SRAM, this board handles both high-speed connectivity and independent program tasks. It features dual-mode communication with 2.4GHz 802.11 b/g/n Wi-Fi and Bluetooth v4.2 BLE.
Over 250 detailed tutorials
The board comes with access to over 250 structured tutorials covering everything from basic software setup to advanced application development. These step-by-step guides provide practical assistance for beginners and seasoned developers.
Dual power supply with automatic switching
Power the board via standard USB or an external 3.7V lithium battery, supported by onboard charging and automatic power source switching. The board includes anti-reverse connection labelling to safeguard your battery setup.

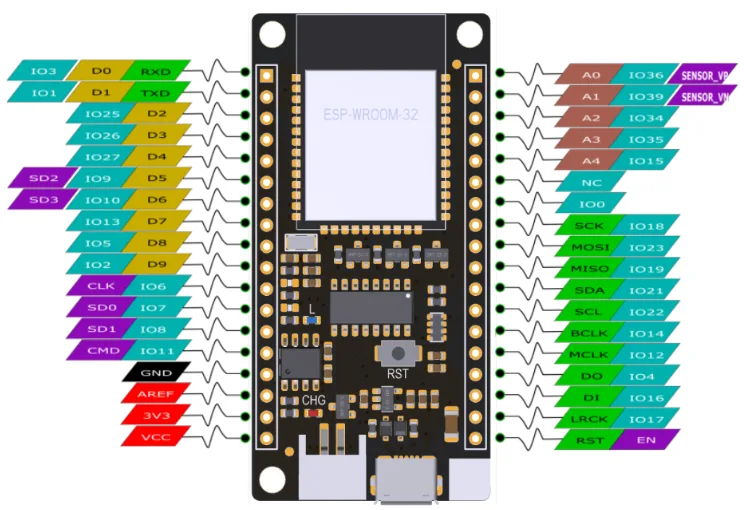

Rich hardware interfaces and expansion

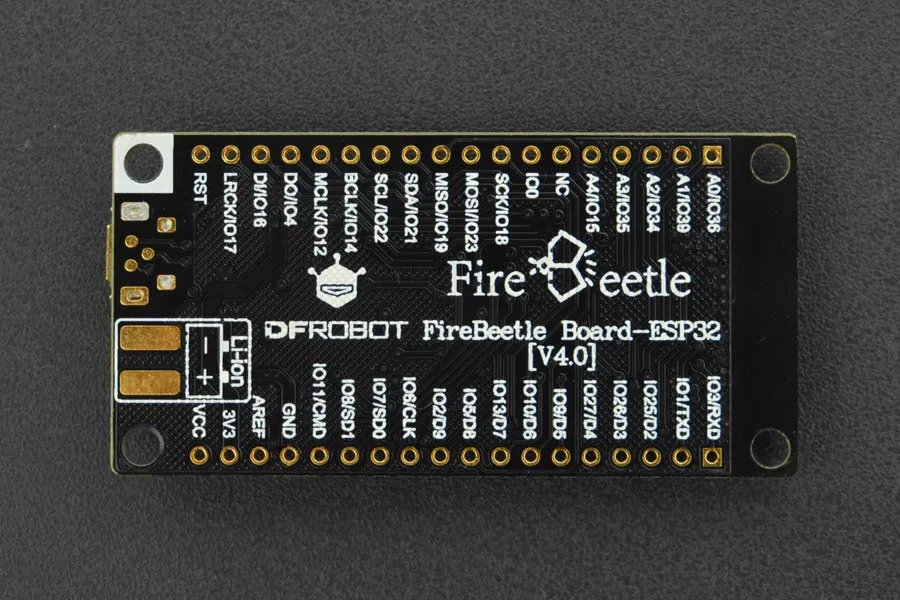

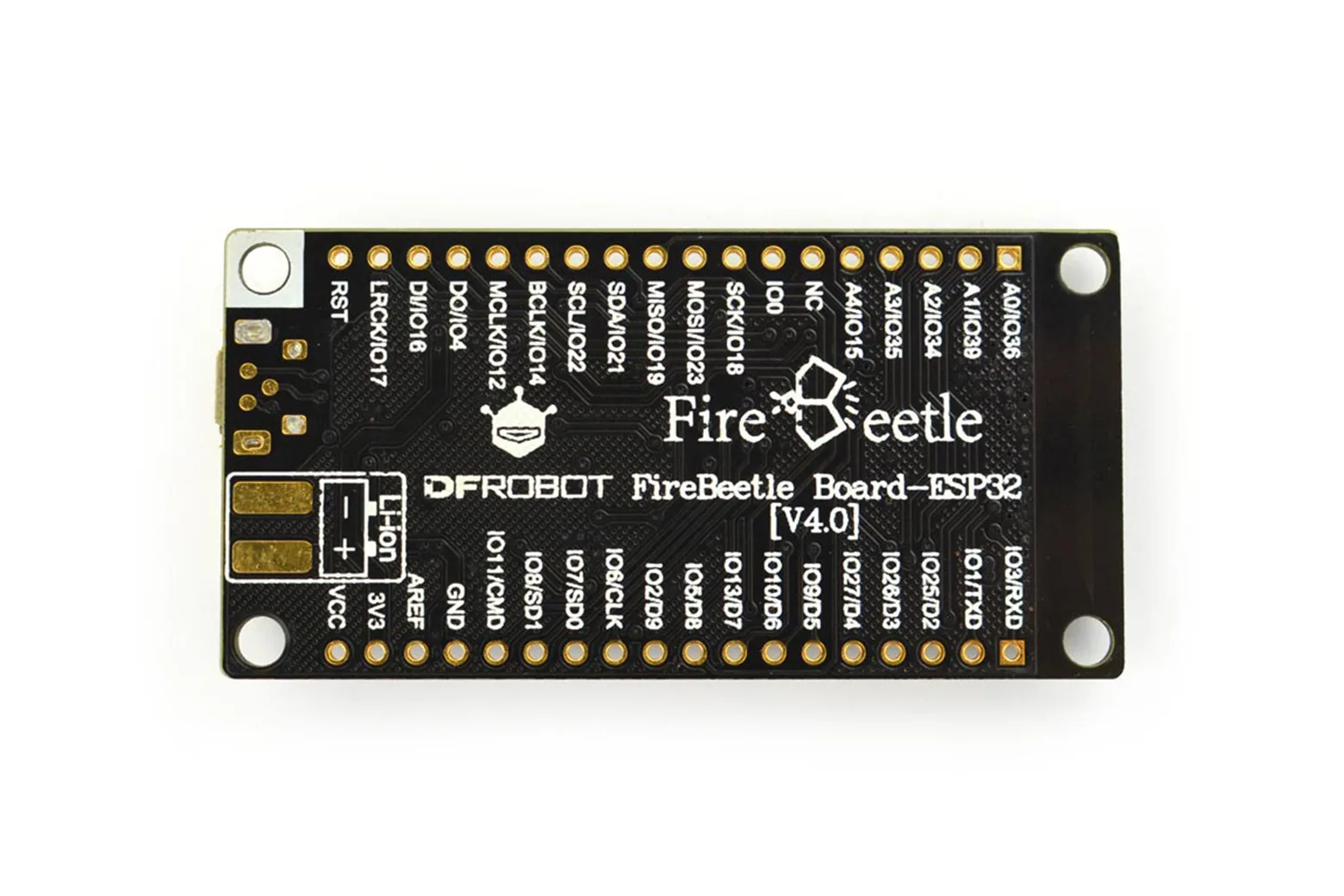

The board provides 10 digital I/O pins, 5 analog inputs, and dedicated buses for UART, SPI, I2C, I2S, and an SD card interface. This layout enables direct integration with a wide variety of external sensors and actuators.
Broad software and language support
Development is streamlined with one-click flashing and Arduino IDE pin mapping using Dx notation. It is fully compatible with Arduino IDE, ESP-IDF, MicroPython, and Mind+ graphical programming.
Compact footprint for IoT applications

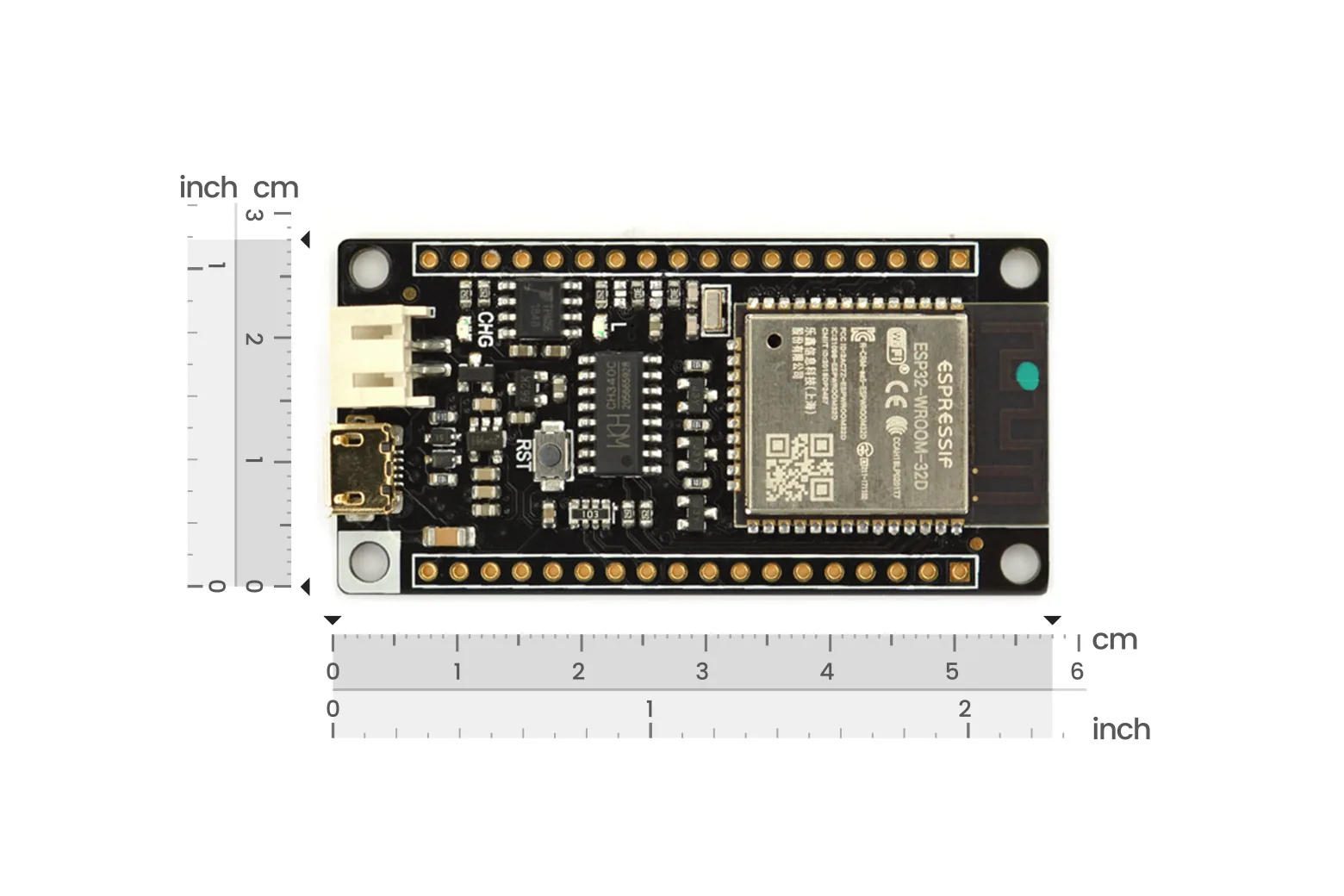

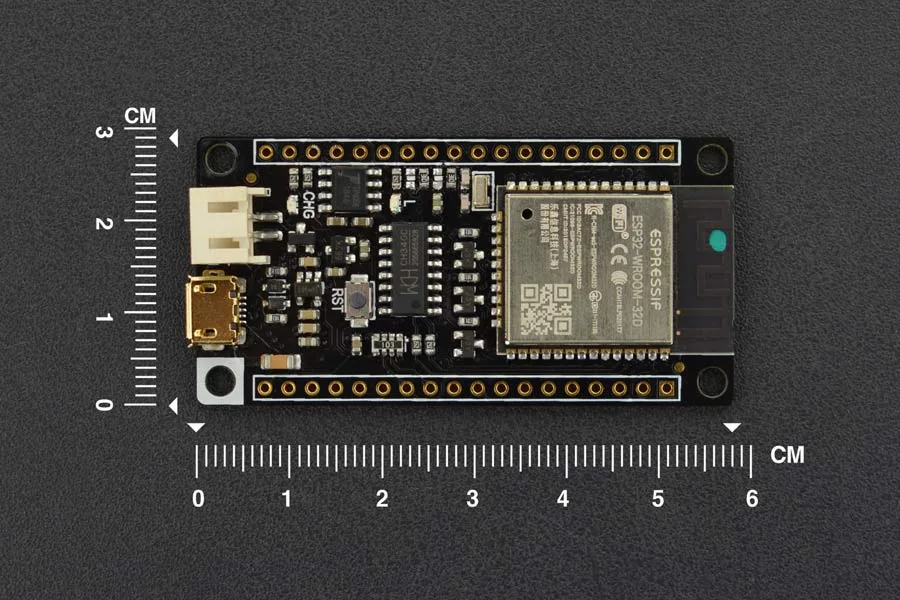

Measuring 29 mm by 58 mm, this board is built for space-constrained installations and low-power remote nodes. It operates reliably in temperatures ranging from -40 degrees Celsius to 85 degrees Celsius.
Downloads & documentation
Specifications
| Working voltage | 3.3V |
| Input voltage | 3.3V~5V |
| Support maximum discharge current | 600mA |
| Support maximum charge current | 500mA |
| Processer | Tensilica LX6 dual core processer (One for high speed connection; one for independent programing) |
| Frequency | 240MHz |
| SRAM | 520KB |
| Flash | 16MB |
| Wi-Fi standard | FCC/CE/TELEC/KCC |
| Wi-Fi protocol | 802.11 b/g/n/d/e/I/k/r (802.11n, high speed can reach to 150 Mbps), converge A-MPDU and A-MSDU, supporting 0.4us protecting interval |
| Frequency range | 2.4~2.5 GHz |
| Bluetooth protocol | Comply with BR/EDR/BLE standard of Bluetooth v4.2. |
| Bluetooth audio | the current under low power consumption of CVSD and SBC is 10μA |
| Working current | 80mA in average |
| On-chip clock | 40MHz crystal and 32.768 KHz crystal |
| Digital I/O | 10 (default setting of arduino) |
| Simulative input | 5(default setting of arduino) |
| SPI | 1 (default setting of arduino) |
| I2C | 1 (default setting of arduino) |
| I2S | 1 (default setting of arduino) |
| LED_BUILTIN | D9 |
| Interface | FireBeetle series compatible |
| Working temperature | -40℃~+85℃ |
| Dimension | 29 × 58(mm)/1.142 x 2.283(inches) |
| The dimension of mounting hole | inner diameter 3.1mm; outside diameter 6mm |

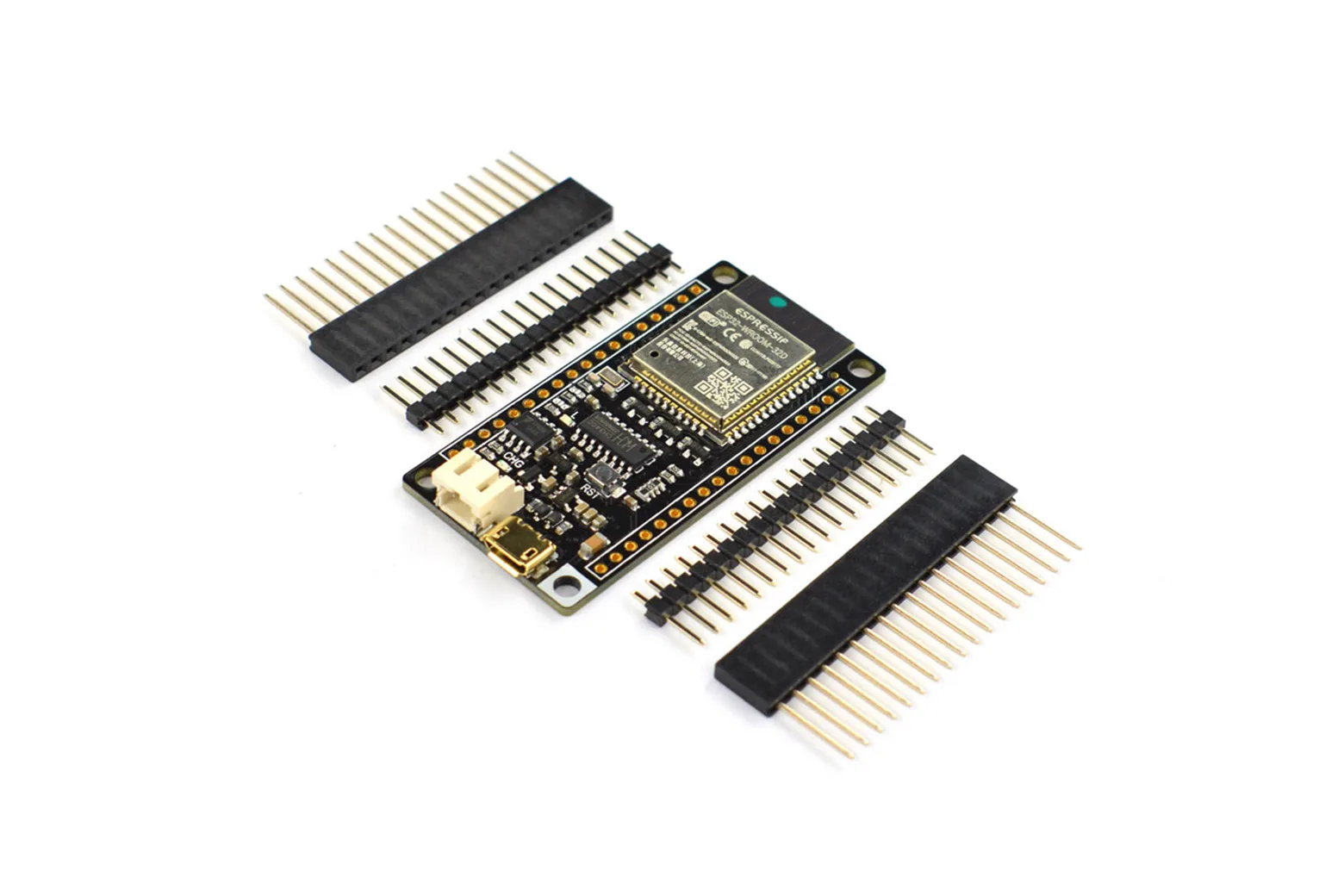

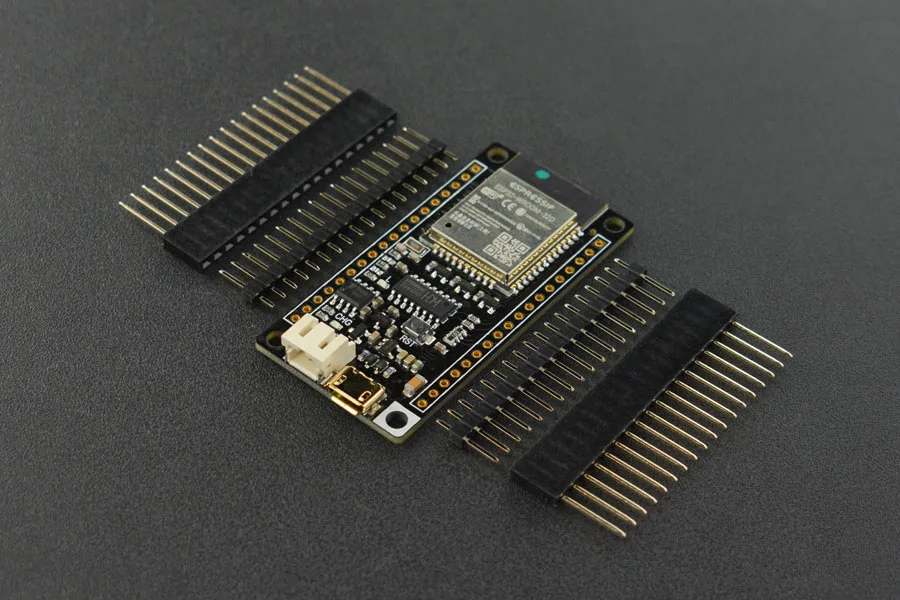

In the box
| FireBeetle ESP32 IoT Microcontroller | 1 |
| 18 pin-2.54mm | 2 |
| 18 female header-2.54mm | 2 |
