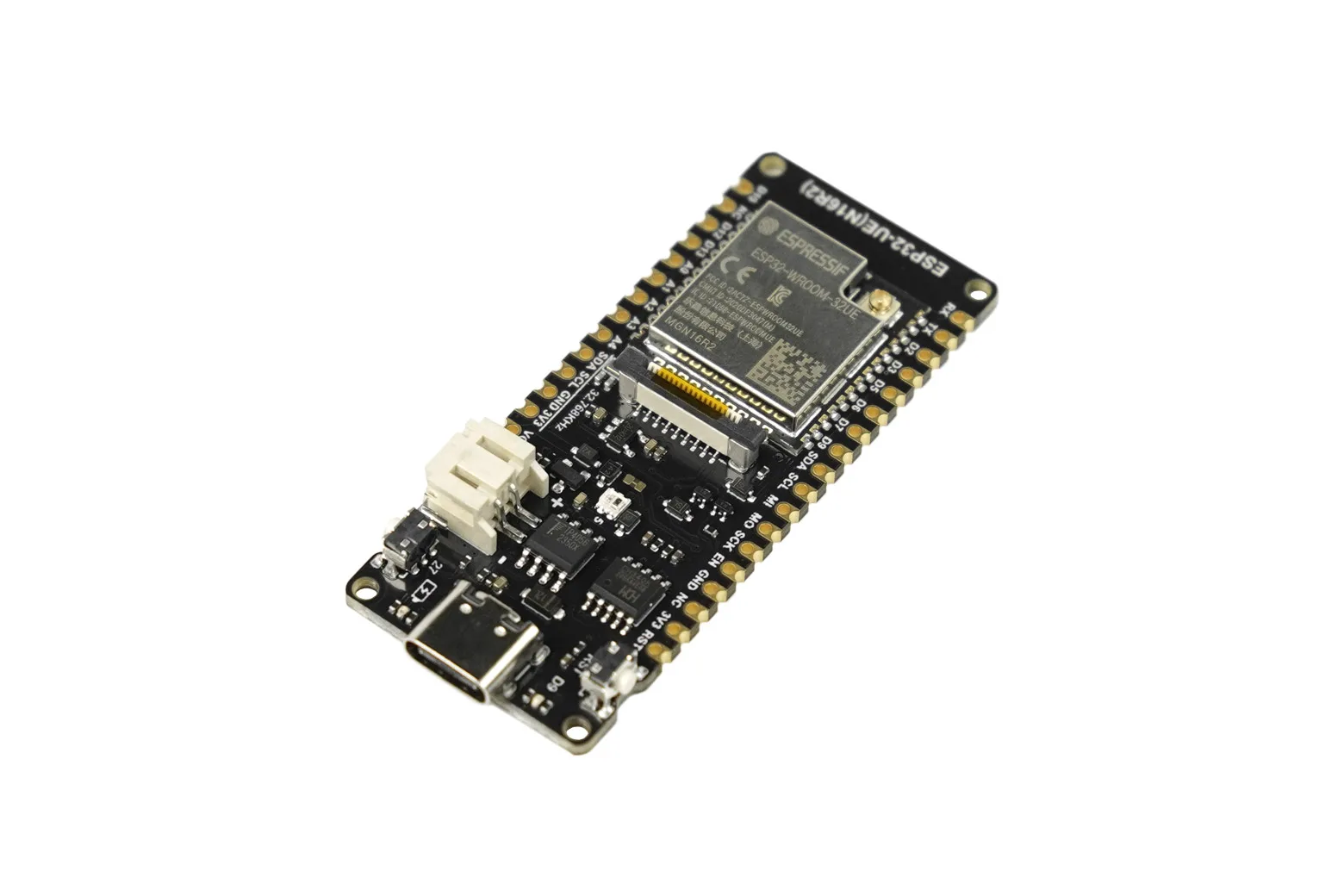

FireBeetle 2 ESP32-UE (N16R2) IoT Board (16MB / 2MB PS, Supports Ext Antenna)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
The FireBeetle 2 ESP32-UE (N16R2) is a compact, low-power IoT development board powered by a dual-core 240MHz ESP32 processor with expanded 16MB Flash and 2MB PSRAM. Equipped with an external antenna connector and an onboard display interface, it is ideal for makers, engineering students, and developers building long-range wireless projects and smart devices.
High-gain external wireless connectivity

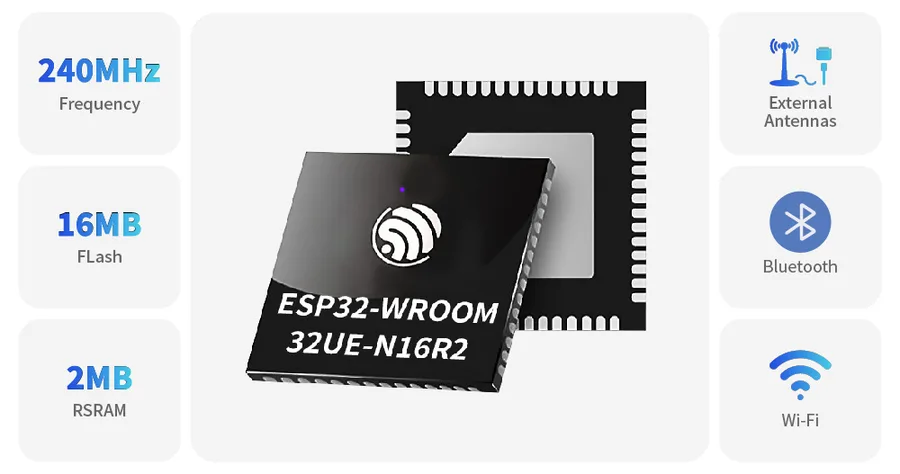

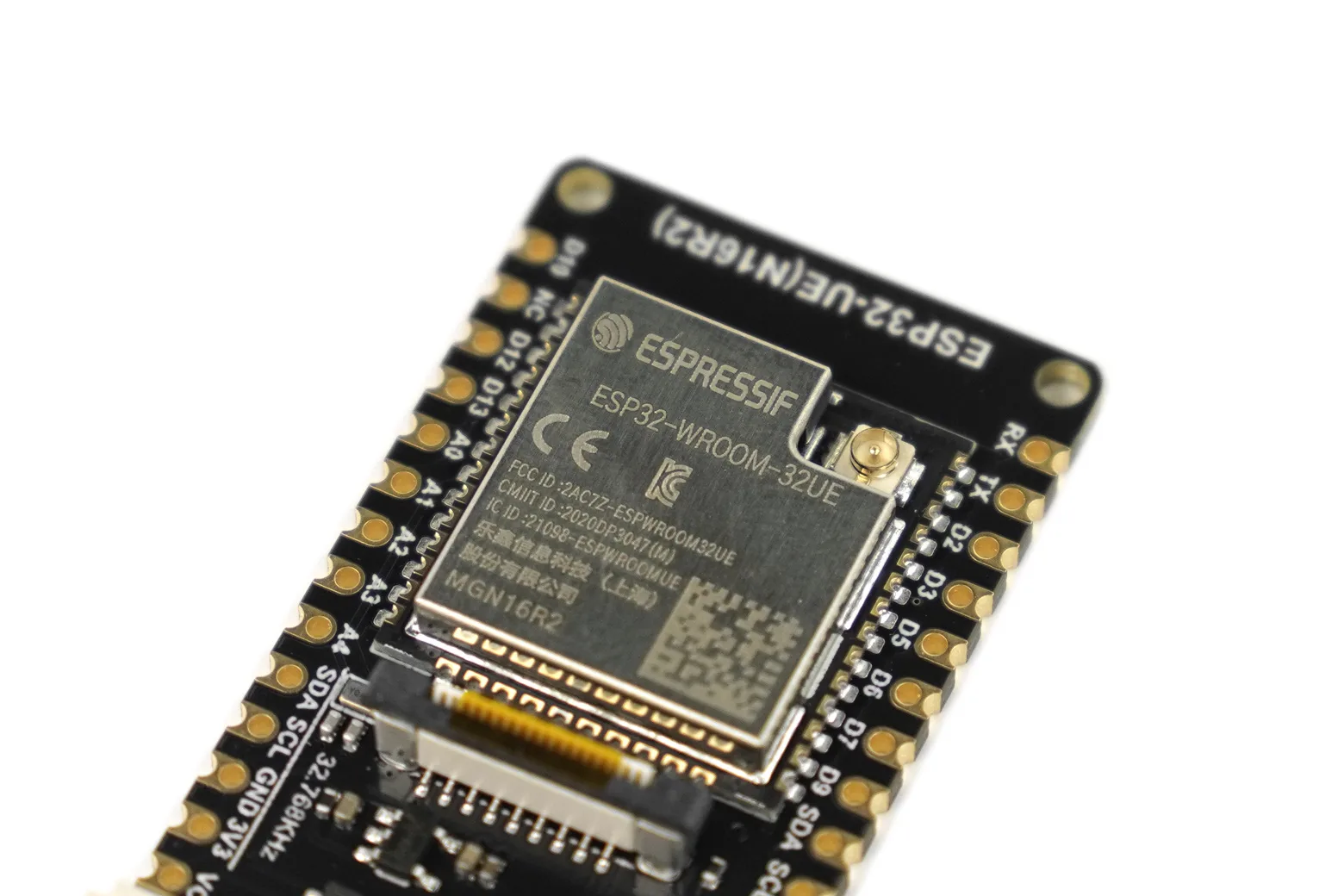

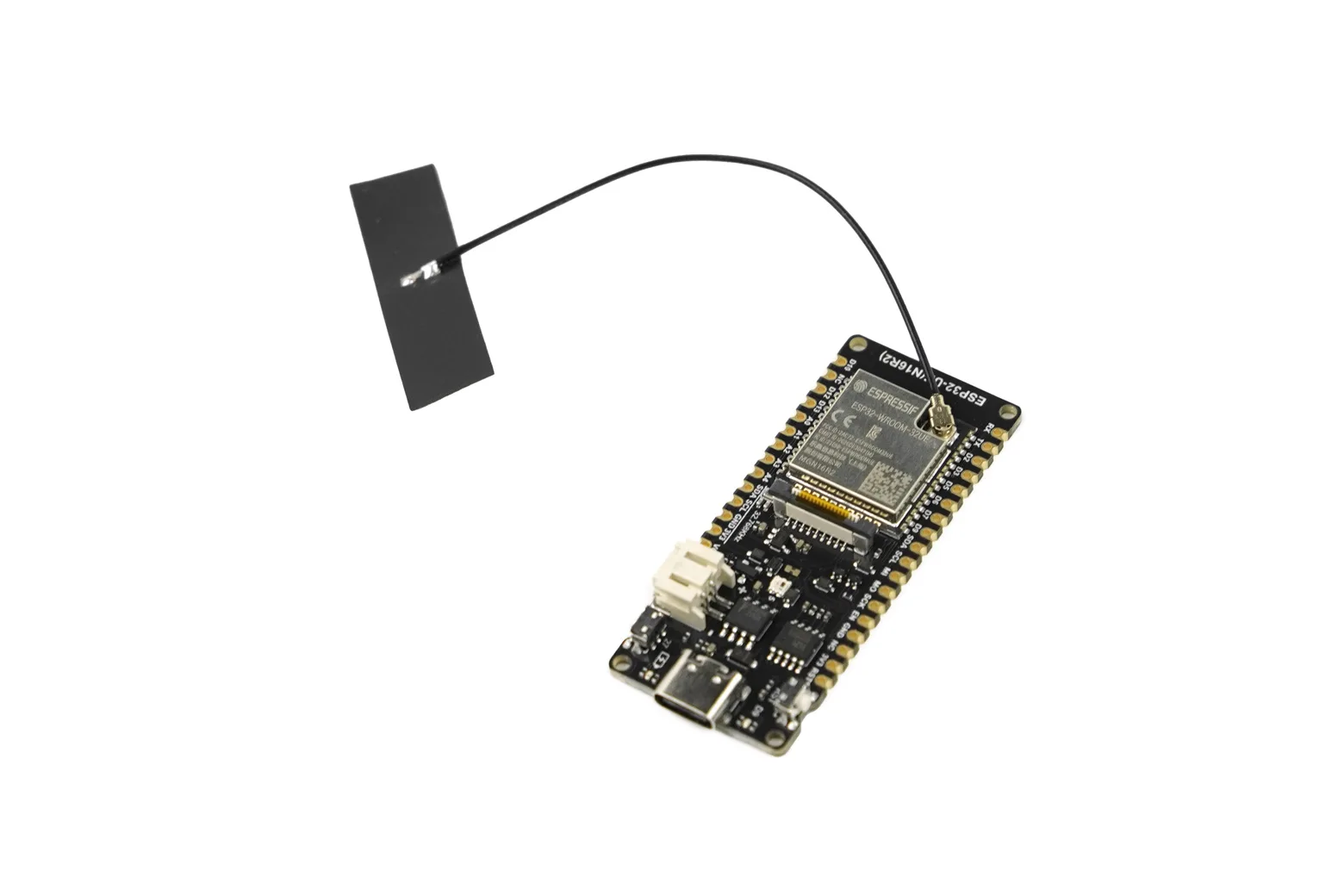

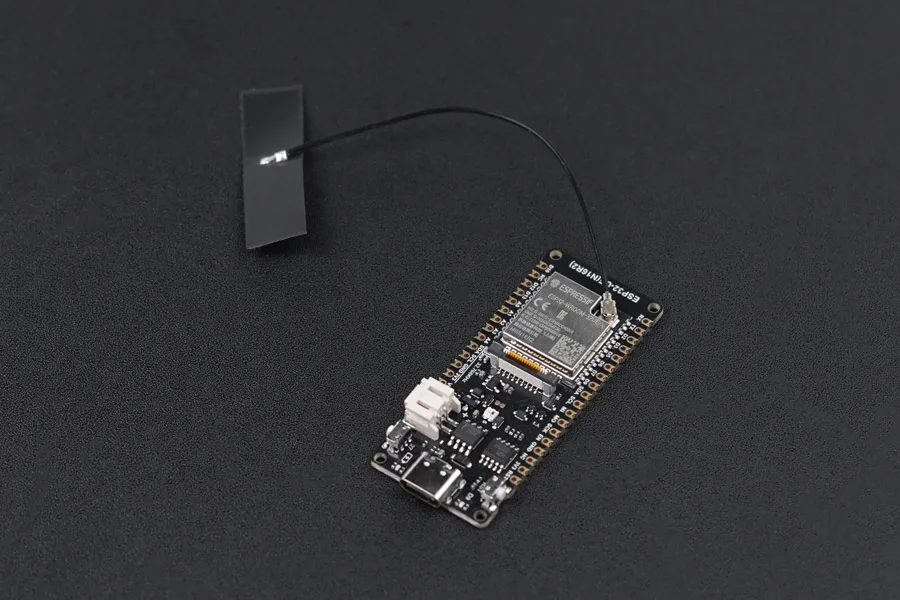

Built around the ESP32-WROOM-32UE module, this board features a dedicated connector for an external 2.4GHz antenna to provide superior signal range over standard PCB antennas. It supports both Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 (BR/EDR/BLE) dual-mode communication.
Versatile peripherals and GDI port

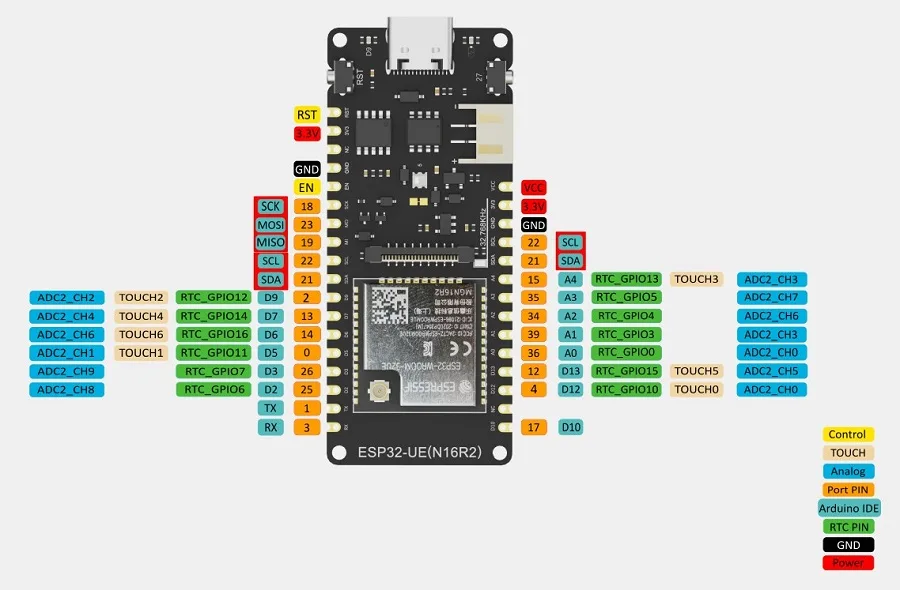

The board breaks out 17 digital pins, 11 analogue pins, 3 UARTs, SPI, I2C, I2S, and 2 DAC interfaces, along with an onboard WS2812 RGB LED. An integrated GDI port enables plug-and-play connection to compatible graphical display screens.
Dual power inputs with charging
Power your projects through a 5V USB-C interface or a 3.7V lithium-ion battery via the onboard PH2.0 connector. The integrated management circuit supports battery charging and switches automatically between USB and battery power.
Broad development environment support
Developers can programme the board using the Arduino IDE, ESP-IDF, or MicroPython to suit their workflow. Generous 16MB Flash and 2MB PSRAM allocations provide ample room for complex firmware and LVGL-driven user interfaces.
Compact format for easy embedding

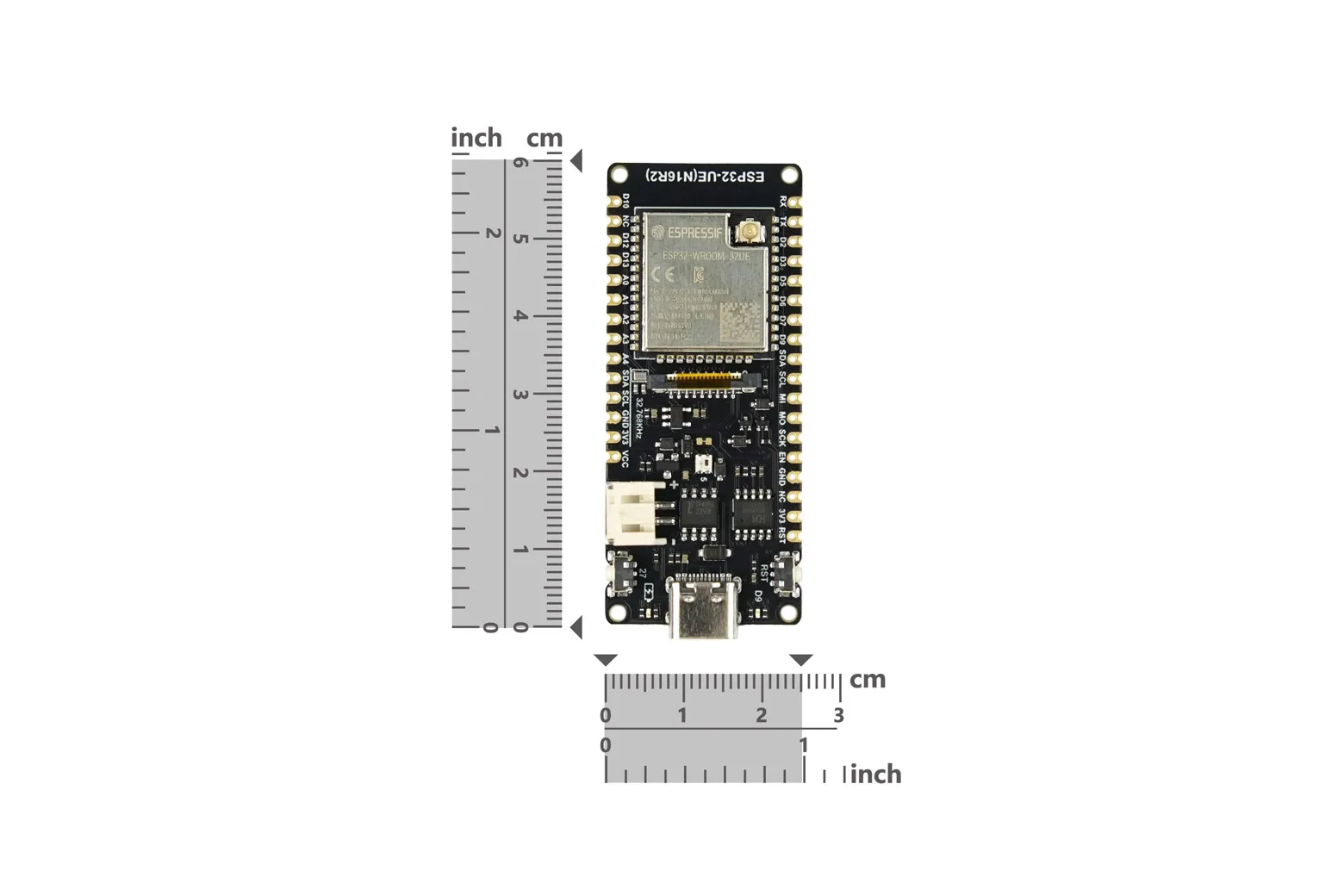

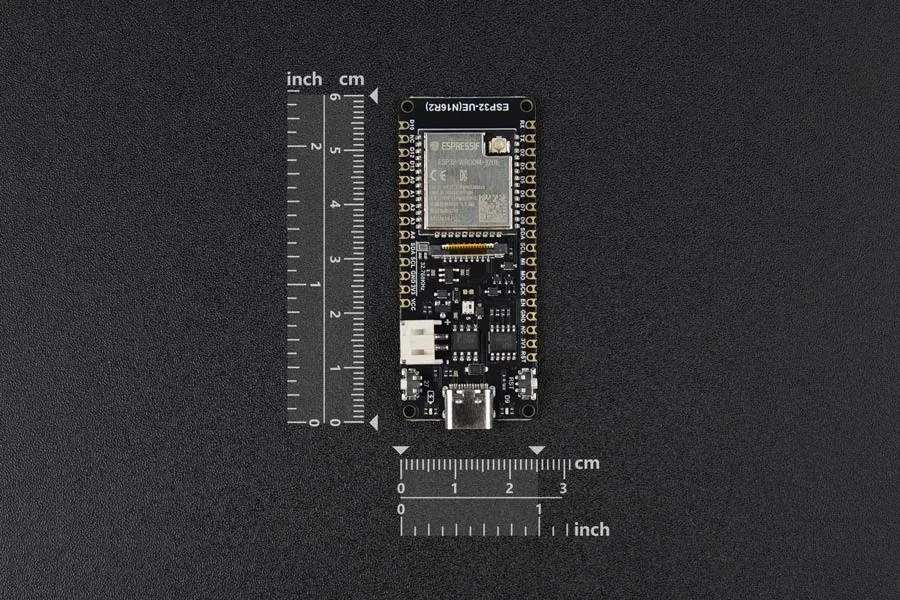

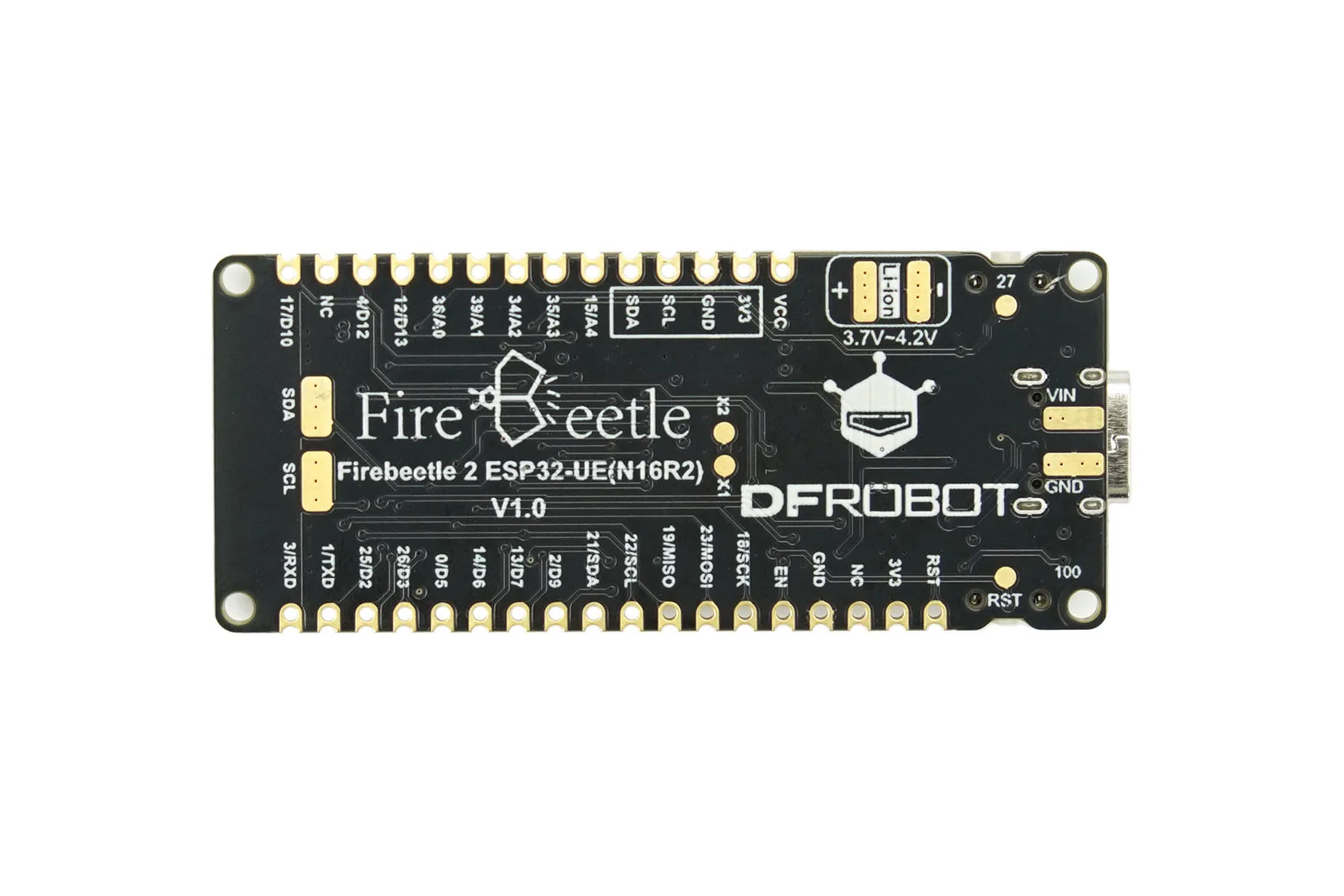

Measuring just 25.4mm by 60mm with standard FireBeetle V2 pin spacing and stamp-hole edges, the board integrates smoothly into custom carrier PCBs and tight enclosures.
Downloads & documentation
Specifications
| USB-C interface | 5V DC |
| PH2.0 interface | 3.7V Li-ion |
| VCC pin | 5V DC |
| Processor | Tensilica LX6 dual-core processor (one core for high-speed connectivity, one core for independent application development) |
| Clock Frequency | 240MHz |
| SRAM | 520KB |
| ROM | 448KB |
| Flash | 16MB |
| PSRAM | 2MB |
| On-chip Clock | 40MHz crystal oscillator, 32.768KHz crystal oscillator |
| Wi-Fi Standard | FCC/CE/TELEC/KCC |
| Wi-Fi Protocol | 802.11 b/g/n/d/e/i/k/r (802.11n, up to 150 Mbps), A-MPDU and A-MSDU aggregation, supports 0.4us protection interval |
| Wi-Fi Frequency Range | 2.4~2.5 GHz |
| Bluetooth Protocol | Compliant with Bluetooth V4.2 BR/EDR and BLE standards |
| Bluetooth Audio | CVSD and SBC audio |
| Bluetooth Frequency Range | 2.4~2.5GHz |
| Digital Pins × 17 | IO0, IO1, IO2, IO3, IO4, IO12, IO13, IO14, IO15, IO17, IO18, IO19, IO21, IO22, IO23, IO25, IO26 |
| Analog Pins × 11 | IO0, IO2, IO4, IO12, IO13, IO14, IO15, IO25, IO26, I34, I35 |
| UART Interfaces | ×3 |
| SPI Interface | ×1 |
| I2C Interface | ×1 |
| I2S Interface | ×1 |
| DAC Interface | ×2 |
| Touch Interfaces | ×7 |
| LED PWM Channels | ×16 |
| RGB_LED | WS2812 |
| Display Interface | GDI |
| Interface Compatibility | FireBeetle V2 series compatible |
| Module Size | 25.4mm × 60mm |
| Weight | 23.4g |

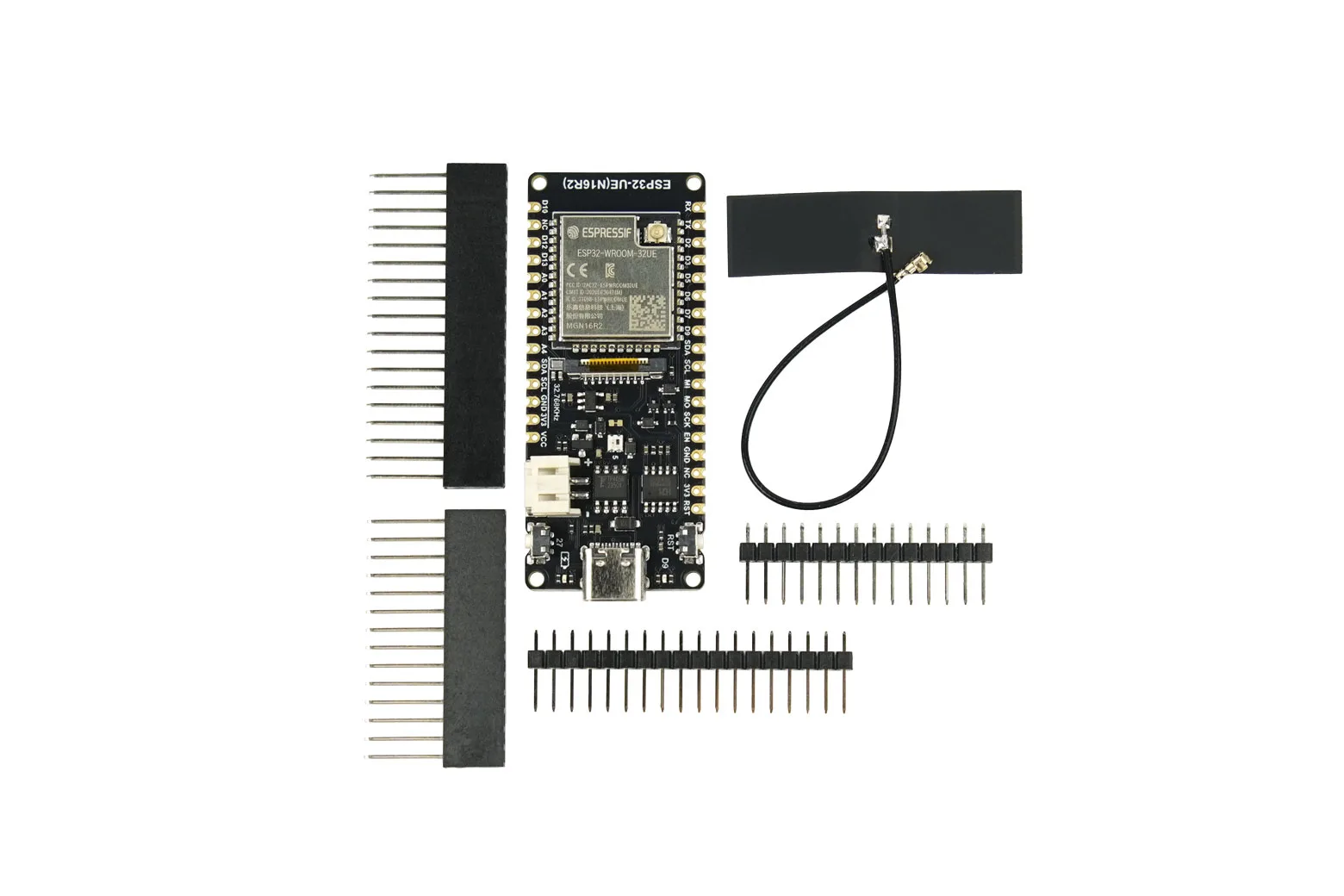

In the box
| FireBeetle 2 ESP32-UE (N16R2) IoT Microcontroller | 1 |
| 2.4GHz WiFi and Bluetooth antenna | 1 |
| 18pin-2.54mm Pitch Pin | 1 |
| 18pin-2.54mm Pitch Pin Female | 1 |
| 14pin-2.54mm Pitch Pin | 1 |
| 14pin-2.54mm Pitch Pin Female | 1 |
