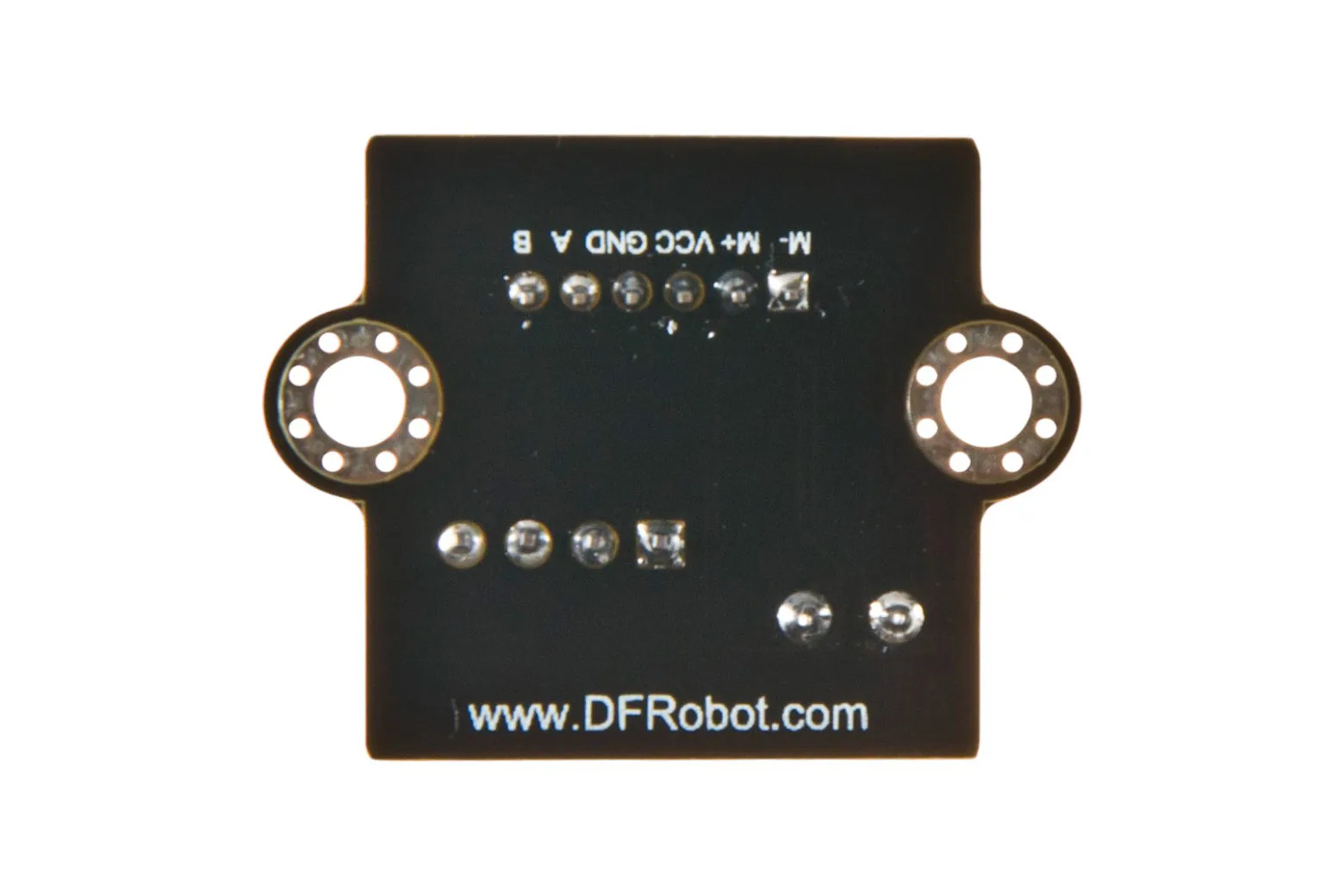

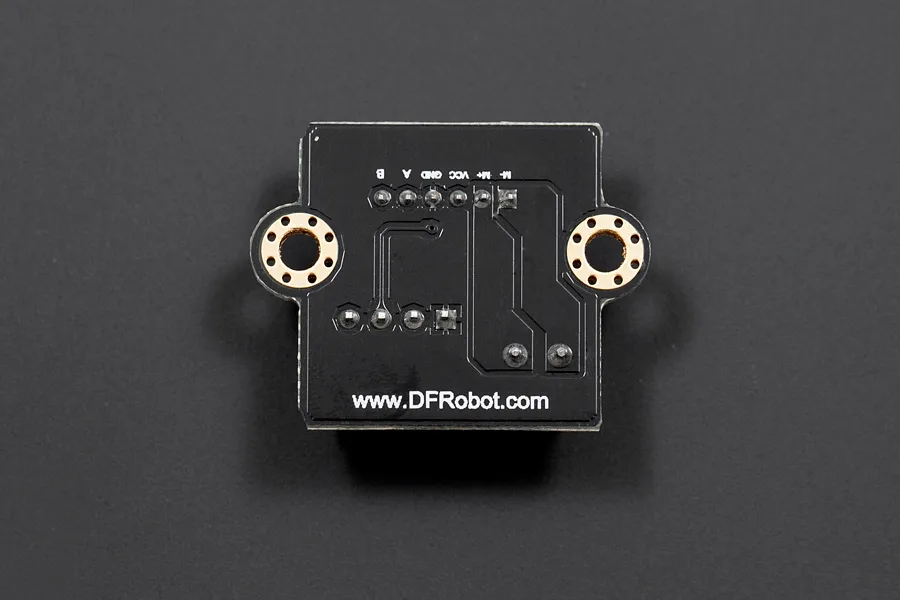

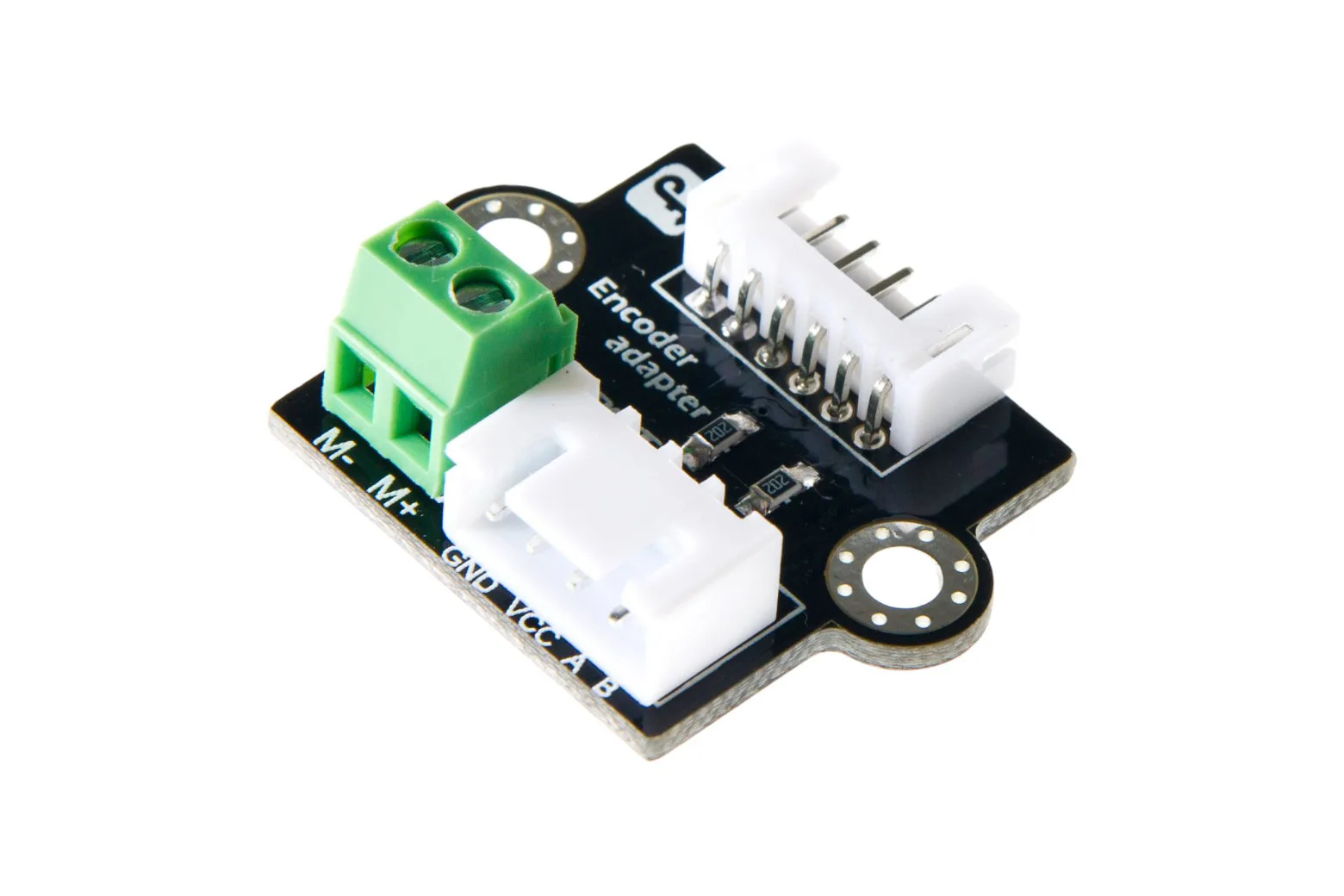

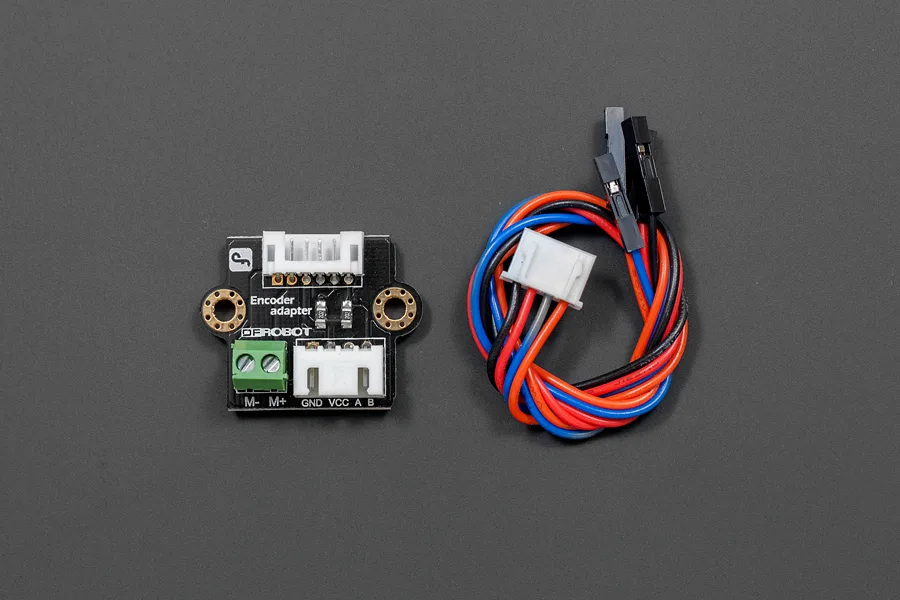

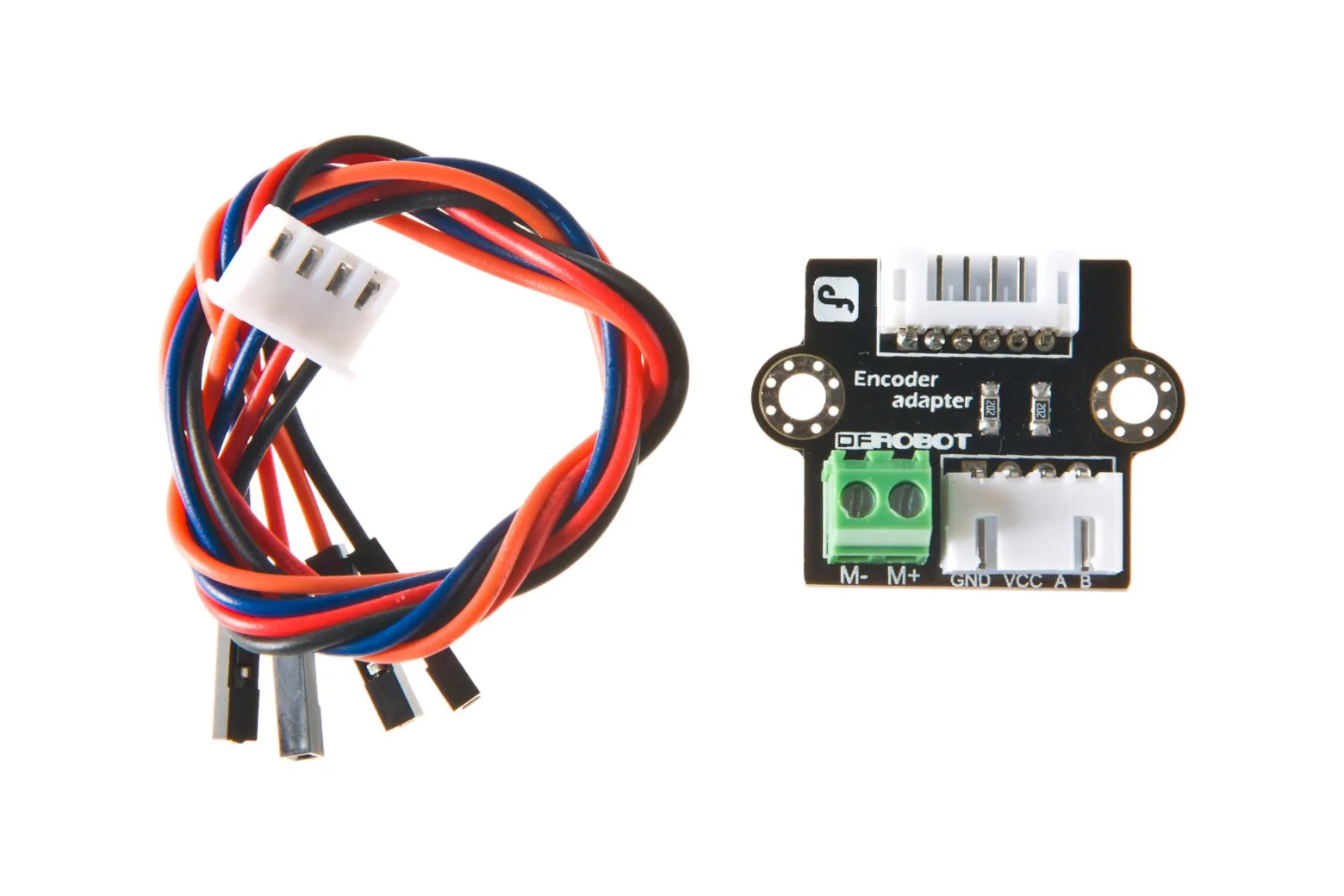

Encoder Adapter for Open-Collector Motor Encoders

The Encoder Adapter for Open-Collector Motor Encoders is a compact interface board engineered to simplify wiring and signal conditioning. Featuring built-in dual pull-up resistors, it is ideal for makers, students, and engineers working on precision robotics and motion control systems. It provides a reliable connection between open-collector motor encoders and your primary control electronics.

Integrated dual pull-up resistors

The board includes dual onboard pull-up resistors to deliver proper signal termination for encoder channels. This eliminates the need for external resistor wiring on breadboards or custom circuits.

Open-collector encoder support

Specifically designed to interface with open-collector motor encoders, this adapter ensures clean logic-level outputs for microcontrollers and motor controllers. It helps maintain reliable pulse counting during operation.

Compact interface footprint

The adapter features a small form factor that easily integrates into space-constrained builds. Its streamlined layout makes it convenient to mount directly near motors or central control hubs.

Robotics and motion control compatibility

Tailored for robotics projects and precision motion control platforms, this board ensures stable encoder feedback. It suits applications requiring accurate position tracking and speed measurement.

Downloads & documentation

• Product wiki (DFRobot)
