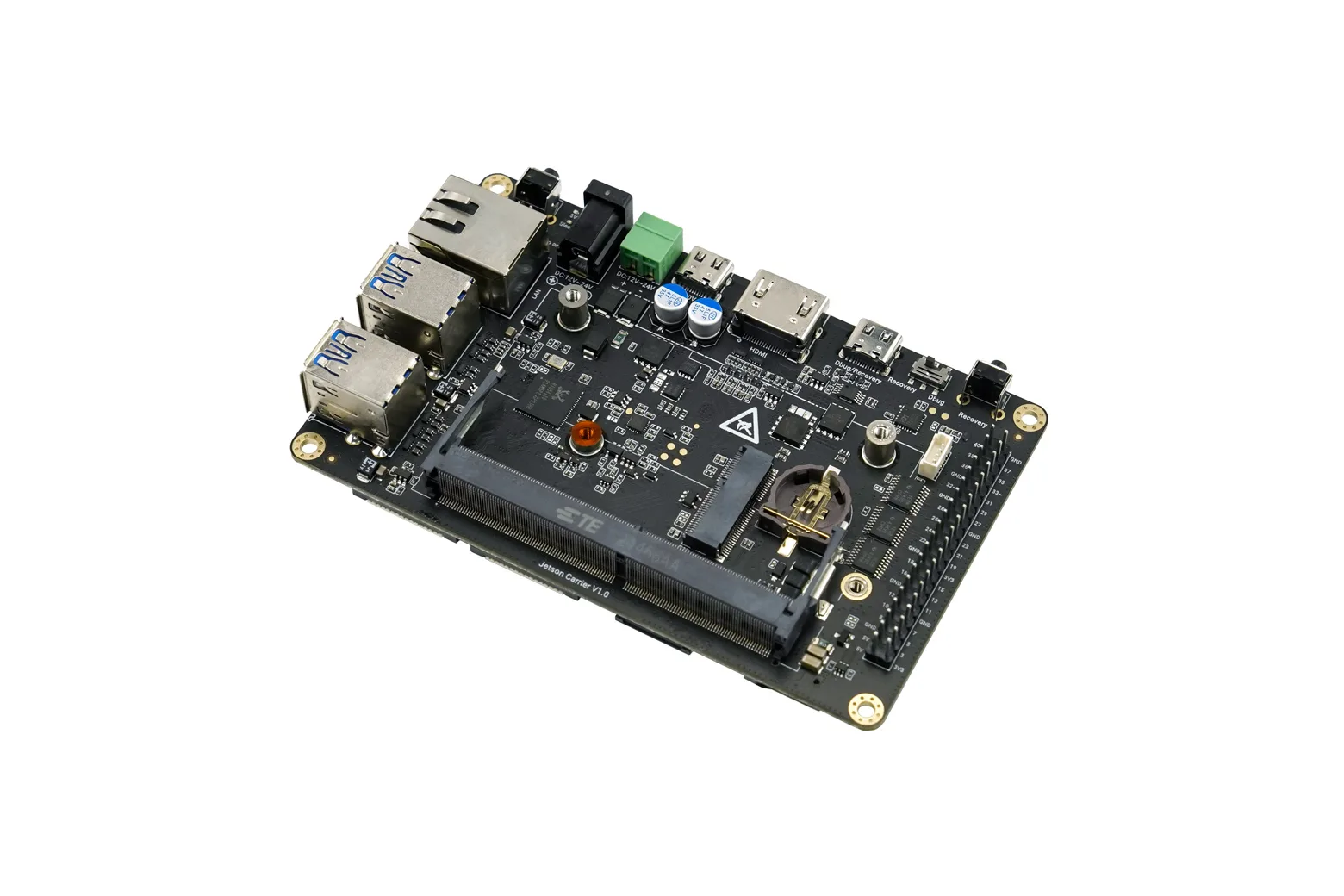

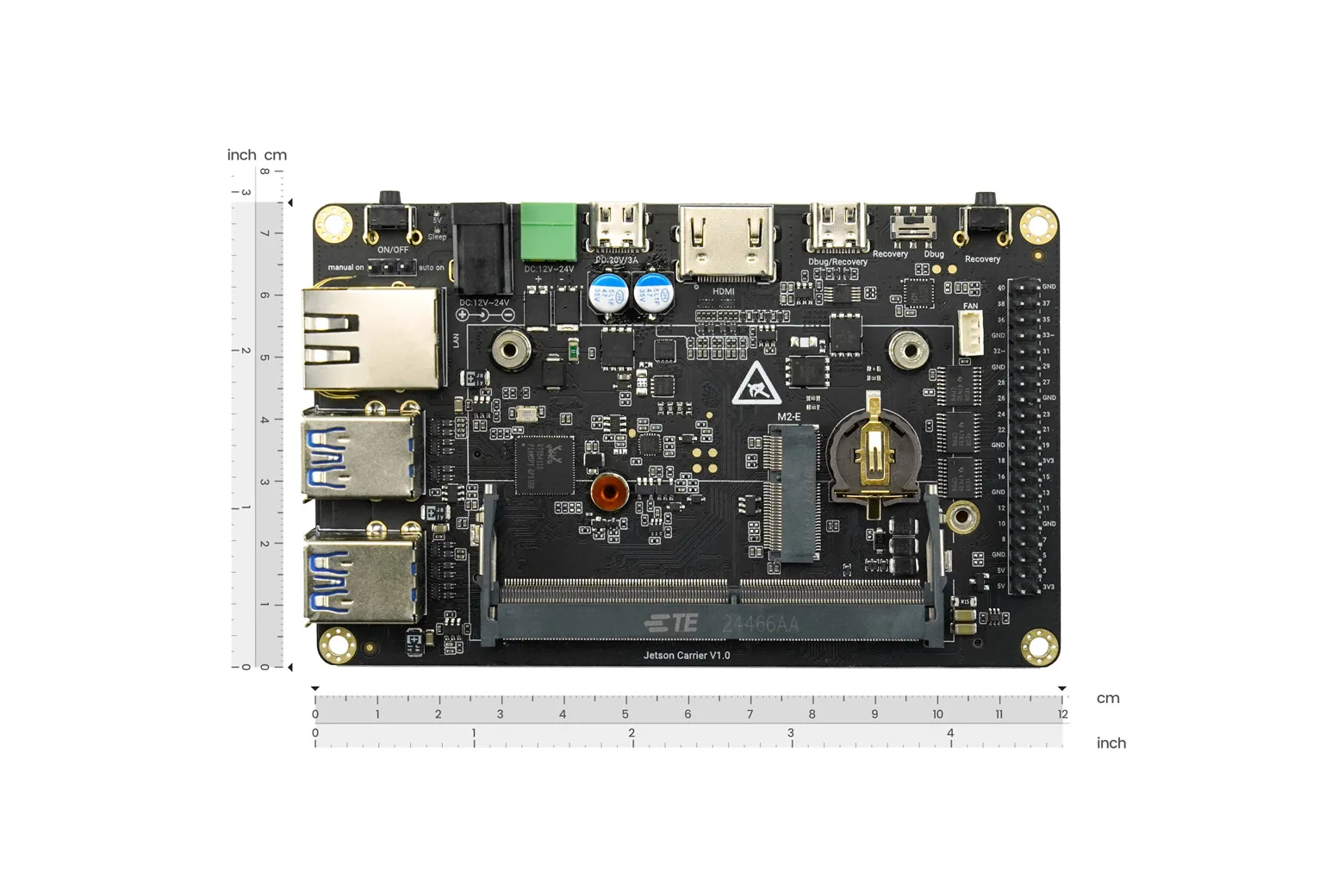

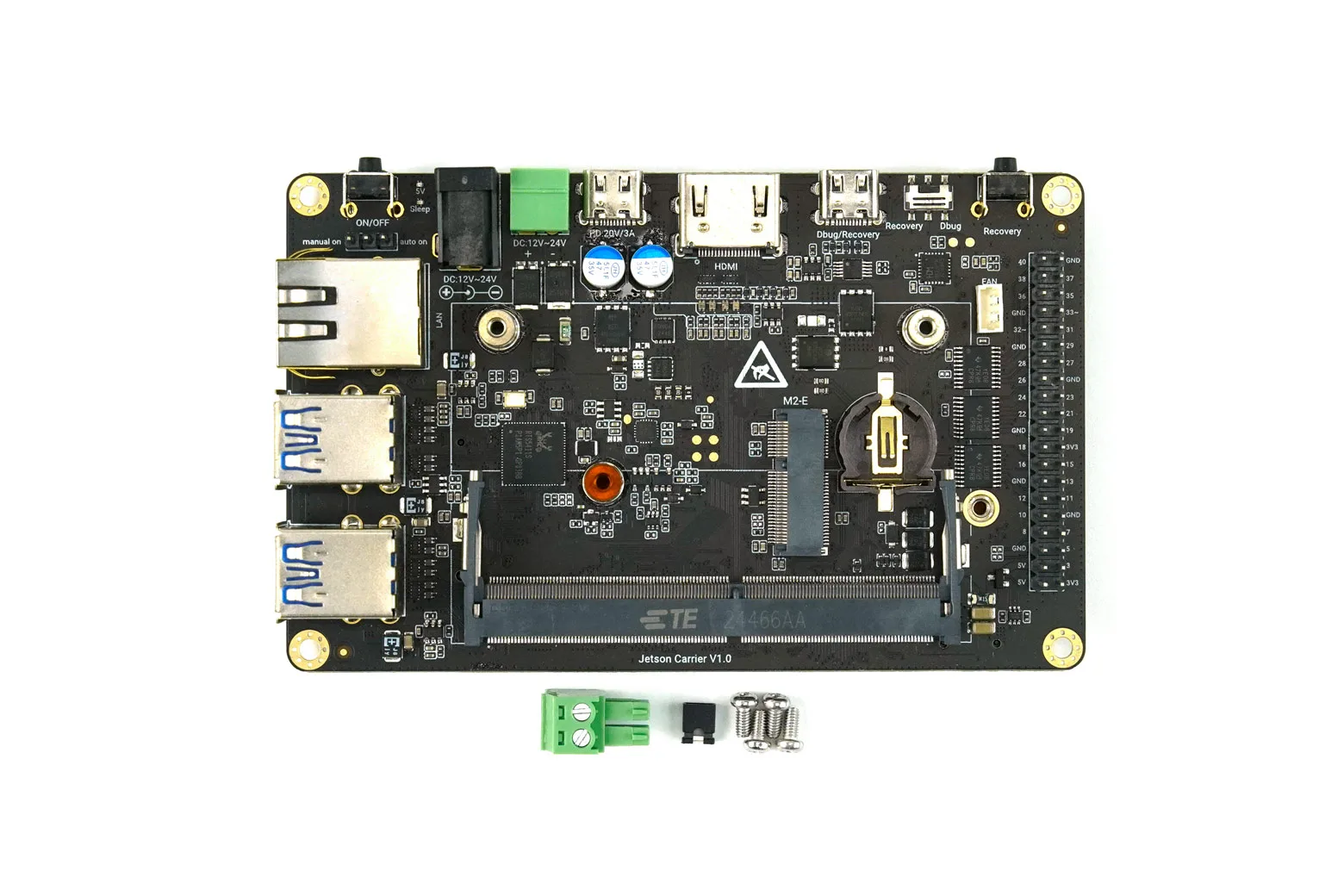

Edge AI Carrier Board for NVIDIA Jetson Nano, Xavier NX & TX2 NX

This Edge AI carrier board is designed to host NVIDIA Jetson Nano, Xavier NX, and TX2 NX system-on-modules. It provides essential peripheral connectivity and high-speed interfaces for makers, students, and engineers developing embedded edge computing projects.

Multi-module Jetson compatibility

The board accommodates NVIDIA Jetson Nano, Xavier NX, and TX2 NX compute modules. This allows you to scale processing performance across multiple Jetson hardware platforms using a single baseboard.

High-speed NVMe M.2 storage

An onboard NVMe M.2 slot enables rapid solid-state drive integration. This provides fast data transfer speeds and expansive local storage for AI models, datasets, and operating systems.

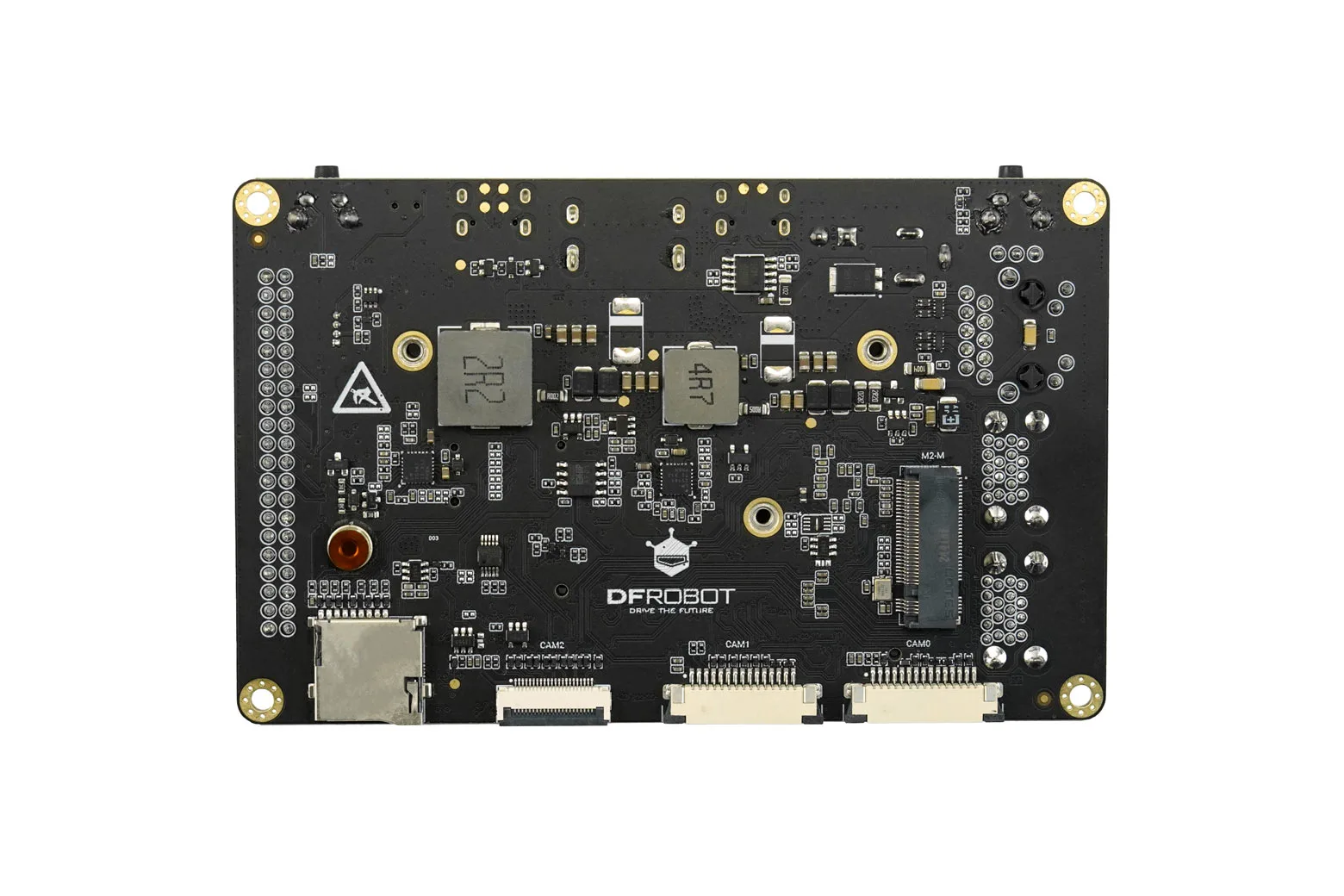

MIPI-CSI camera connectivity

A dedicated MIPI-CSI interface allows for direct camera module connections. It delivers low-latency video input suited for real-time computer vision and edge analytics.

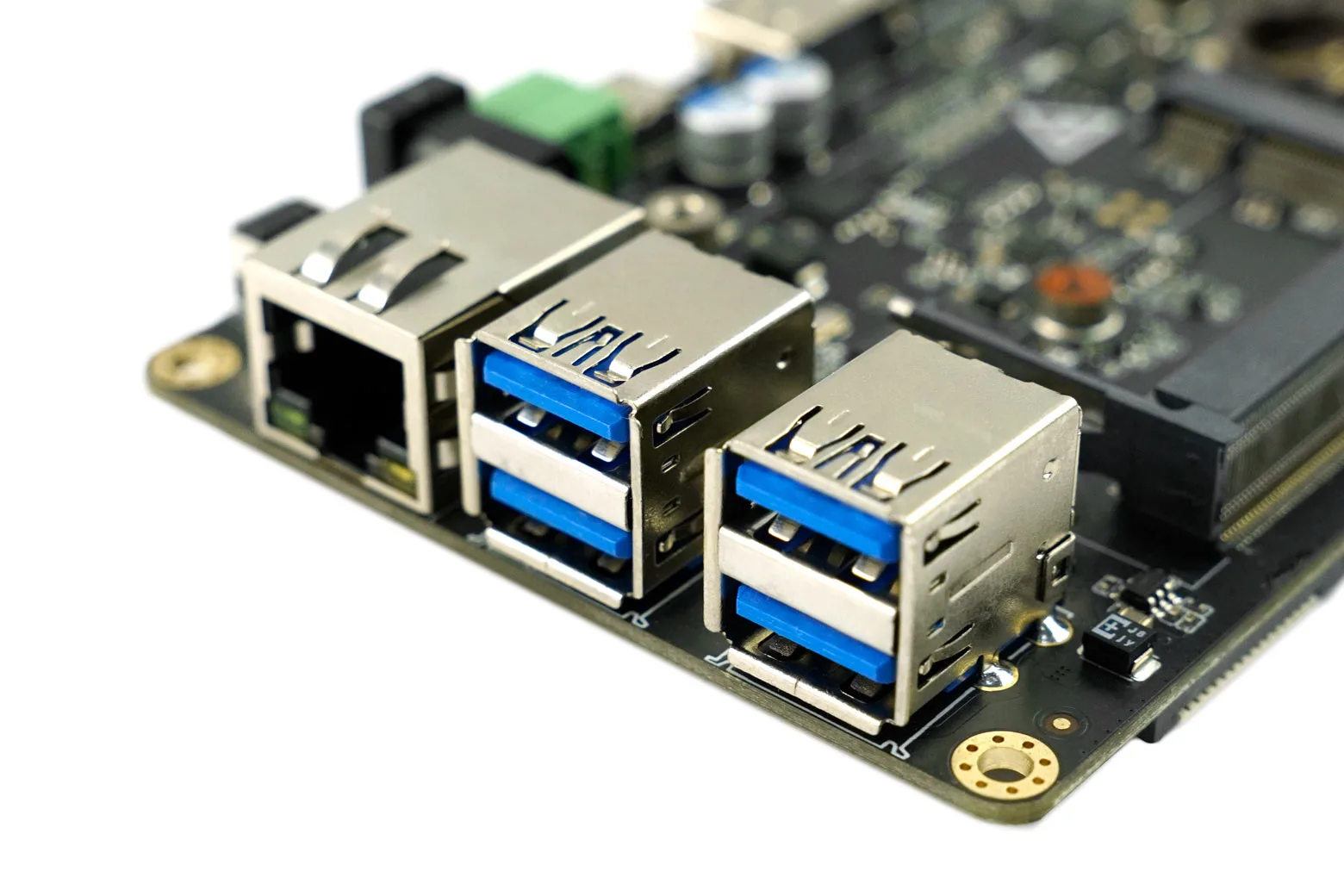

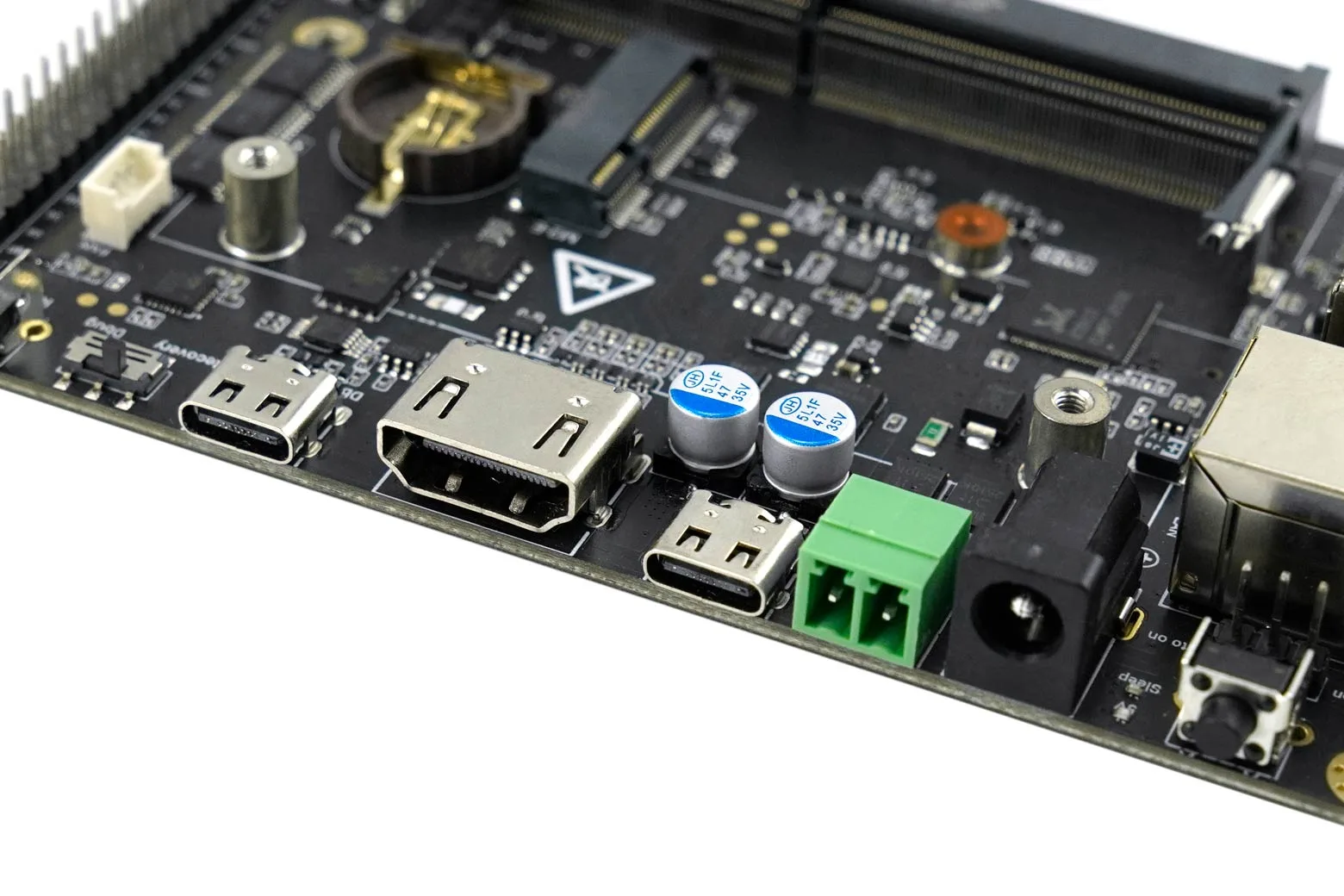

Gigabit Ethernet and HDMI output

The board includes a Gigabit Ethernet port for reliable, high-speed network communication. An HDMI 2.0 port is also provided for high-definition video output to external displays.

Wide 12V to 24V power input

Engineered with a versatile 12V to 24V power input range. This flexible voltage tolerance simplifies integration into mobile robotics platforms, battery-powered builds, and standard bench supplies.

Downloads & documentation

• Product wiki (DFRobot)
