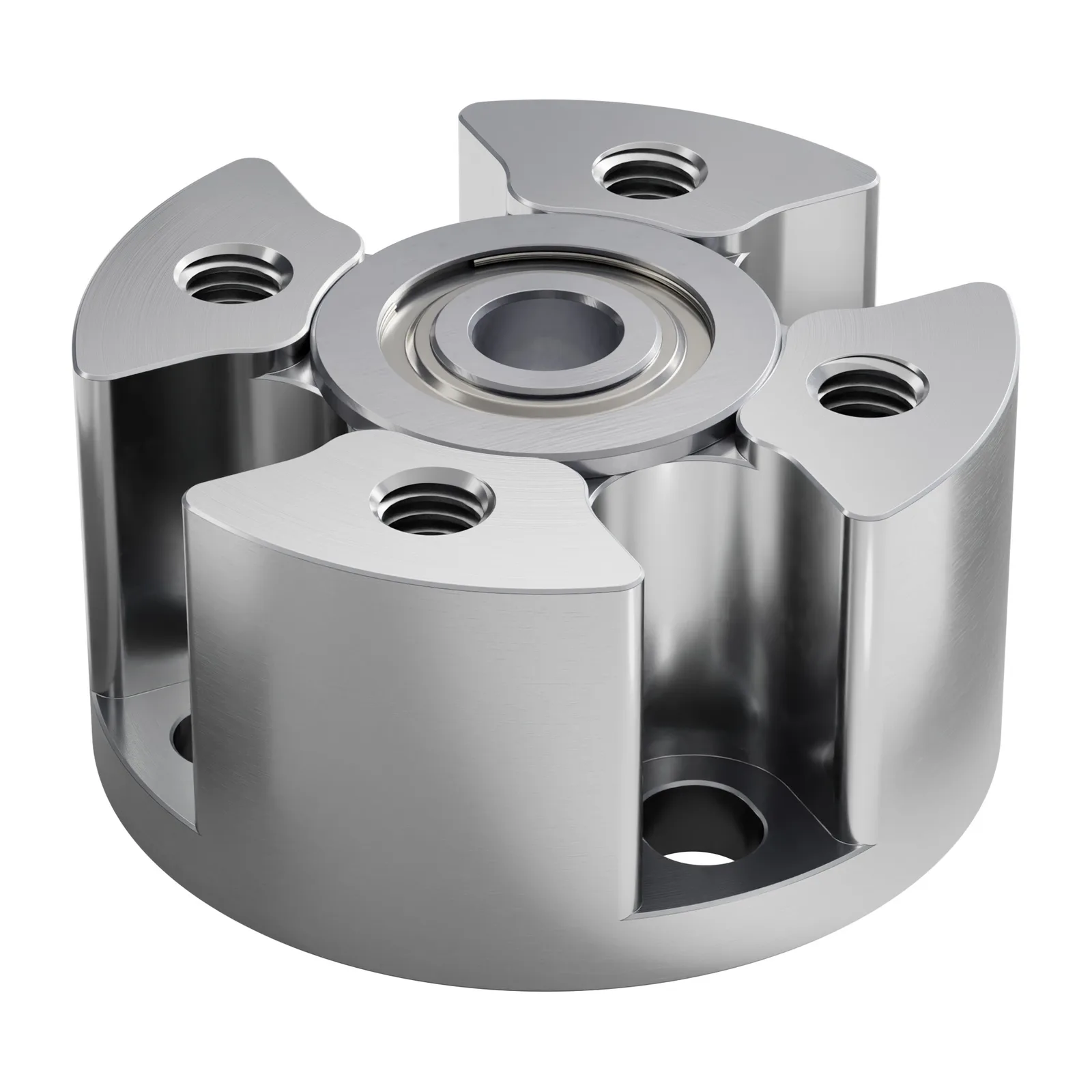

Dual-Bearing Pillow Block (5mm Bore)
SKU: ZY-3614-0016-0005
R 182,88Ex Tax: R 159,03
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
This pillow block is an all-in-one solution to provide support to a 5mm diameter shaft. Two bearings, as found in this Dual-Bearing Pillow Block, are critical in providing shaft support when dealing with a cantilevered load on an otherwise unsupported shaft. That’s why this pillow block shines when there’s only one surface available to mount a bearing. Simply fasten it on the Sheen Robotics® 16mm pattern using its threaded or thru-holes, and put your project in motion!

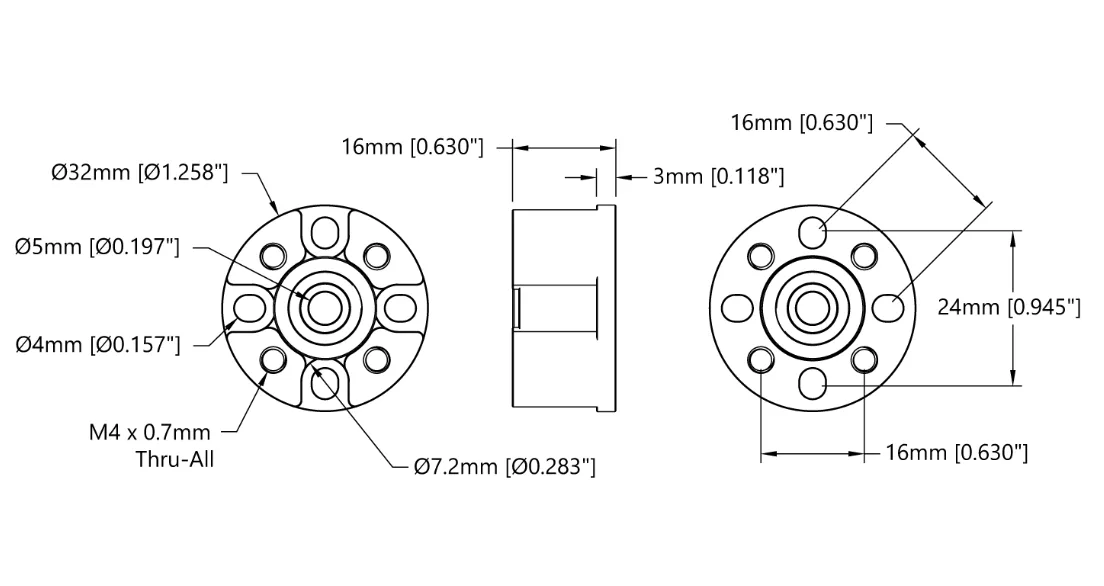

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3614-0016-0005 |
| Weight | 27g |
| Material | Aluminum Housing, High-Carbon Steel Bearings |
| Finish | Clear Anodized |
