12mm Bore, Heavy-Duty Flange-Mount Bearing Pillow Block
sheen robotics

12mm Bore, Heavy-Duty Flange-Mount Bearing Pillow Block

SKU: ZY-3622-0032-0012
R 0,00Ex Tax: R 0,00
Ships in 7–10 working days
Qty
1
  • Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
  • Free collection from our Milnerton (Cape Town) warehouse
  • Secure checkout — PayFast card payment or EFT
  • Questions? WhatsApp us on +27 65 900 8570

Description

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

Need a big bearing for a big job? This hefty pillow block offers extreme support to 12mm diameter shafting with its massive 12mm bearing! The bearing’s seals keep out moisture and debris even when your project is getting hands-on with terrain.

This pillow block has thru-holes, spaced 32mm apart, that are highly compatible across the Sheen Robotics® ecosystem, and the hex counterbores enable one-tool installation when using M4 hex nuts.

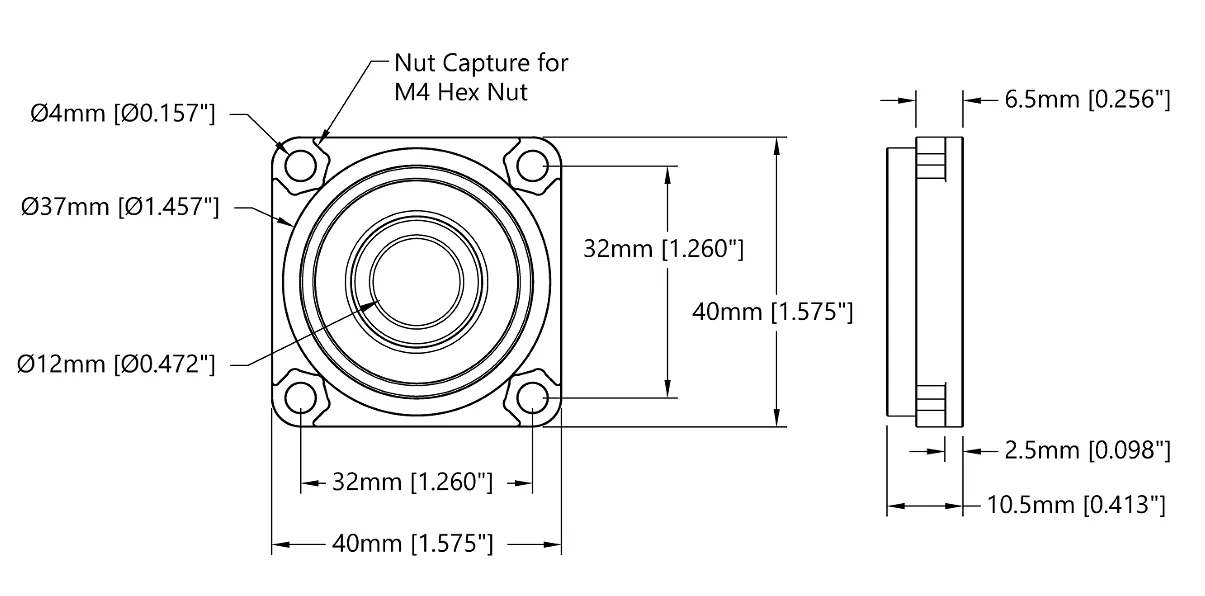

Technical drawing

12mm Bore, Heavy-Duty Flange-Mount Bearing Pillow Block technical drawing

Competition eligibility

FIRST Tech Challenge (FTC)Legal
FIRST Robotics Competition (FRC)Legal

Specifications

Part number3622-0032-0012
Weight50g
MaterialAluminum Housing, High-Carbon Steel Bearing
