3602 Series 1-Side, 2-Post Pillow Block (32mm Bore)
SKU: ZY-3602-0032-0032
R 0,00Ex Tax: R 0,00
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
Pillow blocks are the combination of a ball bearing and a mountable housing.These pillow blocks have two threaded holes on the base which allow you to fasten the pillow block down to a flat surface which has thru-holes spaced 32mm apart. The 24mm base to center height allows for easy meshing of gears and other drive components.

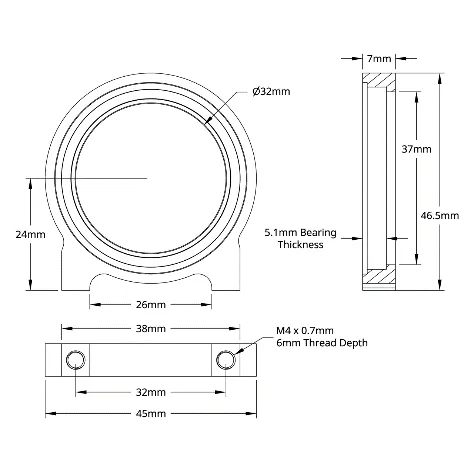

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3602-0032-0032 |
| Weight | 20g |
| Material | Aluminum Housing, Stainless Steel Bearing |
| Stainless Steel Bearing Bore | 32mm |
Reviews
No reviews yet — be the first to review this product.
From the same brand
sheen robotics
4913 Series Steel Ball Linkage (Male M4 x 0.7mm, 29.4mm Length)
R 0,00 Ships in 7–10 working days
sheen robotics
3143 Series Mini Low-Side U-Channel (1 Hole, 48mm Length)
R 0,00 Ships in 7–10 working days
sheen robotics
3143 Series Mini Low-Side U-Channel (2 Hole, 72mm Length)
R 0,00 Ships in 7–10 working days
sheen robotics
3143 Series Mini Low-Side U-Channel (6 Hole, 168mm Length)
R 0,00 Ships in 7–10 working days
You might like
sheen robotics
3604 Series 2-Side, 2-Post Pillow Block (32mm Bore)
R 0,00 Ships in 7–10 working days
sheen robotics
3601 Series Flanged Ball Bearing (32mm ID x 39mm OD, 5mm Thickness)
R 0,00 Ships in 7–10 working days
sheen robotics

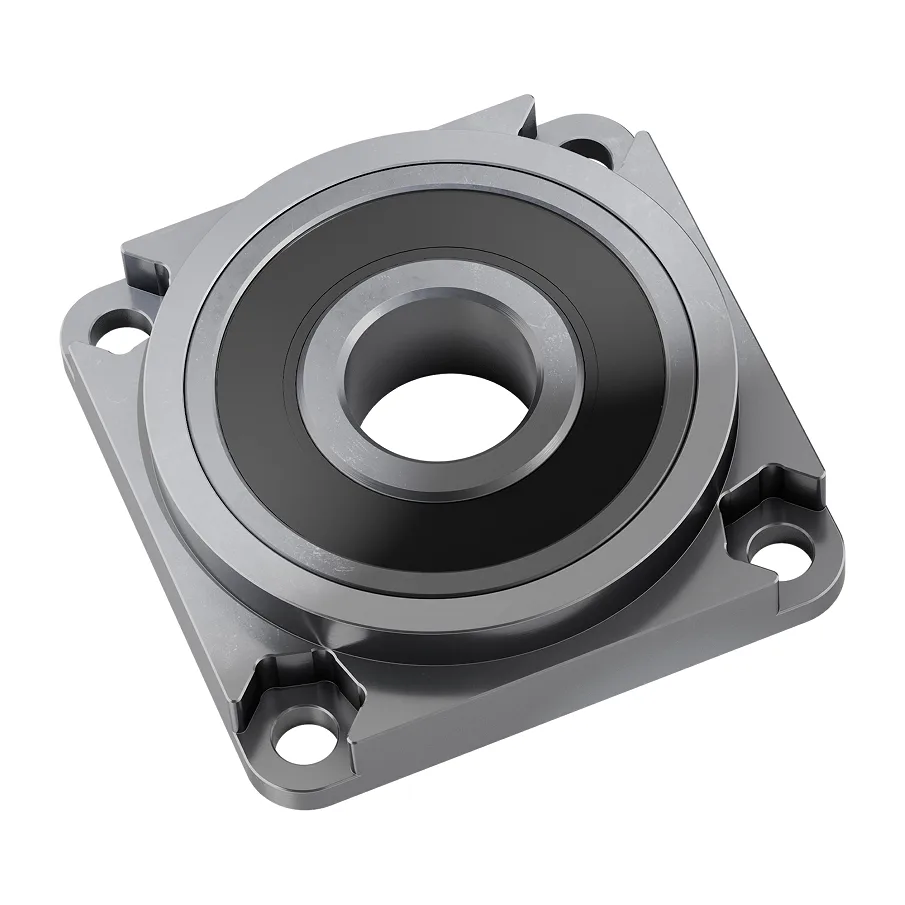

12mm Bore, Heavy-Duty Flange-Mount Bearing Pillow Block
