3604 Series 2-Side, 2-Post Pillow Block (32mm Bore)
SKU: ZY-3604-0043-0032
R 0,00Ex Tax: R 0,00
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
Bearings aid in creating low-friction motion assemblies. Pillow blocks are the combination of a ball bearing and a mountable housing.These pillow blocks have two holes on each side, spaced 32mm apart. The two sides are 43mm apart in order to fit inside 3120 Series U-Channel.

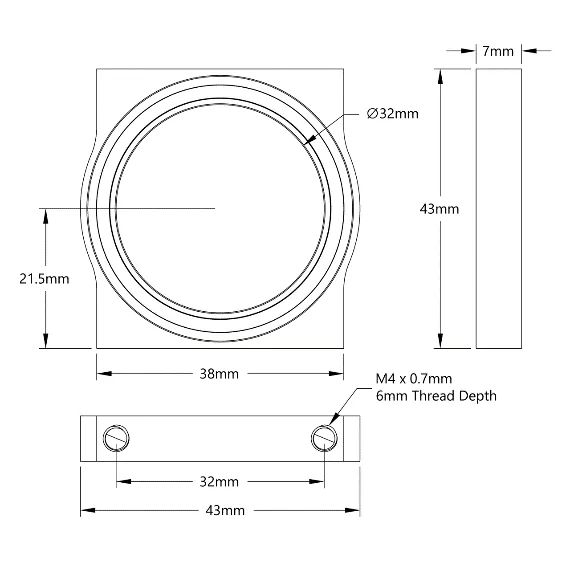

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3604-0043-0032 |
| Weight | 19g |
| Material | Aluminum Housing, Stainless Steel Bearing |
| Stainless Steel Bearing Bore | 32mm |
