DFRobot PCB Engineering Ruler - Mini (6.3inches)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description

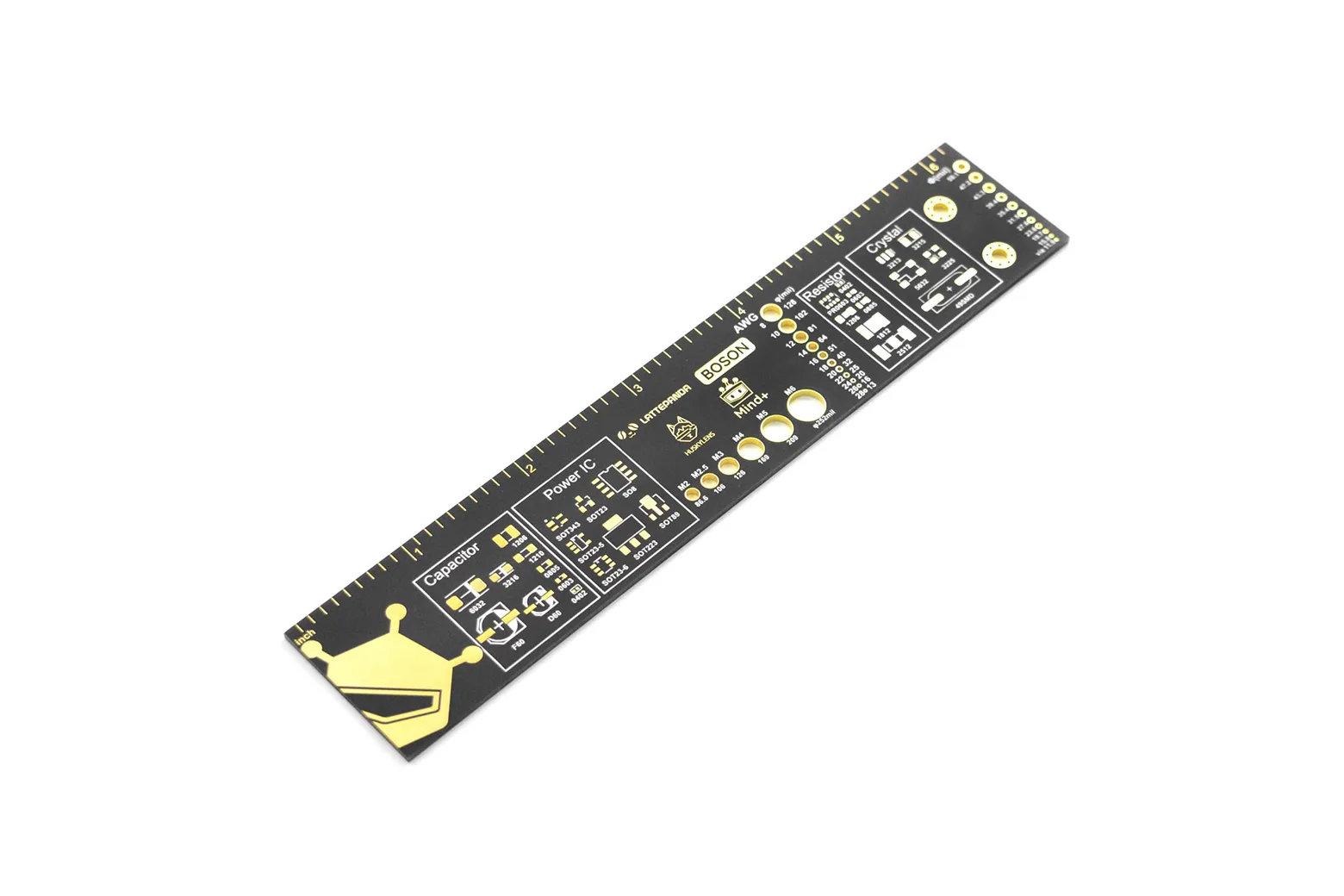

The DFRobot PCB Engineering Ruler - Mini is a compact, pocket-sized reference tool designed for electronics engineers, makers, and hobbyists. Fabricated from rigid glass fibre, it provides instant visual guidelines for component sizing, wiring, and hardware layout directly at your workbench.
Compact glass fibre build

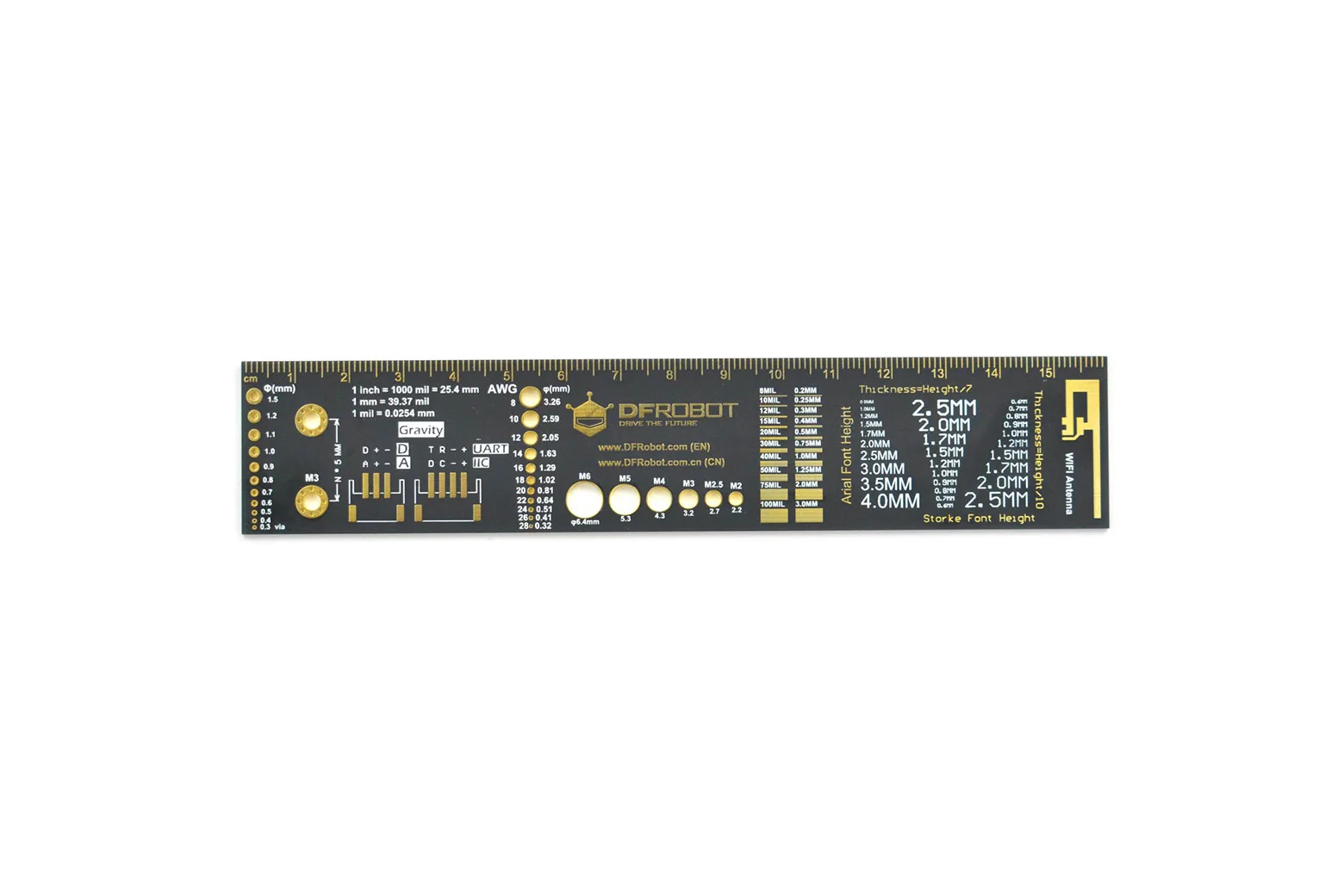

Measuring 160 by 32 mm, this palm-sized ruler is constructed from durable glass fibre for lasting reliability. Its accurate scale and sturdy material make it a practical aid for PCB layout, drafting, and model making.

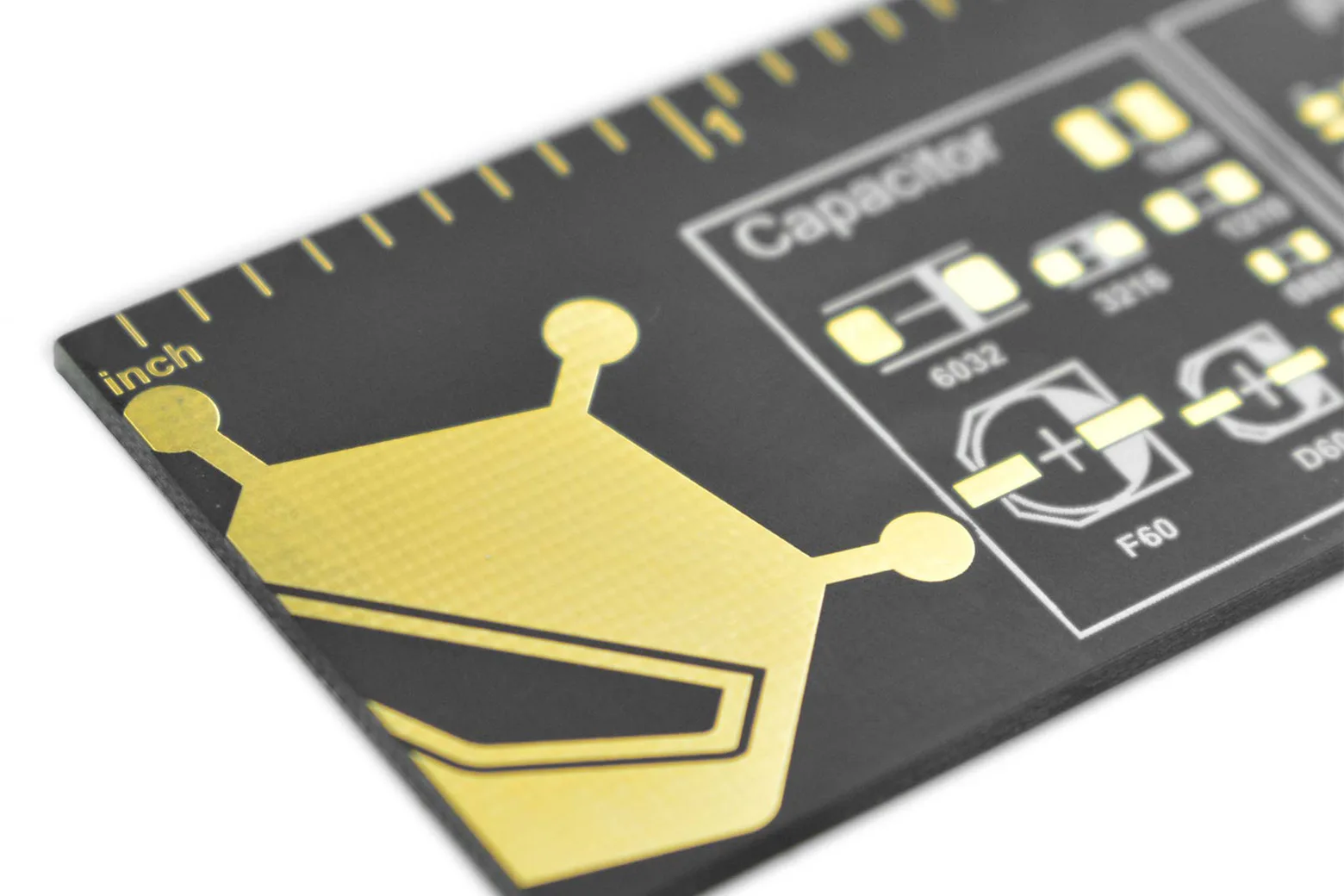

SMD component footprint references

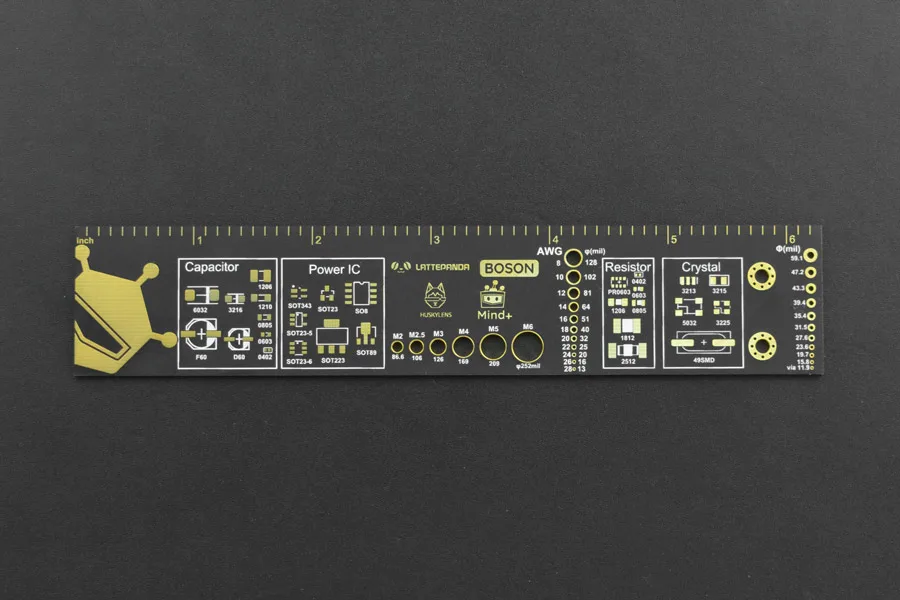

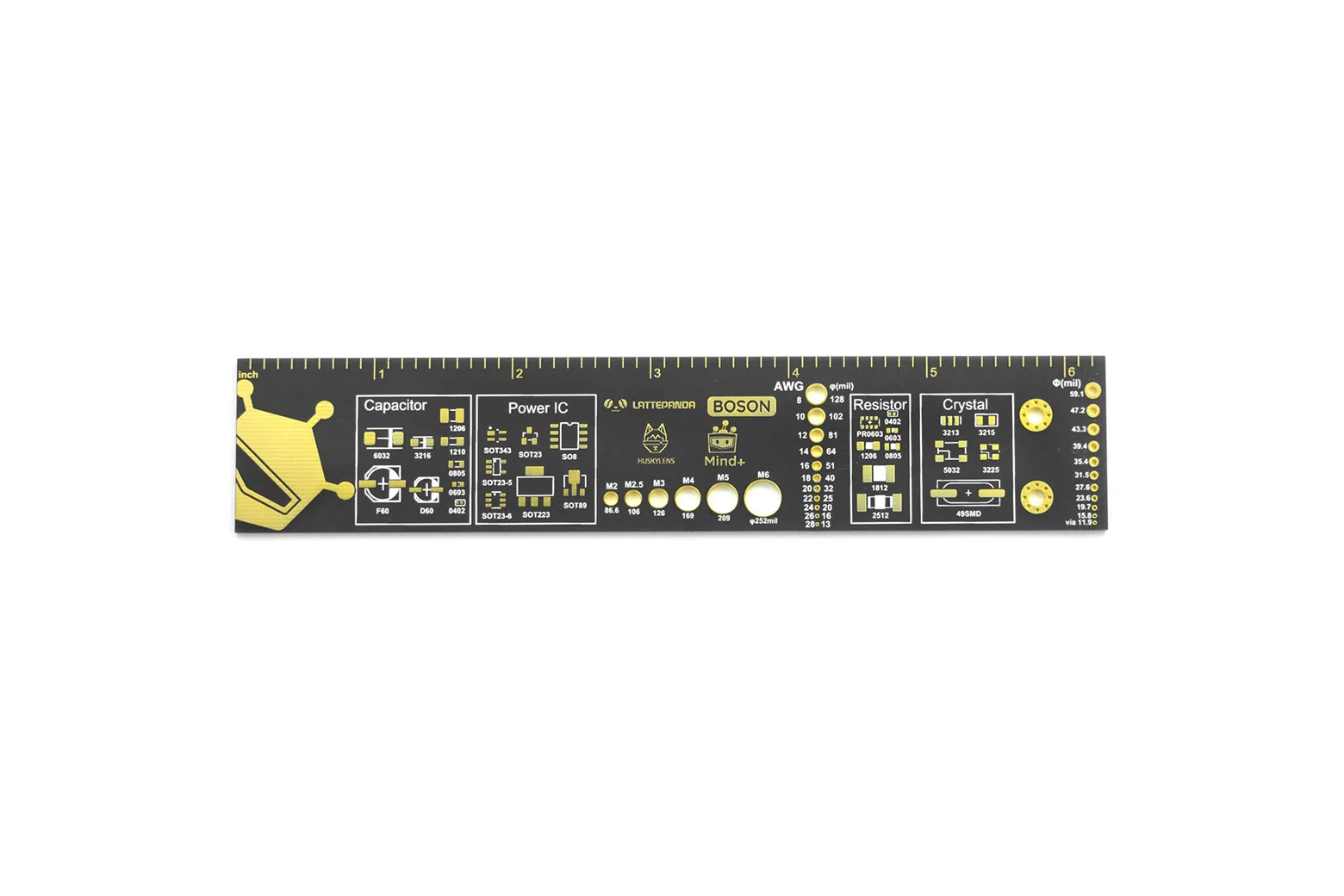

The surface features standard package outlines for resistors (0402 to 2512), capacitors (0402 to F60), crystals (3213 to 49SMD), and power ICs including SOT23, SO8, and SOT223.
Via and screw hole design guides

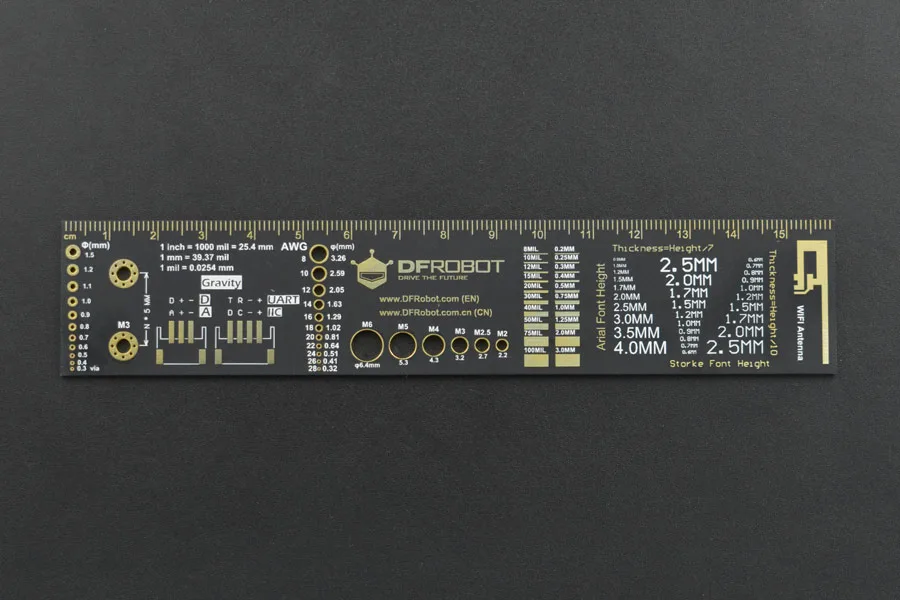

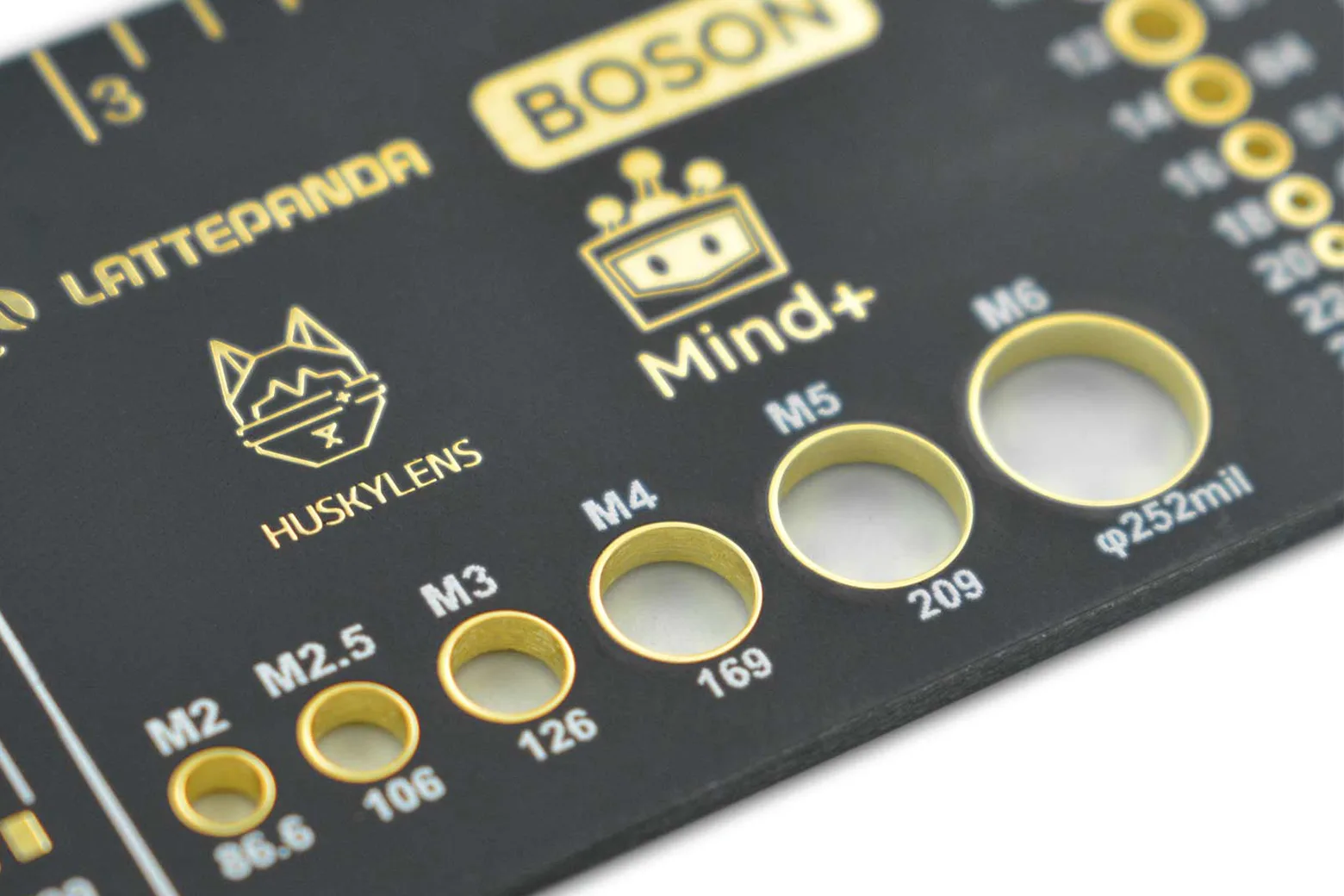

Engineers can quickly check metric screw hole apertures from M2 to M6 alongside via design diameters spanning 0.3 mm to 1.5 mm.
Wire gauge and interface standards
Includes quick references for American Wire Gauge (8 to 28 AWG), silkscreen text size scales, and the DFRobot Gravity design definition standard.
Specifications
| Dimension(L x W x H) | 160 * 32 mm/6.3 * 1.26 inches |
In the box
| DFRobot PCB Engineering Ruler - Mini *1 | 1 |
| Review | 1 |
| Aunuun Jeffry.Mahbuubi Sep 20, 2025 | 1 |
| Good service and fast shipping | 1 |
| Case.Runner Apr 28, 2024 | 1 |
| very cool! neat idea too! | 1 |
Reviews
No reviews yet — be the first to review this product.
