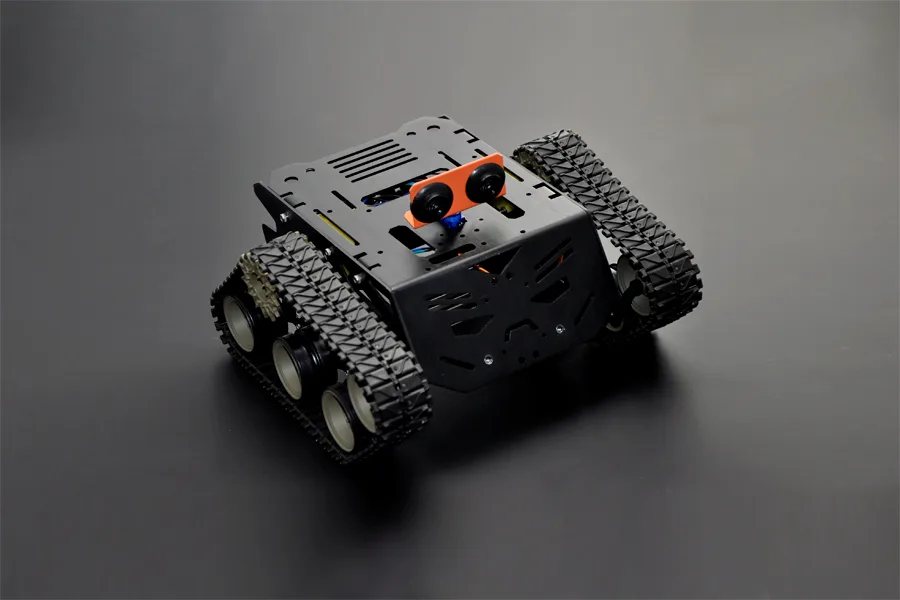

Devastator Tank Mobile Robot Platform (Metal DC Gear Motor)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description

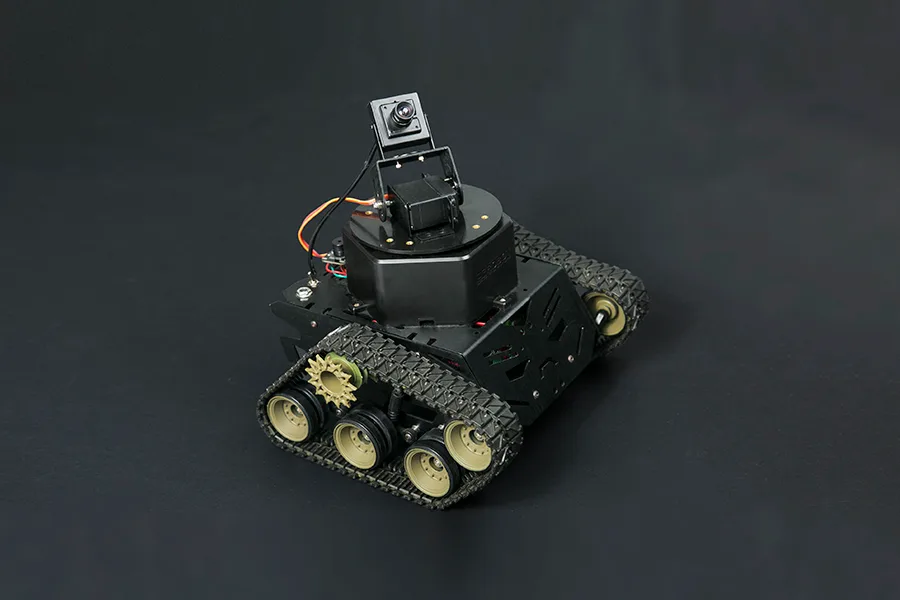

The Devastator Tank Mobile Robot Platform is a tracked chassis driven by robust metal DC gear motors. Engineered to host an Arduino or compatible microcontroller board, it provides an ideal foundation for students, educators, and makers building tracked robotics projects.
Heavy-duty tracked load capacity
Built for stable movement over varied surfaces, this tracked chassis supports a maximum payload of up to 3 kg. The complete platform weighs 1.3 kg, ensuring solid stability for mounted electronics and hardware.
High-torque metal gear motors
The platform is powered by metal DC gear motors featuring a 45:1 reduction ratio and 4 mm D-shaped output shafts. Each motor delivers a locked-rotor torque of 4.5 kg.cm and a no-load speed of 133 RPM at 6 V.
Operating voltage and electrical ratings
The motors operate within a 2 V to 7.5 V range, with a nominal rated voltage of 6 V. They feature an efficient no-load current draw of 0.13 A and a locked-rotor current of 2.3 A.
Chassis footprint and controller support
Fully assembled, the chassis measures 225 x 220 x 108 mm, offering generous space to install sensors and microcontrollers. The mounting layout is specifically designed to accommodate standard Arduino and compatible development platforms.

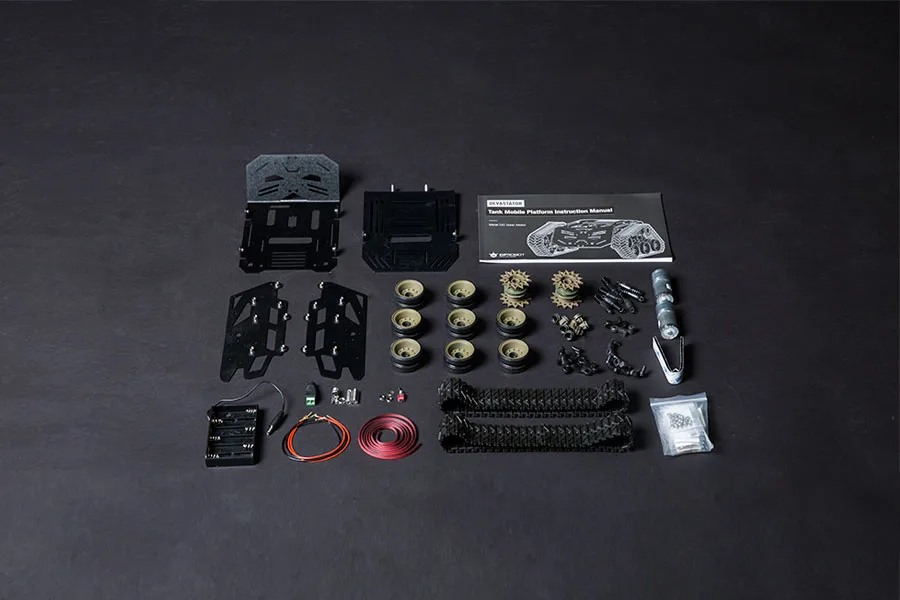

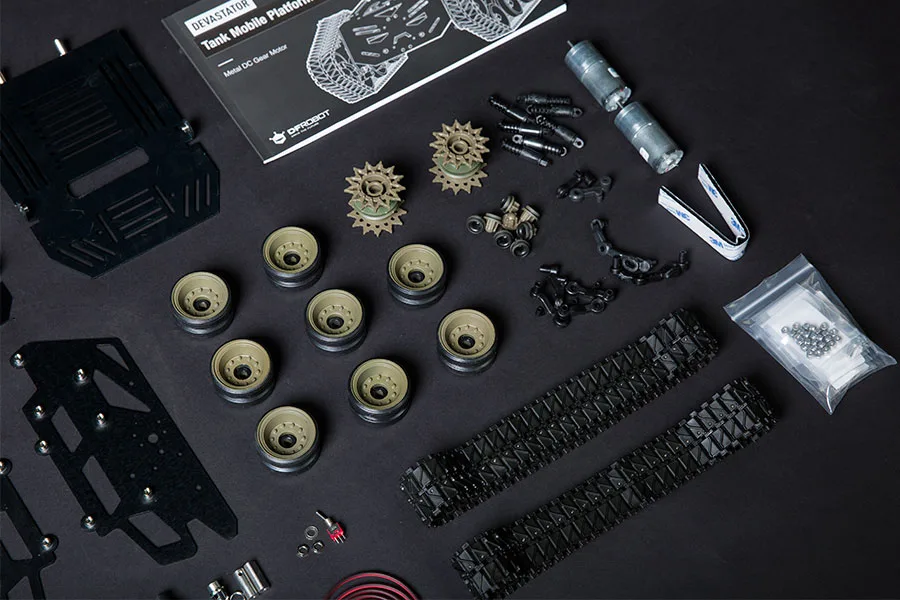

Complete mobile platform kit
The kit includes one full Devastator Tank Mobile Platform assembly equipped with metal DC gear motors.

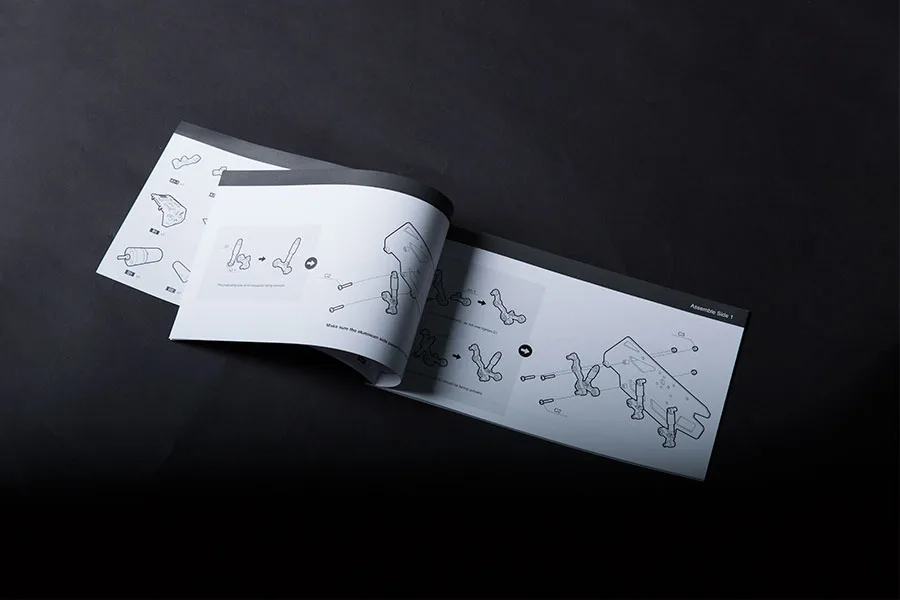

Downloads & documentation
Specifications
| Rated Voltage | 6 V |
| Gear reduction ratio | 45:1 |
| D output shaft diameter | 4 mm |
| No-load speed | 133 RPM @ 6 v |
| No-load current | 0.13 A |
| Locked-rotor torque | 4.5 kg.cm |
| Locked-rotor current | 2.3 A |
| Load Capacity | 3kg |
| Assembled Dimensions (L x W x H) | 225 x 220 x 108 mm/ 8.86 x 8.66 x 4.25 inches |
| Net Weight | 1.3kg |
