Description

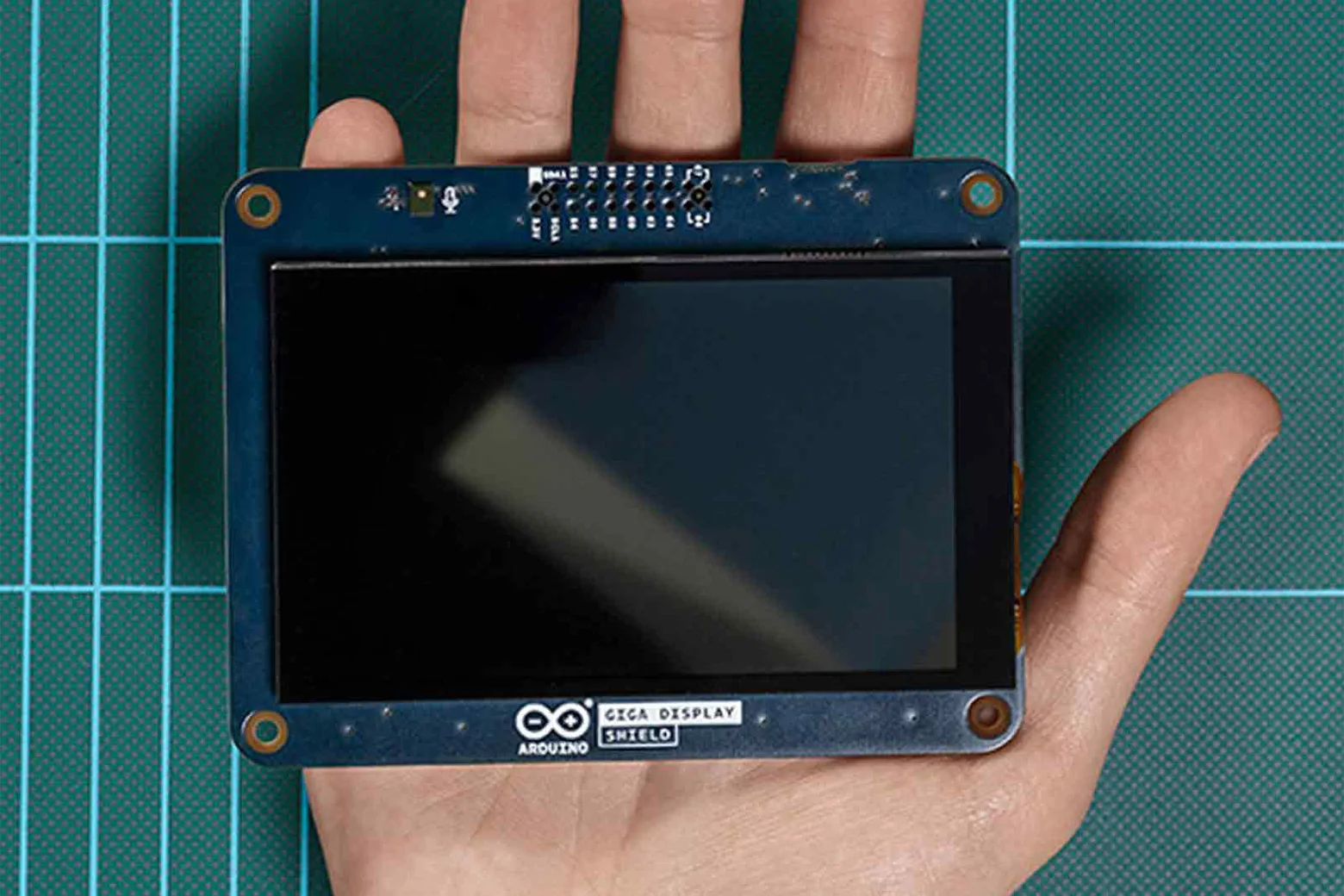

The Arduino GIGA Display Shield is a 3.97-inch touchscreen expansion board designed specifically for the Arduino GIGA R1 WiFi. It suits makers, students, and engineers looking to build responsive graphical interfaces, vision projects, and interactive edge devices.

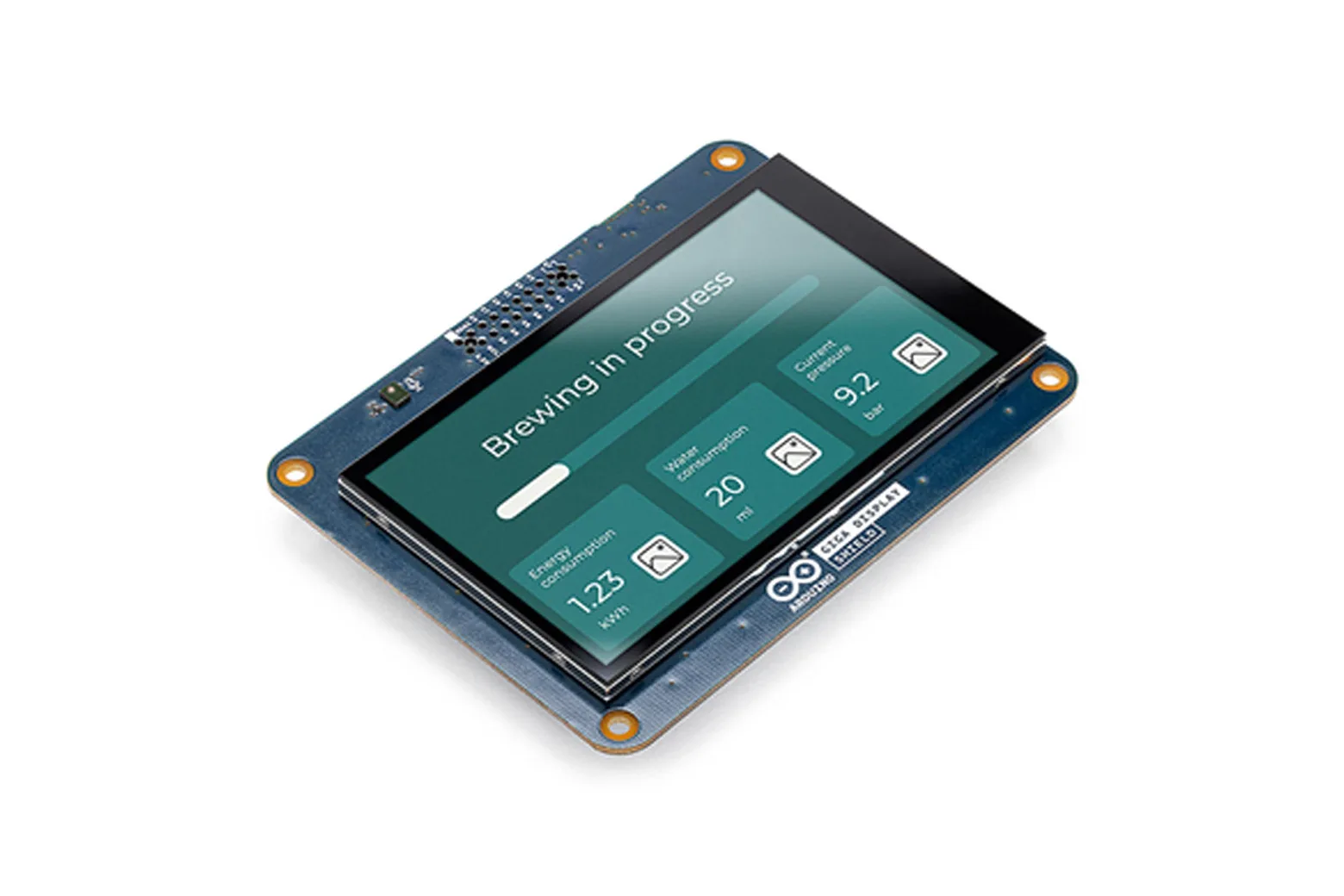

High-resolution multi-touch display

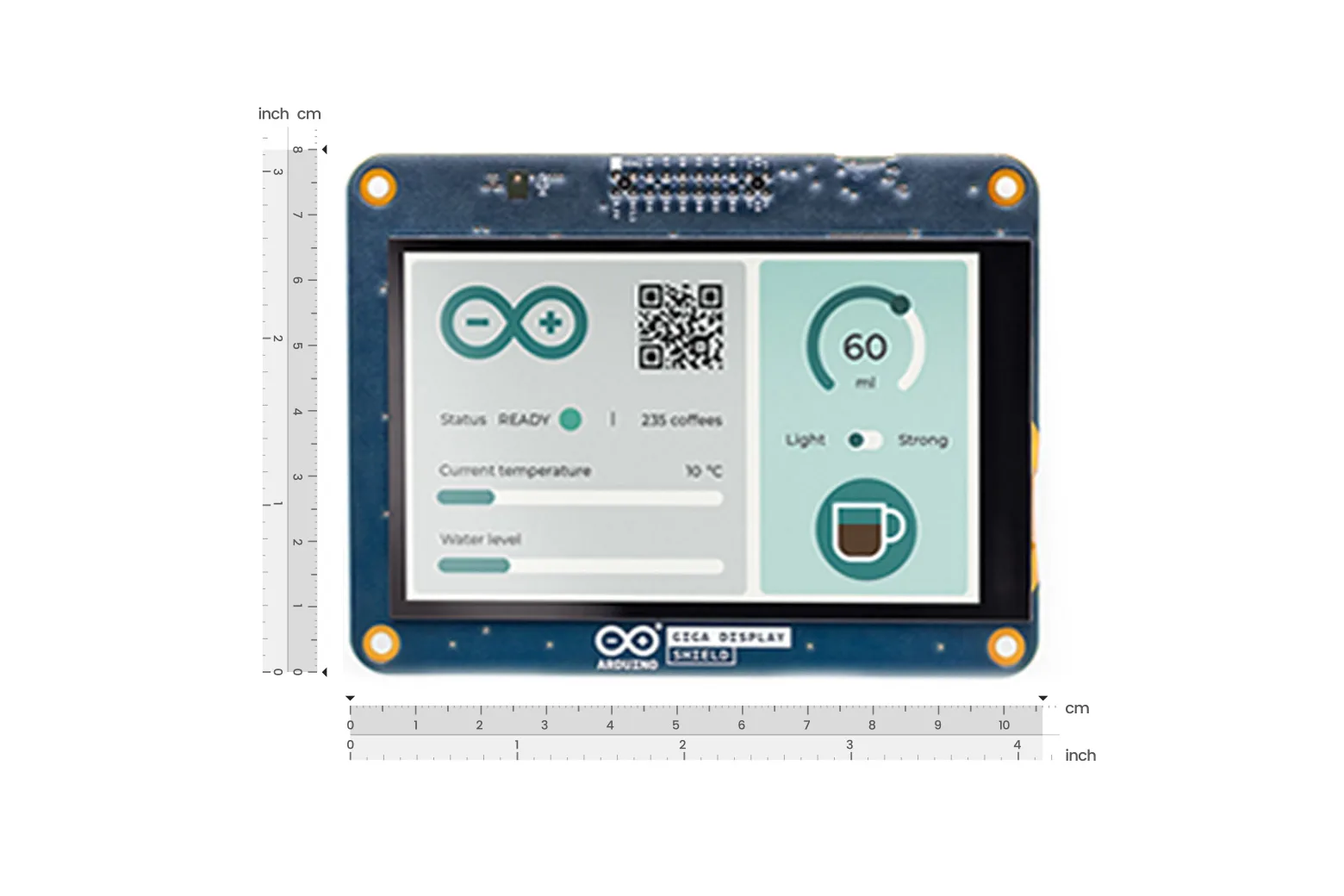

The shield features a 3.97-inch TFT screen with a 480×800 resolution for sharp visual output. Capacitive multi-touch support allows for intuitive gesture and touch-based user interfaces.

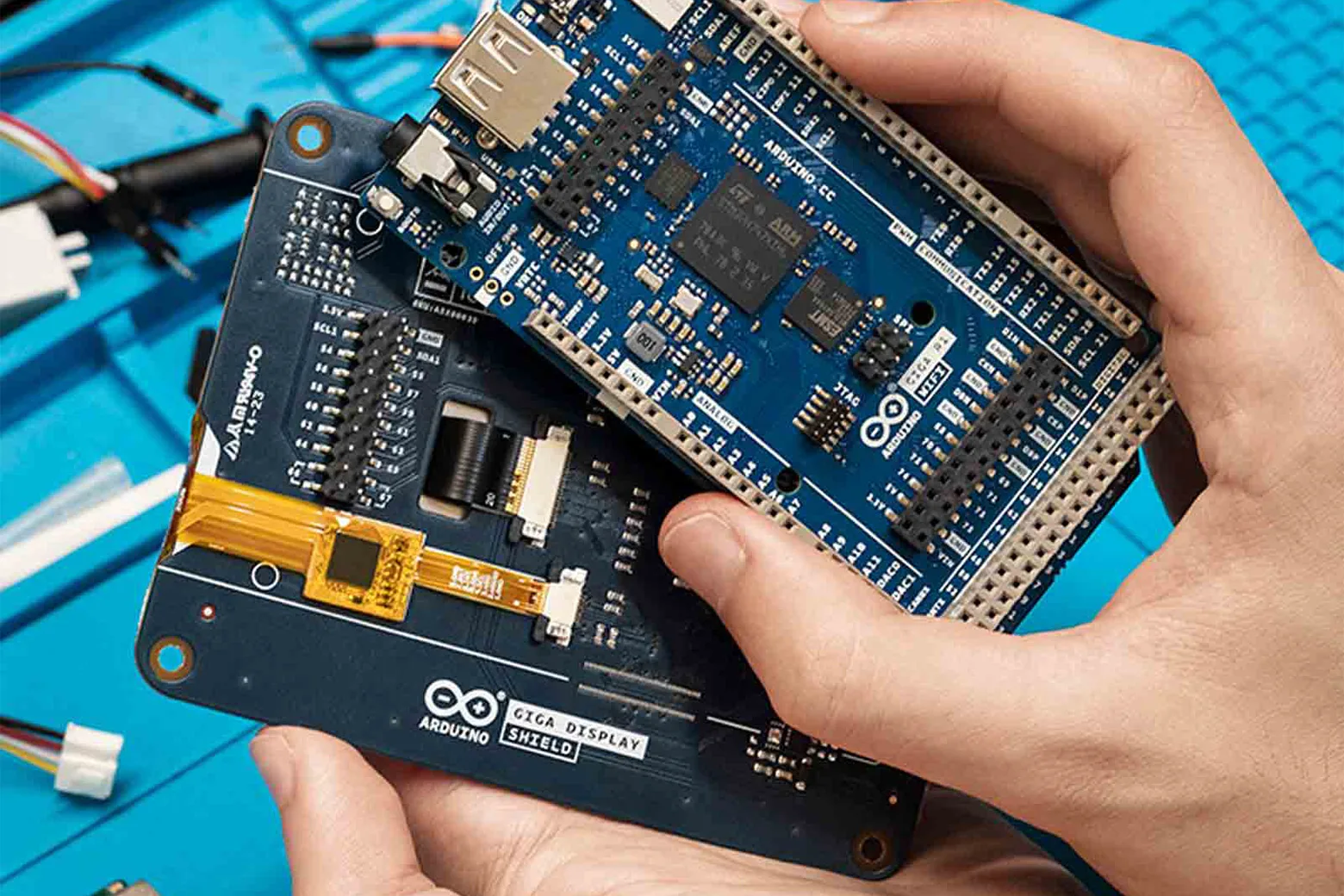

Seamless GIGA R1 WiFi integration
Designed as a dedicated shield for the Arduino GIGA R1 WiFi, it attaches directly to the main board. This provides a compact footprint without messy external wiring.
Integrated BMI270 IMU
An onboard Bosch BMI270 inertial measurement unit provides motion and orientation sensing. This enables orientation-aware interfaces and spatial movement tracking.
Built-in MEMS microphone
An integrated digital MEMS microphone allows the board to capture sound inputs. This supports acoustic monitoring and voice-triggered project actions.

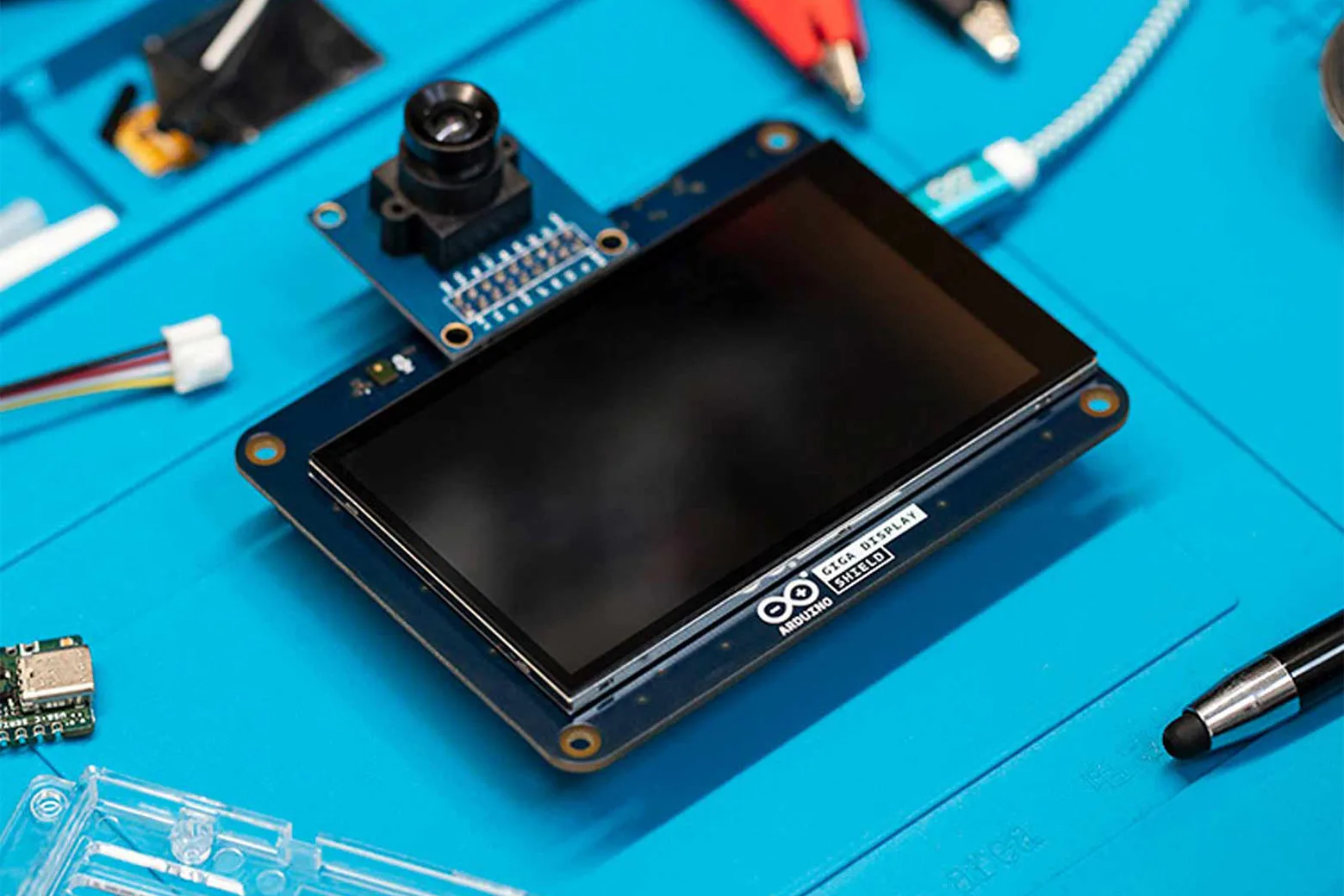

Camera connector and RGB indicator
A dedicated camera connector supports vision-based applications and imaging modules. A programmable RGB LED provides instant, customisable visual status feedback.
