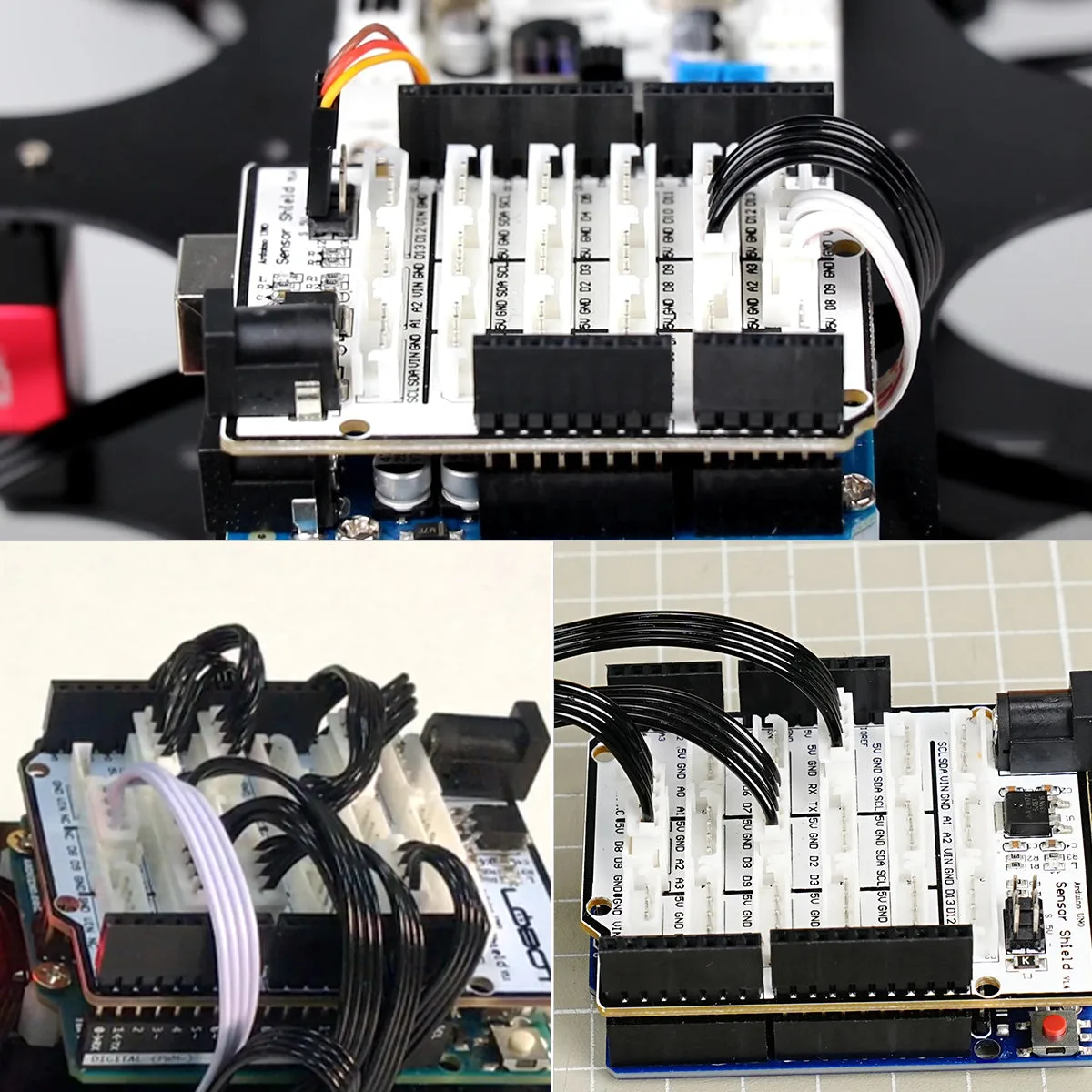

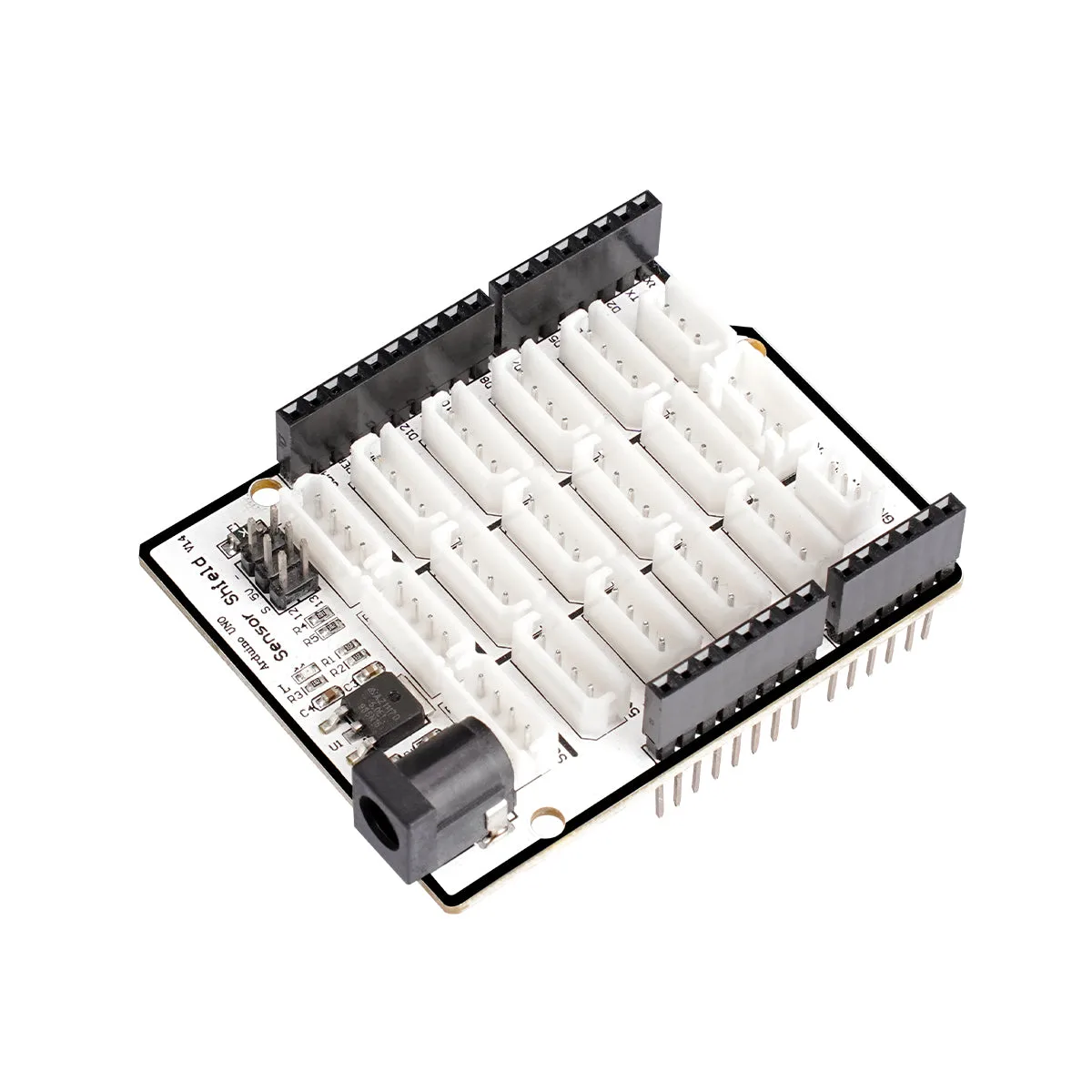

Arduino Expansion Board Multi-function Expansion Board Highly Compatible with Arduino

This multi-function expansion board is designed to expand the capabilities of your Arduino UNO by providing structured, neat connection points. It is an excellent choice for students, educators, and hobbyists looking to build complex robotics projects without messy wiring.

Versatile interface options

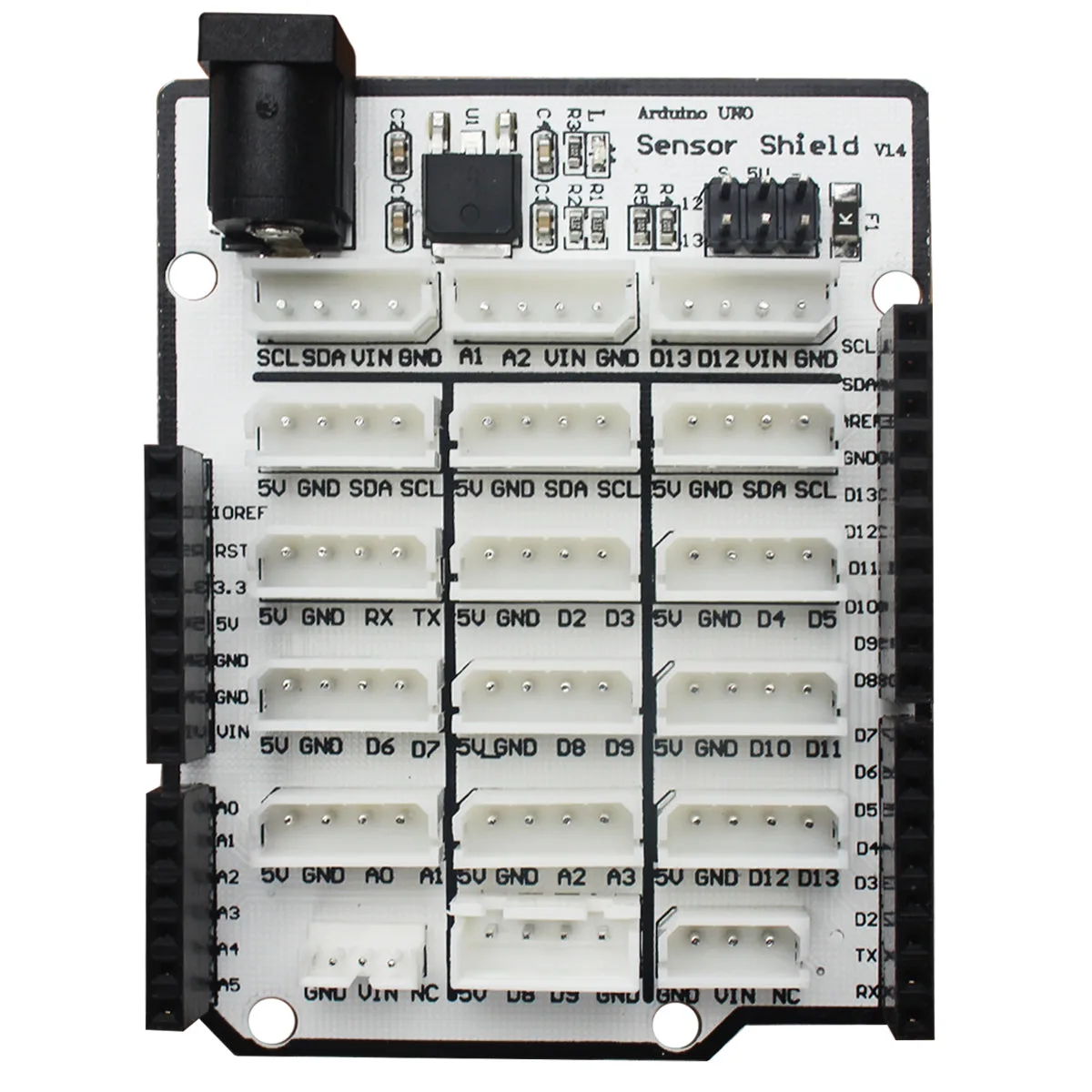

Highly compatible with the Arduino UNO, this board features 16-channel 4-pin interfaces and 2-channel PWM interfaces. It also reserves all on-board I/O interfaces to ensure compatibility with a wide range of sensors and actuators.

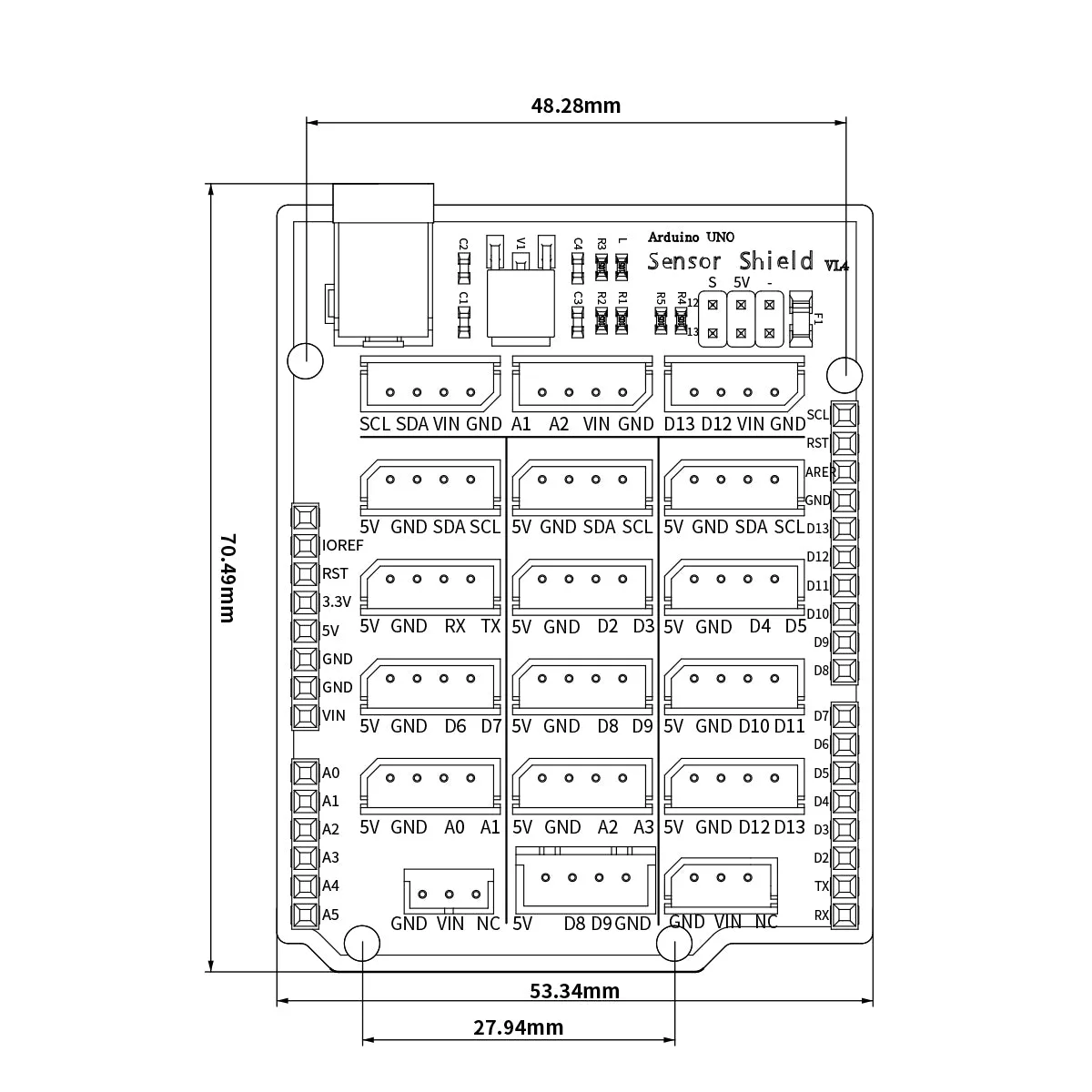

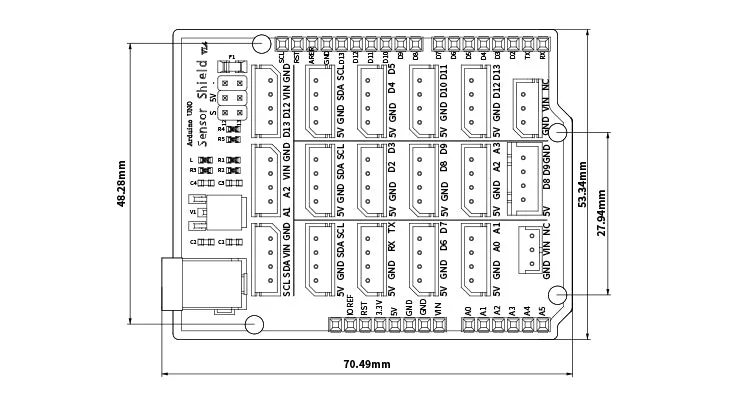

Precise board dimensions

The dimensional diagram provides the exact physical measurements of the expansion board. This ensures easy planning when mounting the board inside custom enclosures or robotic chassis.

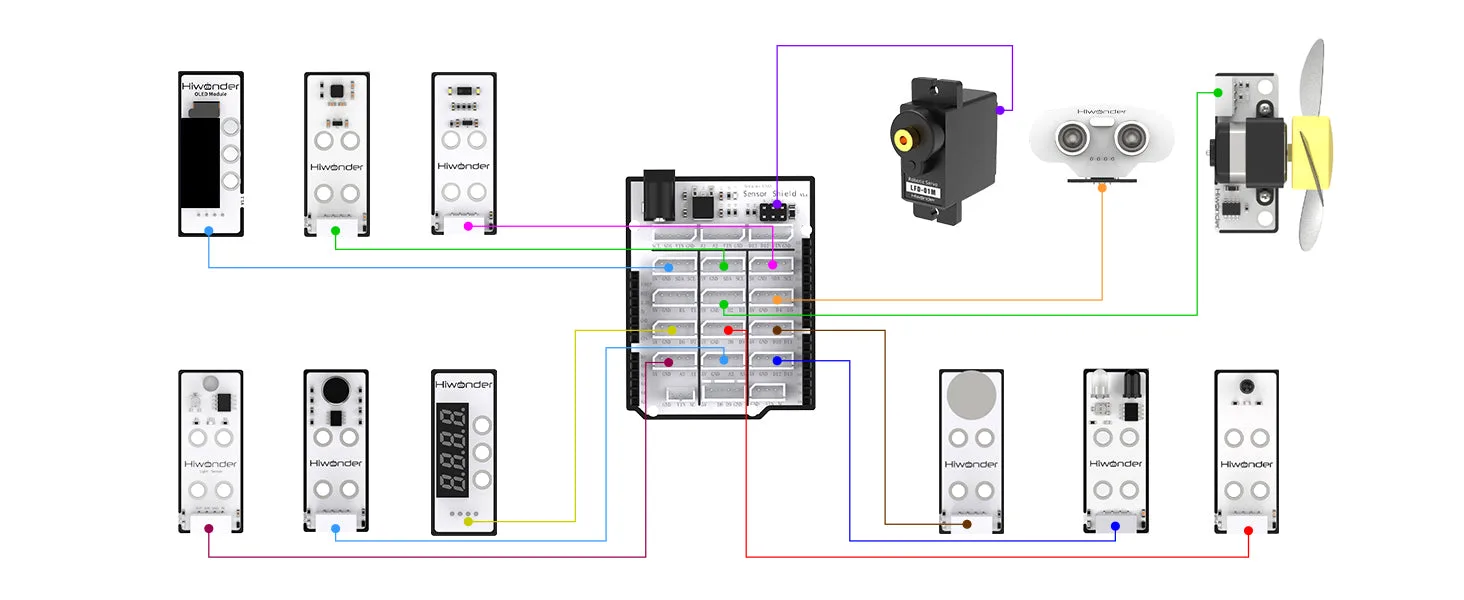

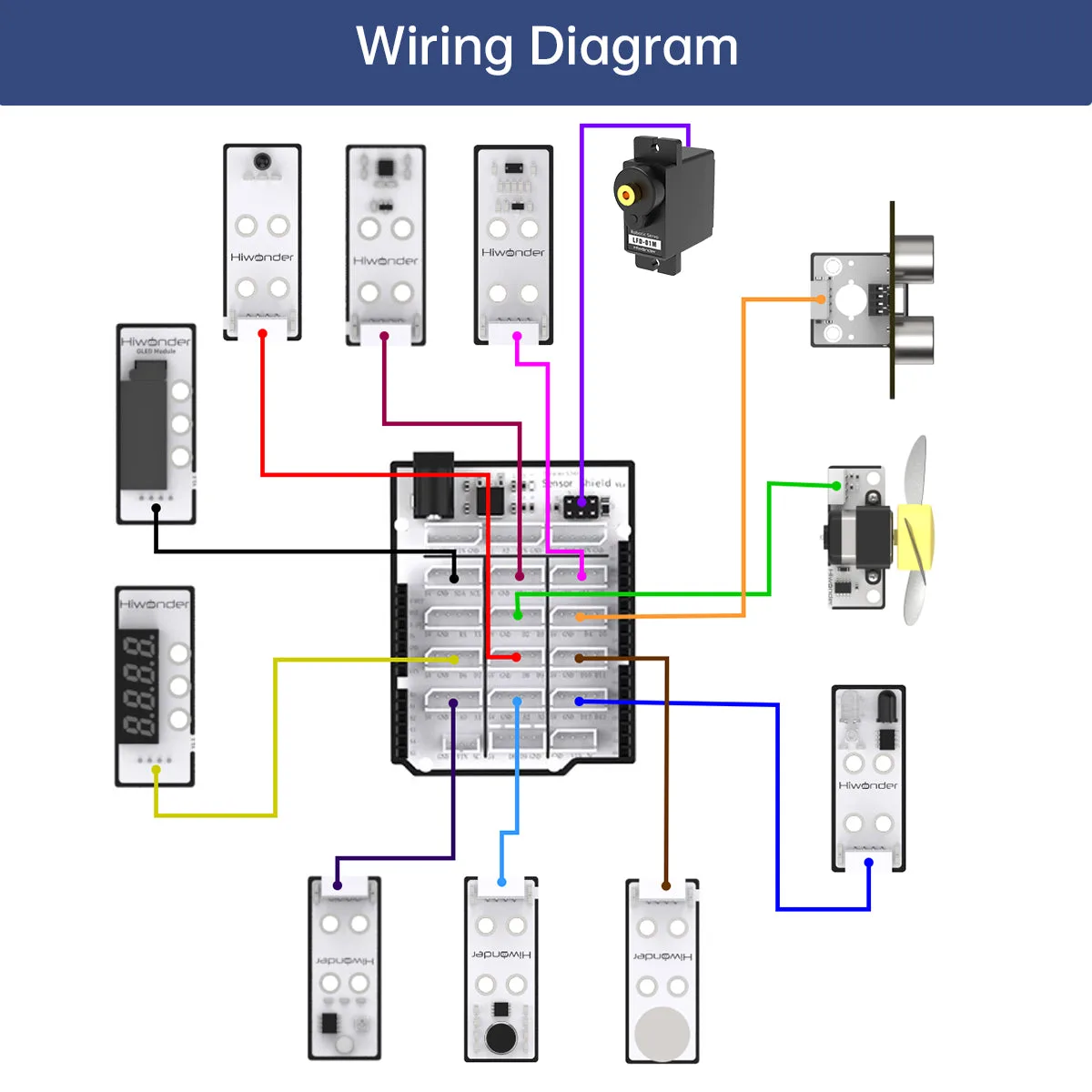

Clear wiring layout

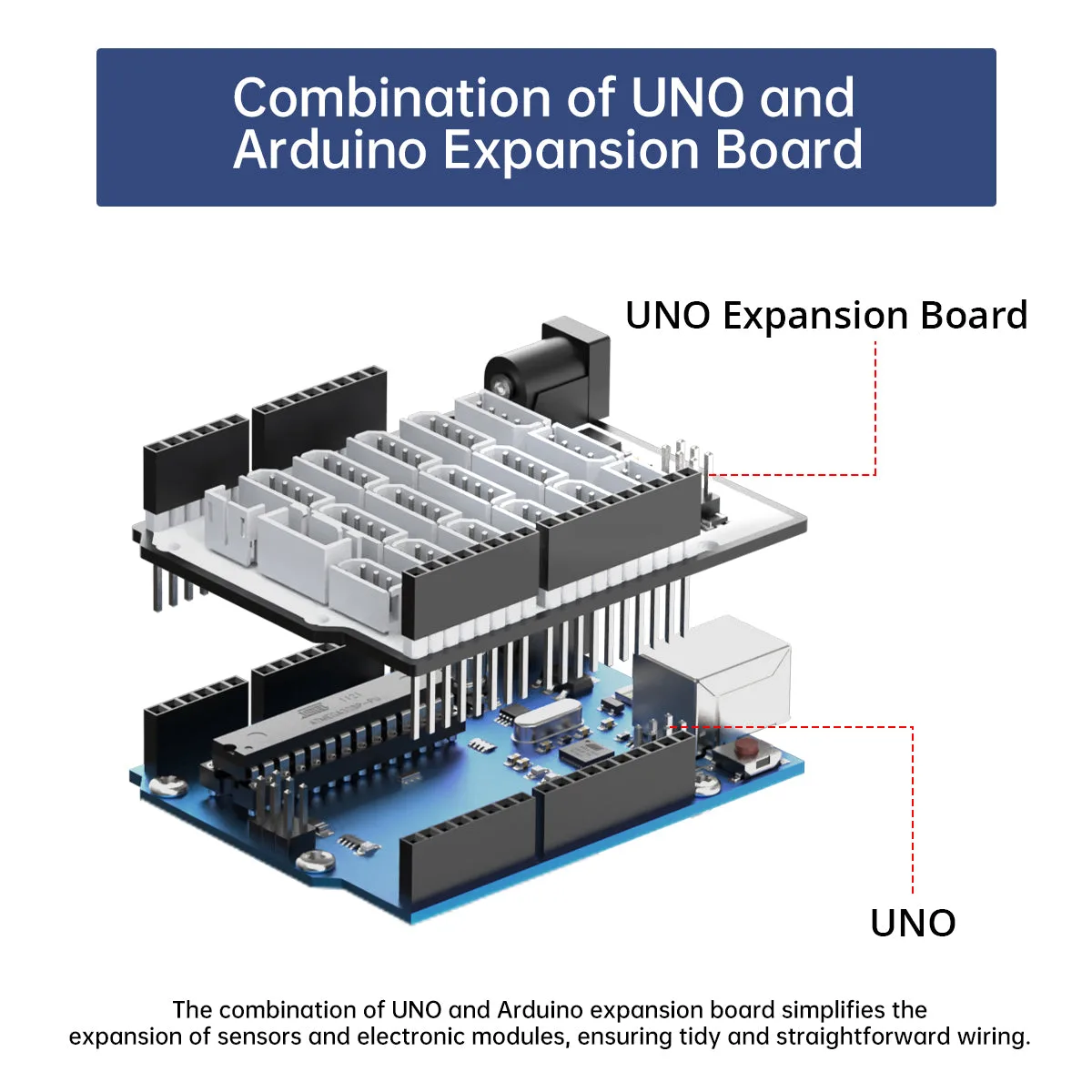

The wiring diagram demonstrates how to achieve clean and reliable connections across the board. This structured layout helps prevent wiring errors and simplifies troubleshooting during assembly.

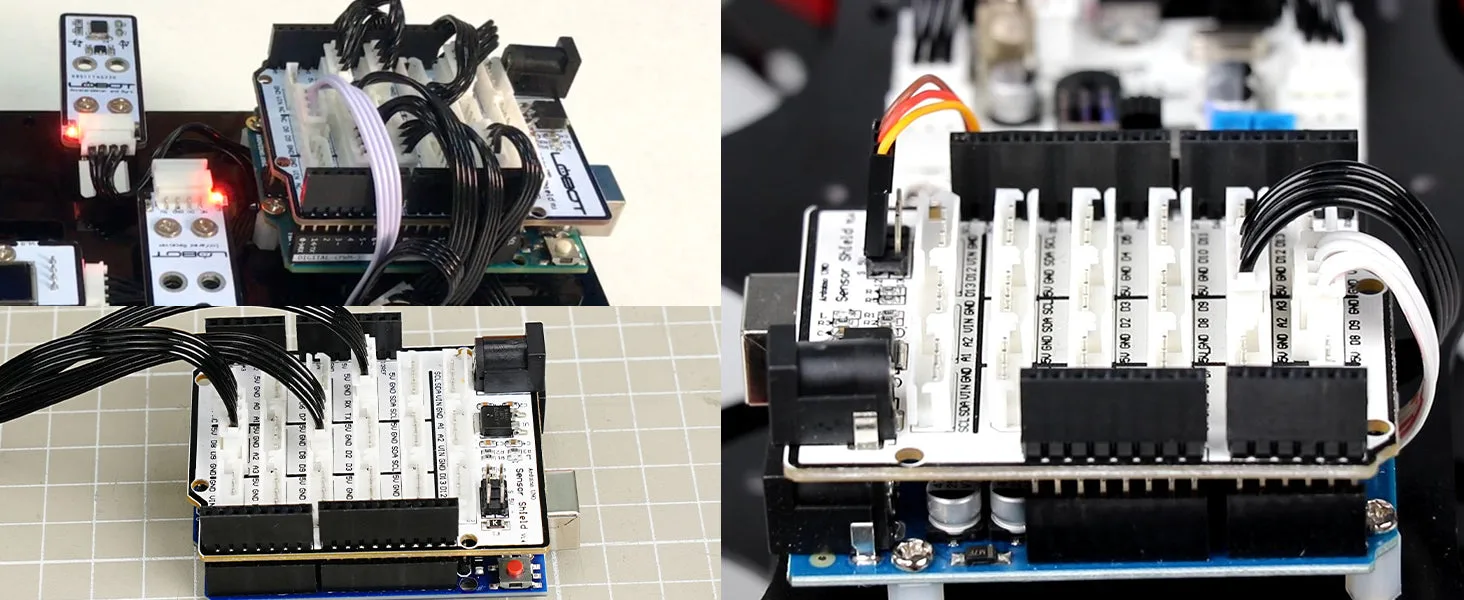

Diverse application scenarios

With its extensive interface breakout, this board is suitable for various coding and hardware projects. It allows makers to easily integrate multiple components into a single, cohesive system.
