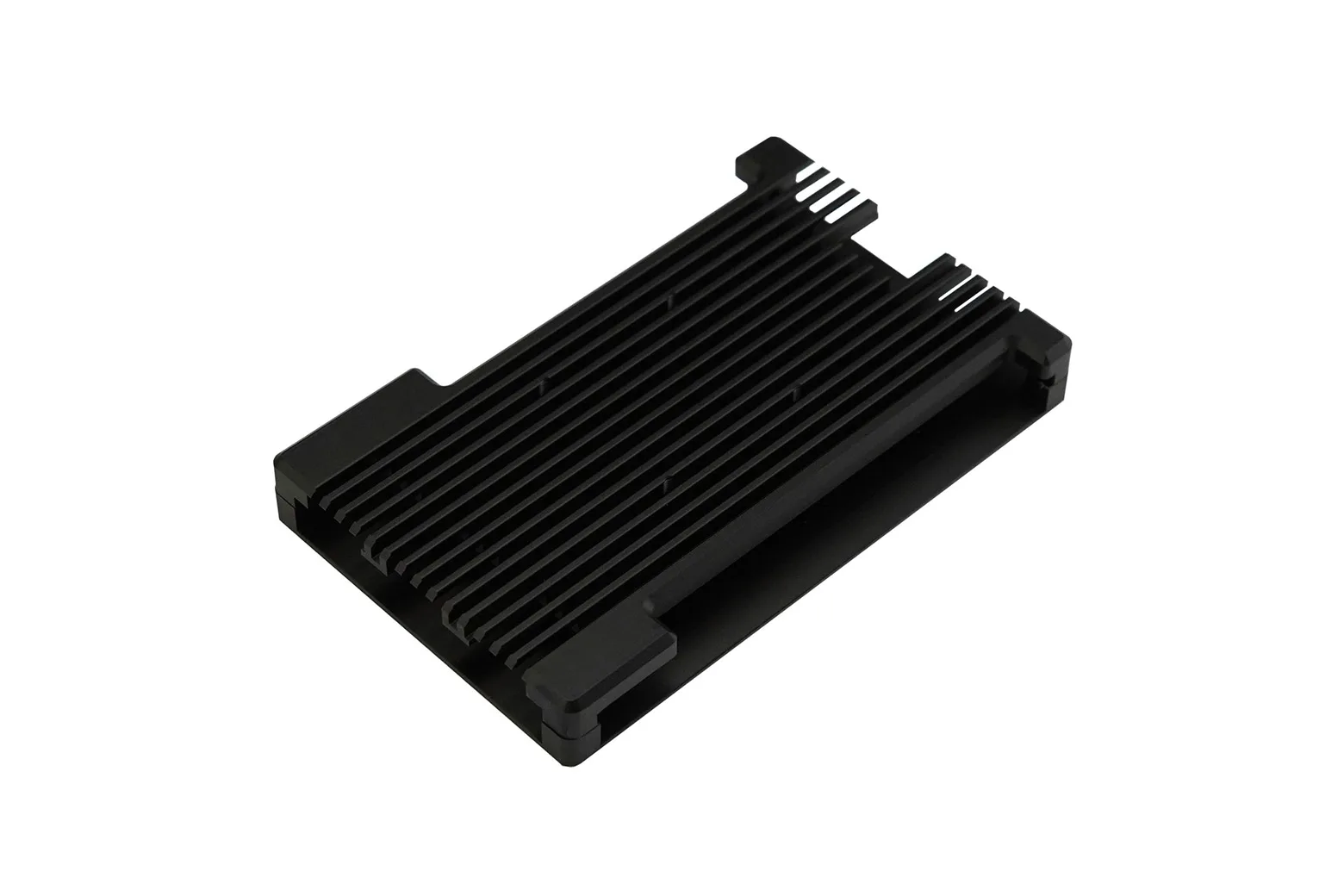

Aluminum Alloy Passive Cooling Case for LattePanda 3 Delta Single Board Computer

This aluminium alloy passive cooling case is specifically designed to protect your LattePanda 3 Delta single board computer while delivering silent, effective heat dissipation. It preserves full access to all onboard ports and GPIO headers, making it ideal for makers, hobbyists, and educators building embedded projects. The slim, durable chassis includes dedicated thermal compounds to ensure reliable thermal performance under load.

Silent passive heat dissipation

Machined from reinforced aluminium alloy, the enclosure acts as a large heatsink to pull heat directly away from the LattePanda 3 Delta. It comes supplied with Shin-Etsu X-23-7921-5 CPU thermal grease and a dedicated 70 x 18 x 1 mm M.2 SSD thermal silicone pad.

Optional external fan mounting

The upper cover includes four pre-drilled M3 mounting holes with 32 mm centre-to-centre spacing. This allows you to attach an optional 40 x 40 mm cooling fan, such as a 4010 or 4012 unit, if active airflow is required.

Unobstructed port and GPIO access

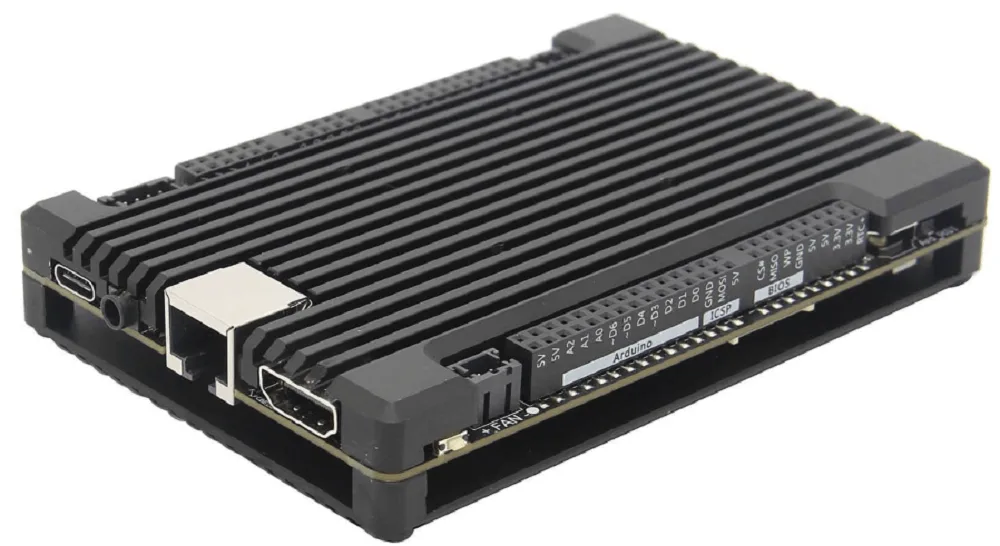

Custom cutouts ensure complete access to all external interfaces, connectors, and GPIO pin headers. You can connect peripherals, sensors, and power cables without removing the single board computer from the case.

Ultra-thin and durable design

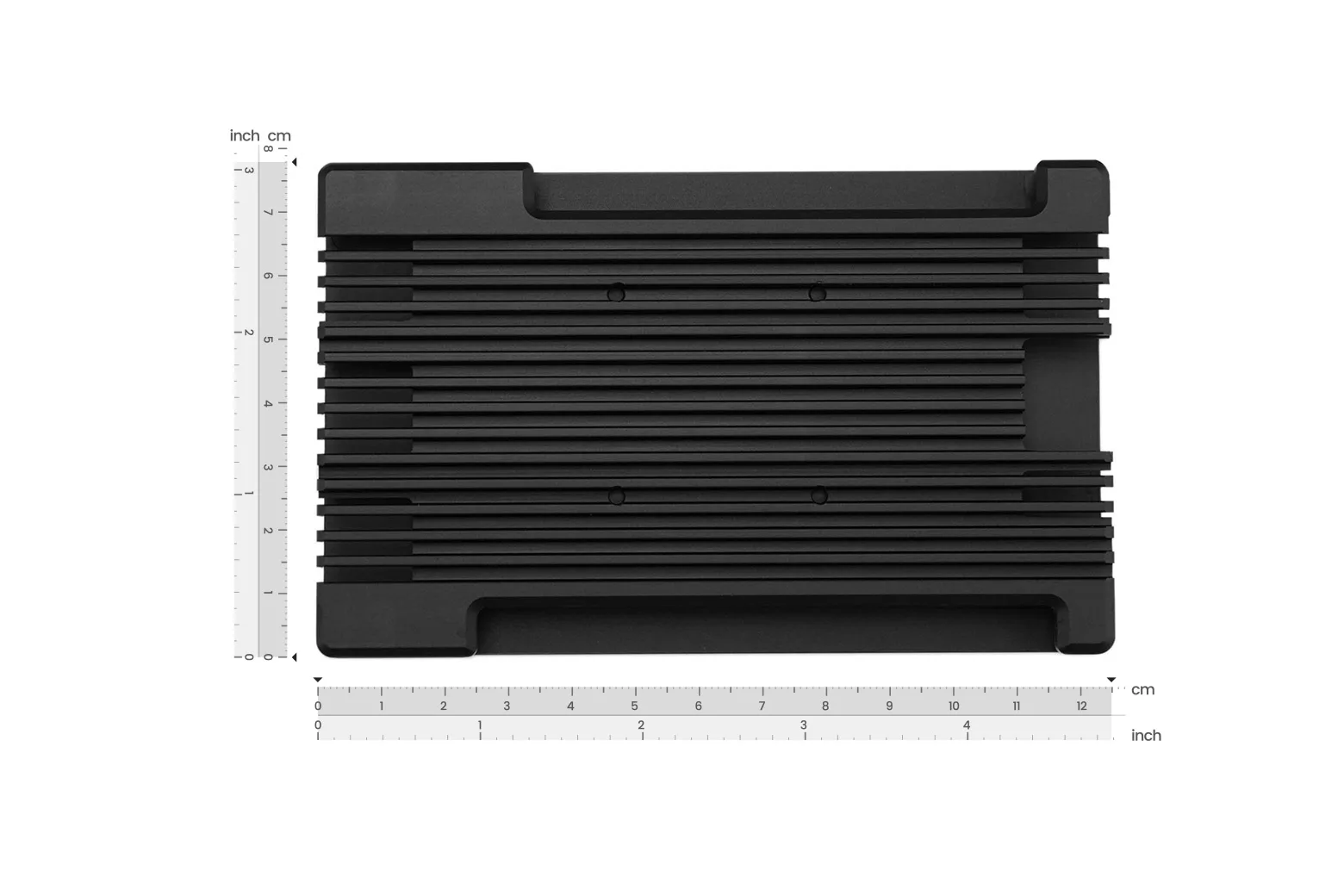

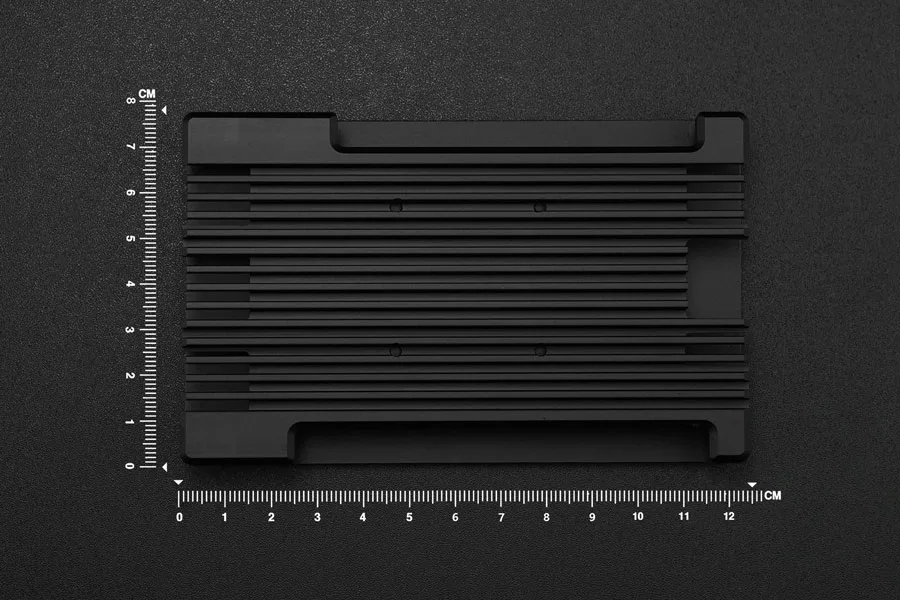

With dimensions of 125 x 78 x 18 mm, the case delivers robust physical protection in a compact footprint. Note that the LattePanda's pre-installed stock fan must be removed prior to installation.

Included package contents

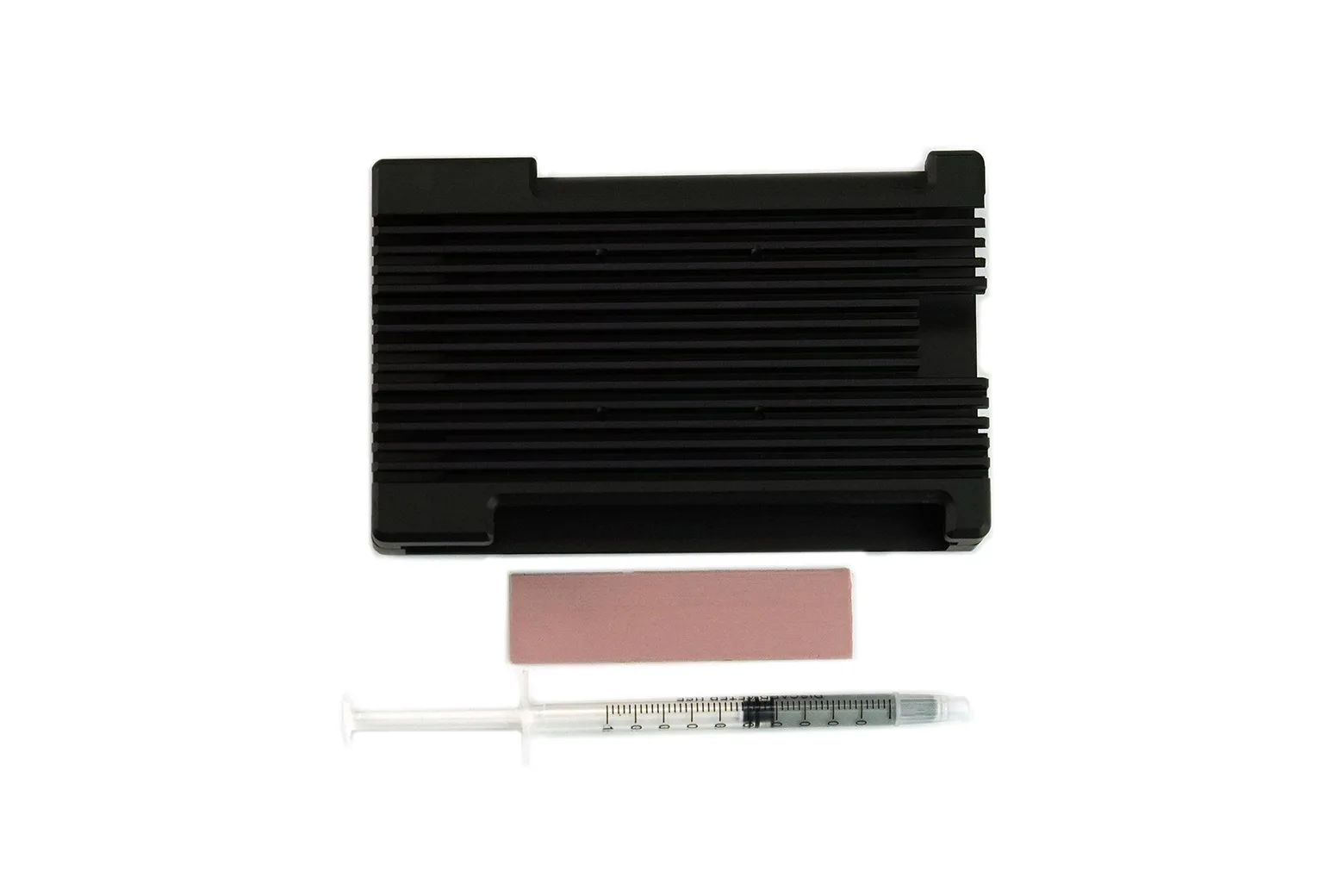

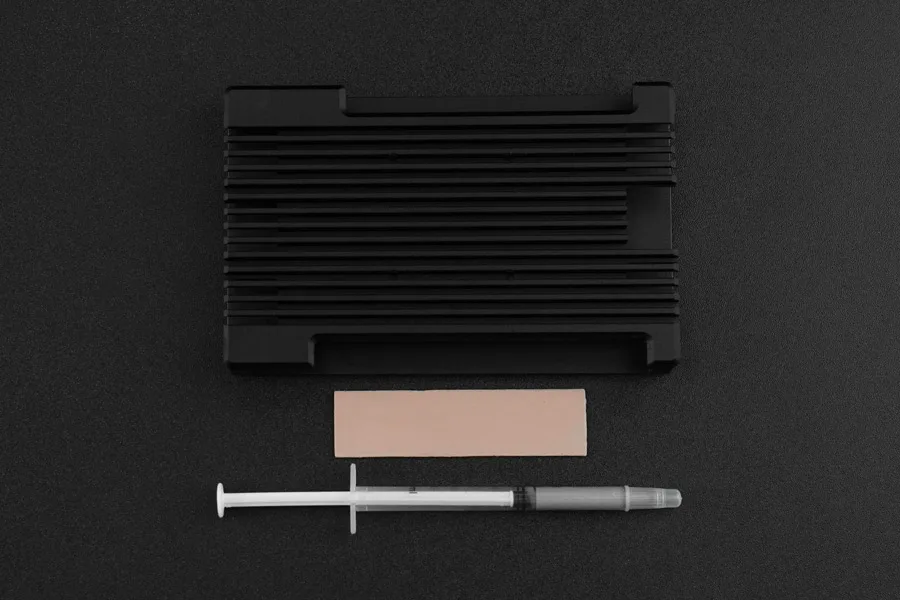

The kit includes one aluminium alloy passive cooling case, one 70 x 18 x 1 mm M.2 SSD thermal silicone pad, and 1 g of thermal silicone grease.
