ADUM3160 USB to USB Isolator Module, 1500V/2500V, 12 Mbps
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
This USB to USB isolator protects your computer port and connected equipment from ground loops, electrical noise, and voltage spikes. It provides full-speed 12 Mbps isolation powered directly from the host USB port without requiring extra drivers. It is ideal for makers, hobbyists, and students working with sensitive development boards and lab instruments.

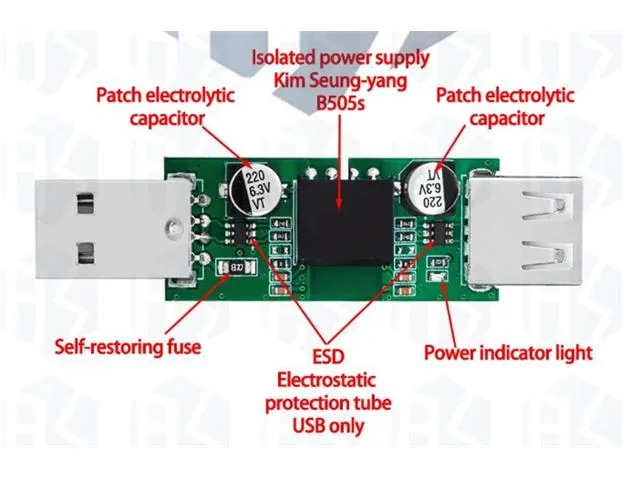

Electrical isolation and protection
The module features an ADUM3160 isolation voltage rating of 2500V and an integrated power module isolation voltage of 1500V. This protects host systems against harmful interference and potential surges during bench testing.
Plug and play operation
No external drivers are required for setup, making it driver-free and easy to use across compatible systems. Power is supplied directly from the host computer's USB port.
Data transfer capabilities
It operates at USB 2.0 full speed (12 Mbps) and supports control, batch, interrupt, and sync/isochronous transfer modes. Please note that it does not support pure high-speed equipment.
Compact and robust design
Measuring 15mm x 25mm x 66mm, the compact dongle operates reliably across an operating temperature range of -40 °C to 85 °C.
Specifications
| Device | Isolator |
| Type | USB to USB |
| Interface | AM-AF (USB Type-A Male to USB Type-A Female) |
| Compatibility | USB 2.0 (Full Speed 12Mbps) |
| ADUM3160 Isolation Voltage | 2500V |
| Power Module Isolation Voltage | 1500V |
| Power Supply | Taken from the computer host USB port |
| Operating Environment | -40 °C to 85 °C |
| Dimensions | 15mm x 25mm x 66mm |
