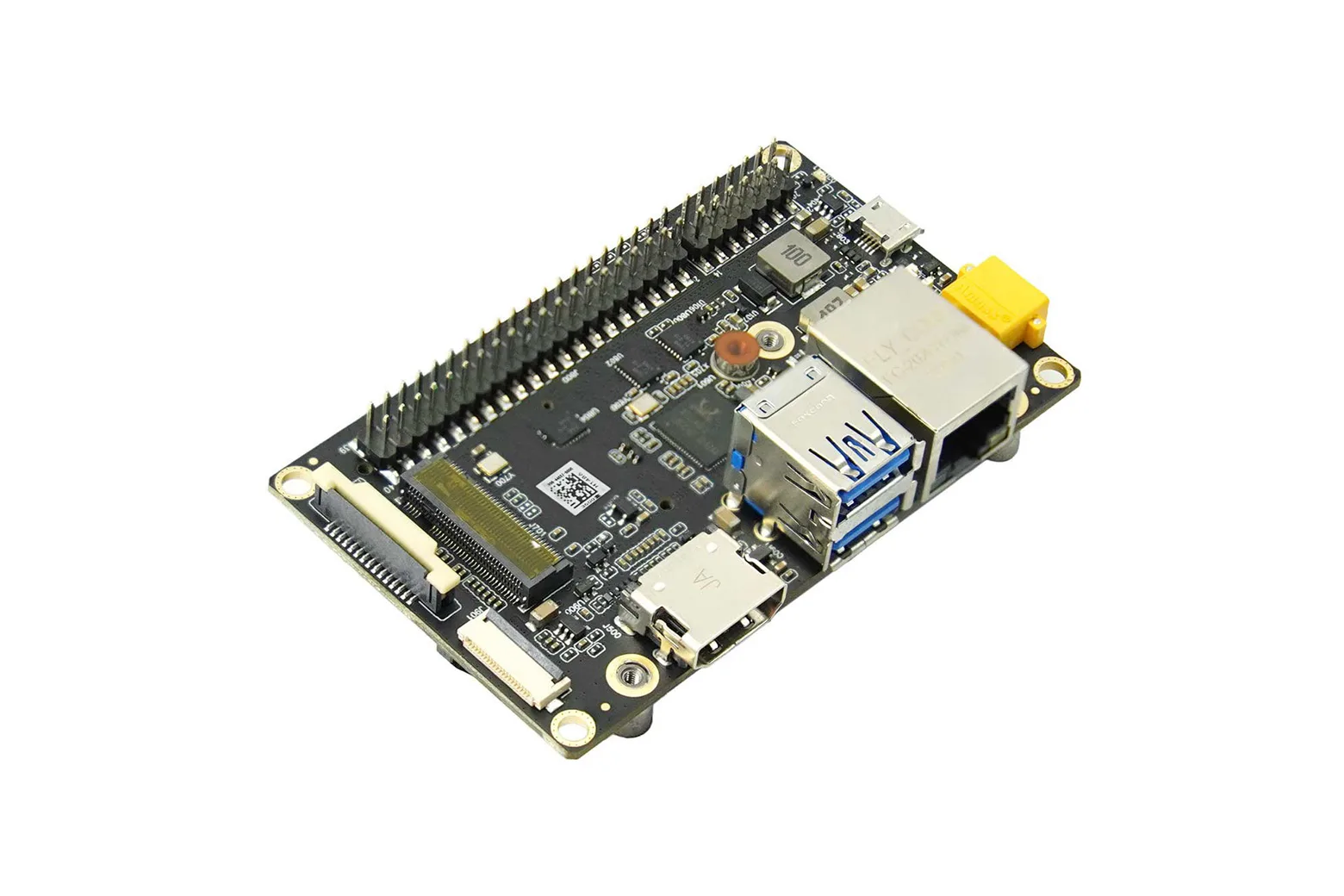

A603 Carrier Board for NVIDIA Jetson Orin NX / Nano (Support WiFi, Bluetooth, SSD)

The A603 Carrier Board is a compact expansion baseboard engineered for NVIDIA Jetson Orin NX and Jetson Orin Nano modules. It provides rich I/O connectivity, high-speed networking, and storage expansion within a space-saving 87 x 52 x 26 mm footprint. It is well-suited for makers, educators, and engineers developing robotics, drones, smart IoT devices, and industrial automation systems.

Compact form factor and rugged design

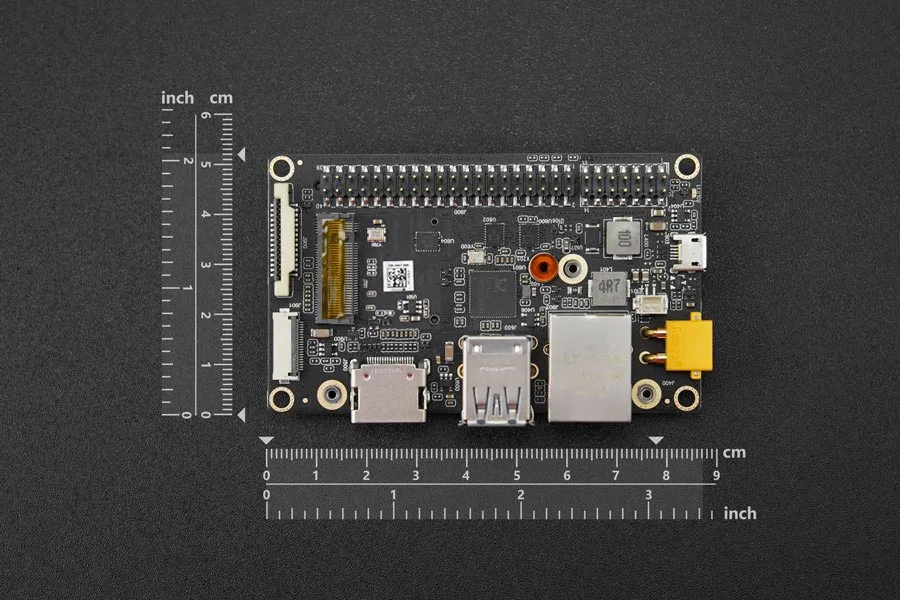

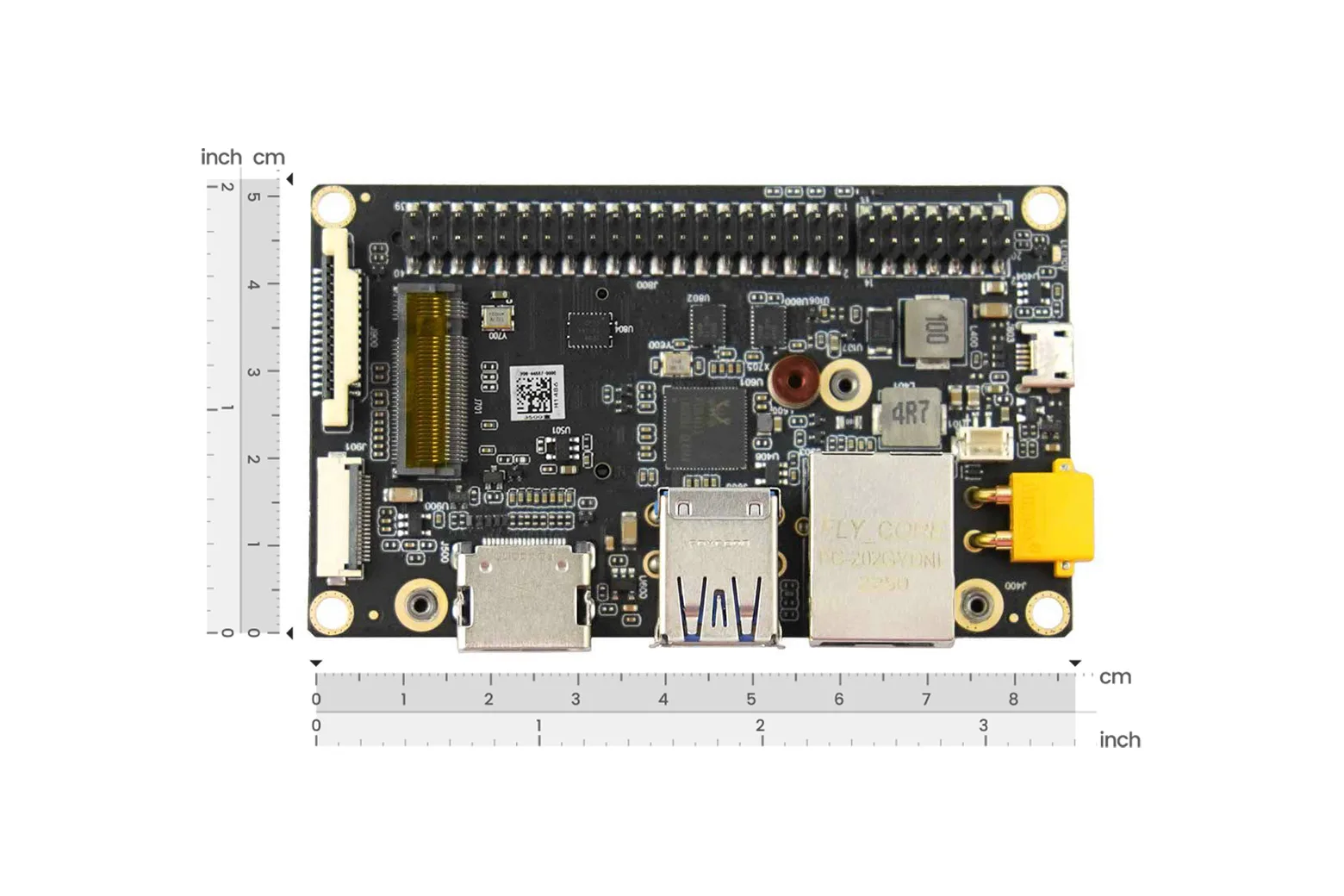

Measuring just 87 x 52 x 26 mm and weighing 100 g, the A603 fits easily into space-constrained projects like UAVs, unmanned boats, and mobile robots. It operates reliably across ambient temperatures from -25°C to 65°C.

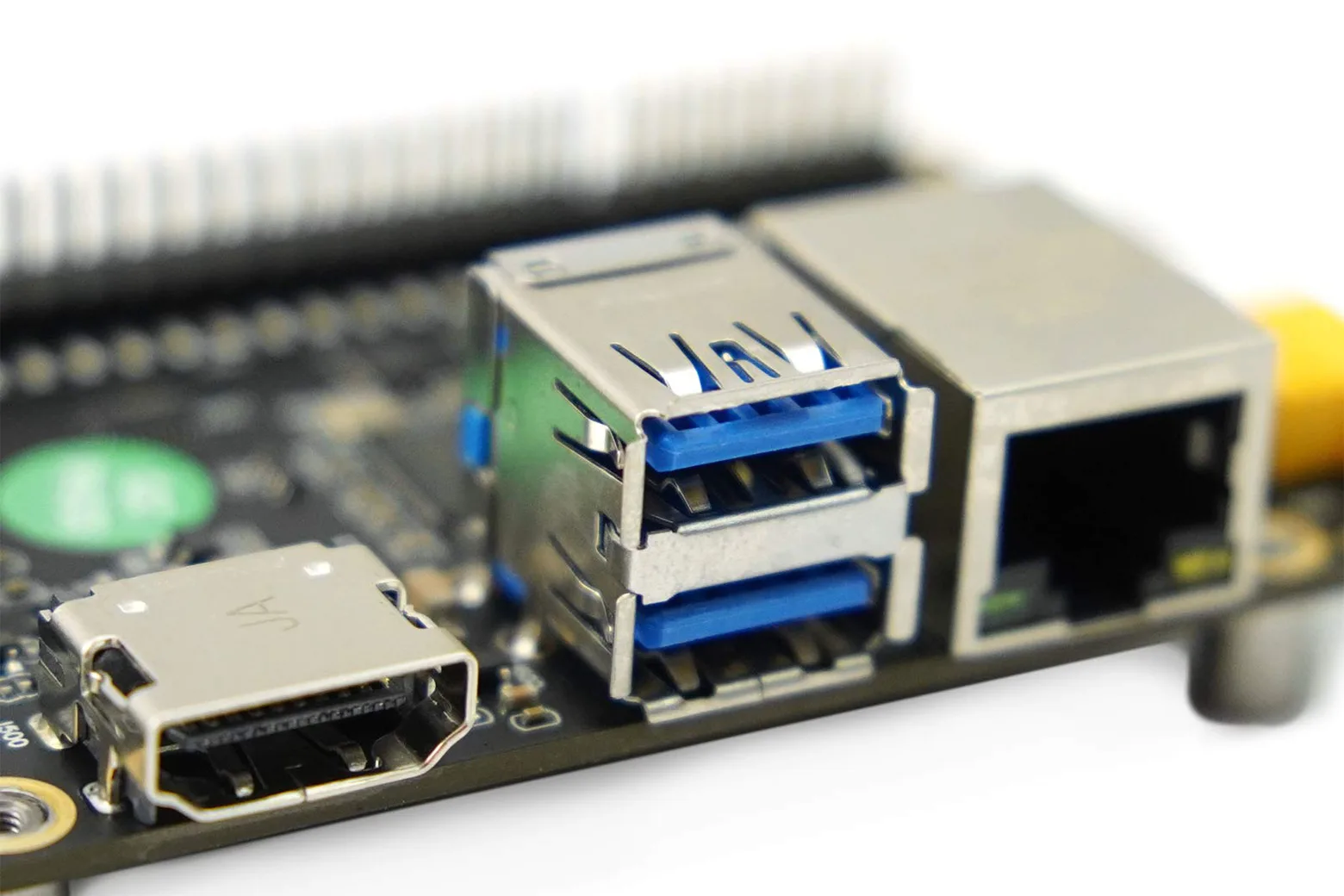

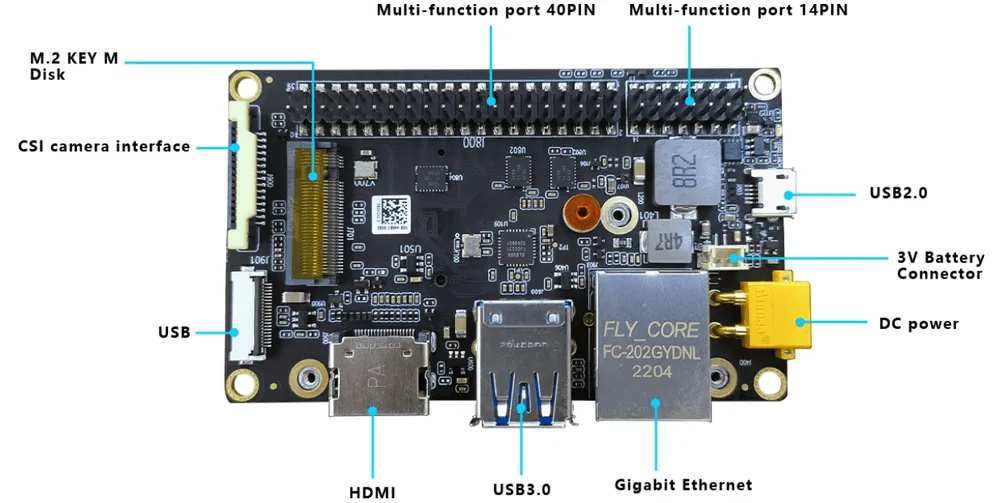

Gigabit Ethernet and versatile USB ports

The board is equipped with a 10/100/1000 Gigabit Ethernet port for high-bandwidth data transfer. Peripheral expansion is supported by two USB 3.0 Type-A ports, a 20-pin ZIF USB 3.0 interface, and a USB 2.0 Micro-AB port.

Camera input and HDMI display output

A 15-pin CSI connector allows direct connection of compatible camera sensors for vision and AI workloads. An onboard HDMI port supports external displays for digital signage, media playback, and live debugging.

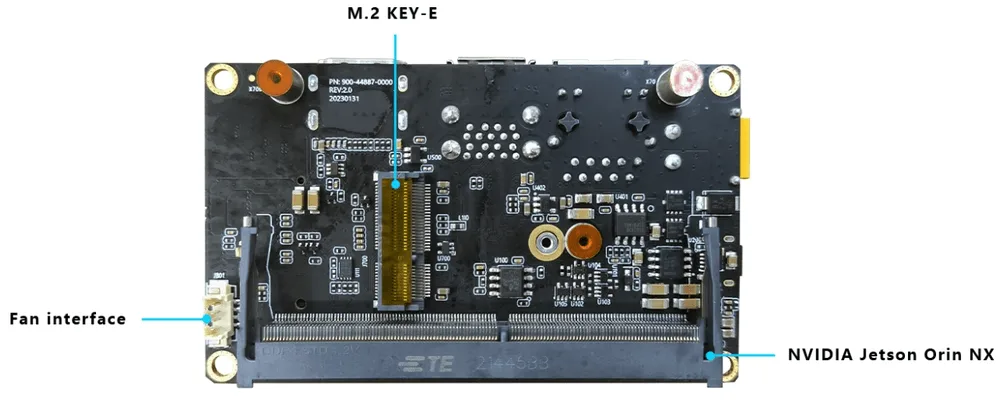

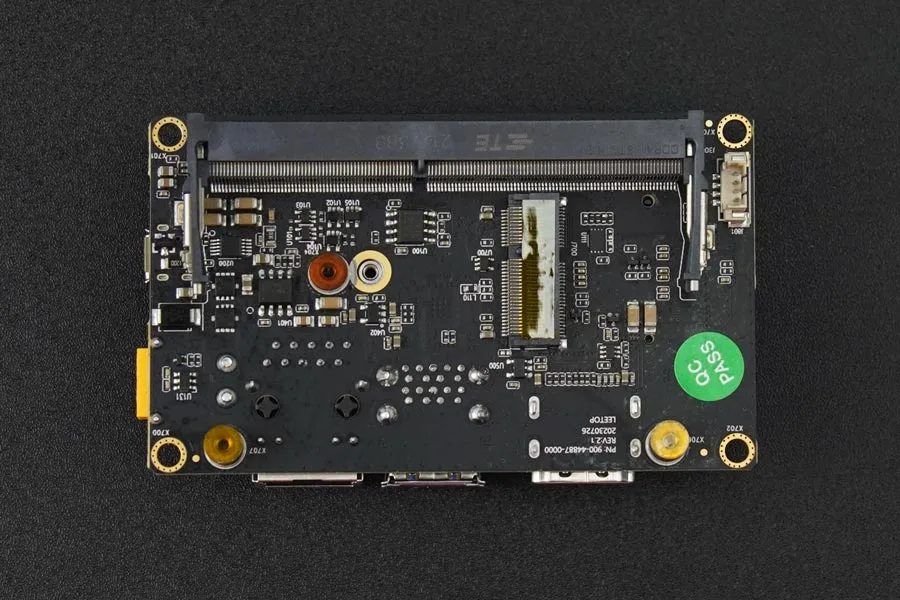

M.2 slots for NVMe SSD and wireless

High-speed local storage is provided via an M.2 Key M slot supporting 2242-sized NVMe SSDs. An M.2 Key E 2230 PCIe slot allows the addition of Wi-Fi and Bluetooth wireless modules.

Industrial bus interfaces and flexible power

The board features CAN bus, I2S audio, dual I2C, single UART, dual SPI, and six GPIO pins for extensive sensor integration. It accepts a wide 9V to 19V DC input and includes an onboard 5V PWM fan connector and RTC header.

Included hardware

The package includes one A603 Carrier Board for NVIDIA Jetson Orin NX/Nano and one 90W 19V DC power adapter. Note that the mains power cable is not included and must be supplied separately.
