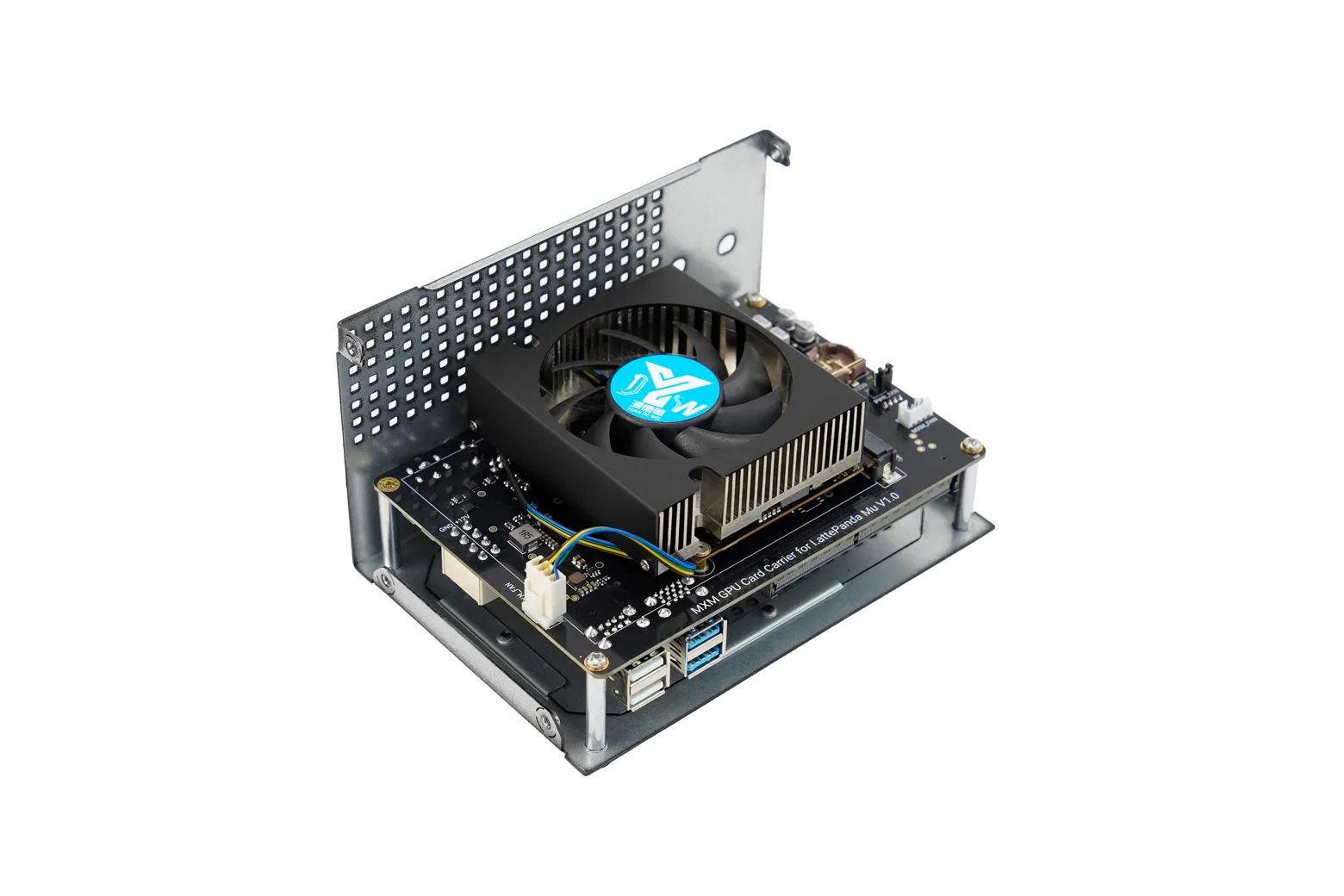

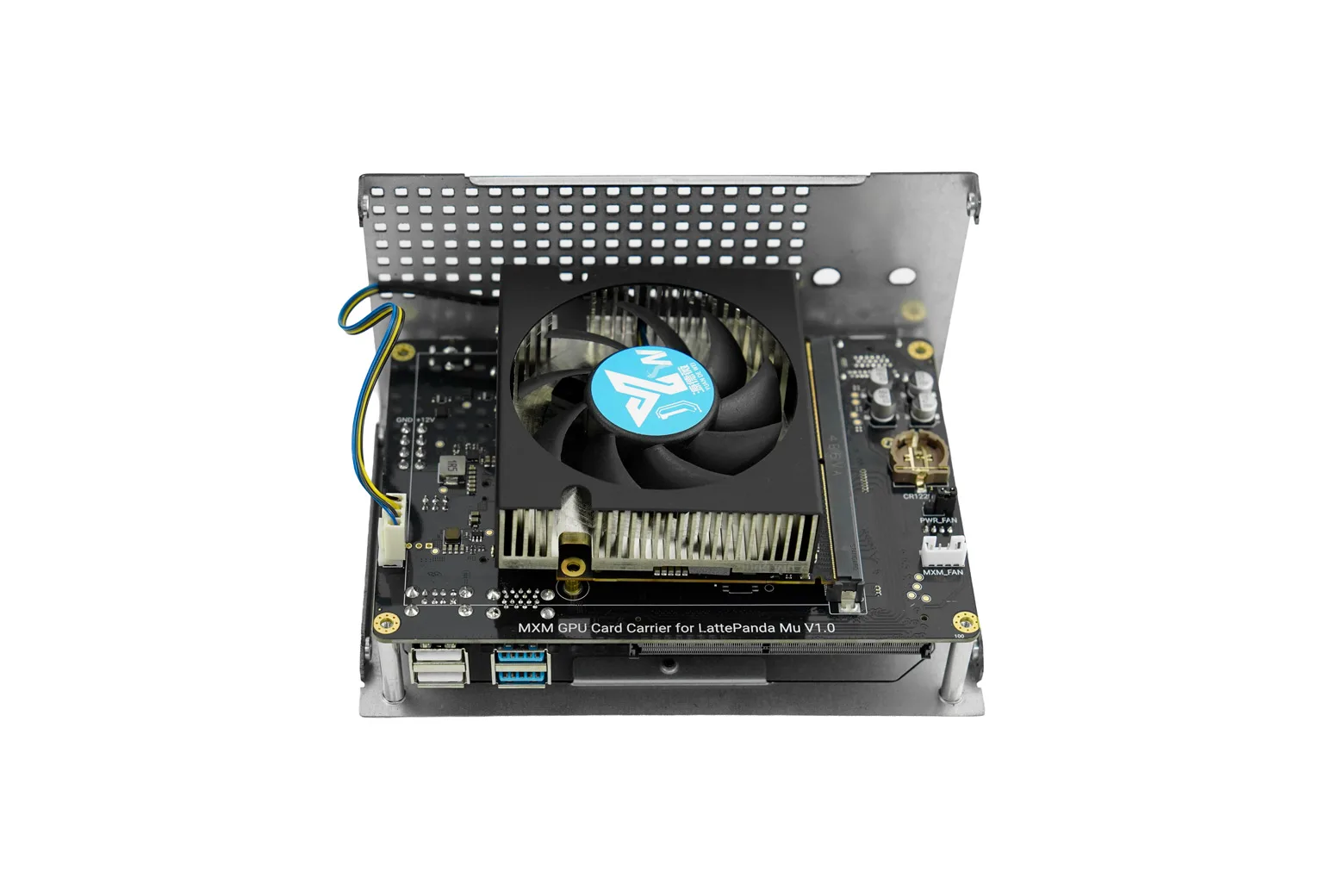

A380 MXM GPU Carrier Board Kit for LattePanda Mu (Edge Intelligence & 6x 4K Output)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
The A380 MXM GPU Carrier Board Kit transforms the LattePanda Mu into a compact, high-performance edge computing platform with discrete graphics. Equipped with an Intel Arc A380 6GB MXM card, it delivers dedicated parallel processing and six independent 4K video outputs. This modular kit is ideal for makers and engineers developing local AI inference nodes, digital signage video walls, and multi-stream machine vision setups.

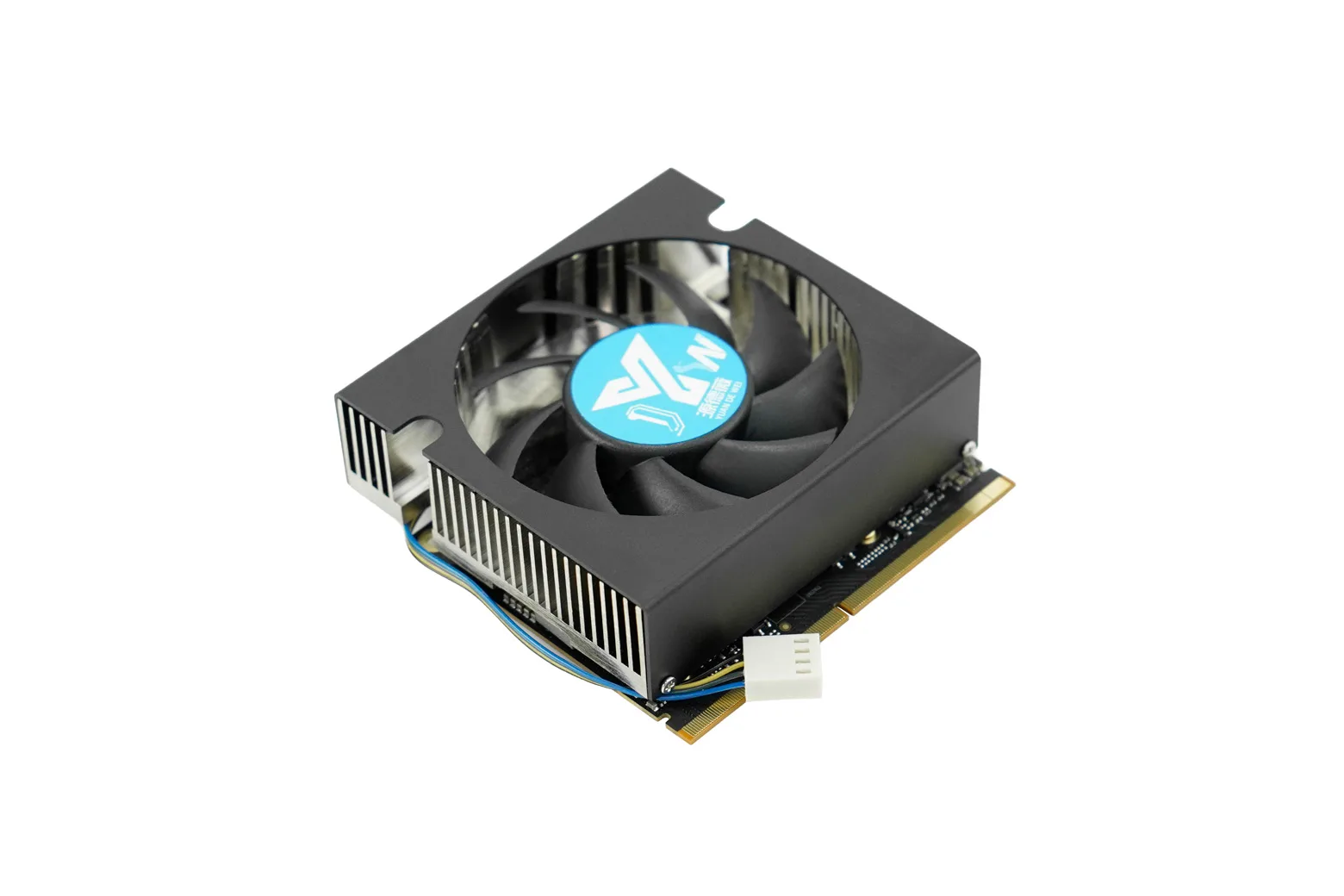

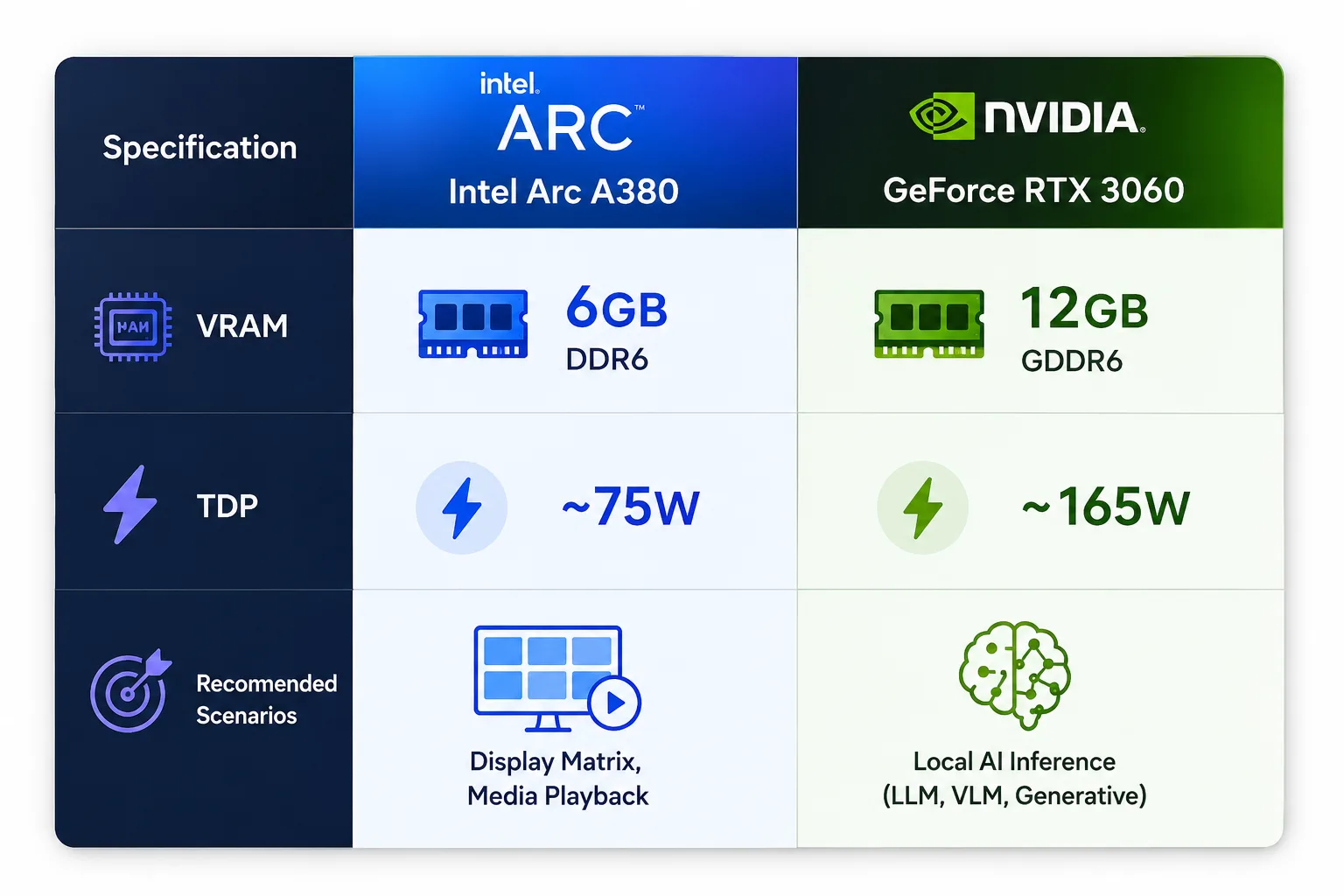

Discrete graphics and edge AI
Featuring an Intel Arc A380 MXM graphics card with 6GB VRAM, this kit provides dedicated hardware decoding and acceleration for localised artificial intelligence. It handles real-time neural network inference and can locally run INT4-quantised large language models of around 3 billion parameters.
Six-channel 4K video outputs
The carrier board supports six simultaneous 4K displays at 60Hz across three HDMI and three DisplayPort outputs. This multi-screen capability eliminates the need for bulky external PCIe expansion chassis in high-density digital signage and interactive media installations.

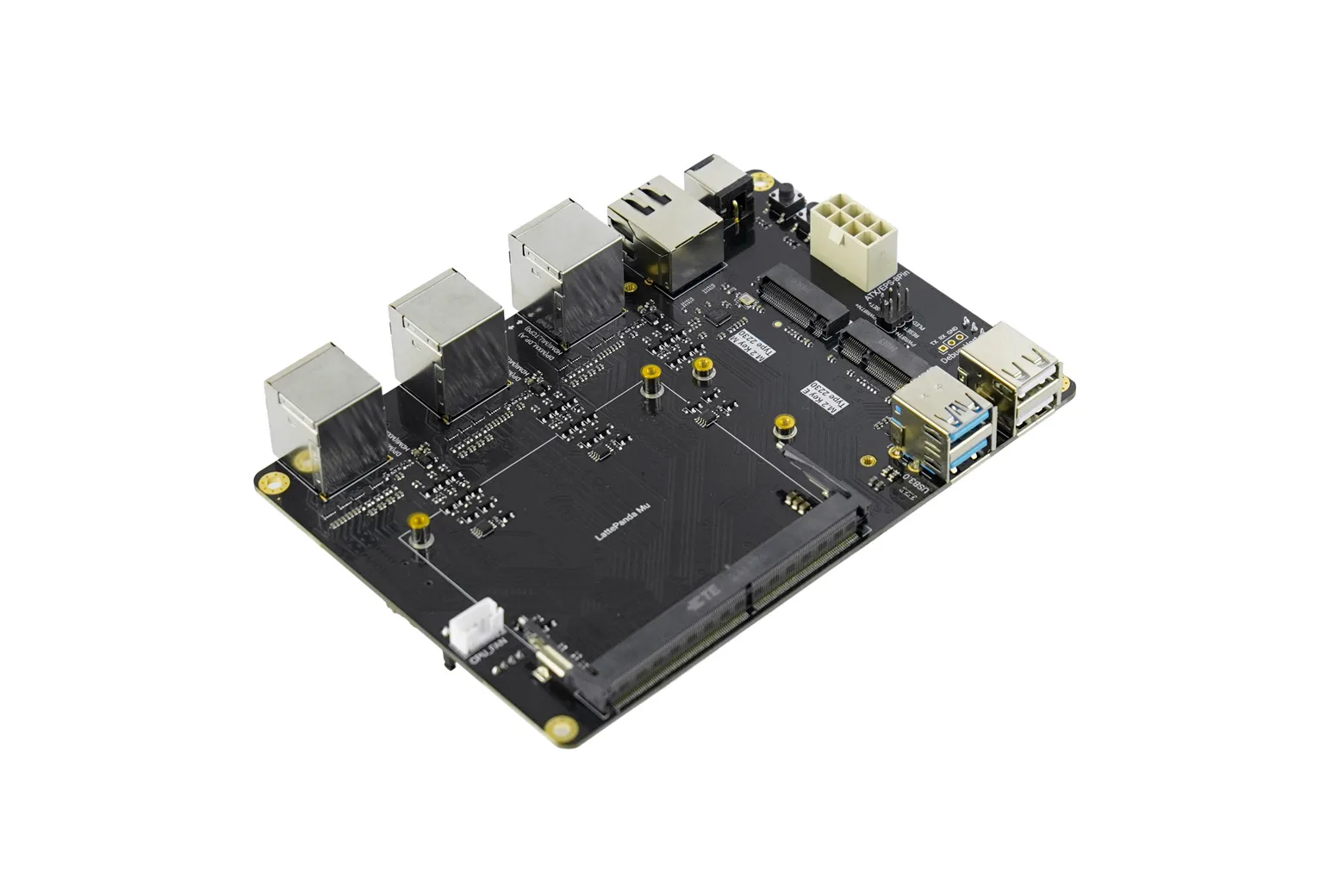

Decoupled modular compute architecture
The carrier features an integrated slot for LattePanda Mu compute modules, allowing you to scale CPU performance independently using processors like the Intel N100 or Core i3-N305. Please note that the LattePanda Mu compute module is not included and must be purchased separately.
Flexible connectivity and M.2 expansion
External I/O includes two USB 3.2 Gen2 ports, two USB 2.0 ports, and a Gigabit RJ45 Ethernet interface. Internal expansion is supported via an M.2 M-key 2230 slot for PCIe 3.0 x1 devices and an M.2 E-key 2230 slot for wireless or peripheral expansion.
Power safety and fan voltage setup
Power must be supplied using either the DC jack or the ATX 8-pin connector, but never both simultaneously as this will cause permanent board damage. A dedicated PWR_FAN jumper enables selectable 5V or 12V operation to properly match your cooling fan requirements.
Downloads & documentation
Specifications
| Compute Module | LattePanda Mu Slot |
| GPU Module | MXM 3.0/3.1 (Type A/B Compatible) |
| HDMI | 3 x HDMI, Each supports 4K@60Hz (Mu iGPU 2-ch + MXM dGPU 1-ch) |
| DisplayPort(DP) | 3 x DP, Each supports 4K@60Hz (All from MXM dGPU) |
| M.2 M Key | 2230, PCIe 3.0 x1 |
| M.2 E Key | 2230, PCIe 3.0 x1 + USB2.0 |
| F_Front | PWRBTN, RESET, PLED (Standard 2.54mm Pitch) |
| CPU Fan | PH2.0-4P |
| MXM Fan | PH2.0-4P & PH2.5-4P |
| PWR_FAN Jumper | 2.54mm Pin Header (5V/12V selectable) |
| RTC | CR1220 battery holder |
| USB | 2 x USB 3.2 Gen2 + 2 x USB 2.0 |
| Ethernet | 1 x RJ45, 10/100/1000Mbps Auto-Negotiation |
| Carrier Board Size | 146 x 102mm |
| Overall Size | 159 x 107.5 x 88.5mm |

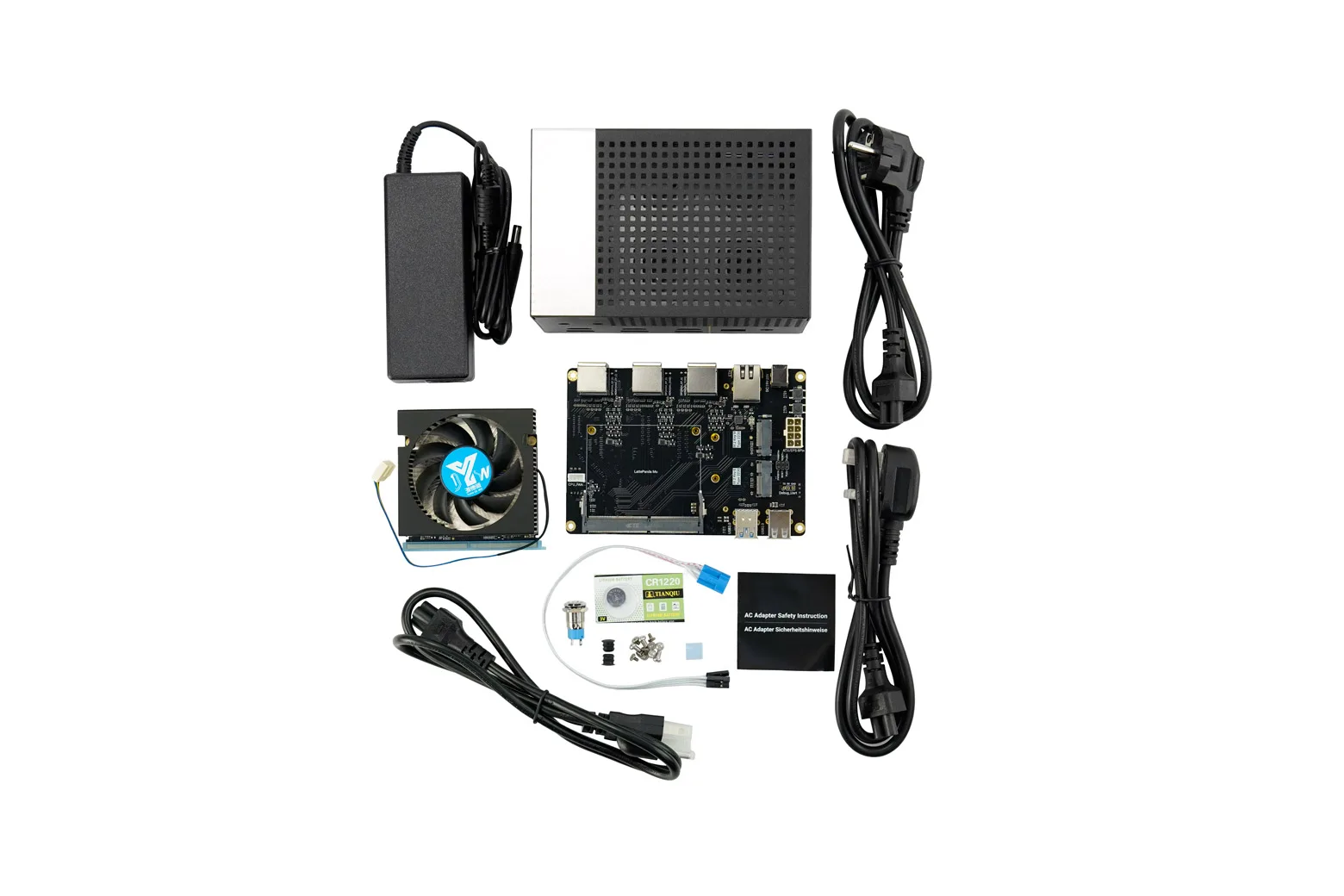

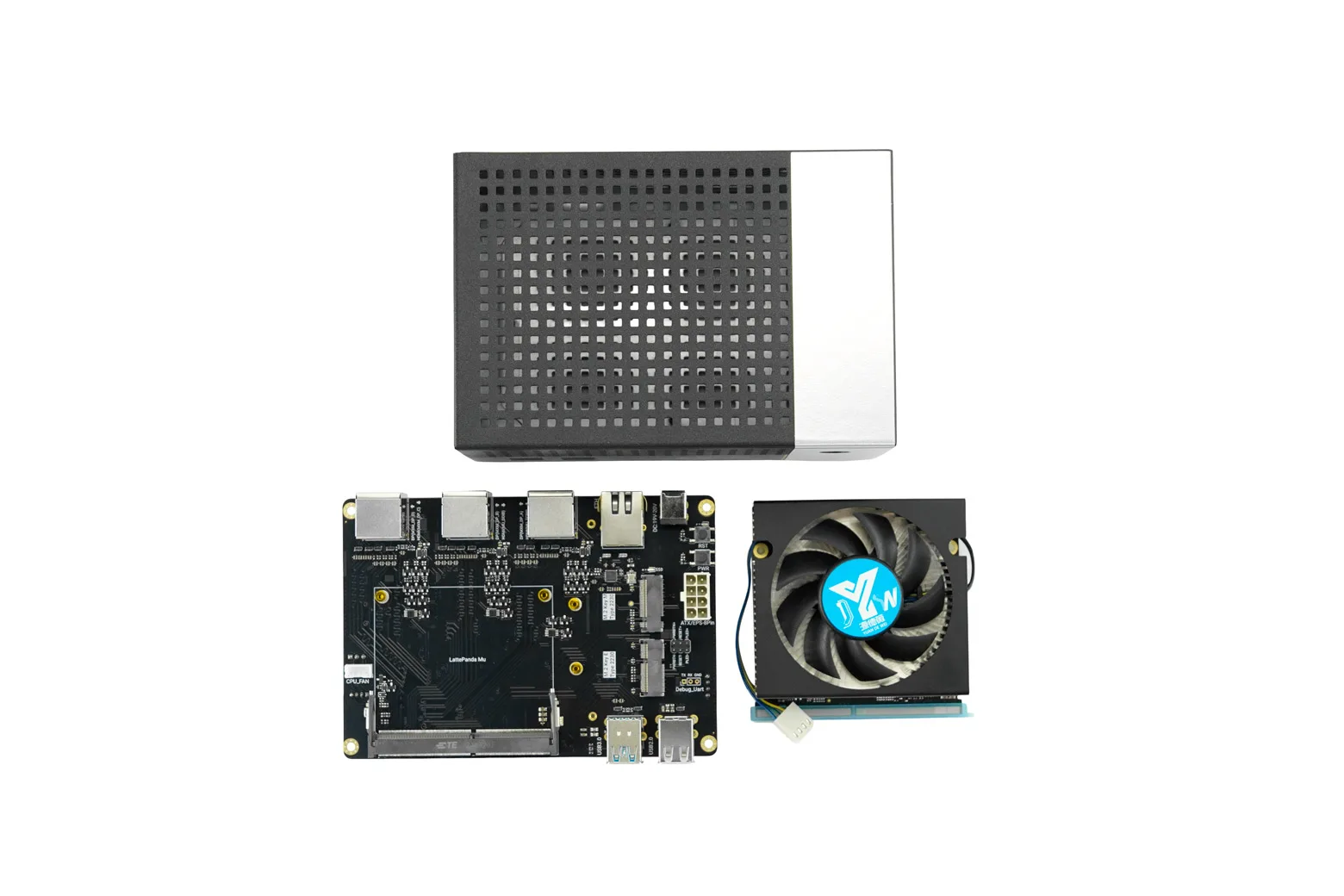

In the box
| LattePanda Mu GPU Carrier Board | 1 |
| Intel Arc A380 MXM Graphics Card x1 (Pre-assembled with cooling fan) | 1 |

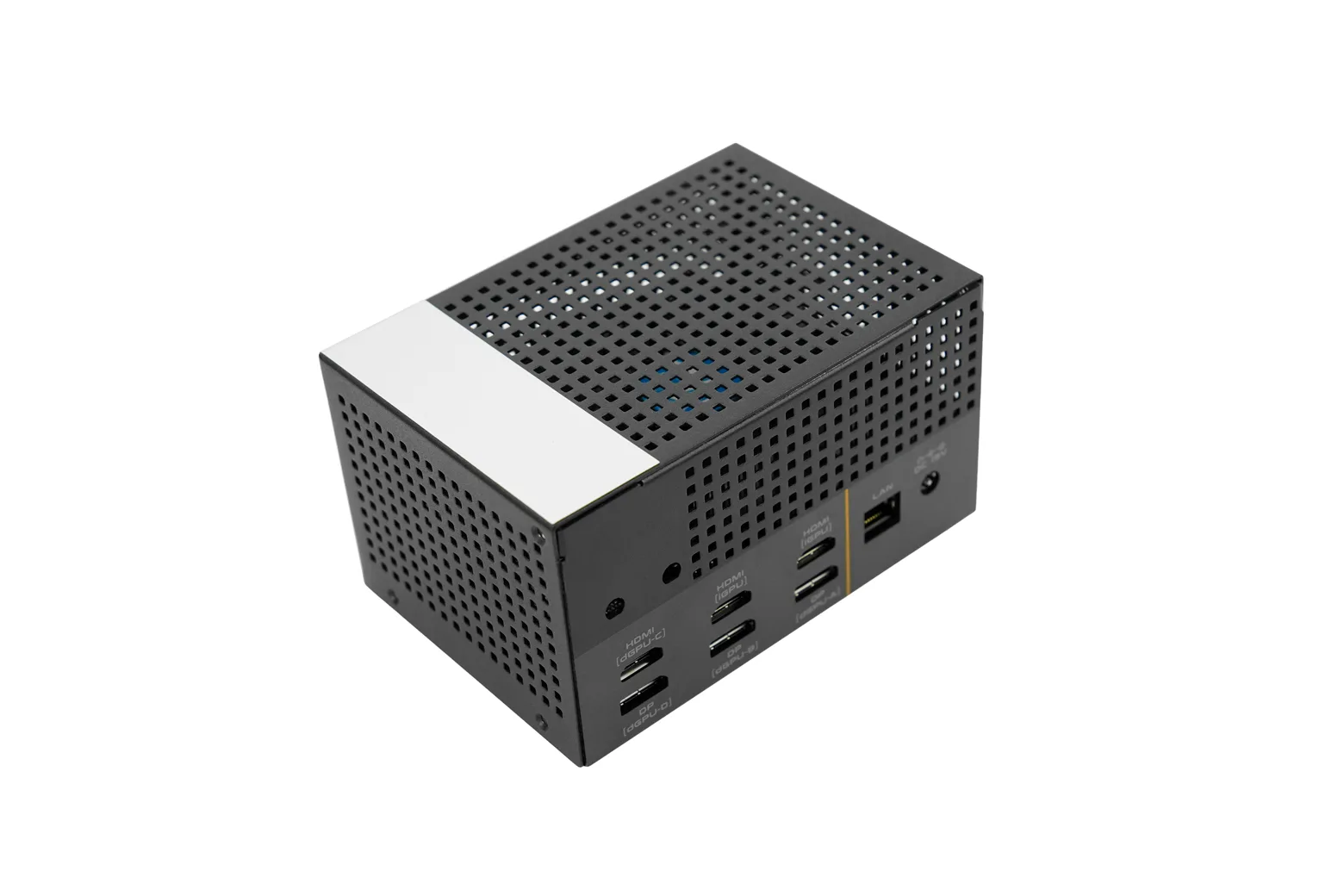

| Metal Enclosure | 1 |
| Power Adapter | 1 |
| AC Power Cords x3 (US/EU/UK standards included) | 1 |
| 12mm Metal Push-button Switch x1 (with integrated LED indicator) | 1 |
| Screw Pack | 1 |
| CR1220 RTC Battery | 1 |
| Thermal Pad (10x10x5mm) | 1 |
